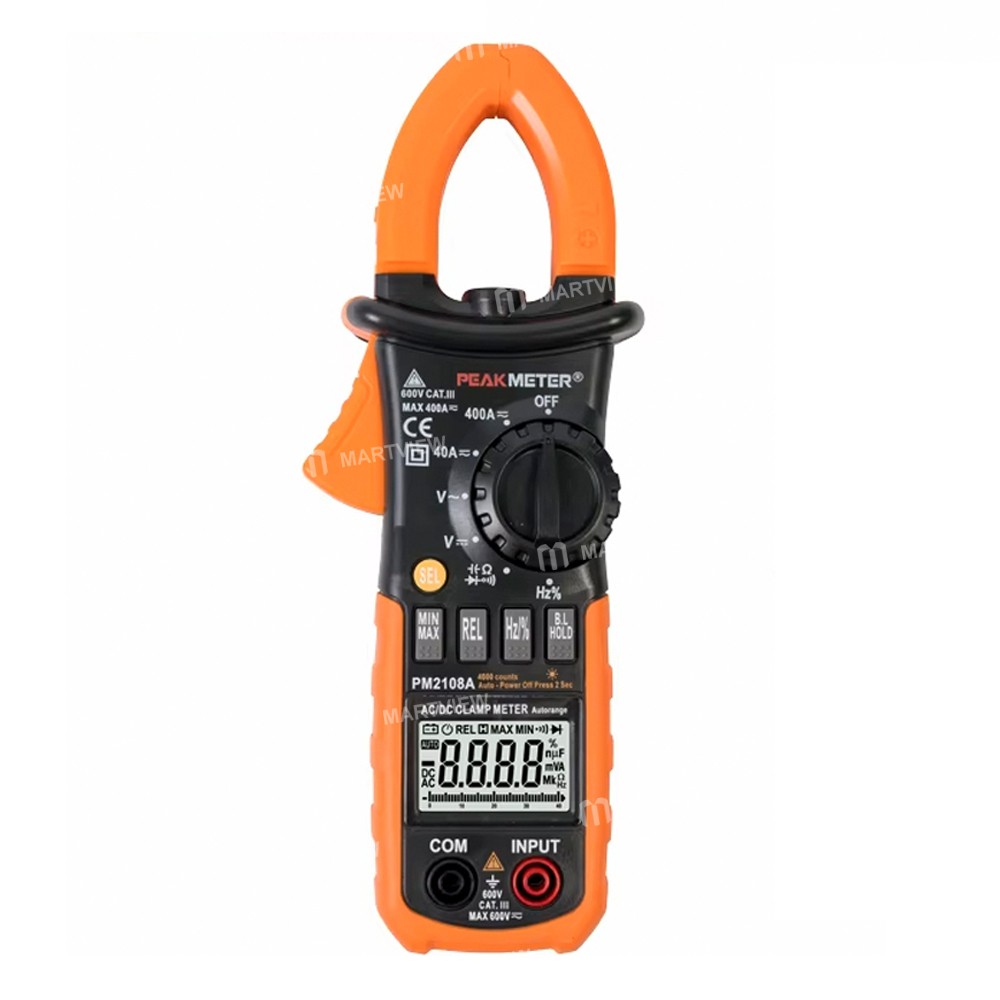

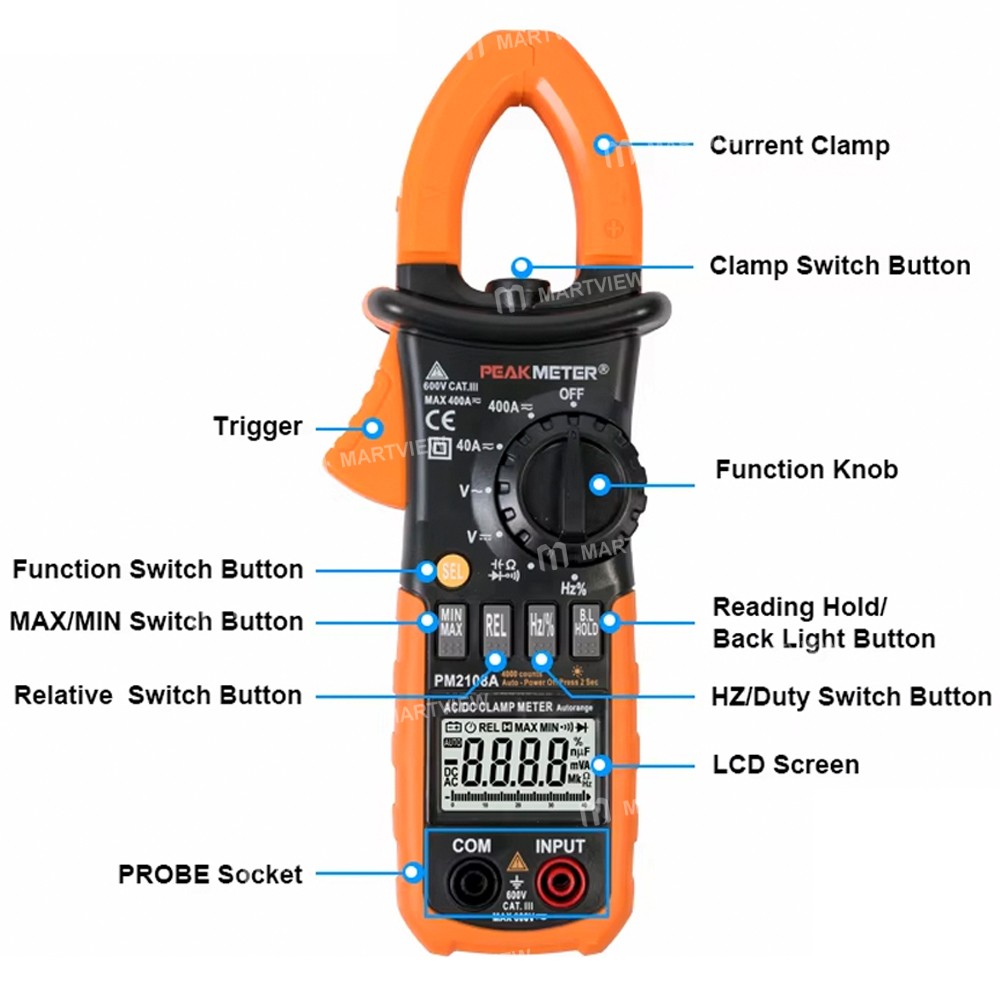

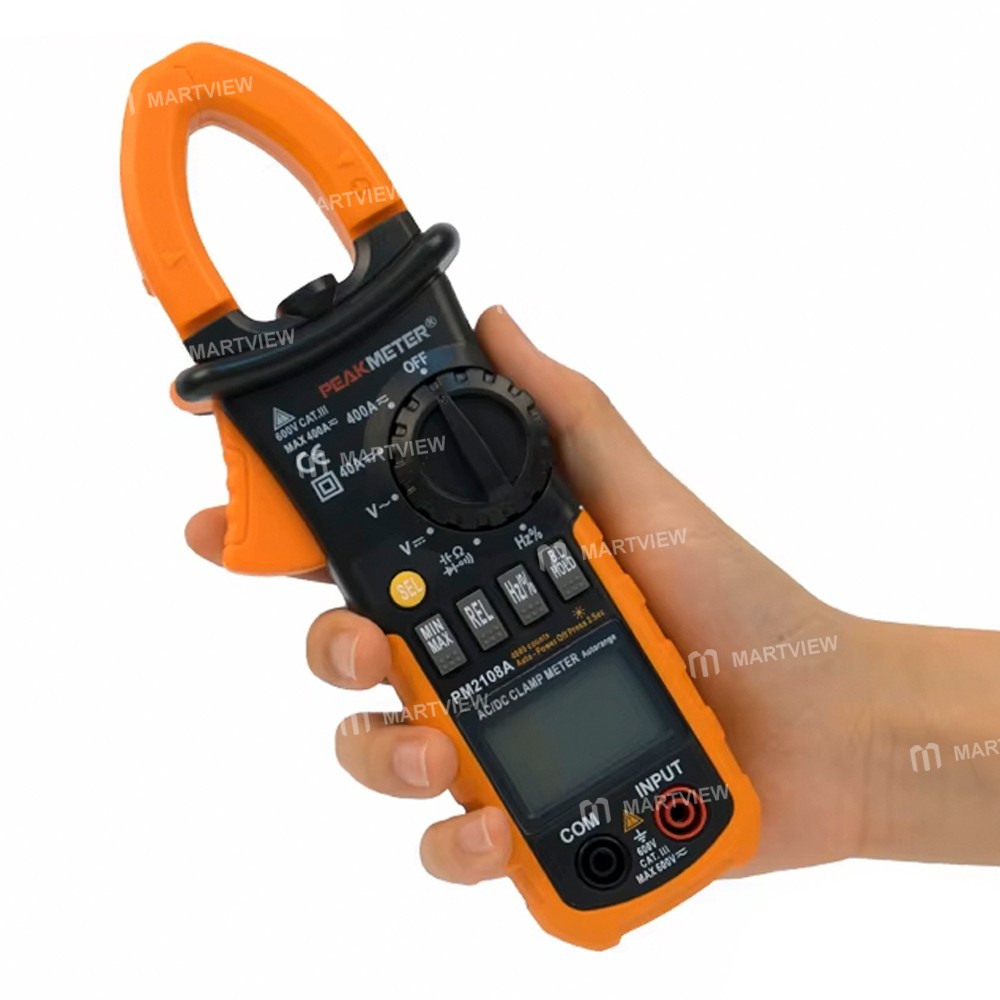

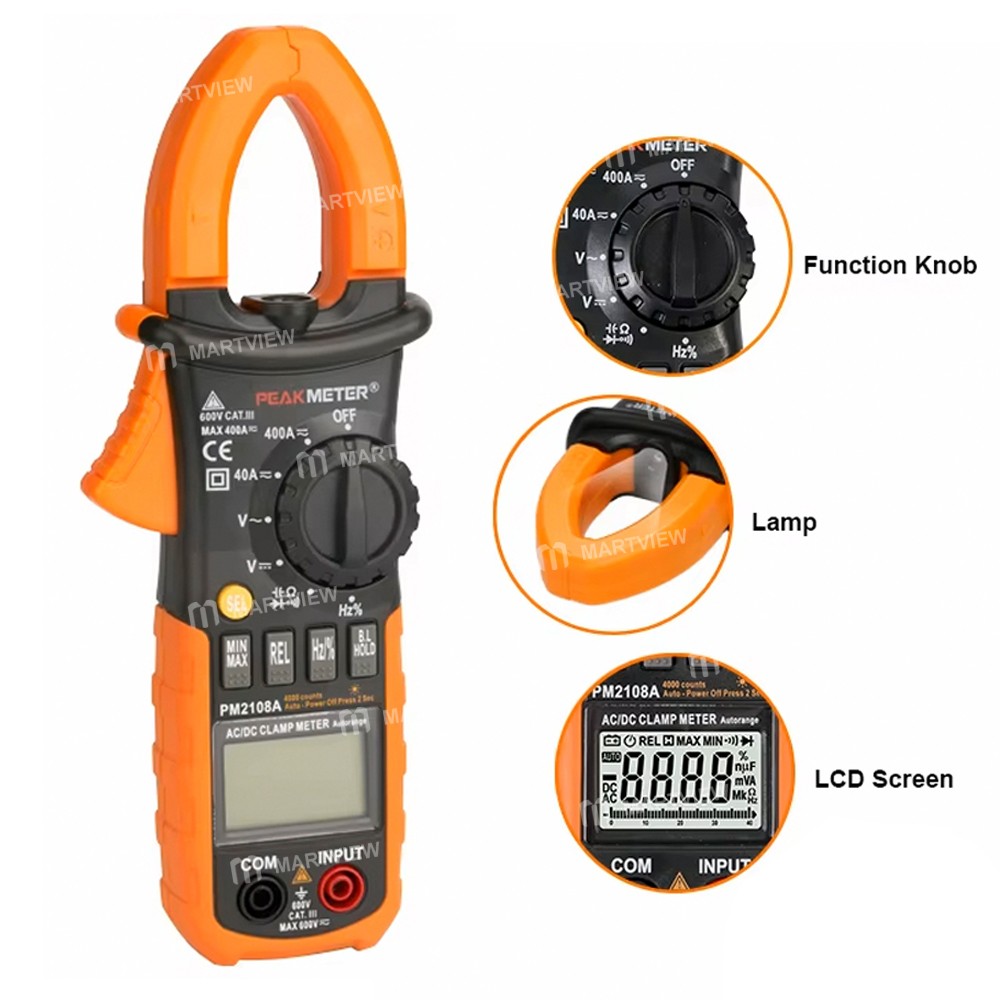

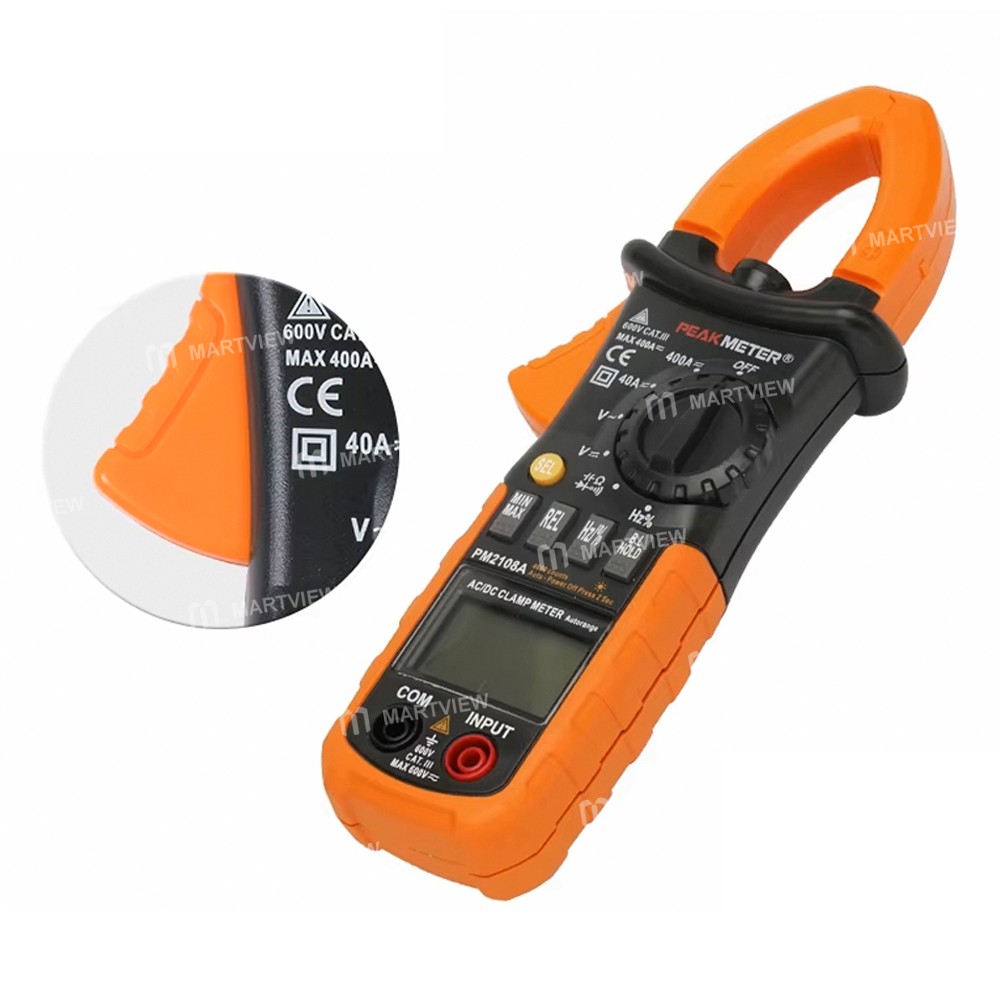

PEAKMETER PM2108A Digital AC / DC Clamp Meter – 4000 Counts

PEAKMETER PM2108A Digital AC/DC Clamp Meter 4000 Counts

Key Features:
- 4000‑count LCD display
- Auto & manual ranging
- Data hold, Max/Min value hold
- Built‑in work light & backlight
- Diode test & continuity check
- Powered by 3 × AAA (1.5 V) batteries (not included)
- Safety rating: CE, CAT III 600 V, RoHS compliant

Specifications:
DC Voltage: 400 mV / 4 V / 40 V / 400 V ± (0.8 % + 3) / 600 V ± (1.0 % + 5)
AC Voltage: 4 V / 40 V / 400 V / 600 V ± (1.0 % + 5)
AC Current: 40 A / 400 A ± (3.0 % + 10)
DC Current: 40 A / 400 A ± (3.0 % + 10)
Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ ± (0.8 % + 3) / 40 MΩ ± (1.2 % + 3)
Capacitance: 400 nF / 4 µF / 40 µF / 400 µF / 4000 µF ± (4.0 % + 5)
Frequency: 10 Hz ~ 10 MHz ± (0.5 % + 2)
Duty Cycle: 10 % ~ 95 % ± (3.0 % + 2)
Package Size: 23 × 11 × 6 cm (9.2 × 4.4 × 2.4 in)
Package Weight: 470 g (1 lb)

Package Includes:
1 × Digital AC/DC Clamp Meter
2 × Test Cables
