PEAKMETER MS2203 3‑Phase Clamp Meter – Power Factor Correction, USB Interface, True‑RMS, 4‑Wire Testing
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.2% |
Product details
Description
Description

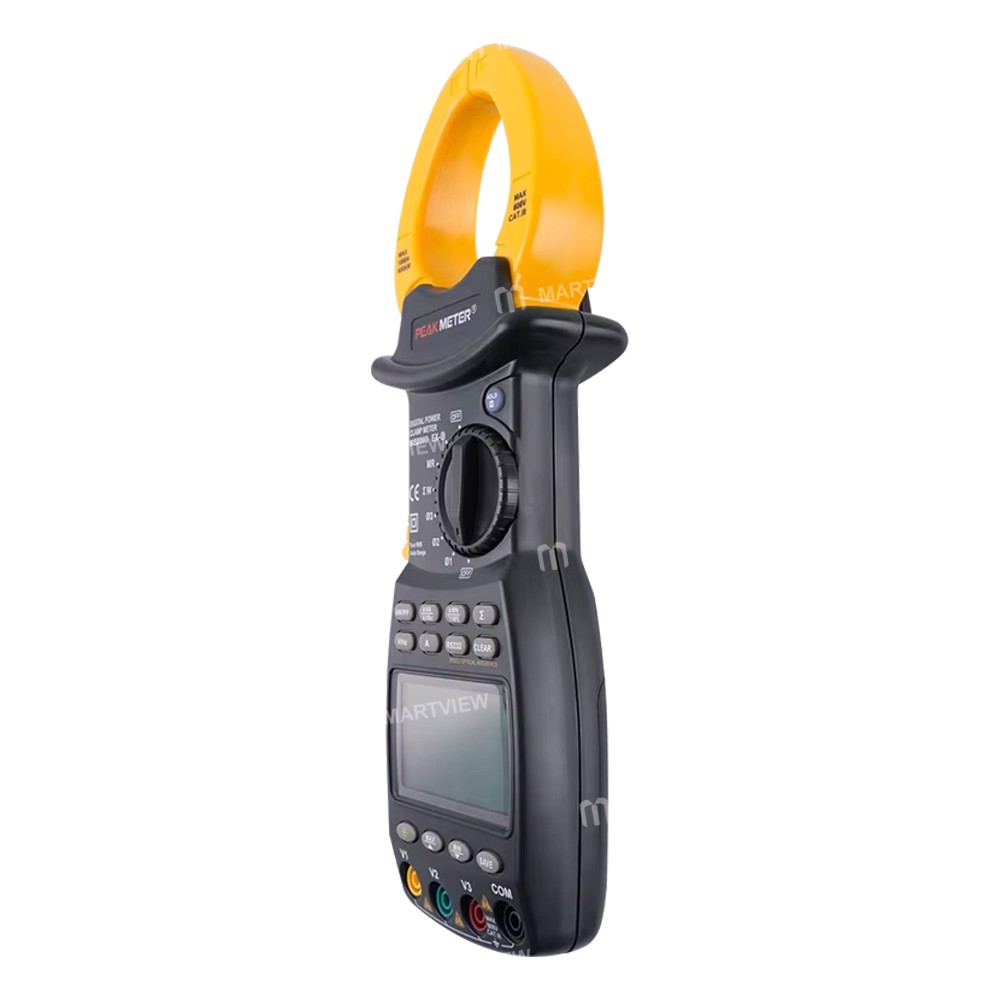

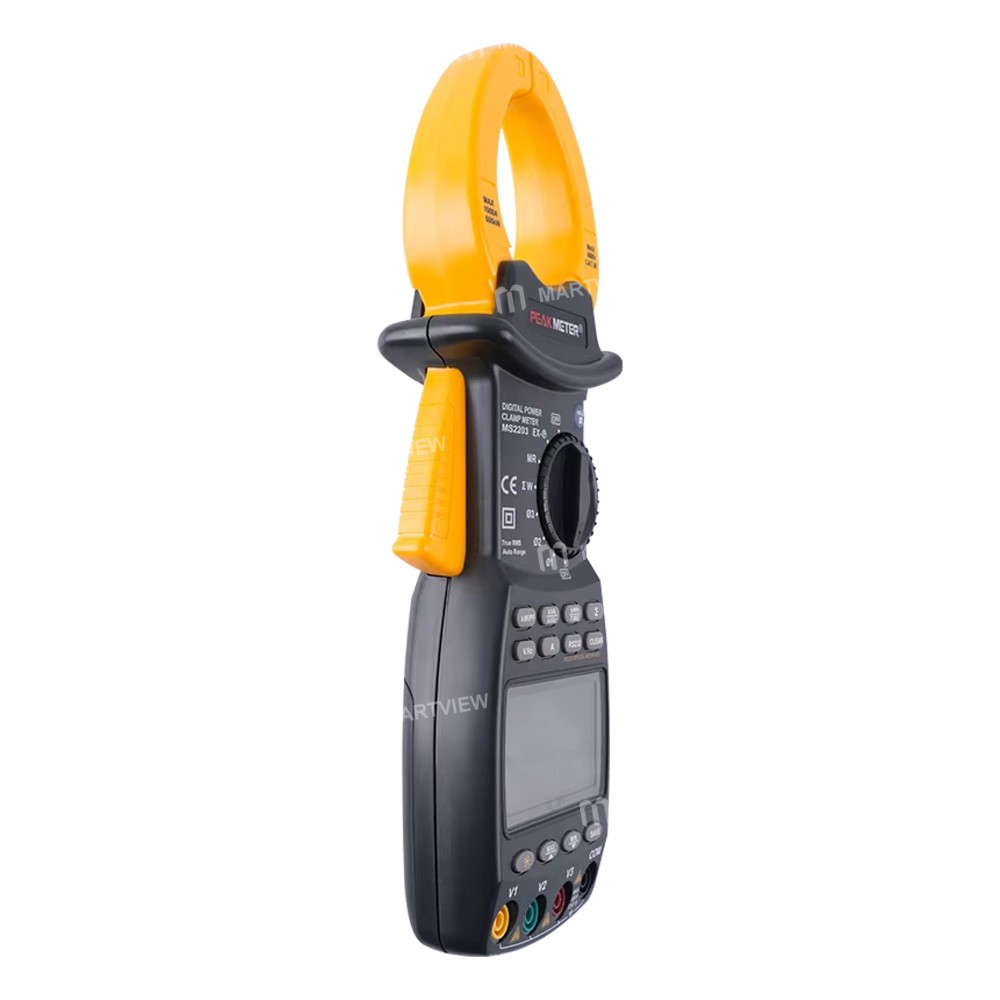

Three‑phase digital power clamp meter is a handheld instrument that combines current measurement and power analysis in one compact device. It features three channels—voltage, current and power—driven by a single‑chip microcontroller with advanced measuring and data‑processing software. The meter can accurately measure, calculate and display eight key parameters: Voltage, Current, Active Power, Power Factor, Apparent Power, Reactive Power, Active Energy and Frequency. Its stable performance and intuitive operation make it ideal for on‑site testing, maintenance and overhaul of electric power equipment and supply circuits. The clamp’s pincers are small, lightweight and portable, enabling fast and easy measurements in three‑phase systems.
Specifications:
AC Voltage: 0.1 ~ 600 V ±(1.2%+5)
AC Current: 0.1 A ~ 1000 A ±(2.0%+5)
Active Power: 0.1 kW ~ 600 kW ±(3.0%+5)
Apparent Power: 0.1 kVA ~ 600 kVA ±(3.0%+5)
Reactive Power: 0.1 kVAr ~ 600 kVAr ±(3.0%+5)
Power Factor: 0.3 ~ 1 ±(2.0%+2)
Active Energy: 0.001 kWh ~ 10 000 kWh ±(3.0%+2)
Frequency: 20 Hz ~ 1000 Hz ±0.5%
Features:
**Comprehensive three‑phase power analysis with true RMS measurement and data logging**
Auto Power Off √
Auto Ranging √
Max/Min √
Data Hold √
Display Back Light √

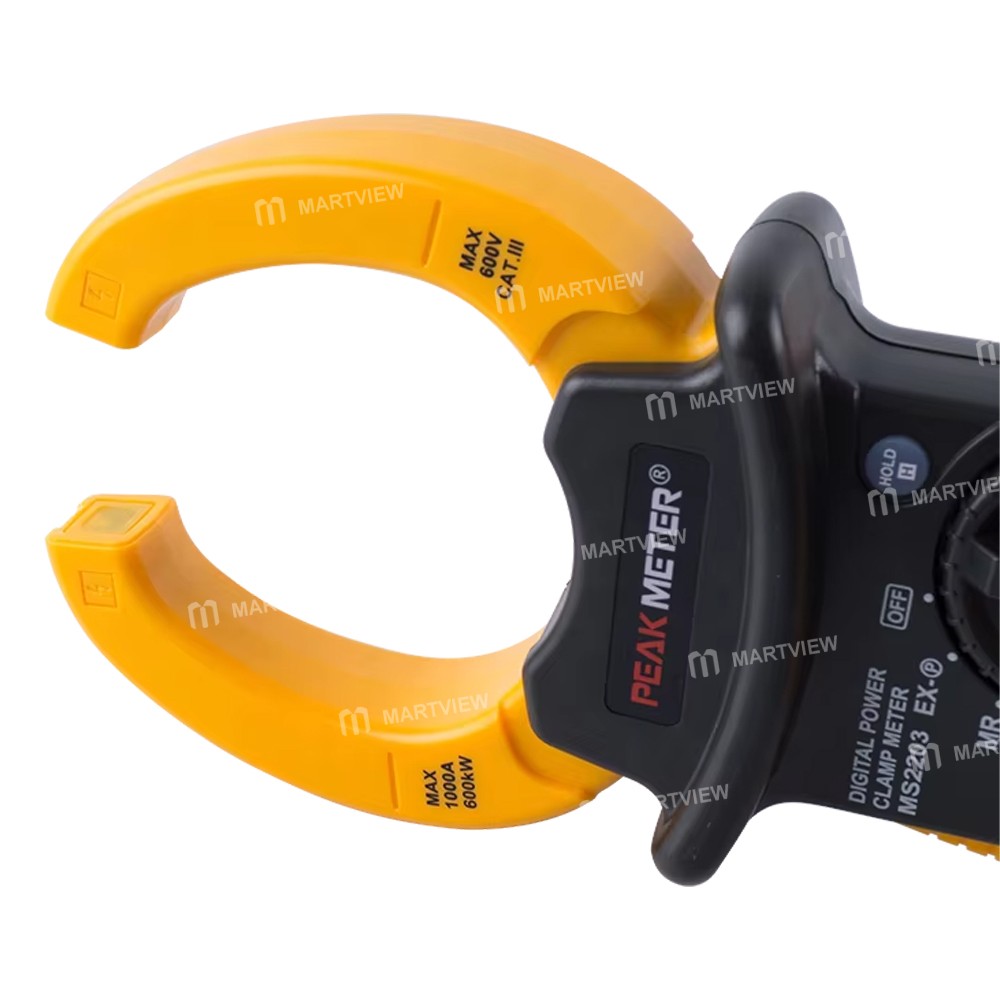

Jaw opening 50 mm / 2.0 in
Data logging & recall 28 groups
Low Battery indication (LBD) √
True RMS measurement √
Display 9999 counts

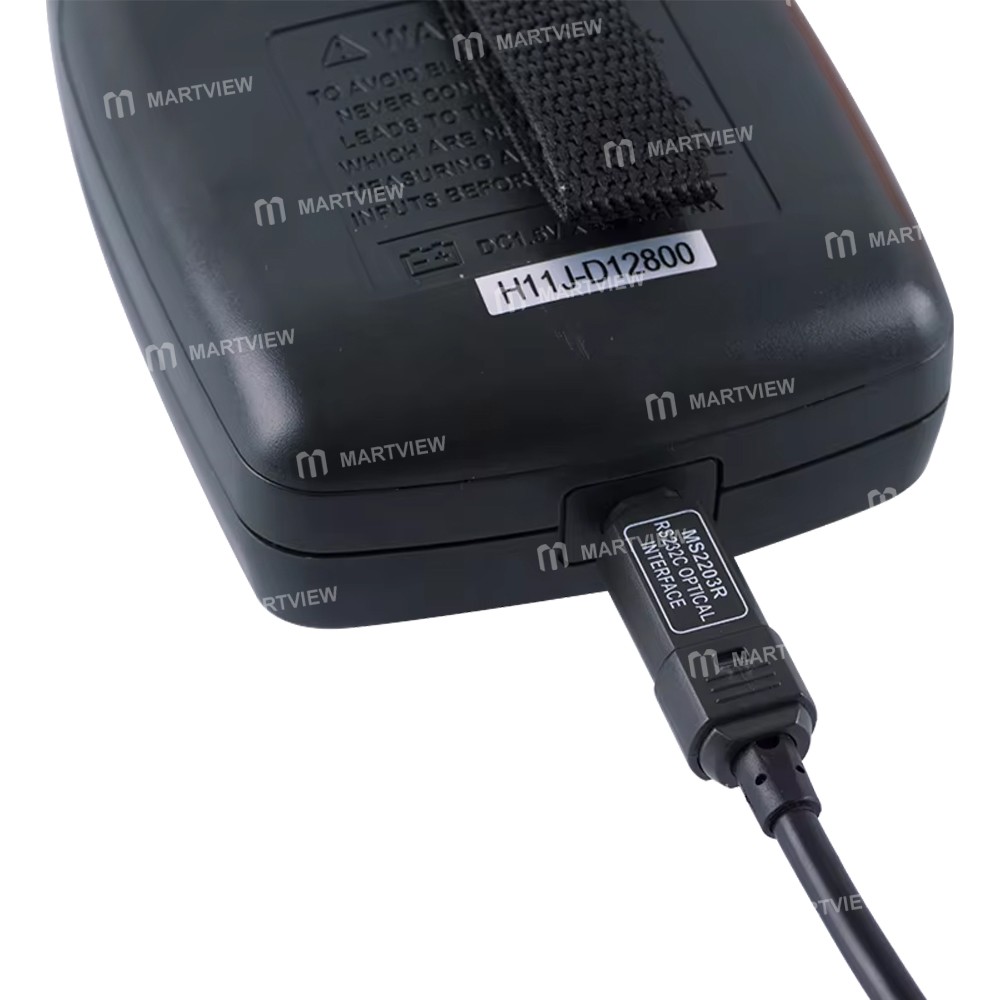

RS‑232 Interface √
General:

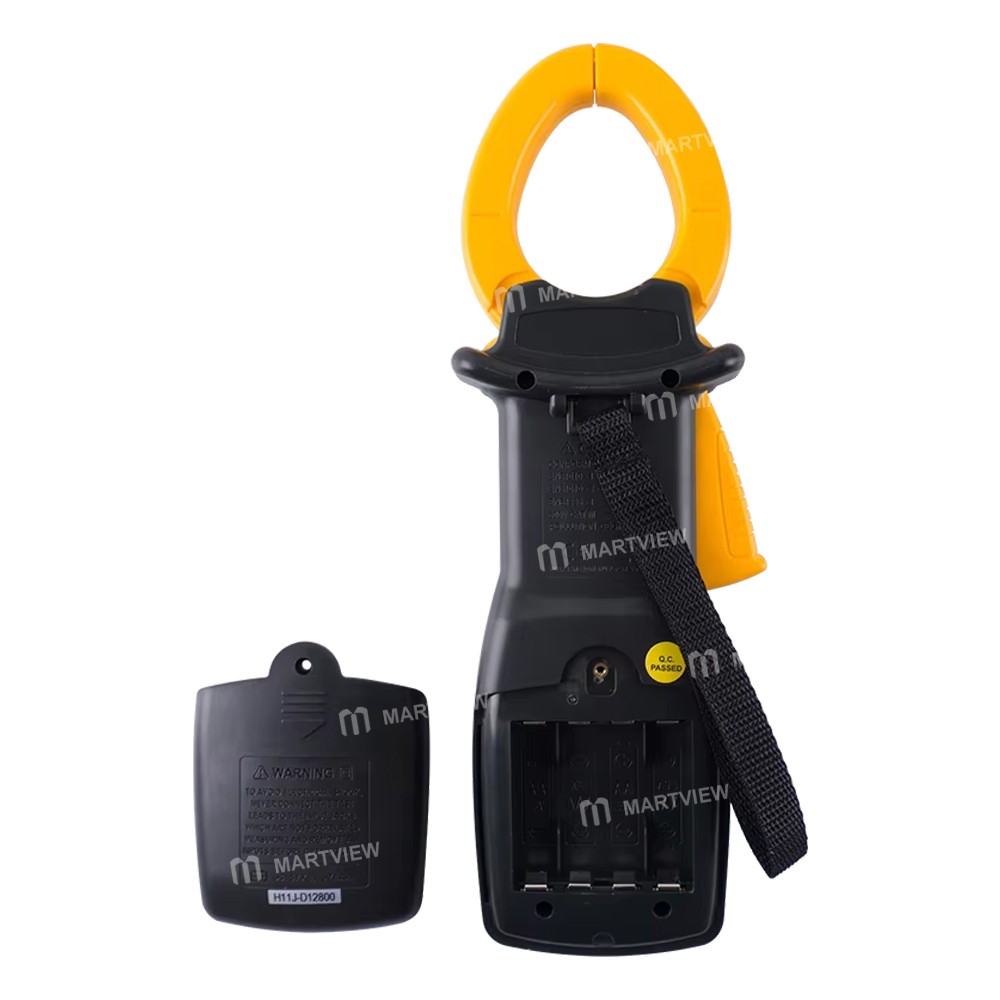

Power Supply 4 × 1.5 V AA Battery (Not Included)
Category CE CAT III 600 V RoHS
Package size: 33 × 22 × 6 cm / 13.2 × 8.8 × 2.4 in
Package weight: 1535 g / 3.4 lb
Package list
1 × Clamp Meter (without battery)
1 × Portable Bag
1 × Test Probe
4 × Test Clips
1 × RS‑232 Interface Cable
