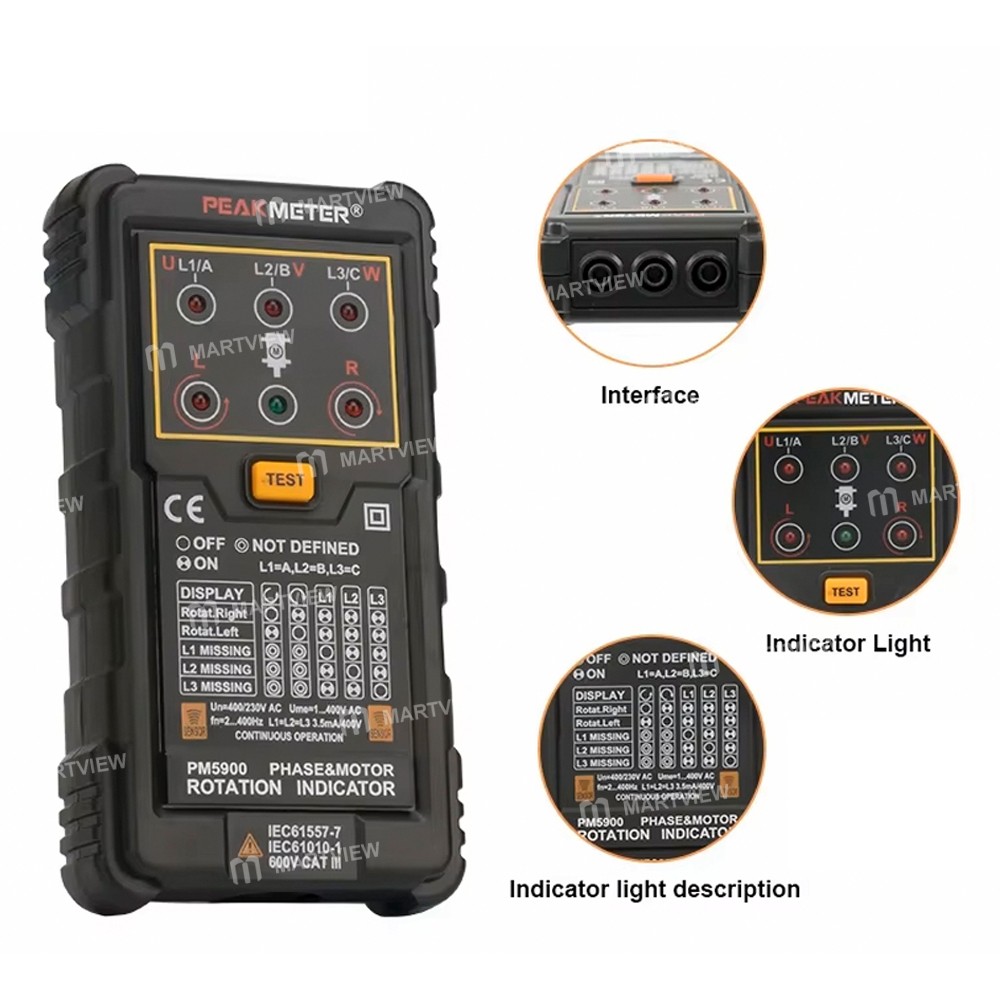

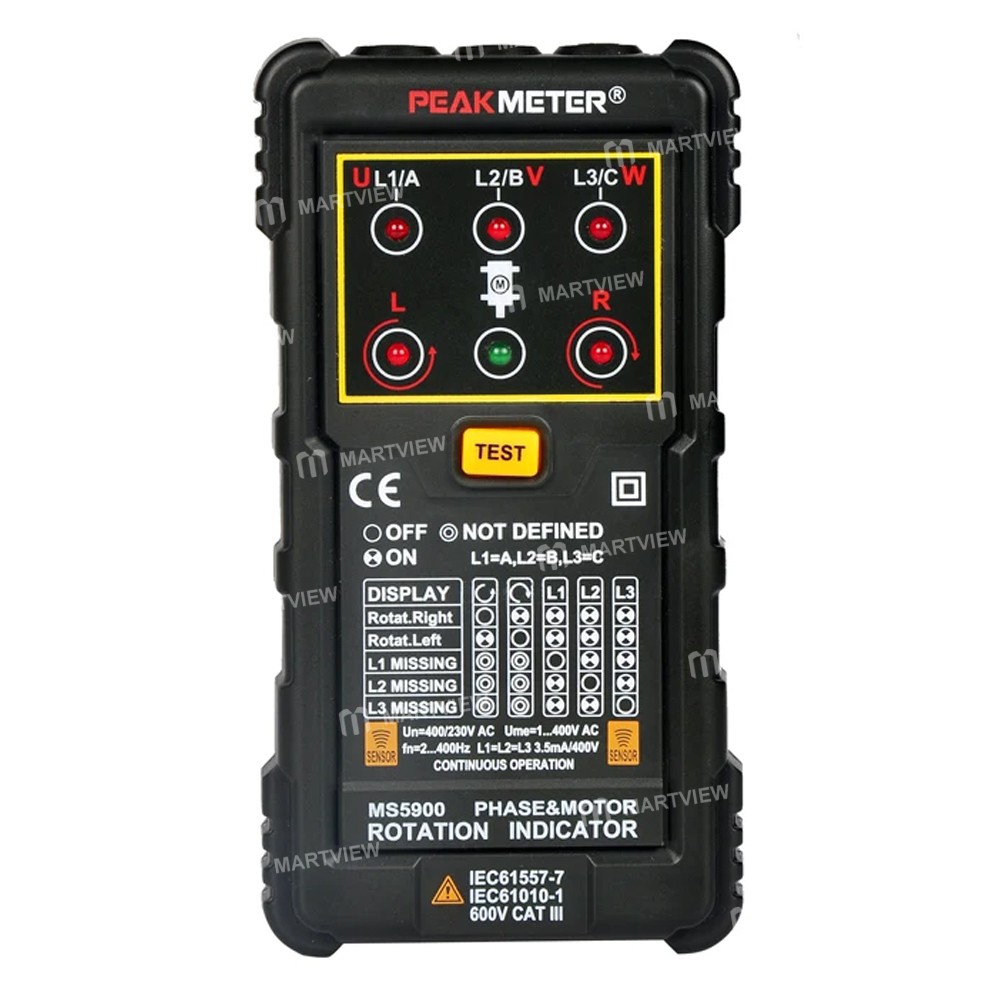

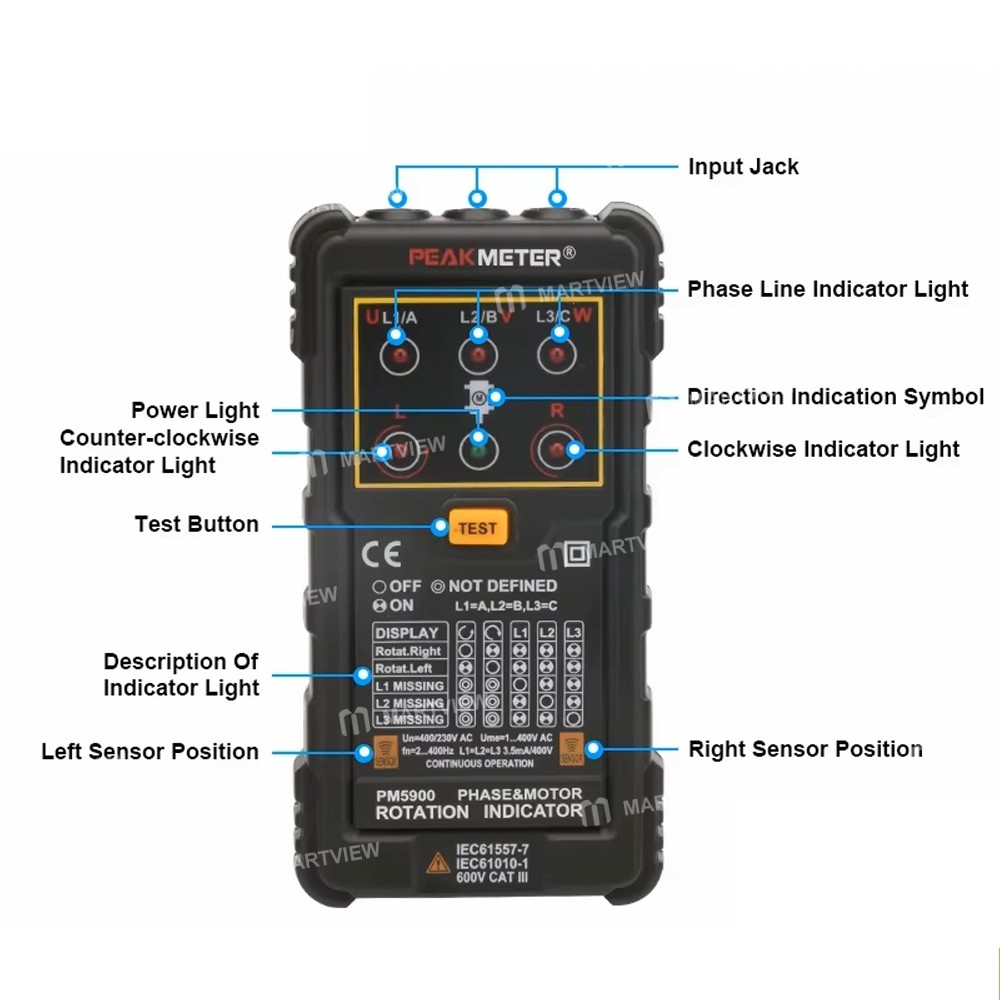

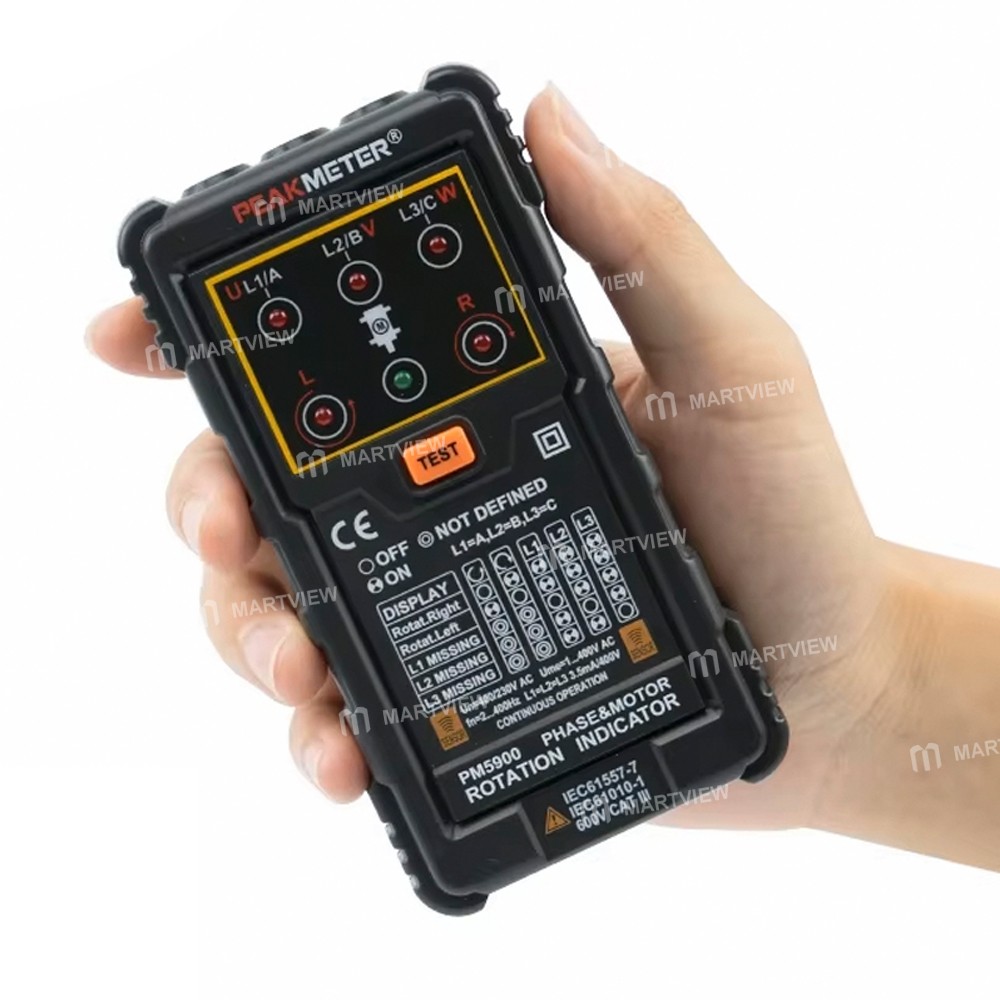

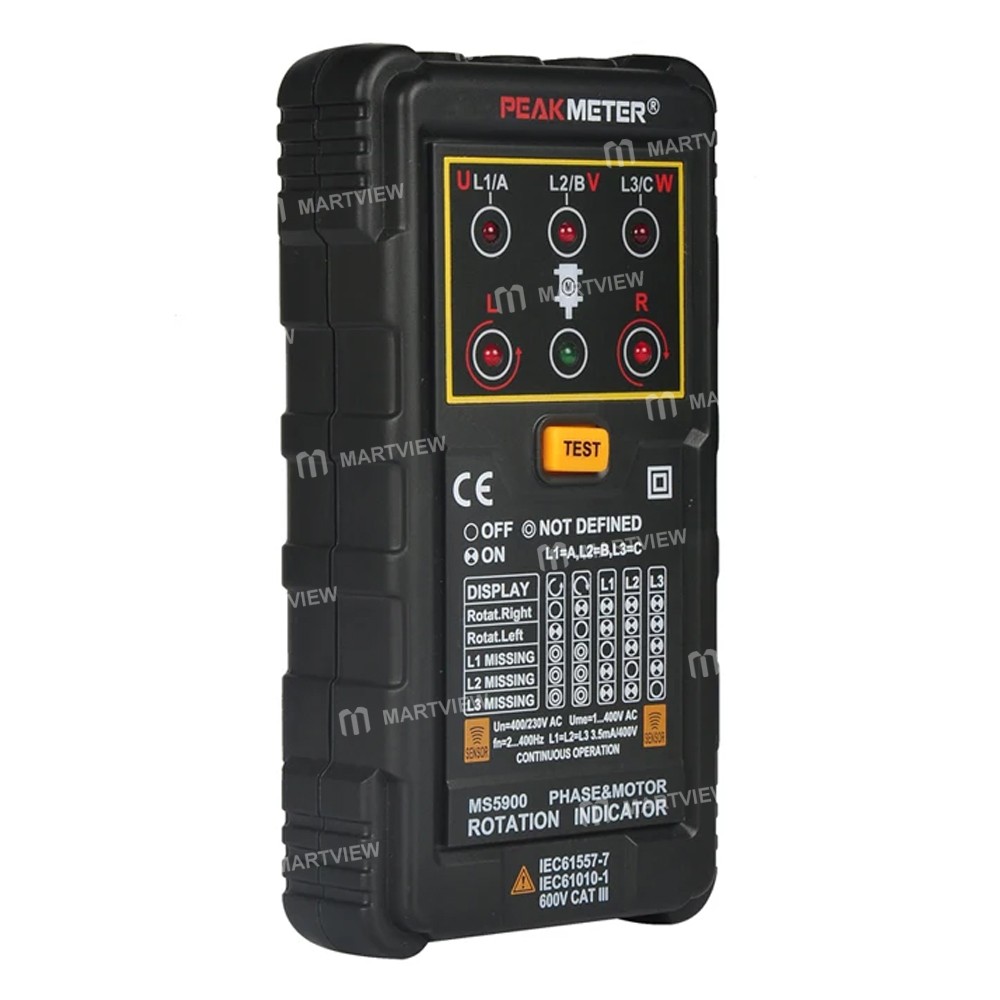

PEAKMETER MS5900 Motor Phase Rotation Indicator Tester – compatible with Fluke F9040 and F9062

PEAKMETER MS5900 Motor and Phase Rotation Indicator is used to test the magnetic field direction of the three‑phase system, phase rotation, motor rotation direction. Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with a motor drive shaft. It is durable, reliable and light‑weight handheld device, which is a necessary tool for those who often install, repair or maintain the three‑phase system or motor.

Key Features:
• Quick, non‑contact verification of phase and motor rotation
• Works on 120 V–400 V AC systems
• Low power draw (≤20 mA) and wide frequency range (2 Hz–400 Hz)
• Portable – battery powered (3 × 1.5 AA, not included)
• CE CAT.III 600 V RoHS certified

Specifications:
Operating Voltage: 120V~400V AC
Current Consumption: ≤20mA
Frequency Range: 2Hz ~400Hz

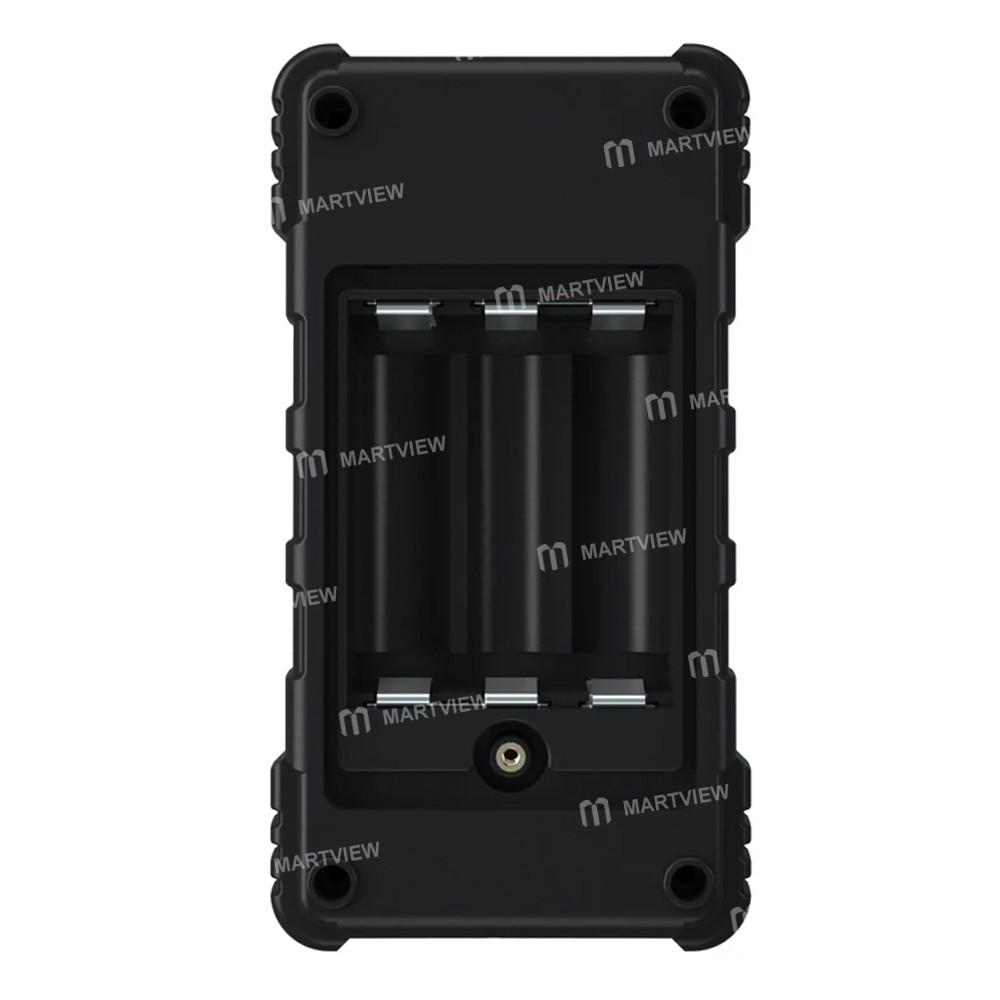

Power Supply: 3×1.5AA Battery (Not Included)
Category: CE CAT.III 600V RoHS
Package size: 24 × 14 × 6 cm / 9.6 × 5.6 × 2.4 in
Package weight: 400 g / 14.2 oz

Package includes:
1 × Motor Phase Rotation Indicator Tester (Battery Not Included)
1 × Portable Bag

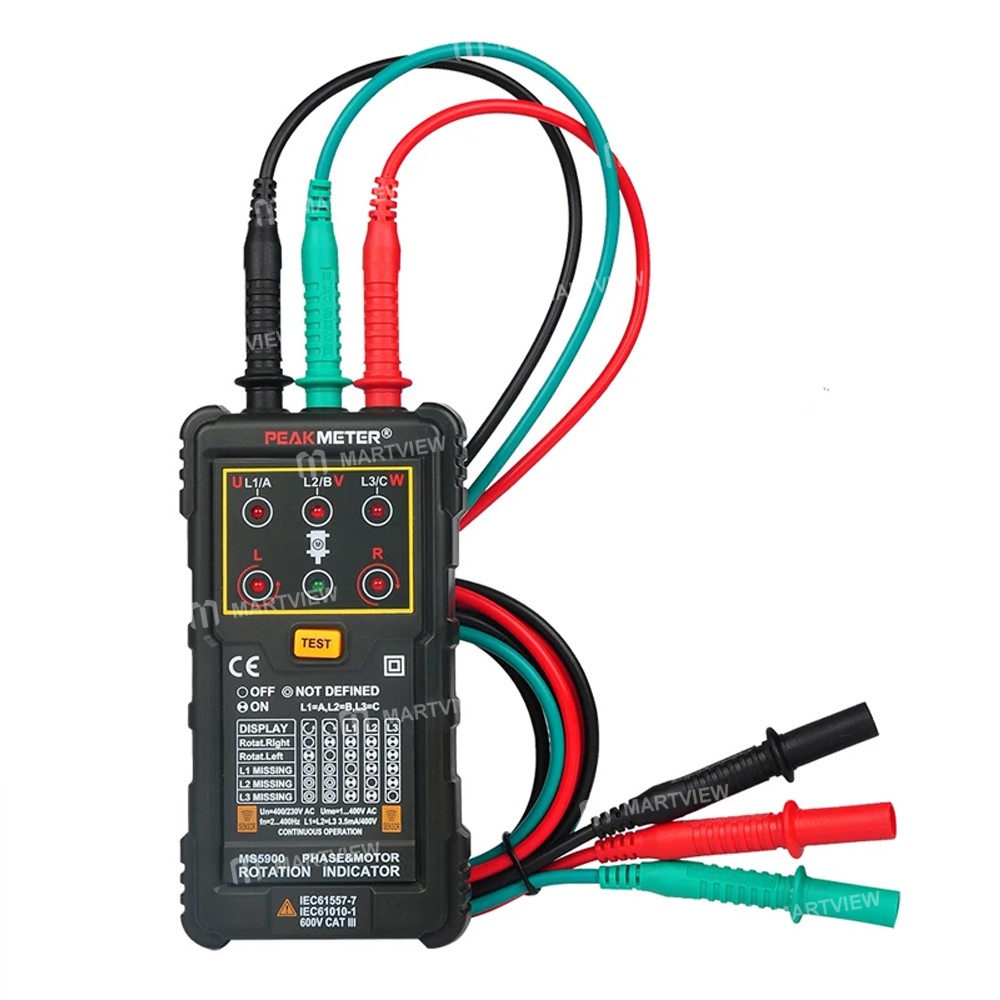

3 × Test Cable
1 × English Instructions
