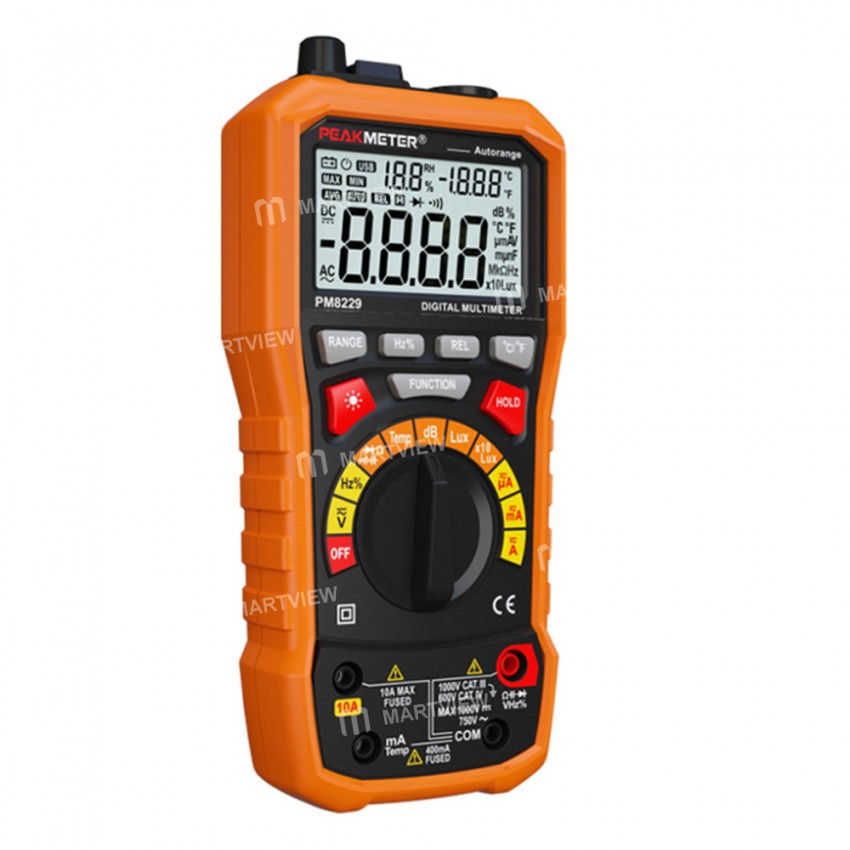

PEAKMETER PM8229 5-in-1 Auto‑Range DMM Digital Multimeter – Noise, Temperature & Luminance Test Functions
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.1% |
Product details
Description
Measuring range: -20~537℃ / -4~999°F
Distance to Spot: 12:1
Built‑In Laser Pointer for precise targeting
Large temperature range
0.1 °F/°C maximum resolution
Display backlight for low‑light readability
Auto power‑off (15 min inactivity)
Data hold function
°F/°C selection
Multi‑function capability: DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency & Duty Ratio, Diode Test, Continuity Test, Temperature, Luminance, Humidity
Features:
Summary: Manual/auto range, relative measurement, backlit LCD, auto sleep mode.
Manual and automatic range selection – quick switching for accurate measurements.
Relative value measurement – displays actual value minus a user‑set reference.
Large LCD with backlight – clear reading even at night.
Auto power‑off – enters sleep state after 15 minutes of inactivity.
Specifications:
DC Voltage: 400 mV / 0.1 mV, 4 V / 0.001 V, 40 V / 0.01 V, 400 V / 0.1 V, 1000 V / 1 V
AC Voltage: 400 mV / 0.1 mV, 4 V / 0.01 V, 40 V / 0.01 V, 400 V / 0.1 V, 750 V / 1 V
DC Current: 400 mA / 0.1 mA, 4000 mA / 1 mA, 40 mA / 0.01 mA, 400 mA / 0.1 mA, 4 A / 0.001 A, 10 A / 0.01 A
AC Current: 400 mA / 0.1 mA, 4000 mA / 1 mA, 40 mA / 0.01 mA, 400 mA / 0.1 mA, 4 A / 0.001 A, 10 A / 0.01 A
Resistance: 400 Ω / 0.1 Ω, 4 kΩ / 0.001 kΩ, 400 kΩ / 0.1 kΩ, 4 MΩ / 0.01 MΩ, 40 MΩ / 0.1 MΩ
Continuity: Buzzer sounds when circuit resistance < 50 Ω
Capacitance: 40 nF / 0.01 nF, 400 nF / 0.1 nF, 4 µF / 0.01 µF, 40 µF / 0.01 µF, 100 µF / 0.1 µF
Frequency & Duty Cycle: 9.999 Hz / 0.001 Hz up to >200 kHz, 0.1 %‑99.9 % / 0.1 %
Noise: 40‑100 dB / 0.1 dB
Luminance: 4000 Lux / 1 Lux, 40000 Lux / 10 Lux
Humidity: 20‑95 % / 0.1 %
Temperature (ambient): 0‑40 ℃ / 0.1 ℃, 32‑104 ℉ / 0.1 ℉
Temperature measurement range: -20 ℃ ~ 1000 ℃, -4 ℉ ~ 1832 ℉
Item size: 19.5 × 9.5 × 6 cm
Item weight: 370 g (without battery)
Power supply: 4 × 1.5 V AA batteries (not included)
Package Information:
Package size: 23 × 15 × 7 cm / 9.05 × 5.9 × 2.75 in
Package weight: 661 g / 1.46 lb
Package Includes:
1 × Auto‑Range Digital Multimeter
1 × Pair of Test Leads
1 × English Operating Manual
1 × Temperature Probe
