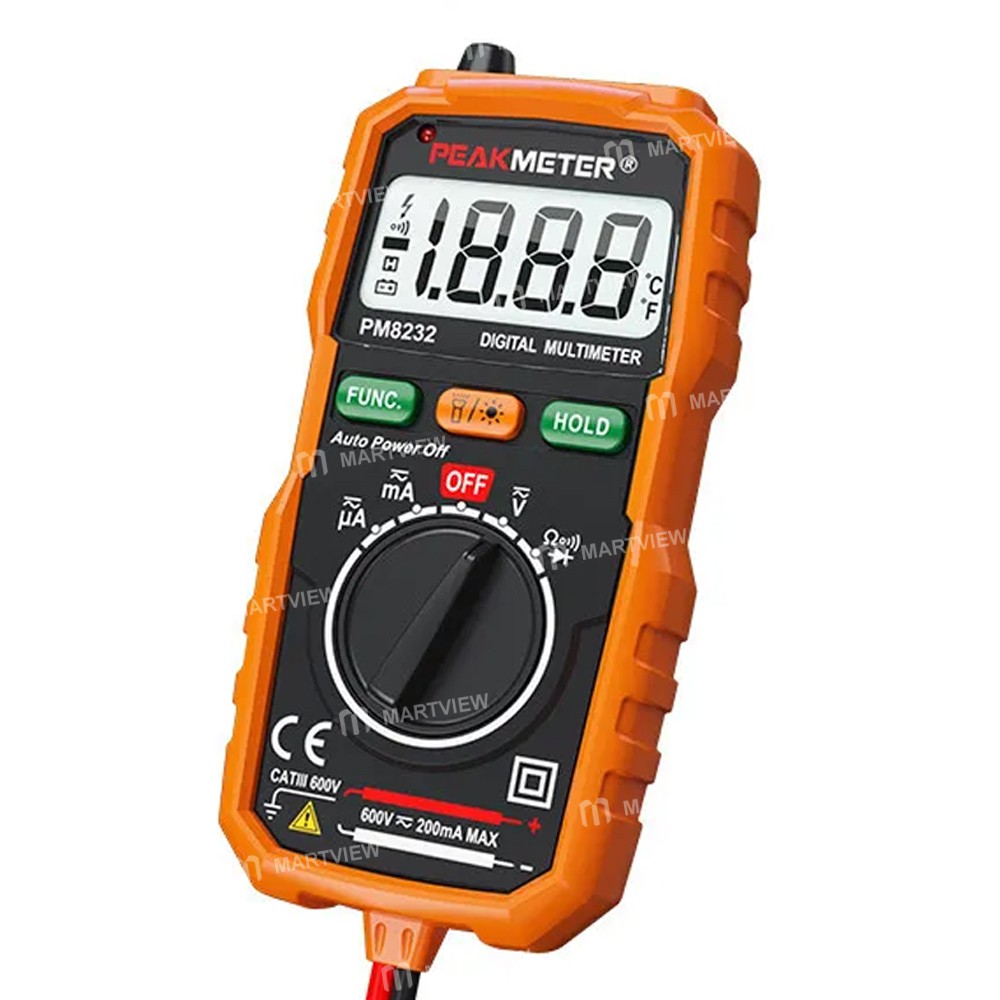

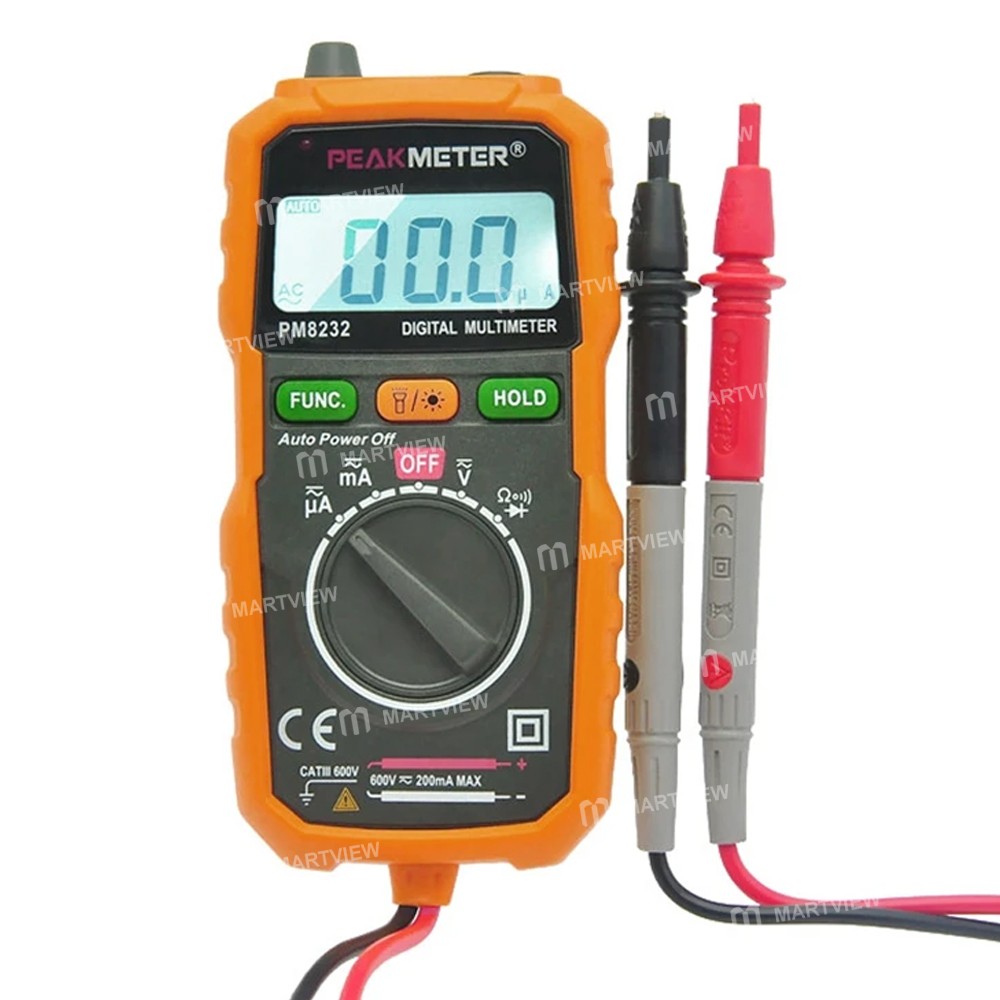

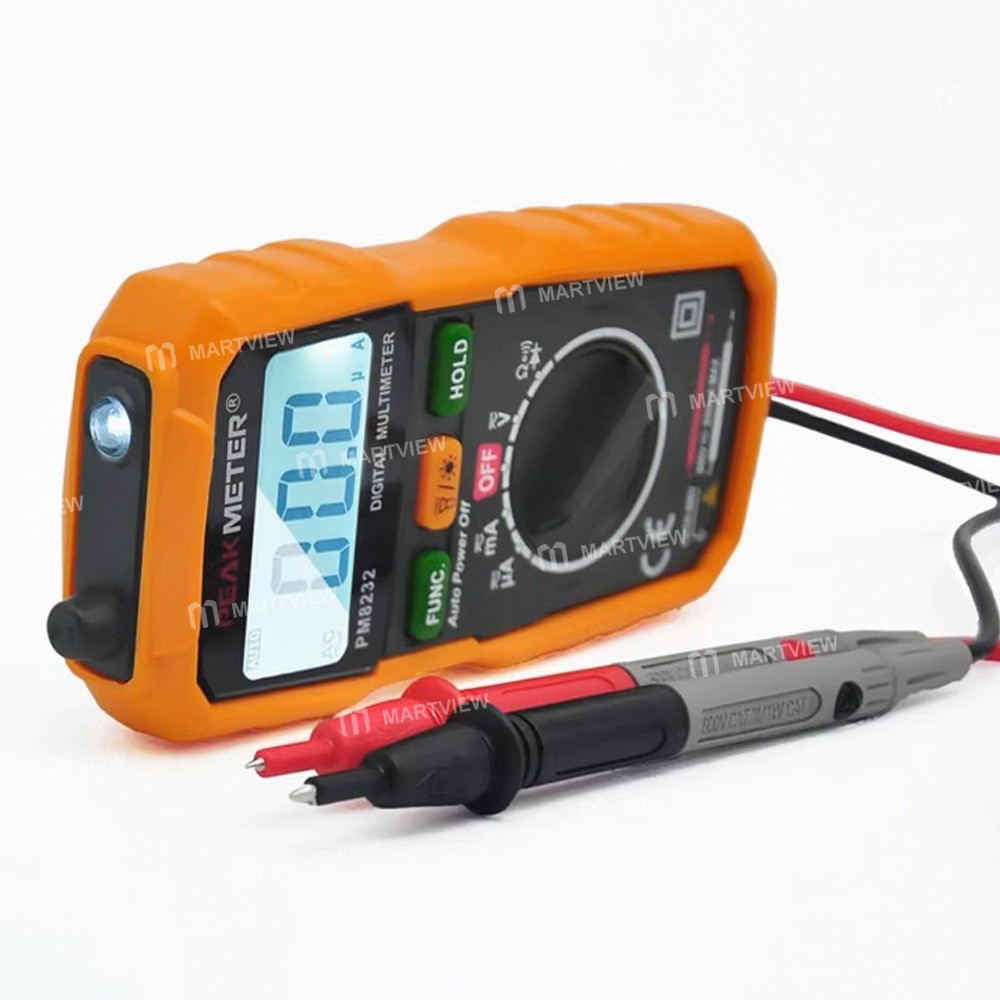

This instrument is a portable digital multi-meter. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it’s an ideal measuring instrument for the majority of users.
The instrument can measure DC Voltage, AC Voltage, DC Current, AC Current, Resistance, diode and connectivity; with non-contact voltage detection function, timely remind the user to pay attention to operation safety,
so it’s safer and rest assured for the user.
LCD and spotlight.
Low battery indication.
Input polarity indication.
Over range indication.
DC Voltage: 200mV / 2V / 20V / 200V / 600V ± (0.5% reading +3)
AC Voltage: 2V / 20V / 200V / 600V ± (0.8% reading + 3)
DC Current: 200uA / 2000uA / 20mA / 200mA ± (1.8% reading +5)
AC Current: 200uA / 2000uA / 20mA / 200mA ± (2.0% reading +5)
Resistance: 200Ω/2kΩ/20KΩ/200KΩ/2MΩ/20MΩ ± (1.0% reading+3)
Power Supply: 2 * 1.5 V AAA batteries (not included)
Meter Weight: 150g
Meter Size: 130 * 62 * 27mm
Meter Color: Yellow +Black
Package Size: 22.5 * 16.5 * 3.1cm / 8.9 * 6.5 * 1.2in
Package Weight: 180g / 6.3oz (without battery)
Transparent Blister Package
1 * HYELEC MS8232 Multimeter with Fixed Probe
1 * English Users Manual
