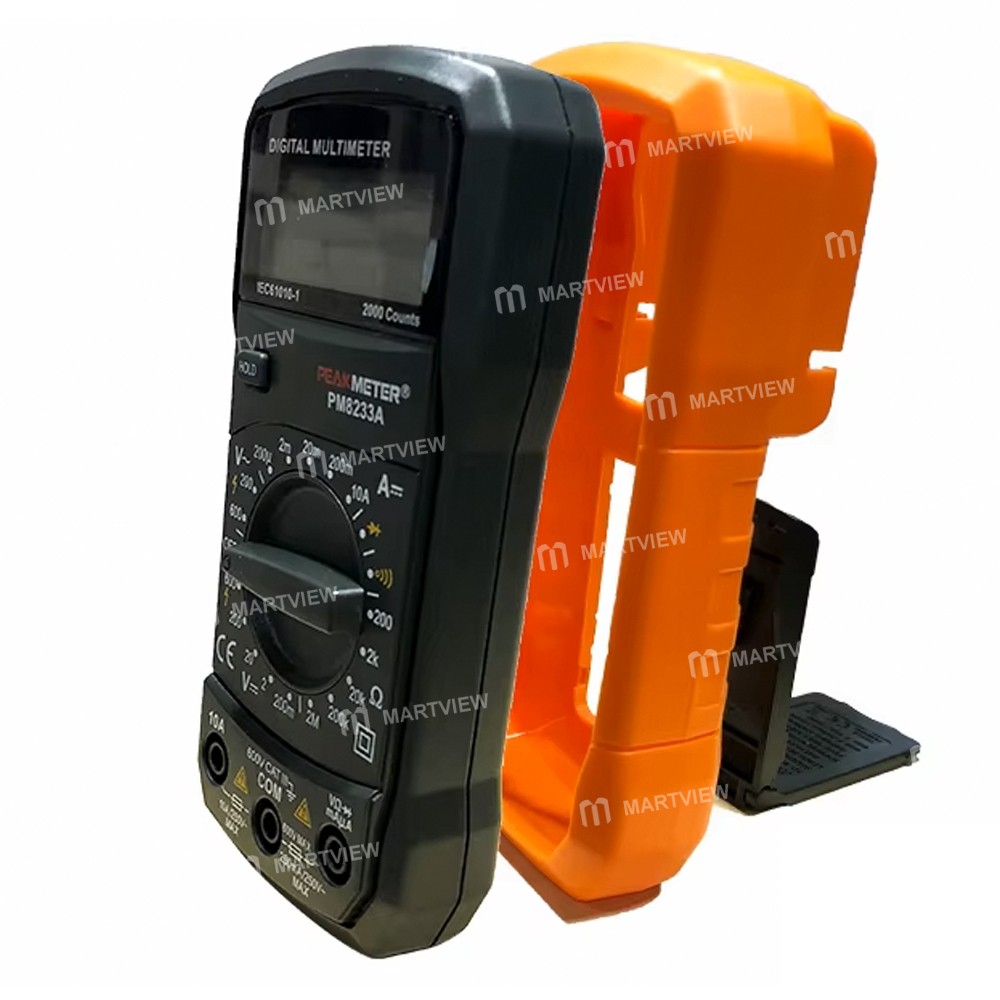

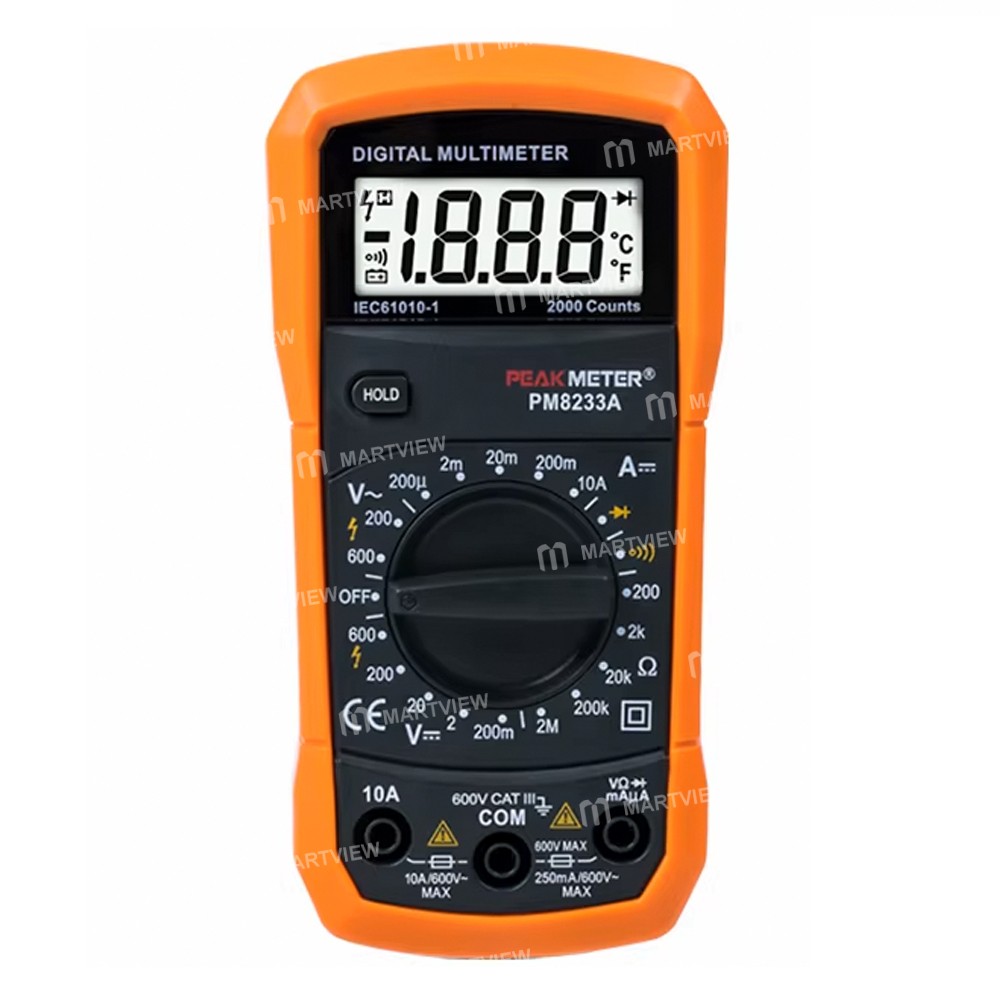

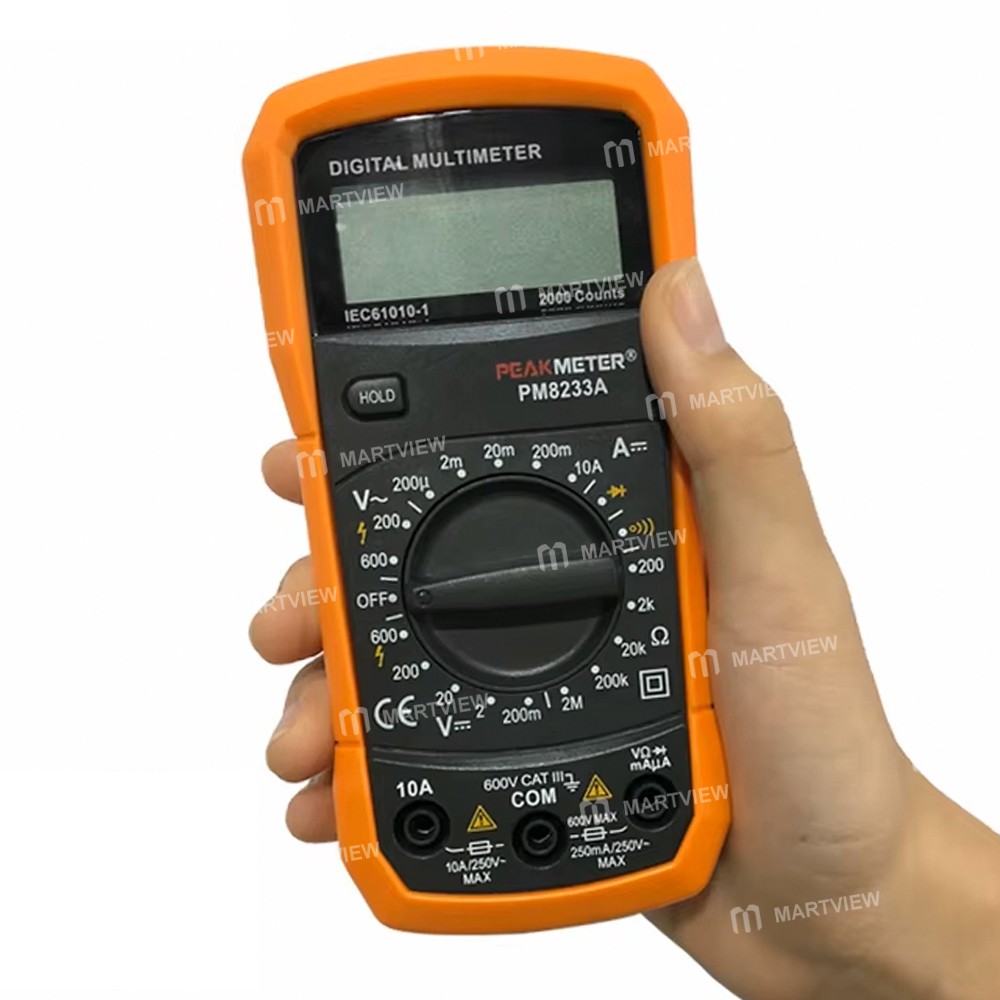

PEAKMETER PM8233A Digital Multimeter – AC / DC Voltage, Current, Resistance, Ohmmeter, 2000 Counts, Data Hold

This multimeter is designed according to IEC 61010‑1 standards for electronic measuring instruments (CAT II) with pollution protection.

Important Safety Notice: Follow all safety and operating instructions to ensure the meter is used safely and remains in good condition. Full compliance with safety standards is guaranteed only when using the supplied test leads; replace them only with the type specified in this manual.

Key Features:

• DC Voltage: 200 mV/2 V/20 V/200 V ± (0.5% + 2)  |  600 V ± (0.8% + 2)
• AC Voltage: 200 V/600 V ± (1.2% + 10)
• DC Current: 200 µA/2 mA/20 mA ± (1.0% + 2)  |  200 mA ± (1.5% + 2)  |  10 A ± (3.0% + 2)
• Resistance: 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ ± (0.8% + 2)  |  20 MΩ ± (1.0% + 2)
• Display: 2000 Counts

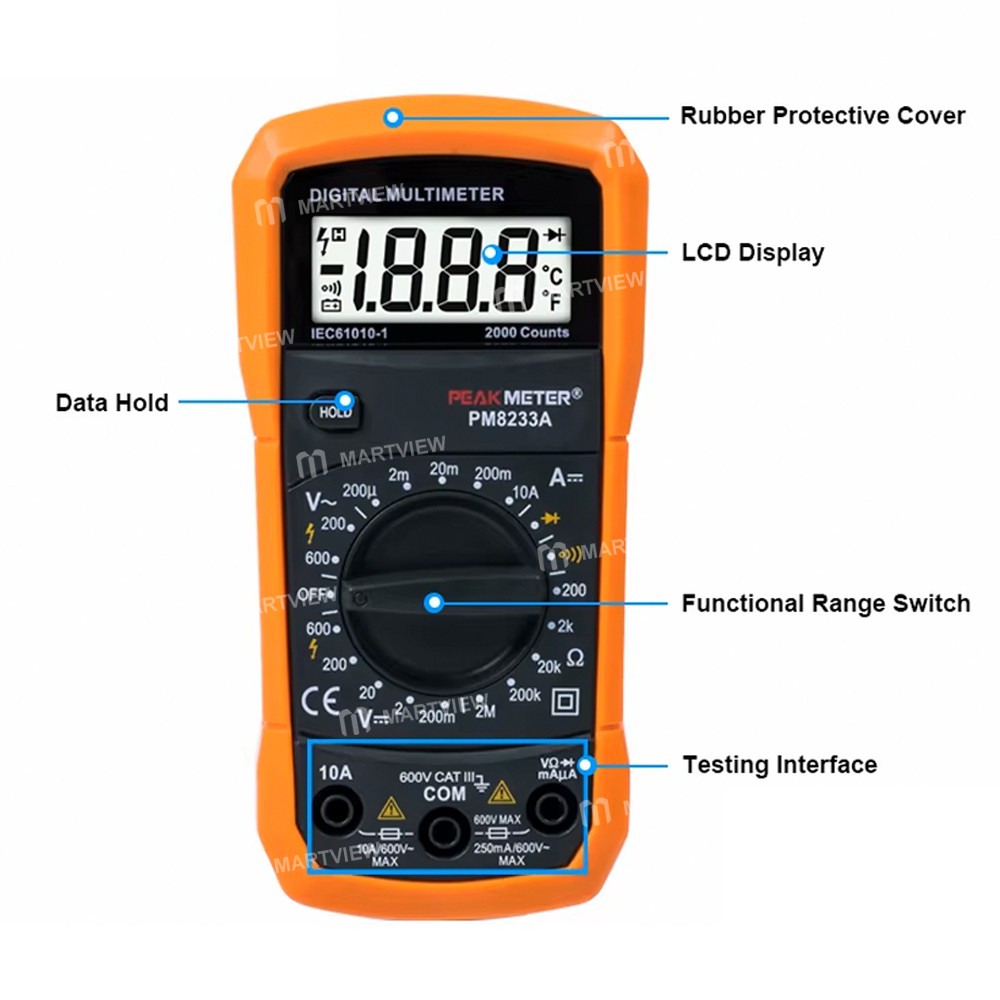

• Data Hold: ✔
• Diode Test: ✔
• Continuity Test: ✔

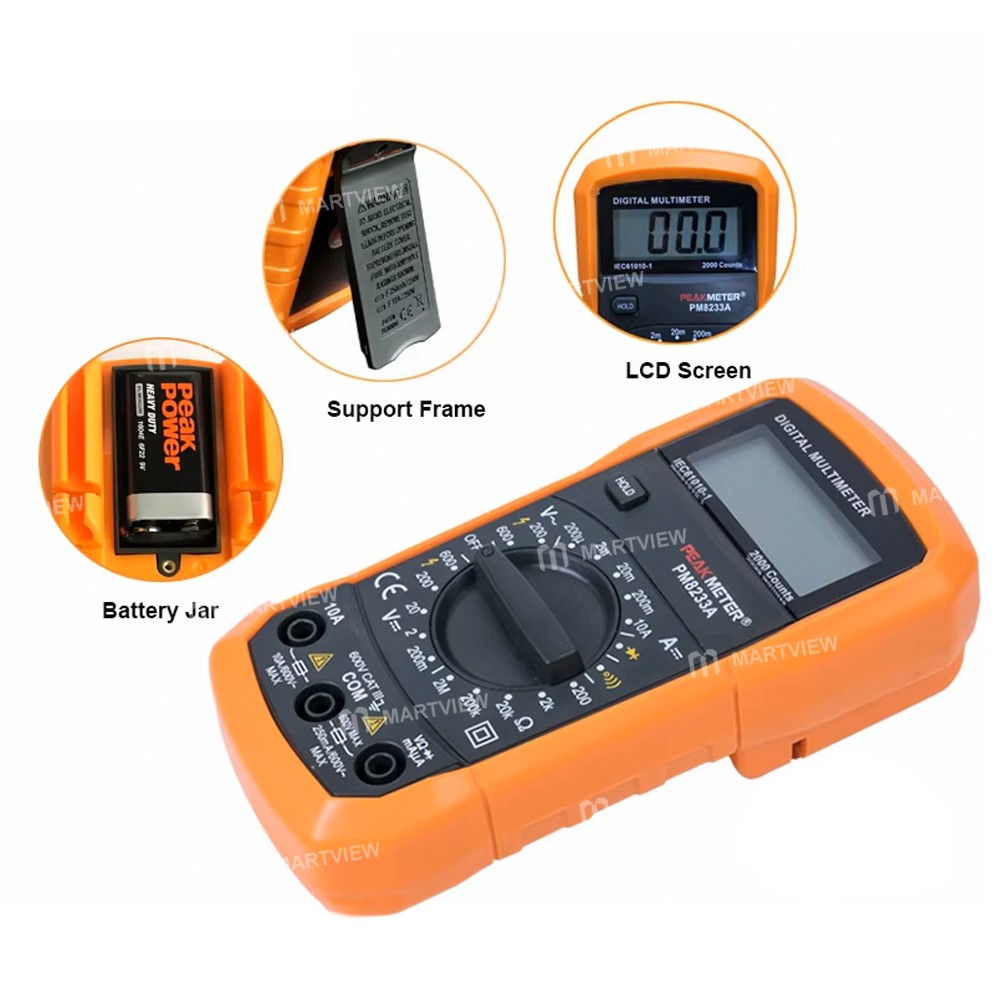

• Power Supply: 9 V 6F22 Battery (not included)
• Package Size: 16 × 11 × 6 cm  /  6.3 × 4.3 × 2.4 in
• Package Weight: 281 g  /  9.9 oz

Package Includes:

• 1 × Digital Multimeter

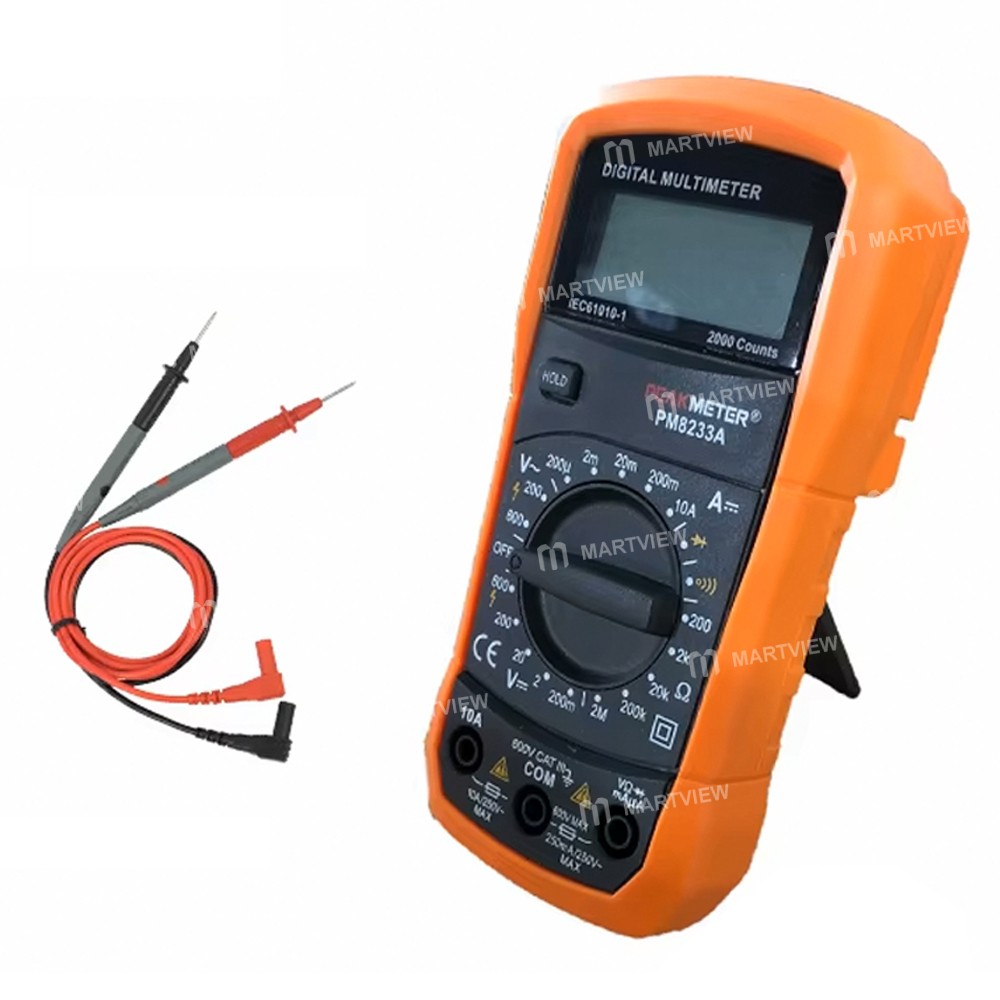

• 2 × Test Cables
