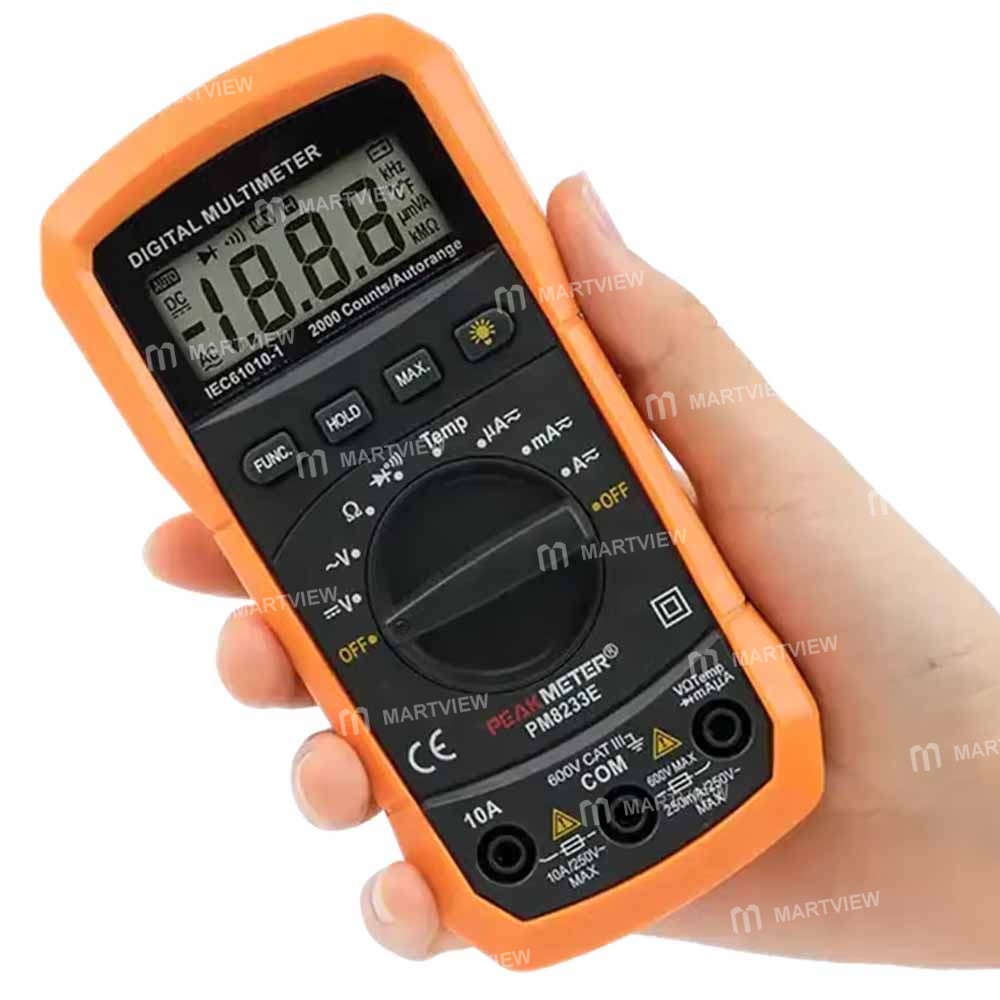

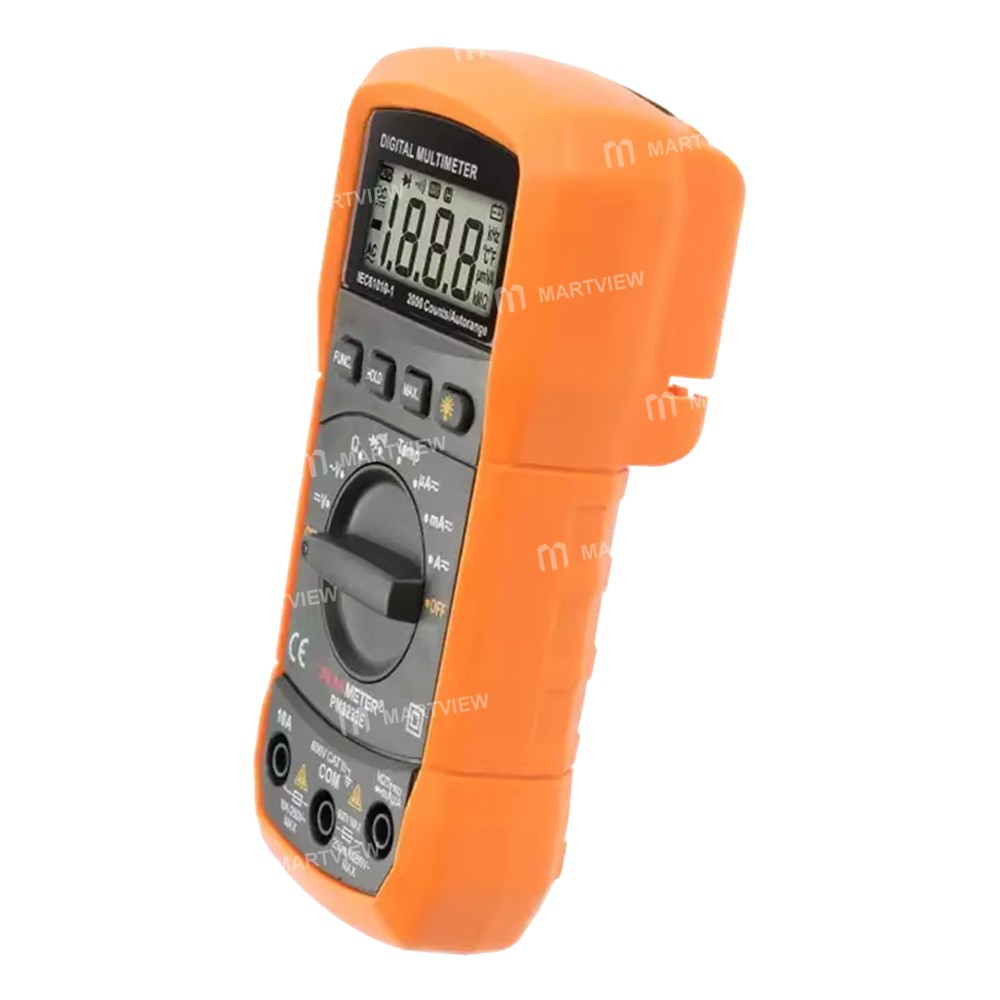

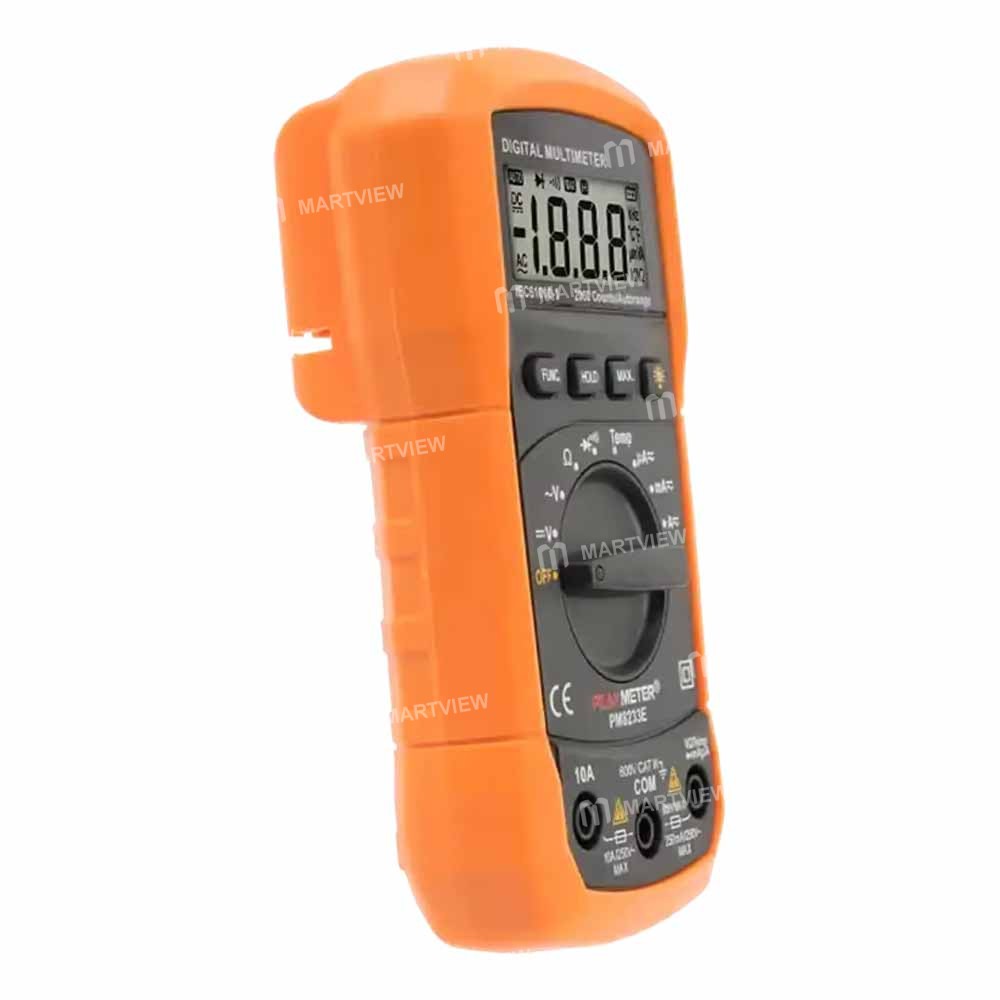

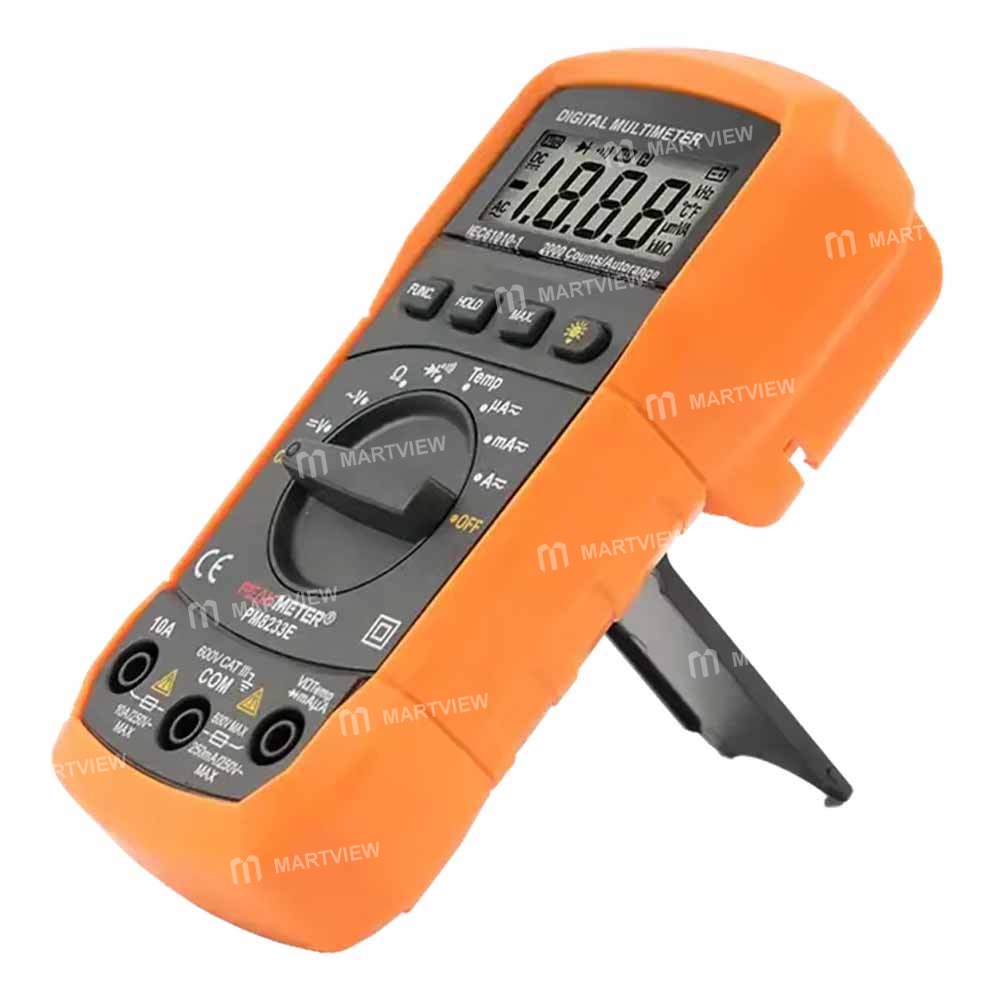

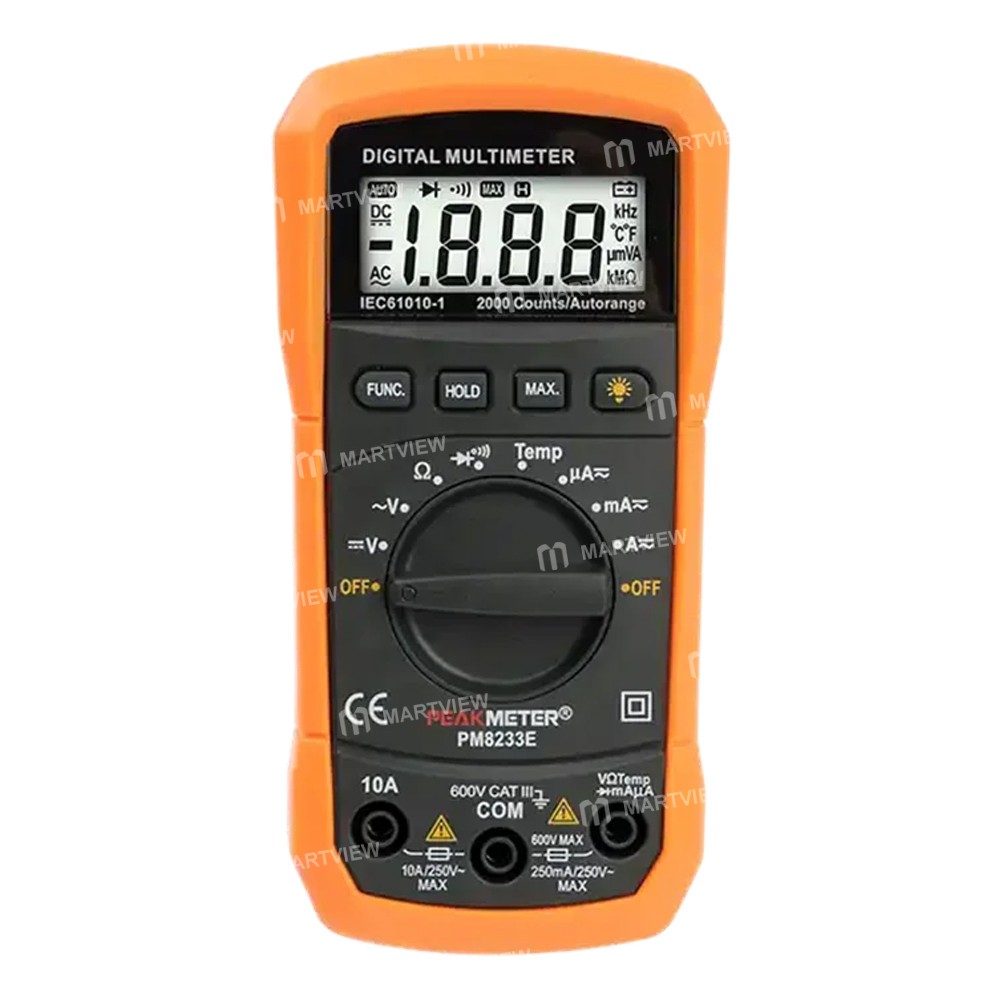

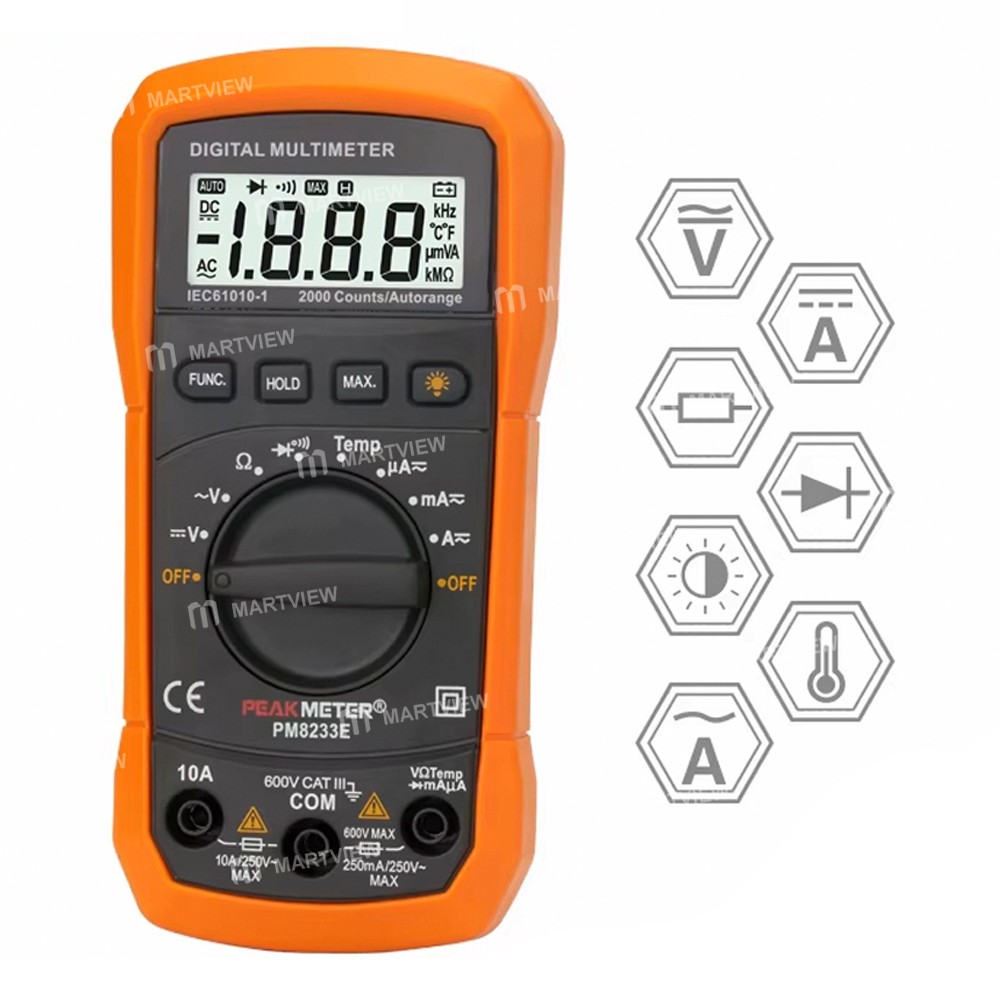

PEAKMETER PM8233E 2000‑Count Mini LCD Digital Multimeter – DC / AC Voltage, Current, Resistance, Ammeter, Multitester

PEAKMETER PM8233E 2000‑Counts Mini LCD Digital Multimeter – DC/AC Voltage, Current, Resistance, Ammeter, Multitester

Key Features:

• Compact handheld DMM with 2000‑count LCD, auto‑range, data hold, backlight, diode & continuity test, and max‑value hold.
• IEC‑61010‑1 & CAT II 600 V safety rated, double insulated.

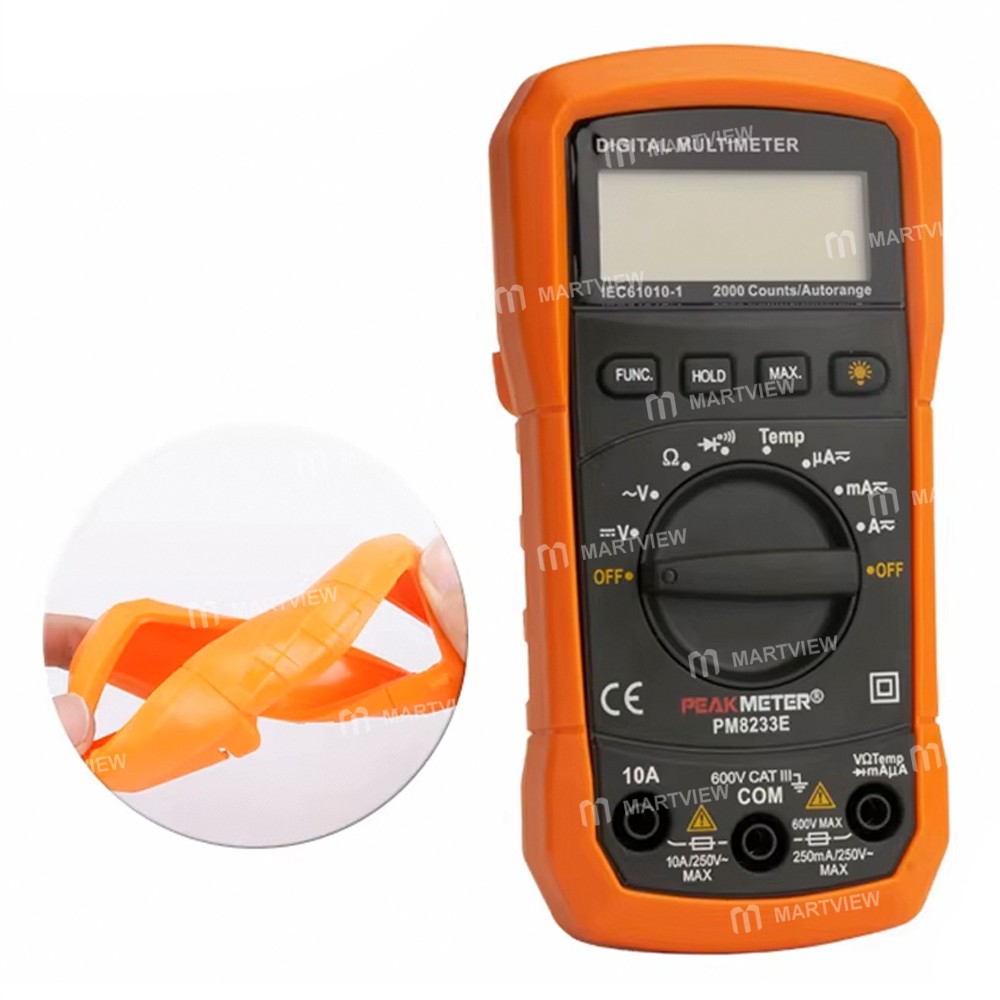

• Durable holster protects the downsized body against drops.
• Ideal for schools, labs, factories, and field work.

Product Highlights:

• Display: 2000 counts
• Auto‑range: Yes
• Data hold: Yes
• Backlight: Yes
• Diode test: Yes
• Continuity test: Yes
• Maximum‑value hold: Yes
• Power supply: 9 V 6 F22 battery
• Weight: approx. 110 g
• Dimensions: 140 mm × 67 mm × 30 mm
• Safety certifications: CE, CAT II 600 V, RoHS

Technical Specifications:

• DC Voltage: 200 mV / 2 V / 20 V / 200 V ±(0.5%+2) – 600 V ±(0.8%+2)
• AC Voltage: 2 V / 20 V / 200 V / 600 V ±(1.0%+3)
• DC Current: 200 µA / 2 mA / 20 mA / 200 mA ±(1.0%+3) – 10 A ±(3.0%+3)
• AC Current: 200 µA / 2 mA / 20 mA / 200 mA ±(1.2%+3) – 10 A ±(3.0%+5)
• Resistance: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ ±(0.8%+2) – 20 MΩ ±(1.0%+2)
• Temperature: –20 °C ~ 1000 °C ±(3.0%+3) / –4 °F ~ 1832 °F ±(3.0%+3)
• Packing weight: 340 g
• Packing size: 155 mm × 111 mm × 53 mm

Package Includes:

• 1 × Digital multimeter
• 1 × Pen probe
