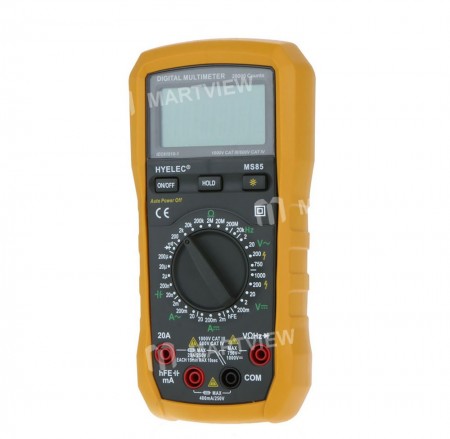

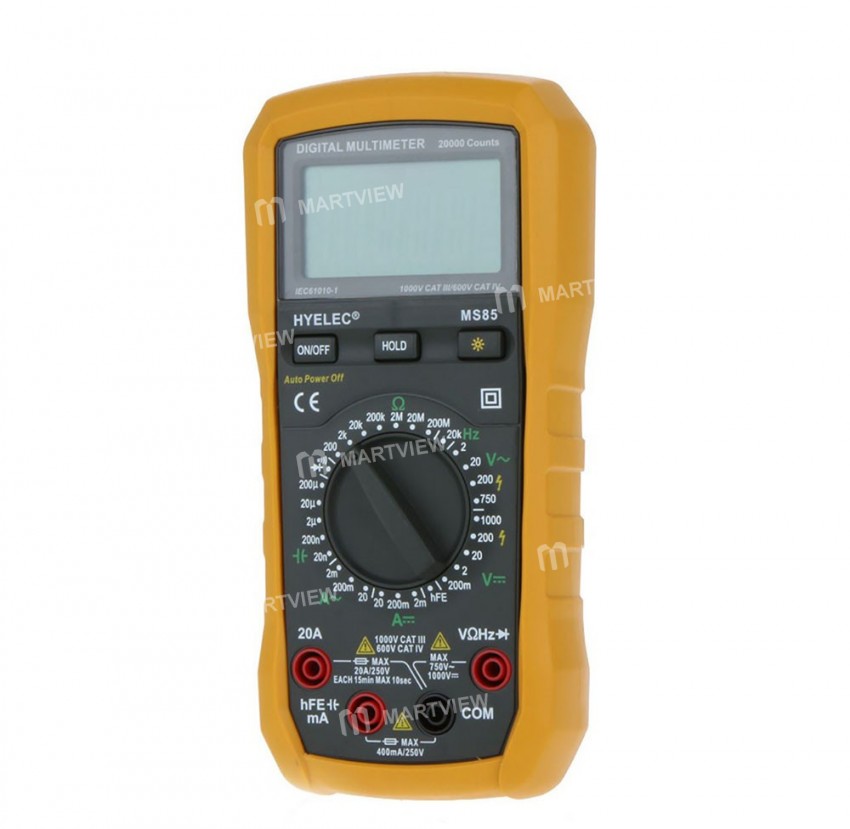

HYELEC MS85 Digital Multimeter – AC / DC, Resistance, Capacitance & Frequency Tester with Blacklight

Description

• This instrument complies with IEC 61010-1, CAT III 1000 V and CAT IV 600 V overvoltage standards. See Specifications.
• For optimal performance, read the user manual carefully and follow all safety precautions.
• International symbols on the meter and in this manual are explained in chapter 1.1.3.

• Display: 2000 counts
• Data hold: ✔
• Diode test: ✔
• Transistor test: ✔
• Continuity test: ✔
• Backlight: ✔
• Power supply: 9 V 6F22 battery (not included)
• Safety rating: CE, CAT III 1000 V, CAT IV 600 V, RoHS

• DC Voltage: 200 mV/2 V/20 V/200 V ± (0.1 %+5) ; 1000 V ± (0.15 %+5)
• AC Voltage: 2 V/20 V/200 V ± (0.8 %+15) ; 750 V ± (1.0 %+15)
• DC Current: 20 mA/200 mA ± (0.5 %+10) ; 20 A ± (2.0 %+20)
• AC Current: 20 mA/200 mA ± (1.2 %+20) ; 20 A ± (2.5 %+50)
• Resistance: 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ/20 MΩ ± (0.8 %+5) ; 200 MΩ ± (5.0 %+10)
• Capacitance: 20 nF/200 nF/2 µF/20 µF/200 µF ± (4.0 %+20)
• Frequency: 20 kHz ± (1.5 %+5)
• Package size: 22 × 13 × 6 cm / 8.3 × 5.1 × 2.4 in
• Package weight: 540 g / 1.1 lb

• 1 × HYELEC MS85 Digital Multimeter
• 1 × Test converter
• 2 × Test cables
• 1 × English manual
