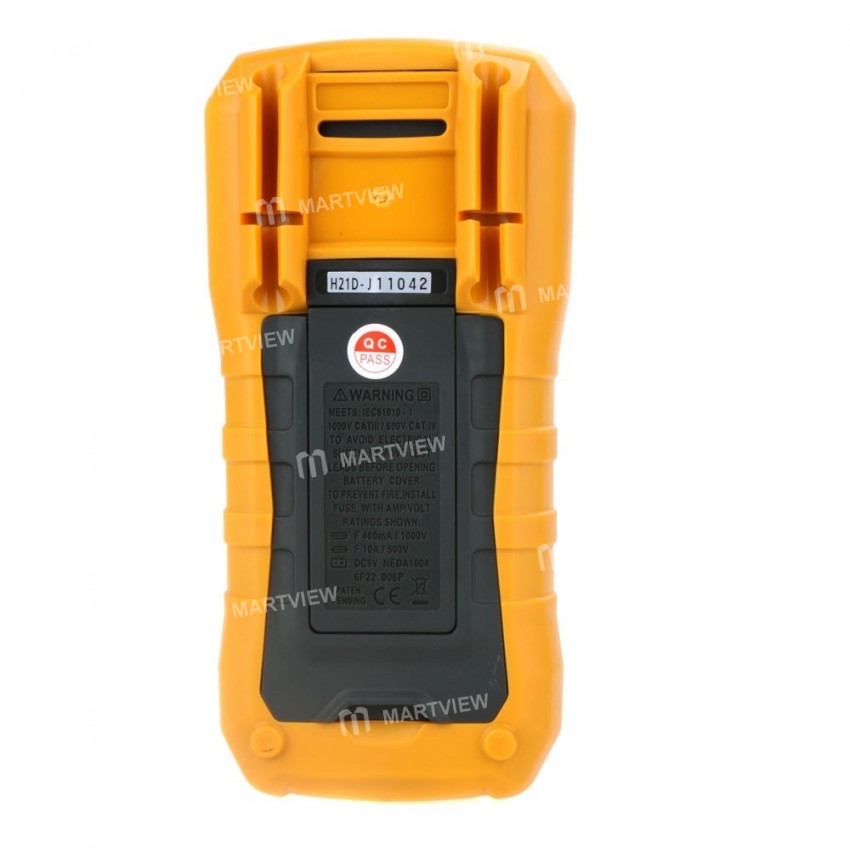

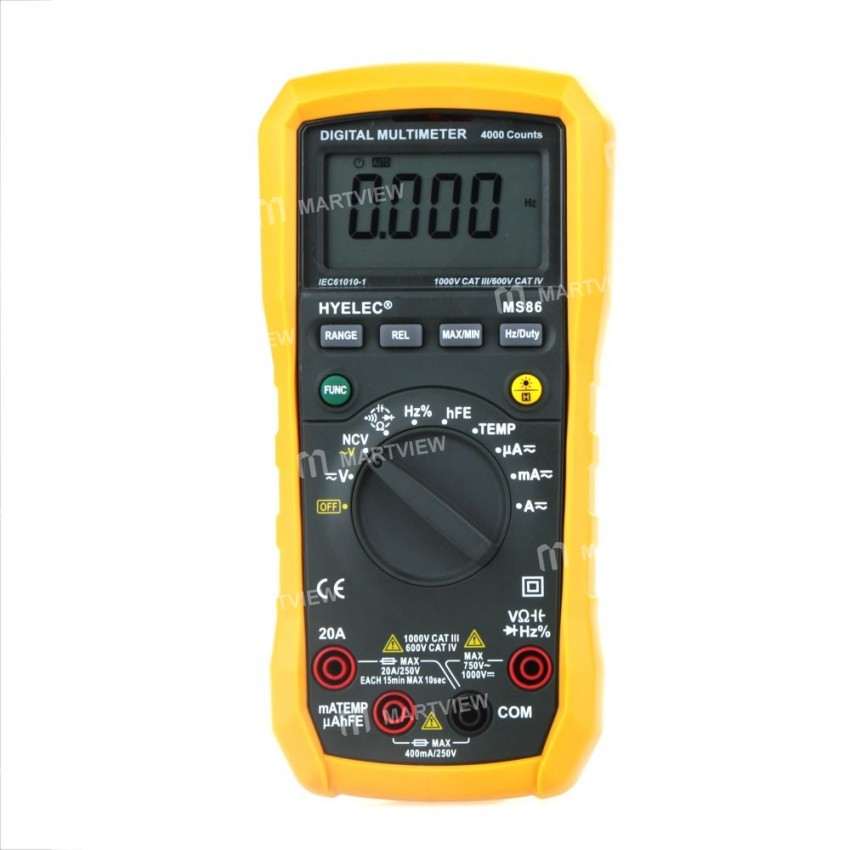

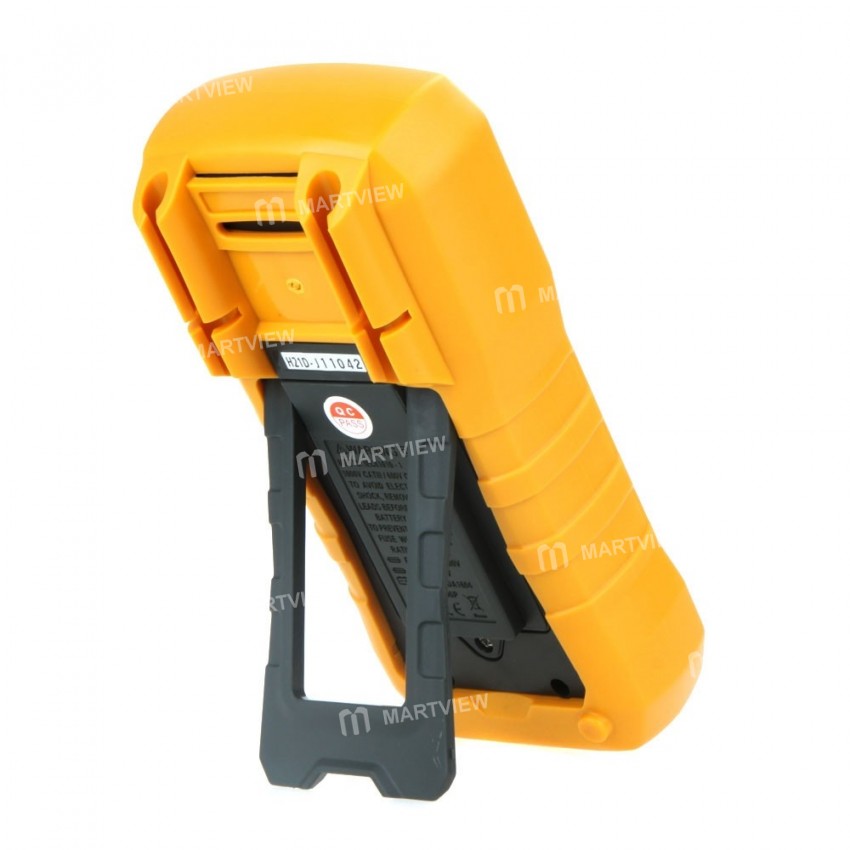

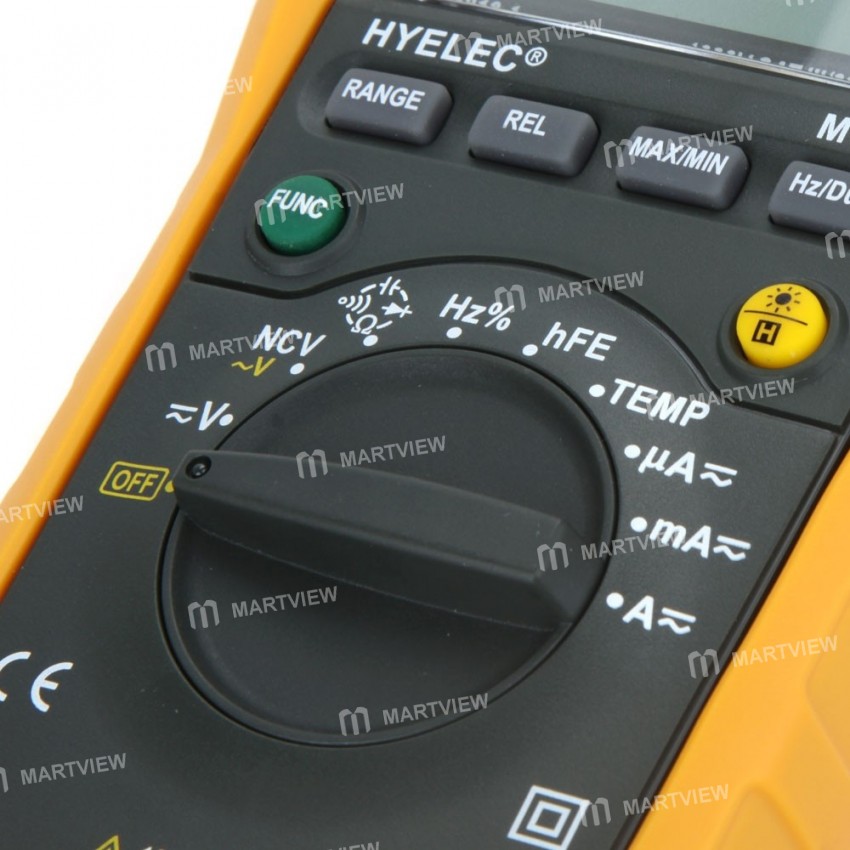

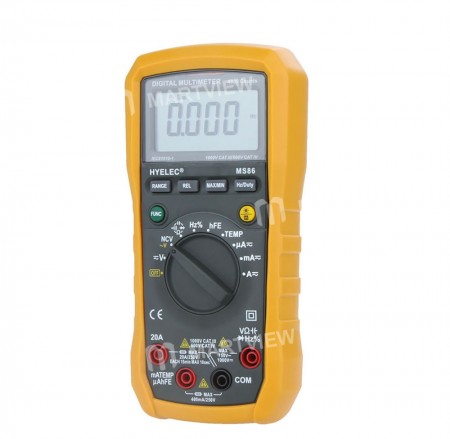

HYELEC MS86 Multifunction Digital Multimeter – Auto / Manual Range, Temperature Test, Relative Measurement

HYELEC MS86 Multifunction Digital Multimeter / Auto and Manual Range / Temperature Test / Relative

Description

• This instrument complies with IEC 61010-1, CAT. III 1000 V and CAT. IV 600 V over‑voltage standards. See Specifications.
• For optimal performance, read the user manual carefully and follow all safety precautions.
• International symbols used on the meter and in this manual are explained in chapter 1.1.3.

• DC Voltage: 400 mV/4 V/40 V/400 V ±(0.5 %+2) / 1000 V ±(0.8 %+2)
• AC Voltage: 400 mV ±(2 %+3) / 4 V/40 V/400 V ±(0.8 %+3) / 750 V ±(1.0 %+3)
• DC Current: 400 µA/4000 µA/40 mA/400 mA ±(0.8 %+2) / 20 A ±(1.2 %+2)
• AC Current: 400 µA/4000 µA/40 mA/400 mA ±(1.5 %+2) / 20 A ±(2.0 %+2)
• Resistance: 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ ±(0.8 %+1) / 40 MΩ ±(1.0 %+2)
• Capacitance: 4 nF/40 nF/400 nF/4 µF/40 µF/200 µF ±(4.0 %+5)
• Frequency: 10 Hz ~ 10 MHz ±(0.5 %+2)
• Duty Cycle: 1 % ~ 99 % ±(2.0 %+2)
• Temperature: ‑20 °C ~ 1000 °C ±(2.0 %+2)
• Display: 4000 Counts
• Auto & Manual Range √
• Relative Measurement √
• Max/Min Value Hold √
• Data Hold √
• Non‑Contact Voltage Detector (NCV) √
• Diode Test √
• Transistor Test √
• Continuity Test √
• Back Light √
• Power Supply: 9 V 6F22 Battery
• Safety Rating: CE, CAT III 1000 V, CAT IV 600 V, RoHS
• Package Size: 21 × 13 × 5 cm / 8.4 × 5.2 × 2.0 in
• Package Weight: 540 g / 1.2 lb

• 1 × HYELEC MS86 Multifunction Digital Multimeter (Battery not included)
• 1 × Test Cable
• 1 × Temperature Test Cable
• 1 × Test Converter
• 1 × English Instructions
