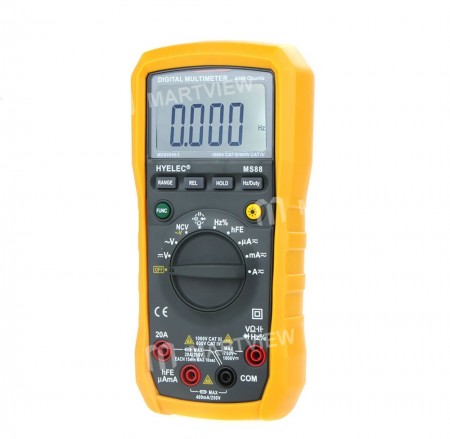

HYELEC MS88 Multifunction Digital Multimeter – Auto & Manual Range, Frequency Measurement, Relative Mode

HYELEC MS88 Multifunction Digital Multimeter – Auto/Manual Range, Frequency, Relative Measurement

Description

• This instrument complies with IEC 61010‑1, CAT III 1000 V and CAT IV 600 V over‑voltage standards. See Specifications.
• To get the best service from this instrument, read the user manual carefully and follow all safety precautions.
• International symbols used on the meter and in this manual are explained in chapter 1.1.3.

• Auto and manual range selection
• Relative measurement, data hold, and non‑contact voltage detector (NCV)
• Diode test, transistor test, continuity check, and back‑light
• 4000‑count LCD display

• DC Voltage: 400 mV / 4 V / 40 V / 400 V ±(0.5%+3) / 1000 V ±(0.8%+5)
• AC Voltage: 400 mV ±(1.2%+20) / 4 V / 40 V / 400 V ±(0.8%+3) / 750 V ±(1.0%+5)
• DC Current: 400 µA / 4000 µA / 40 mA / 400 mA ±(1.0%+5) / 20 A ±(1.5%+8)
• AC Current: 400 µA / 4000 µA / 40 mA / 400 mA ±(1.5%+8) / 20 A ±(2.0%+10)
• Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ ±(1.0%+3) / 40 MΩ ±(1.2%+15)
• Capacitance: 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 200 µF ±(4.0%+15)
• Frequency: 10 Hz ~ 10 MHz ±(1.5%+15)
• Duty Cycle: 1 % ~ 99 % ±(2.0%+2)
• Display: 4000 counts
• Auto & manual range ✔
• Relative measurement ✔
• Data hold ✔
• Non‑Contact Voltage Detector (NCV) ✔
• Diode test ✔
• Transistor test ✔
• Continuity test ✔
• Back light ✔
• Power supply: 9 V 6F22 battery (not included)
• Safety rating: CE, CAT III 1000 V, CAT IV 600 V, RoHS
• Package size: 21 × 13 × 5 cm / 8.4 × 5.2 × 2.0 in
• Package weight: 520 g / 18.3 oz

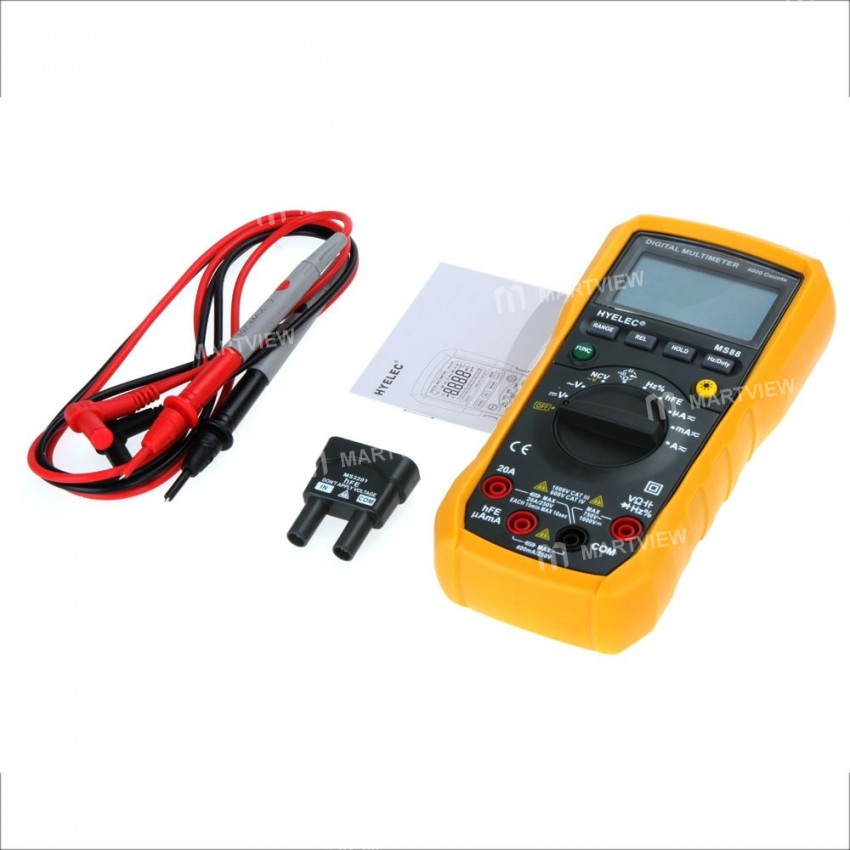

• 1 × HYELEC MS88 Multifunction Digital Multimeter (battery not included)
• 1 × Test cable
• 1 × Test converter
• 1 × English instructions
