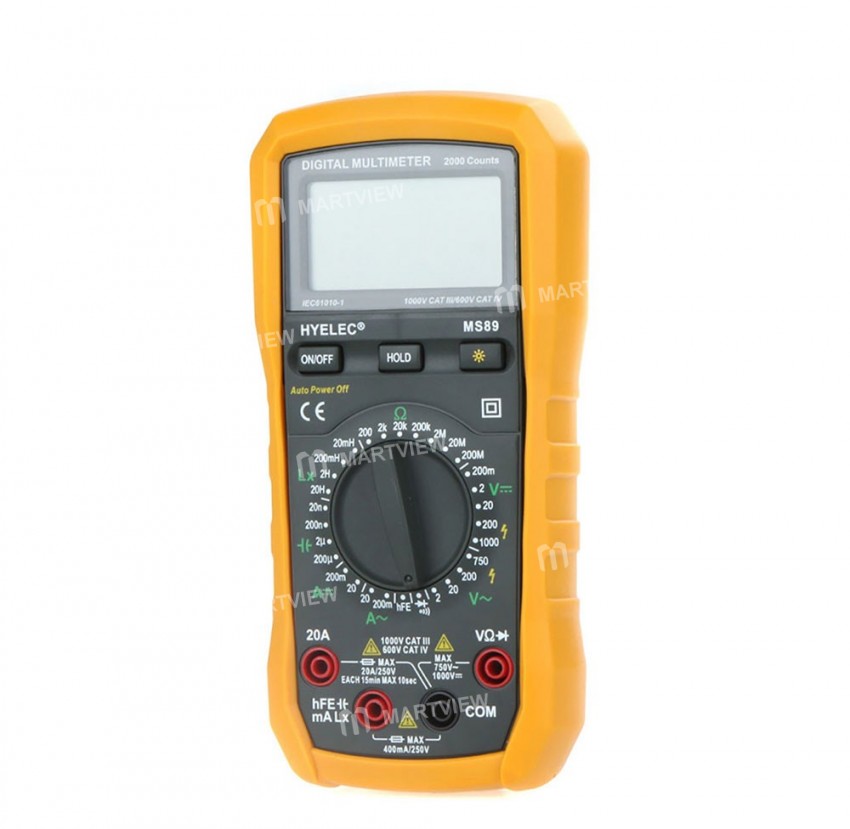

HYELEC MS89 Multifunction Digital Multimeter – Backlight, Capacitance & Inductance Measurement

HYELEC MS89 Multifunction Digital Multimeter – Back Light – Capacitance – Inductance

Description

• This instrument complies with IEC 61010‑1, CAT III 1000 V and CAT IV 600 V over‑voltage standards. See Specifications.
• To get the best service from this instrument, read the user’s manual carefully and follow all safety precautions.
• International symbols used on the meter and in this manual are explained in chapter 1.1.3.

• DC Voltage: 200 mV/2 V/20 V/200 V ±(0.5%+1) / 1000 V ±(0.8%+2)
• AC Voltage: 2 V/40 V/200 V ±(0.8%+3) / 750 V ±(1.2%+3)
• DC Current: 200 mA ±(1.5%+1) / 20 A ±(2.0%+5)
• AC Current: 200 mA ±(1.8%+3) / 20 A ±(3.0%+7)
• Resistance: 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ/20 MΩ/200 MΩ ±(5.0%+10)
• Capacitance: 20 nF/200 nF/2 µF/200 µF ±(4.0%+5)
• Inductance: 20 mH/200 mH/2 H/20 H ±(3.0%+5)
• Display: 2000 Counts
• Data Hold: ✔
• Diode Test: ✔
• Continuity Test: ✔
• Transistor Test: ✔
• Backlight: ✔
• Power Supply: 9 V 6F22 Battery (Not Included)
• Safety Rating: CE, CAT III 1000 V, CAT IV 600 V, RoHS
• Package Size: 21 × 13 × 5 cm / 8.4 × 5.2 × 2.0 in
• Package Weight: 525 g / 18.5 oz

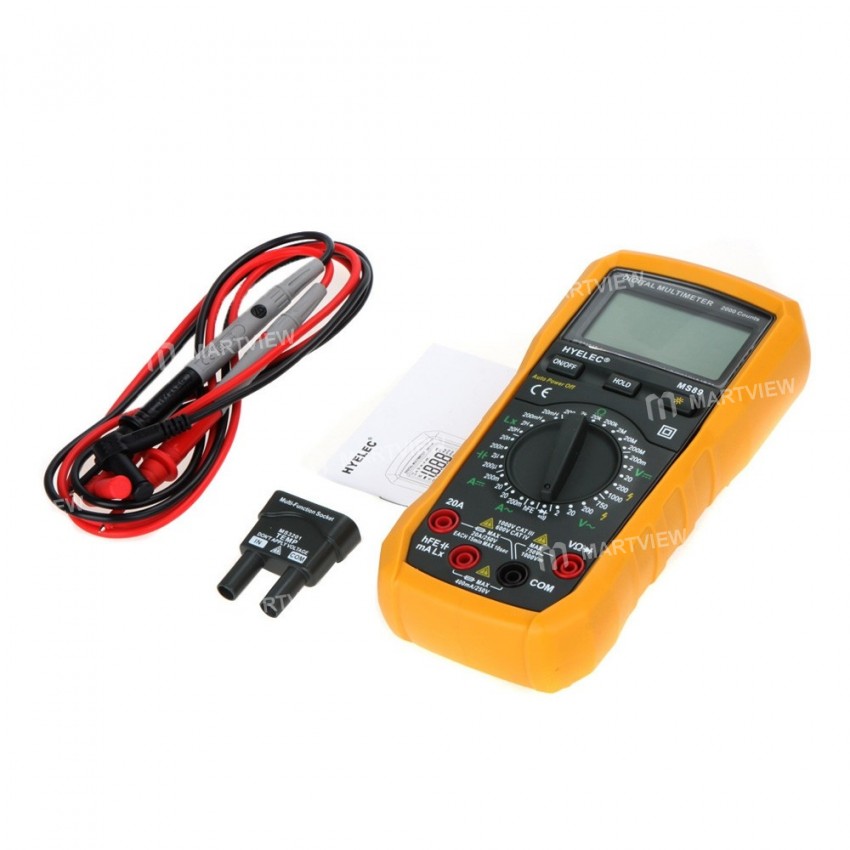

• 1 × HYELEC MS89 Multifunction Digital Multimeter (Battery not included)
• 1 × Test Cable
• 1 × Test Converter
• 1 × English Instructions
