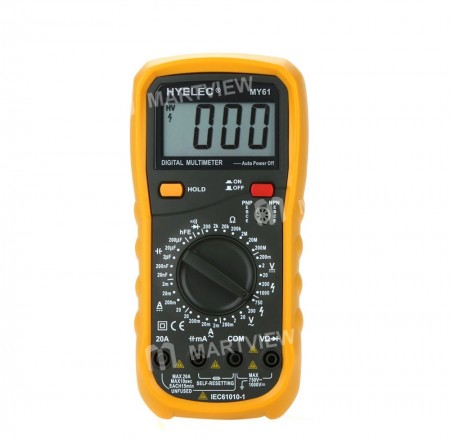

HYELEC MY61 DMM Digital Multimeter with Capacitance & Transistor Test

Hyelec MY61 DMM Digital Multimeter with Capacitance & Transistor Test

Features:

• Safety categories (CAT I‑IV): Supports measurements from low‑voltage household circuits (CAT I) to high‑energy industrial installations (CAT IV).
• CAT IV – Entrance from repair port to power meter and primary over‑current protection device.
• CAT III – Measurements inside building equipment (e.g., switchboards, circuit protectors, bus bars, junction boxes, switches, socket outputs, industrial machinery).
• CAT II – Directly connected to low‑voltage equipment such as household appliances and portable instruments.
• CAT I – Circuits not directly connected to a bus bar (internal protection circuits).
• Safety procedures: Follow standard electric‑shock prevention, avoid misuse, and always use the supplied test probe (ensure it is intact before each use).

• DC Voltage: 200 mV/2 V/20 V/200 V ±(0.5%+2) 1000 V ±(0.8%+2)
• AC Voltage: 200 mV ±(1.2%+3) 2 V/20 V/200 V ±(0.8%+3) 750 V ±(1.2%+3)
• DC Current: 2 mA/20 mA/200 mA ±(1.2%+3) 20 A ±(2.0%+5)
• AC Current: 200 µA/2 mA/20 mA/200 mA ±(1.8%+5) 20 A ±(3.0%+5)
• Resistance: 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ ±(0.8%+3) 20 MΩ ±(1.0%+2) 200 MΩ ±(6.0%+10)
• Capacitance: 2 nF/20 nF/200 nF/2 µF/20 µF ±(4.0%+3) 200 µF ±(6.0%+10)
• Display: 2000 Counts
• Data Hold: ✔
• Diode Test: ✔
• Transistor Test: ✔
• Continuity Test: ✔
• Auto Power‑Off: ✔
• Power Supply: 9 V (6F22) battery (not included)
• Package Size: 21 × 13 × 6 cm / 8.3 × 5.1 × 2.4 in
• Package Weight: 508 g / 1.1 lb

• 1 × HYELEC MY61 Auto Power‑Off DMM Digital Multimeter

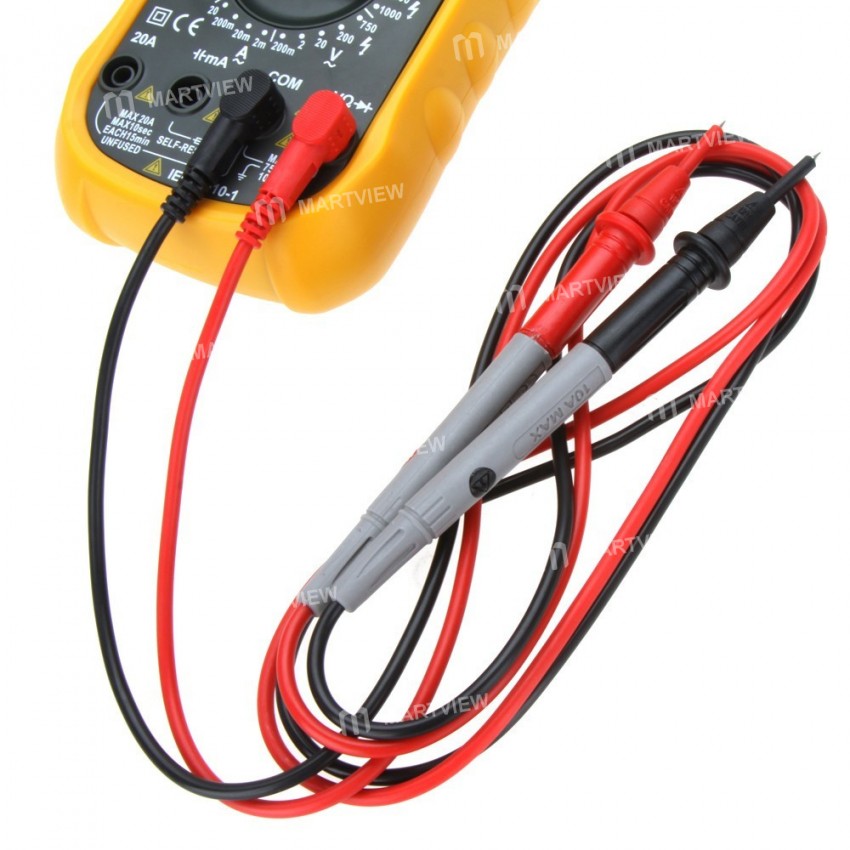

• 1 × Test Lead
• 1 × English user manual
