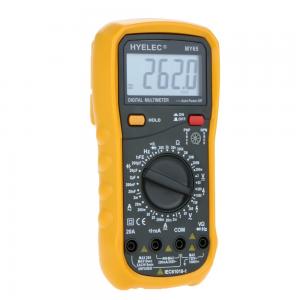

HYELEC MY65 Digital Multimeter – AC / DC Voltage, Current, Resistance, Capacitance & Frequency Tester

Description
This digital multimeter complies with the International Electro Safety Standard IEC‑61010 for electronic measuring instruments and hand‑held digital multimeters. It satisfies safety requirements of 600 V CAT IV, 1000 V CAT III and grade 2 pollution protection. Please read the user manual carefully and follow all safety precautions before use. Refer to section 1.1.3 for the international symbols used on the meter and their instructions.

Features
Key Highlights: 20000‑count display, data hold, auto power‑off, diode & transistor testing, continuity check, CE CAT III 600 V safety rating, RoHS compliant.

• Display: 20000 Counts
• Data Hold: ✔
• Auto Power‑Off: ✔
• Diode Test: ✔
• Transistor Test: ✔
• Continuity Test: ✔
• Power Supply: 9 V 6F22 Battery (not included)
• Safety Rating: CE CAT III 600 V, RoHS

• DC Voltage: 200 mV / 2 V / 20 V / 200 V ± (0.1 % + 3) 1000 V ± (0.15 % + 3)
• AC Voltage: 2 V / 20 V / 200 V ± (0.8 % + 10) 750 V ± (1.0 % + 15)
• DC Current: 2 mA / 20 mA / 200 mA ± (0.8 % + 5) 20 A ± (2.0 % + 10)
• AC Current: 2 mA / 20 mA / 200 mA ± (0.8 % + 10) 20 A ± (2.5 % + 10)
• Resistance: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ ± (0.5 % + 3) 20 MΩ ± (0.5 % + 3) 200 MΩ ± (5.0 % + 10)
• Capacitance: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF ± (4.0 % + 20) 200 µF ± (6.0 % + 20)
• Frequency: 20 kHz ± (1.5 % + 5)
• Package Size: 21 × 13 × 6 cm / 8.4 × 5.1 × 2.4 in
• Package Weight: 536 g / 1.2 lb

• 1 × HYELEC MY65 Digital Multimeter
• 1 × Test Converter

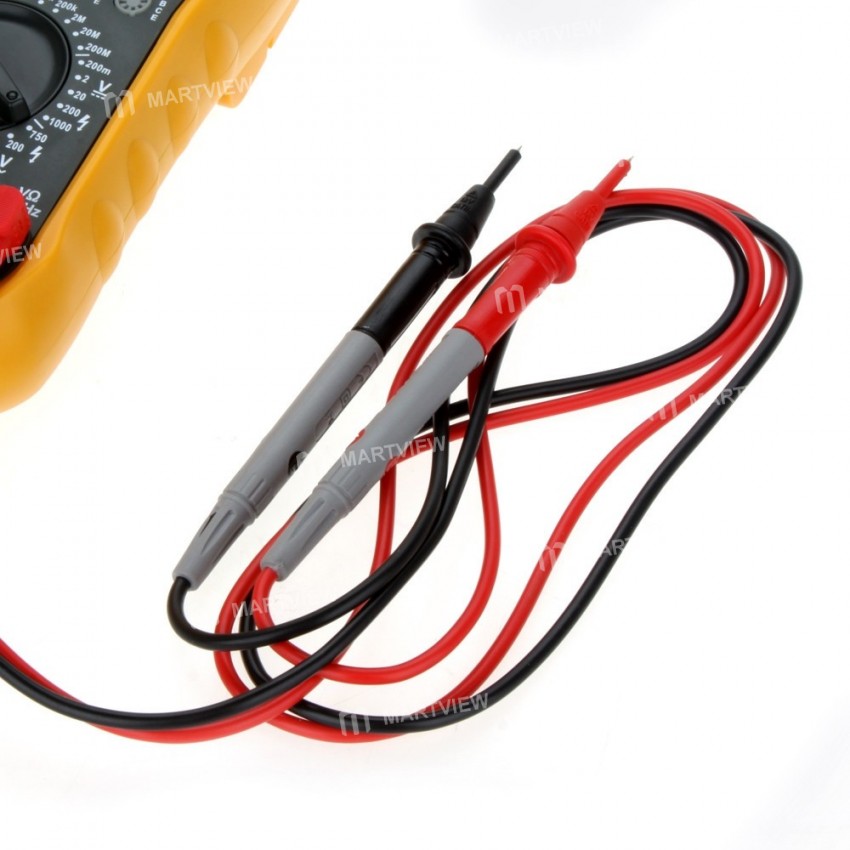

• 2 × Test Cables
• 1 × English Manual
