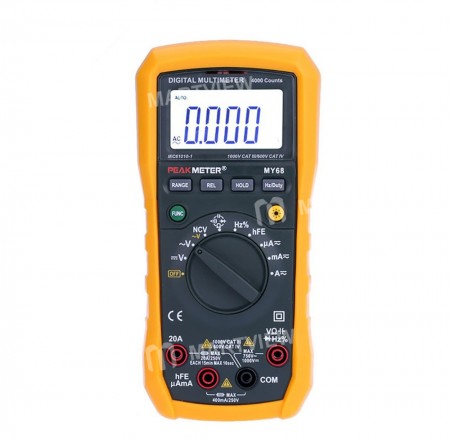

HYELEC MY68 Digital Multimeter – 4000 Counts, AC / DC, Resistance, Capacitance, Frequency & Duty Cycle Tester
0 out of 5 stars
No review yetProduct details
Description
Description
Features:
All essential measurement functions in one handheld device.
Comprehensive 4000‑Count Display
Auto‑ and manual ranging: ✔
Relative measurement: ✔
Data hold: ✔
Non‑Contact Voltage Detector (NCV): ✔
Diode test: ✔
Transistor test: ✔
Continuity test: ✔
Backlight: ✔
Power supply: 9V 6F22 Battery (not included)
Safety rating: CE, CAT III 1000V, CAT IV 600V, RoHS compliant
Specifications:
DC Voltage: 400 mV / 4 V / 40 V / 400 V ± (0.5 %+3) | 1000 V ± (0.8 %+5)
AC Voltage: 400 mV ± (1.2 %+20) | 4 V / 40 V / 400 V ± (0.8 %+3) | 750 V ± (1.0 %+5)
DC Current: 400 µA / 4000 µA / 40 mA / 400 mA ± (1.0 %+5) | 10 A ± (1.5 %+8)
AC Current: 400 µA / 4000 µA / 40 mA / 400 mA ± (1.5 %+8) | 10 A ± (2.0 %+10)
Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ ± (1.0 %+3) | 40 MΩ ± (1.2 %+15)
Capacitance: 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 200 µF ± (4.0 %+15)
Frequency: 10 Hz ~ 10 MHz ± (1.5 %+15)
Duty cycle: 1 % ~ 99 % ± (2.0 %+2)
Package size: 22 × 13 × 6 cm (8.3 × 5.1 × 2.4 in)
Package weight: 516 g (1.1 lb)
Package list:
1 × HYELEC MY68 Digital Multimeter

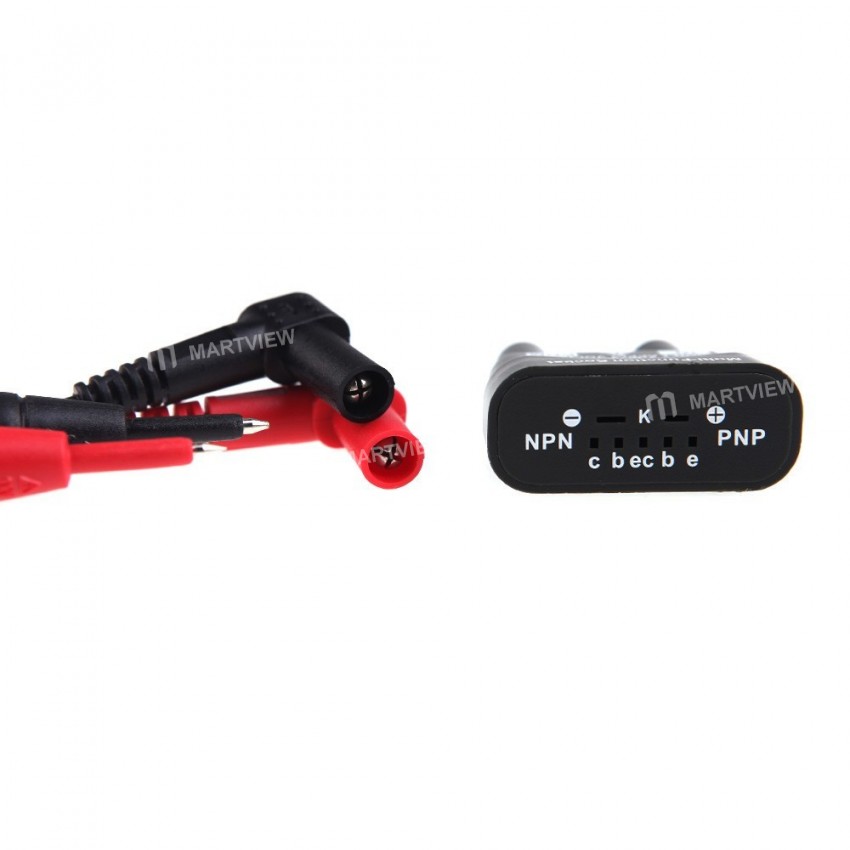

1 × Test Converter

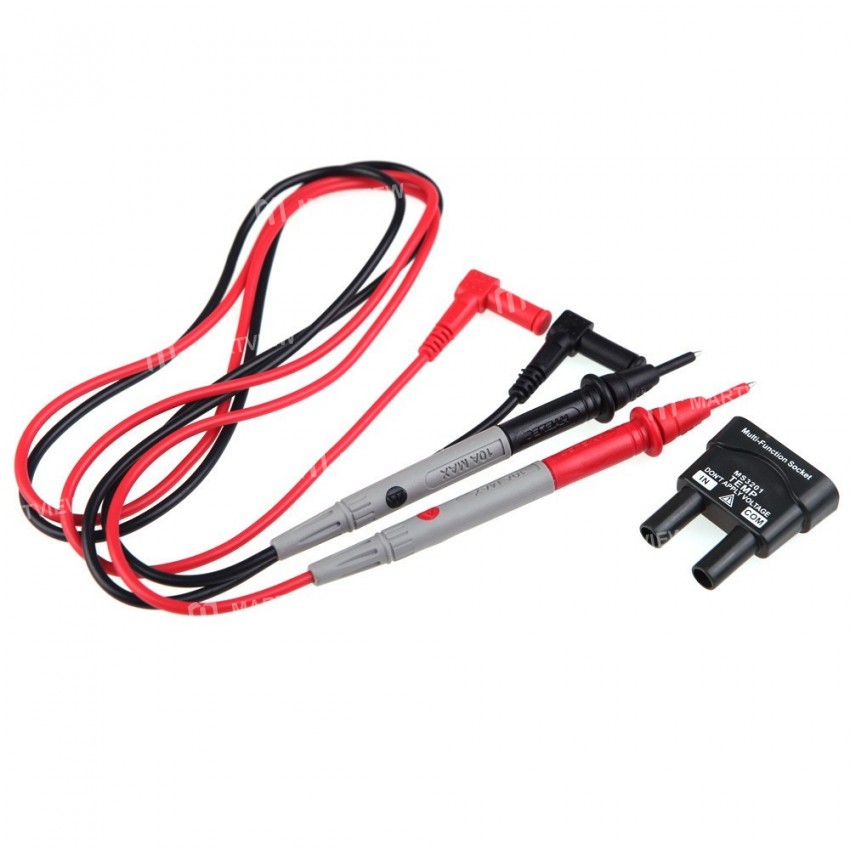

2 × Cables
1 × English Manual
