PEAKMETER PM2302 Digital Earth Ground Resistance Voltage Tester Meter 0ohm to 4k Ohm 100 Groups Data Logging

PEAKMETER PM2302 Digital Earth Ground Resistance Voltage Tester Meter 0ohm to 4k Ohm 100 Groups Data Logging

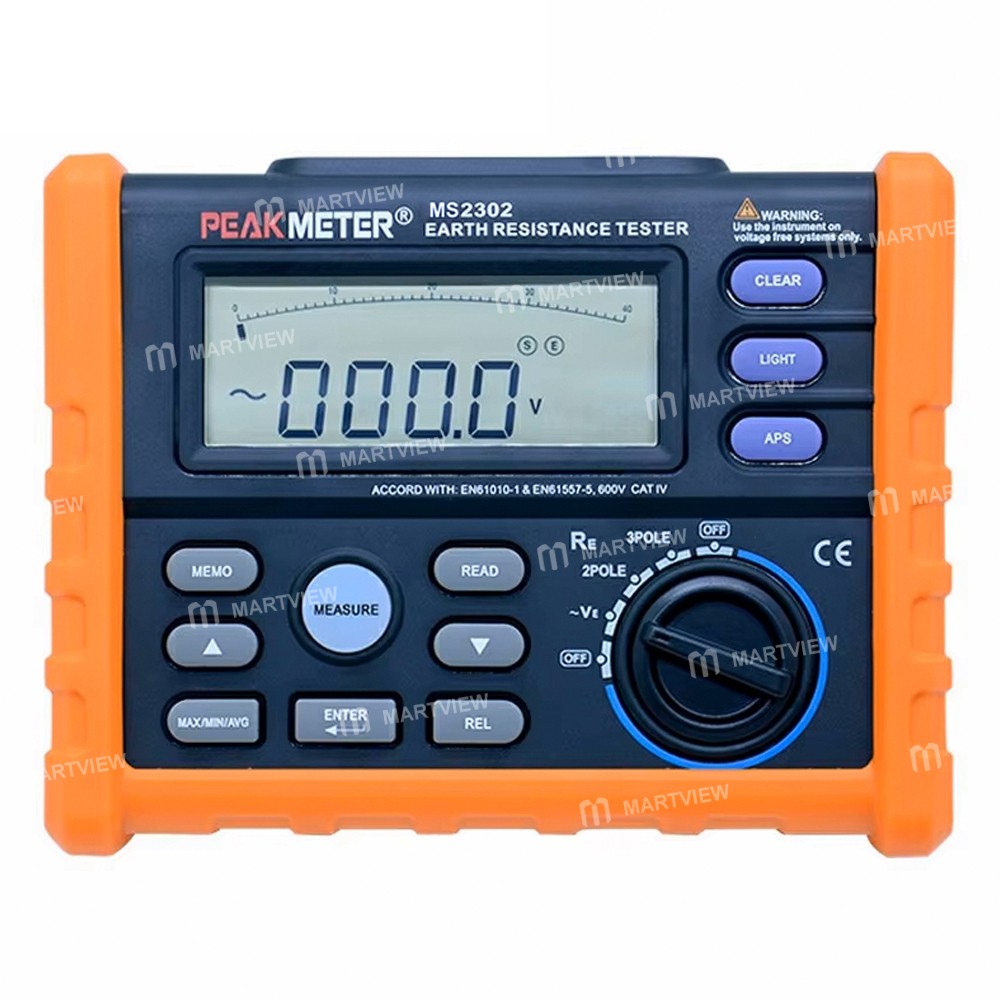

The PM2302 and MS2302 shown in the picture are shipped randomly, but they are actually the same product. We apologise for any inconvenience caused.

Features:

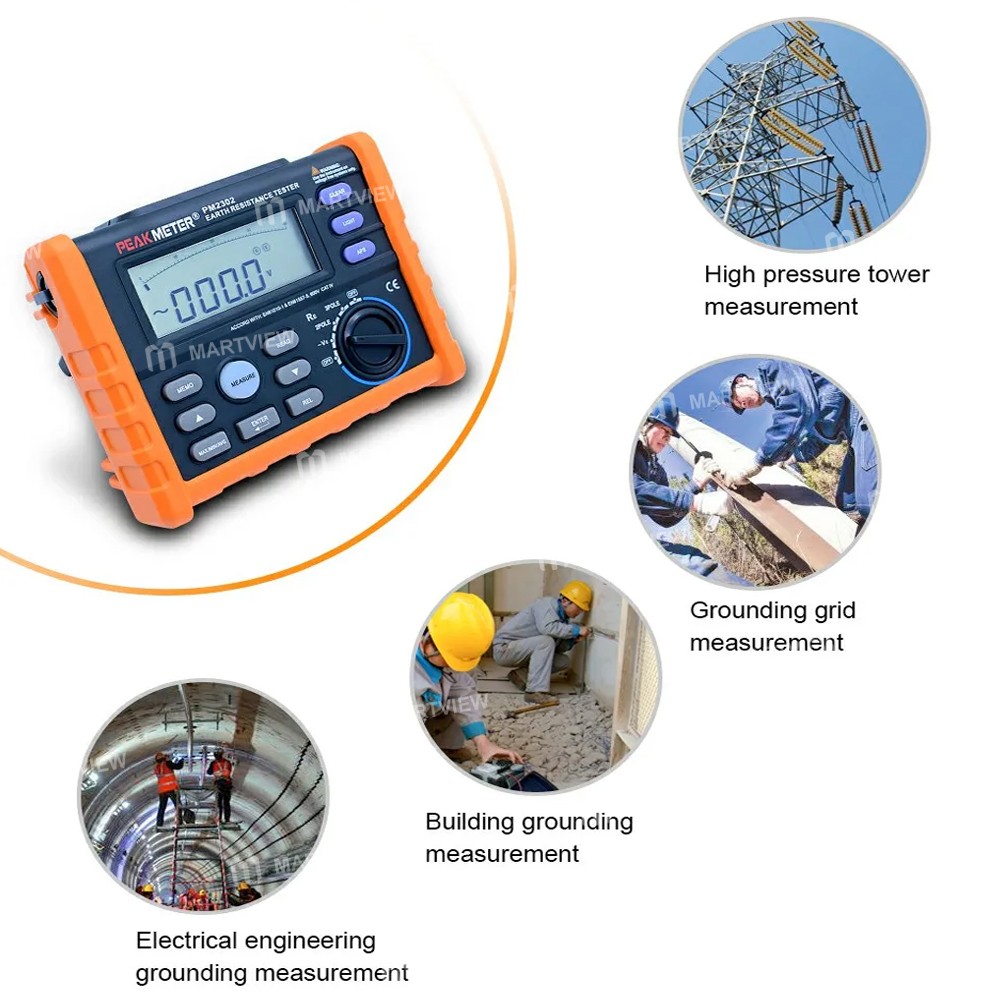

• The meter is applicable to the testing of the earth resistance of the power supply wires, distribution wires inside a room, electrical equipment or appliance, which can do in two measurement modes: Bi-poles or Tri-poles, and it also can be used to measure the earth voltage.

• Large digital LCD and backlight applied to the meter facilitate users to read the information on LCD.

• Besides, the meter is capable of storing up to 100 groups of measurement data, which will not be lost even in a case of power cuts so that the user can easily consult the historical data.

• In addition, the meter can also be used to measure maximum, minimum or average and measure relatively.

• Auto Power-off function has been provided for it.

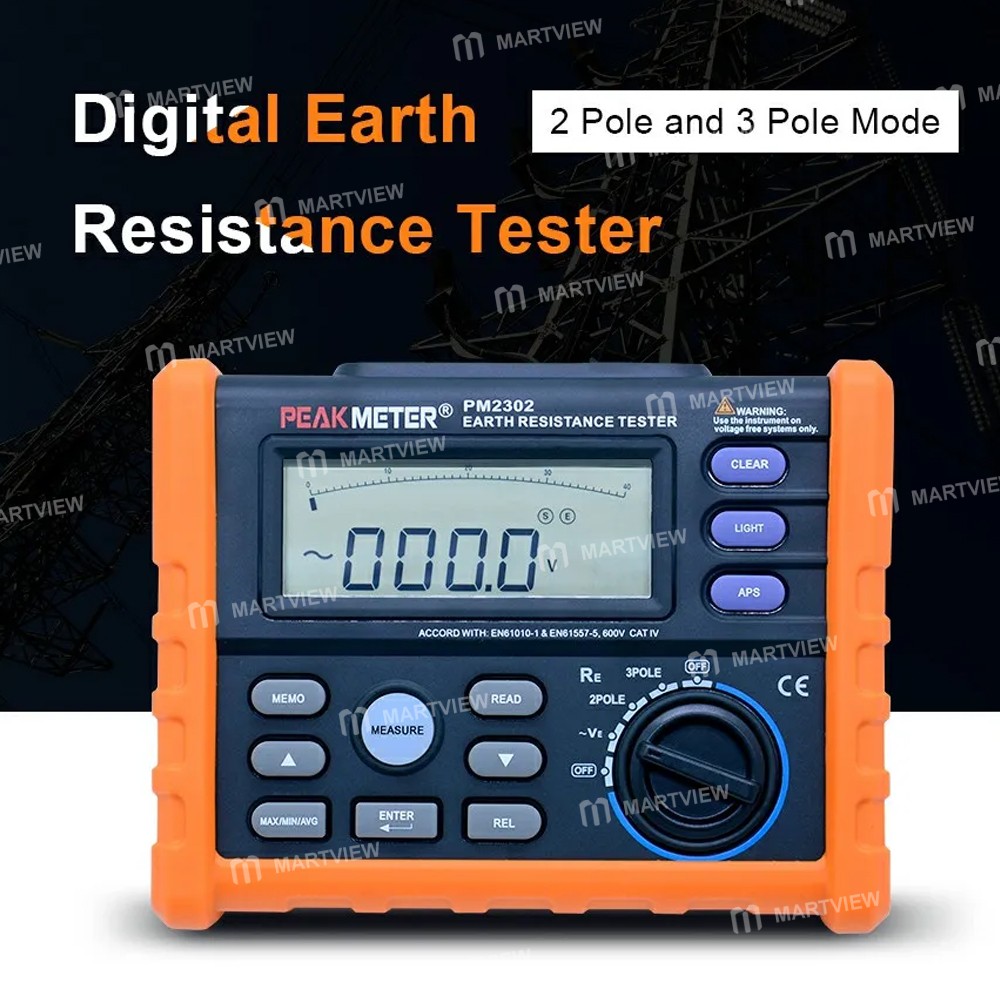

• Digital display and analog bars display 2 poles and 3 pole mode Earth resistance by constant current inverter 800Hz/3mA

• MAX/MIN/AVG/REL measurement functions Data logging: 100 groups measured values can be memorized Low battery display and backlight display

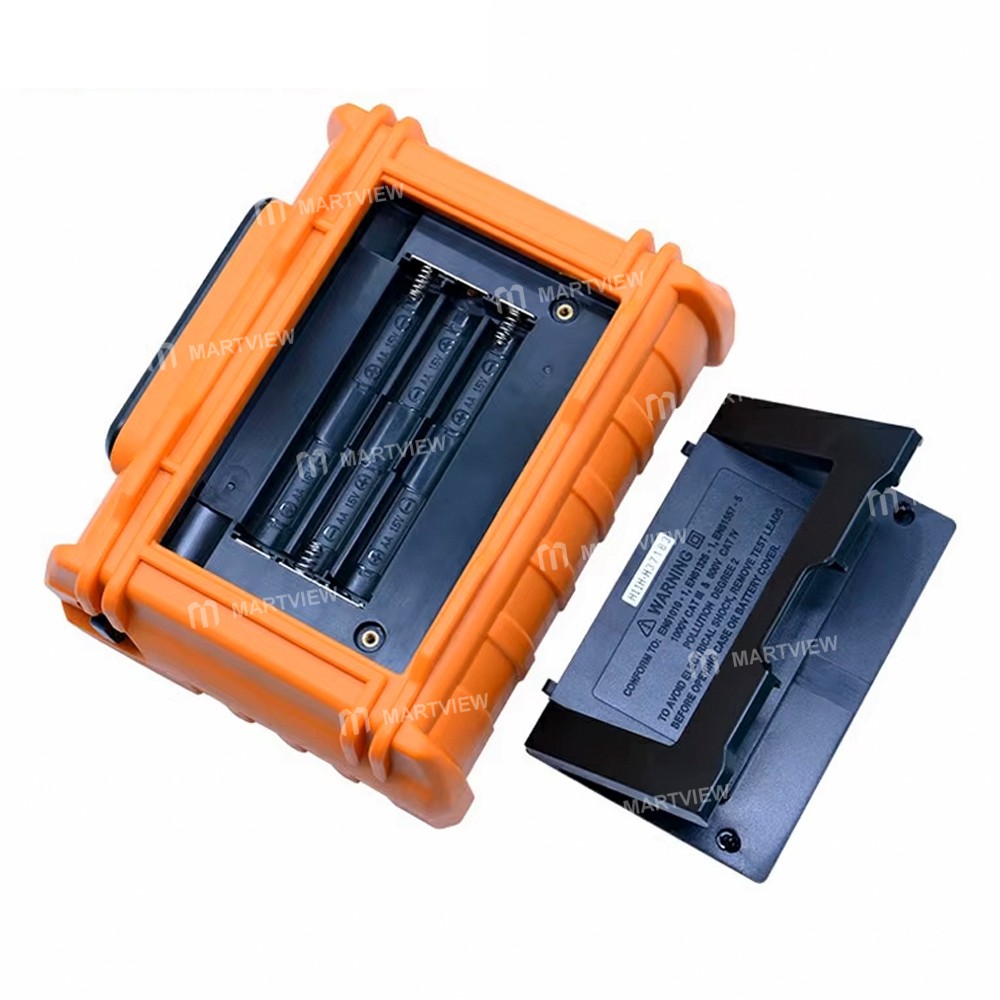

• Power supply: 6x1.5v AA batteries (Not includes)

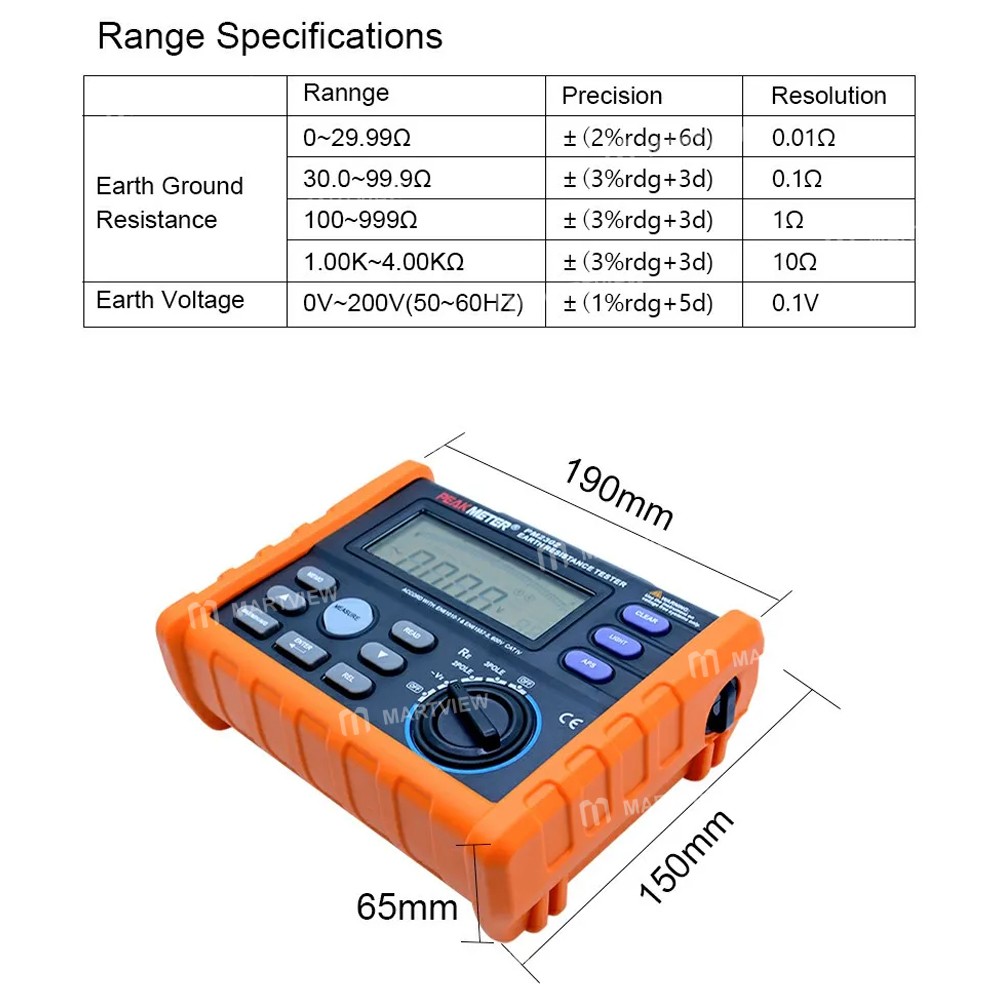

• Size: 330mmx265mmx125mm

• Weight: 3.45kg

• Pls note that battery is not included in the package

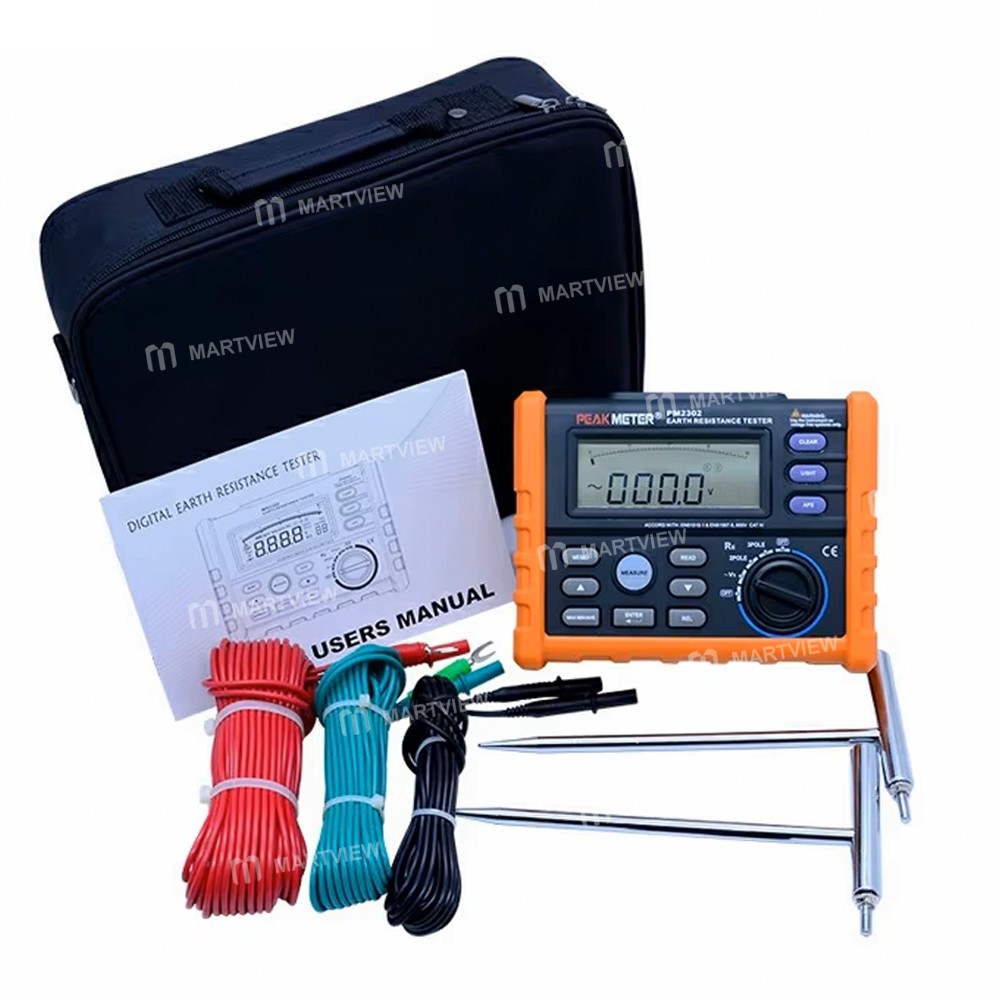

Package includes:

• 1 x MS2302 Earth Ground Resistance Tester (without Battery)
• 2 x Iron rods

• 3 x Test leads
• 1 x Black Portable bag
