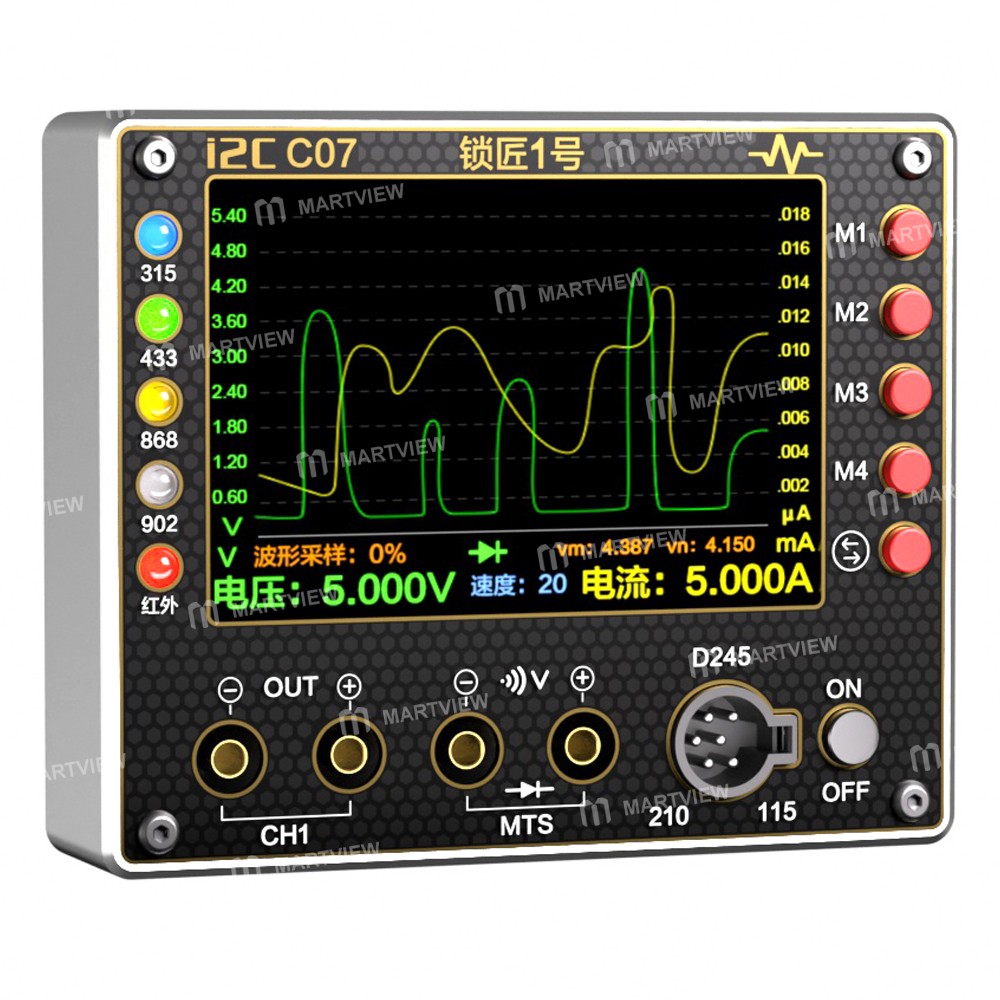

i2C C07 Locksmith No.1 Power Supply Frequency Test Board Waveform Multimeter

i2C C07 Locksmith No.1 Power Supply Frequency Test Board Waveform Multimeter

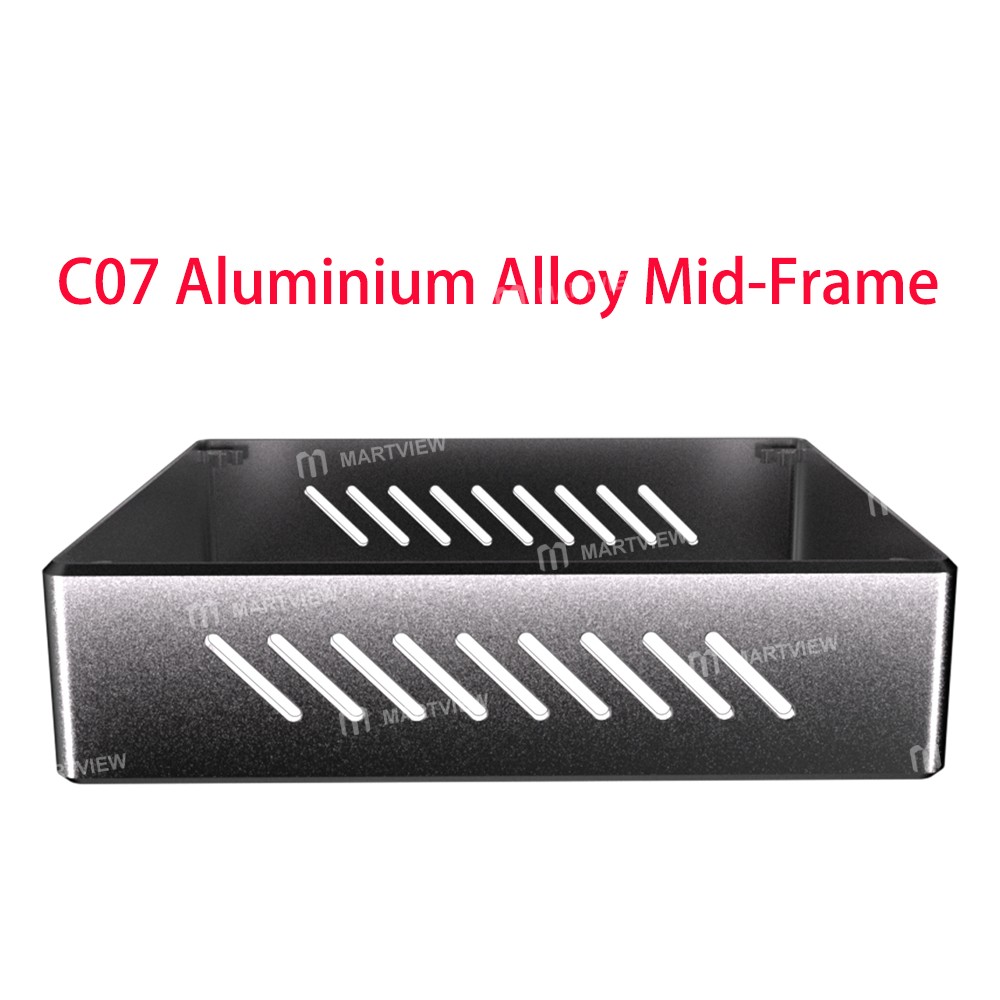

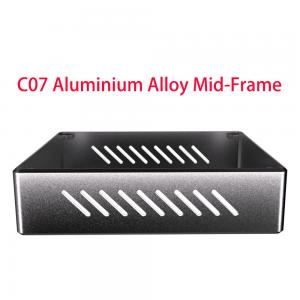

This product is divided into an aluminum alloy middle frame version and a PCB minimalist style, which can be selected when placing an order. The default package does not come with a CNC aluminum alloy middle frame, so please pay attention to the selection when placing an order

Features:

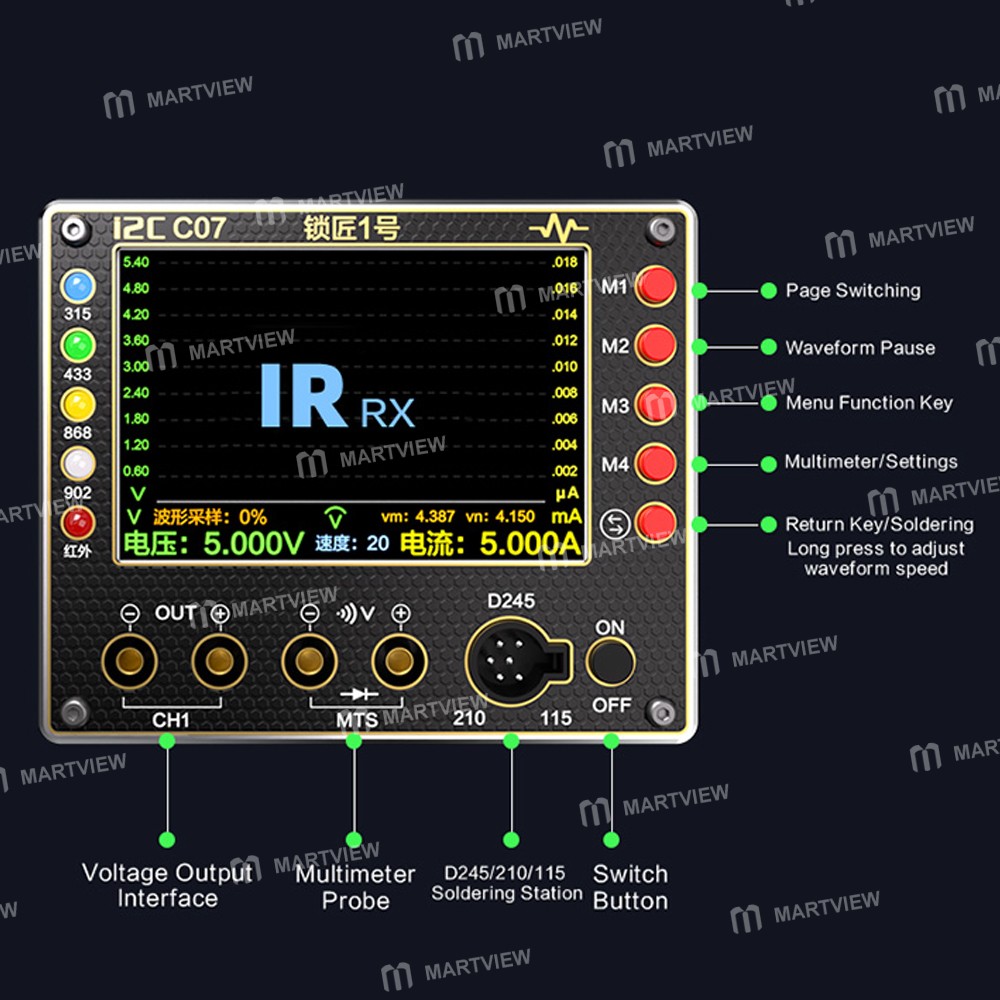

• Waveform Measurement/Remote control repair/Frequency test/Current testing/Diode measurement/Soldering iron function

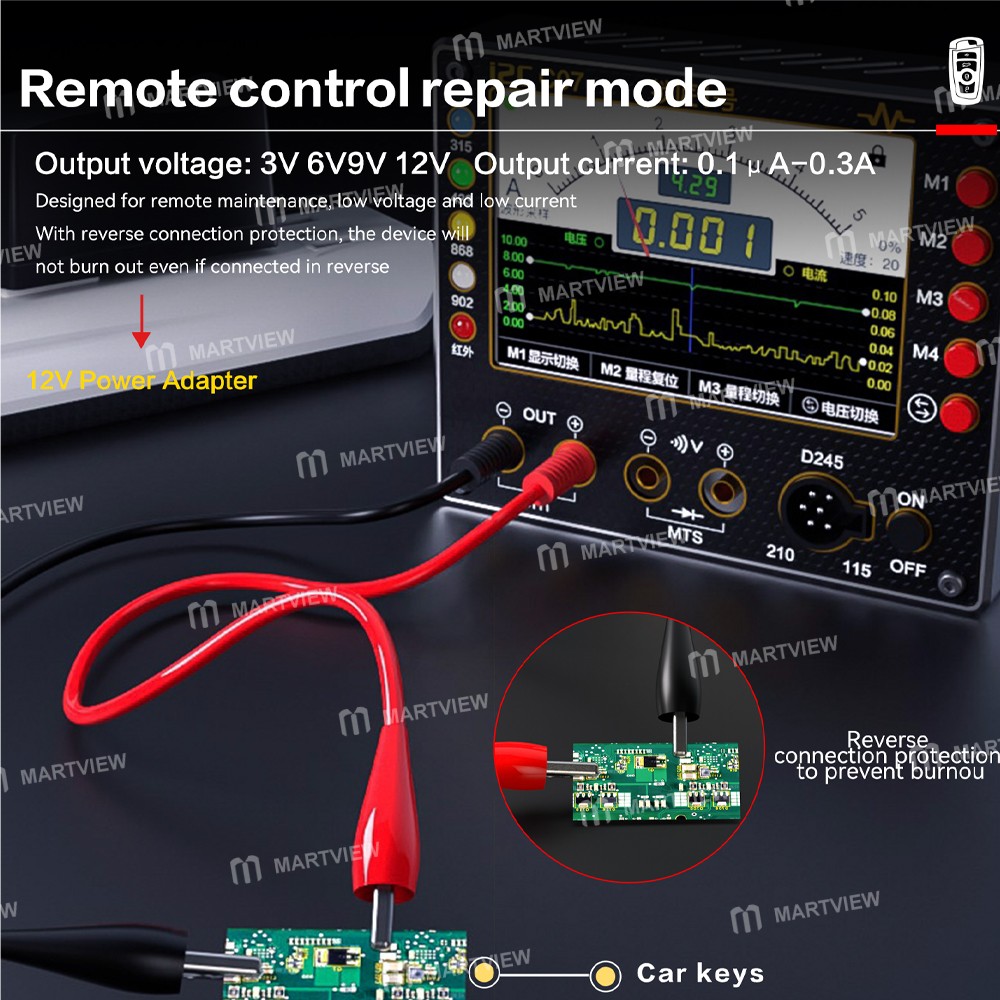

• Output voltage: 3V/6V/9V/12V; Output current: 0.1μA~0.3A; Designed for remote maintenance, low voltage and low current, with reverse connection protection, the device will not burn out even if connected in reverse

• No need for complicated code matching, just one click and it will respond!

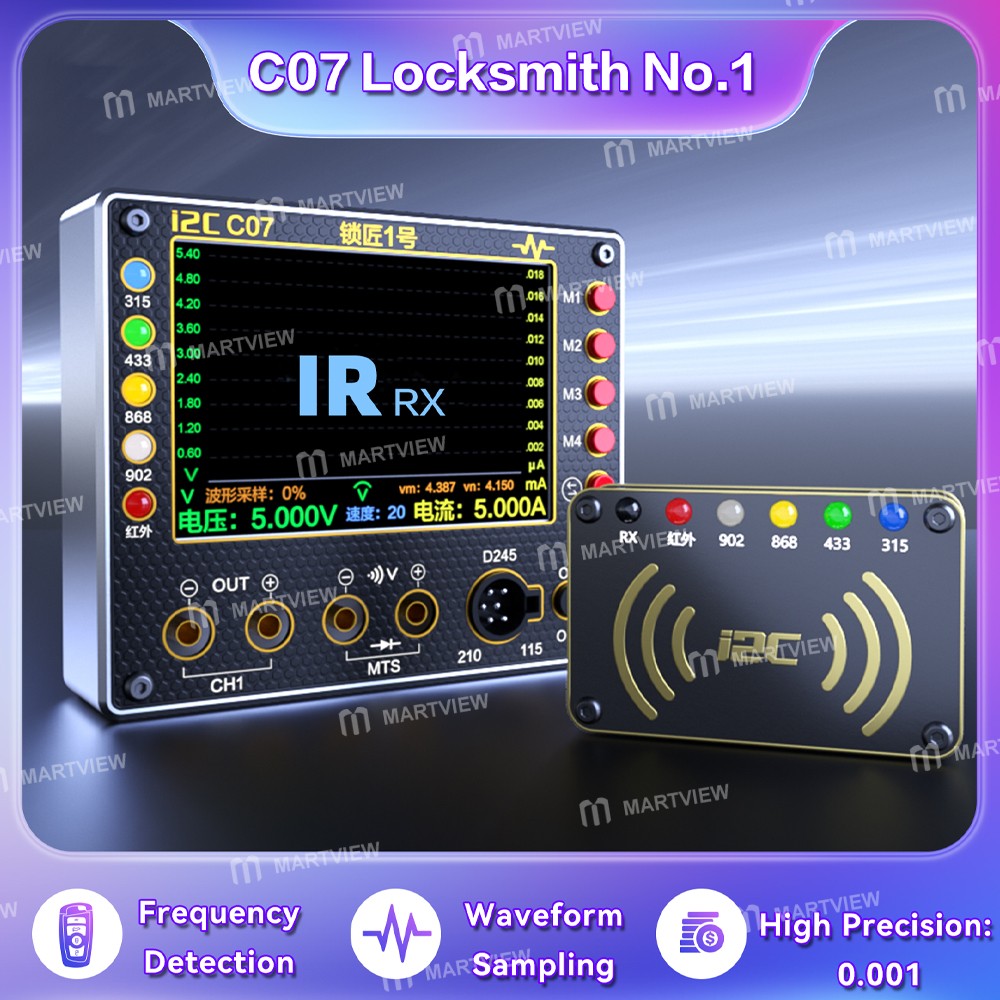

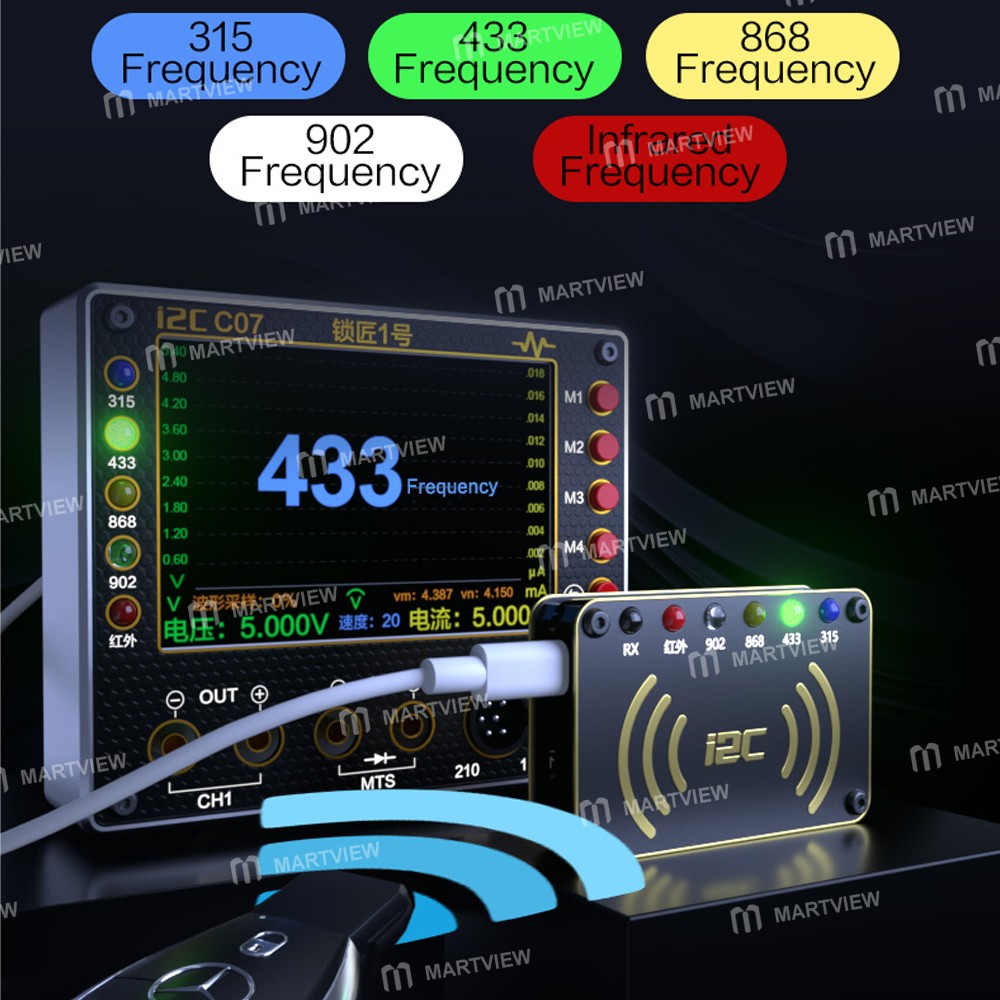

• Can test infrared 433/315/868/902 frequency remote control, triggering the light is simple and clear

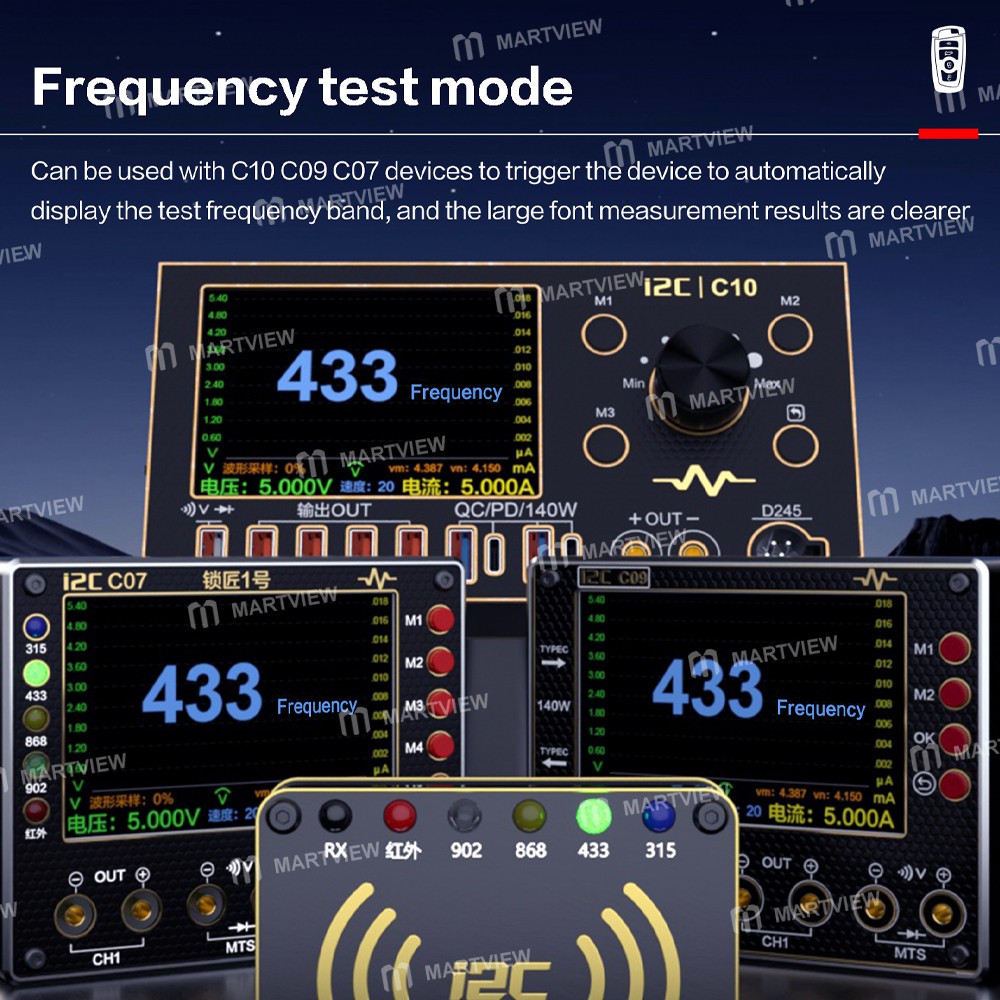

• Frequency test mode: Can be used with C10/C09/C07 devices to trigger the device to automatically display the test frequency band, and the large font measurement results are clearer

• Voltage/current/resistance/On/Off/diode/capacitance/frequency can be solved by one machine, covering all maintenance and inspection

• Ultra-fast diode measurements, high-speed scanning, accurate measurement, buzzer mode, diode mode, 2 in 1, extremely simple operation

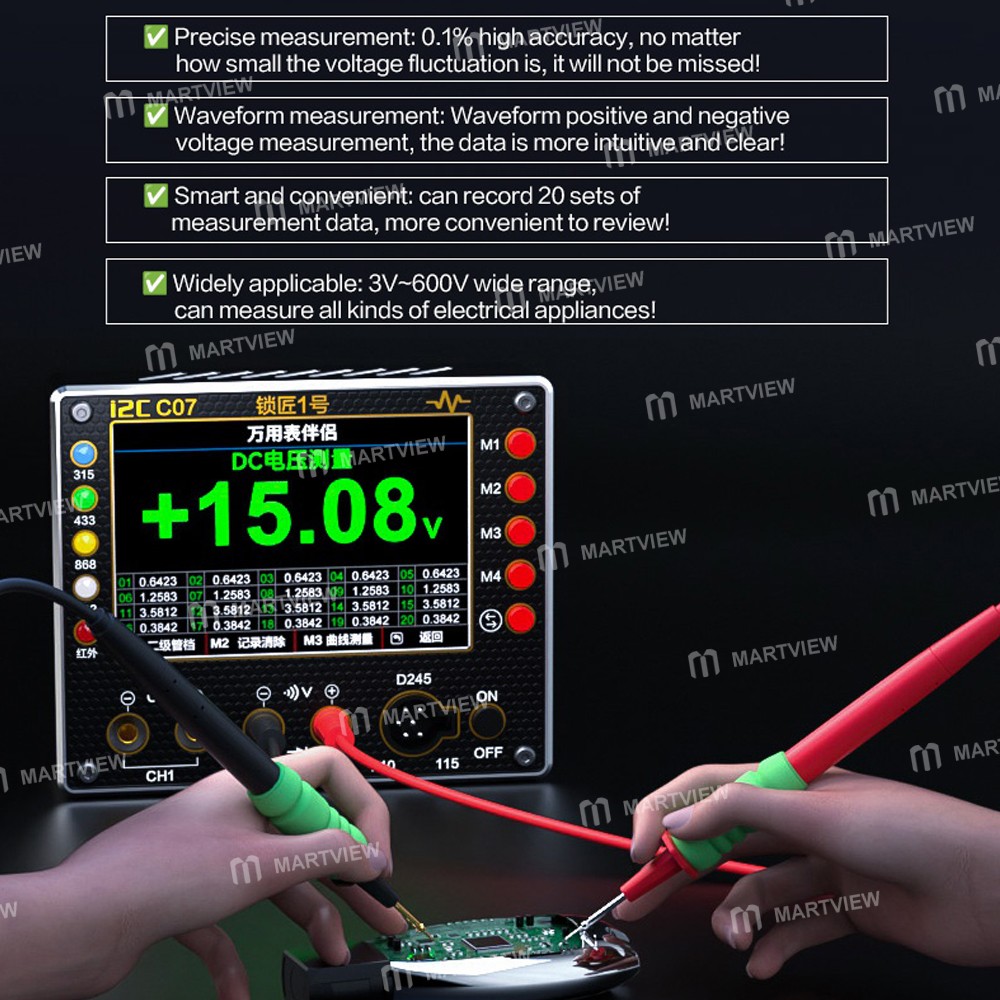

• DC voltage measurement: Can measure 0-40V DC-DC voltage and has 20 sets of data recording function, considerate and more practical

• One gear, two functions 0-50K resistor budget: The current resistance value can be estimated directly without changing gears; everything is designed in the future minimalist mode

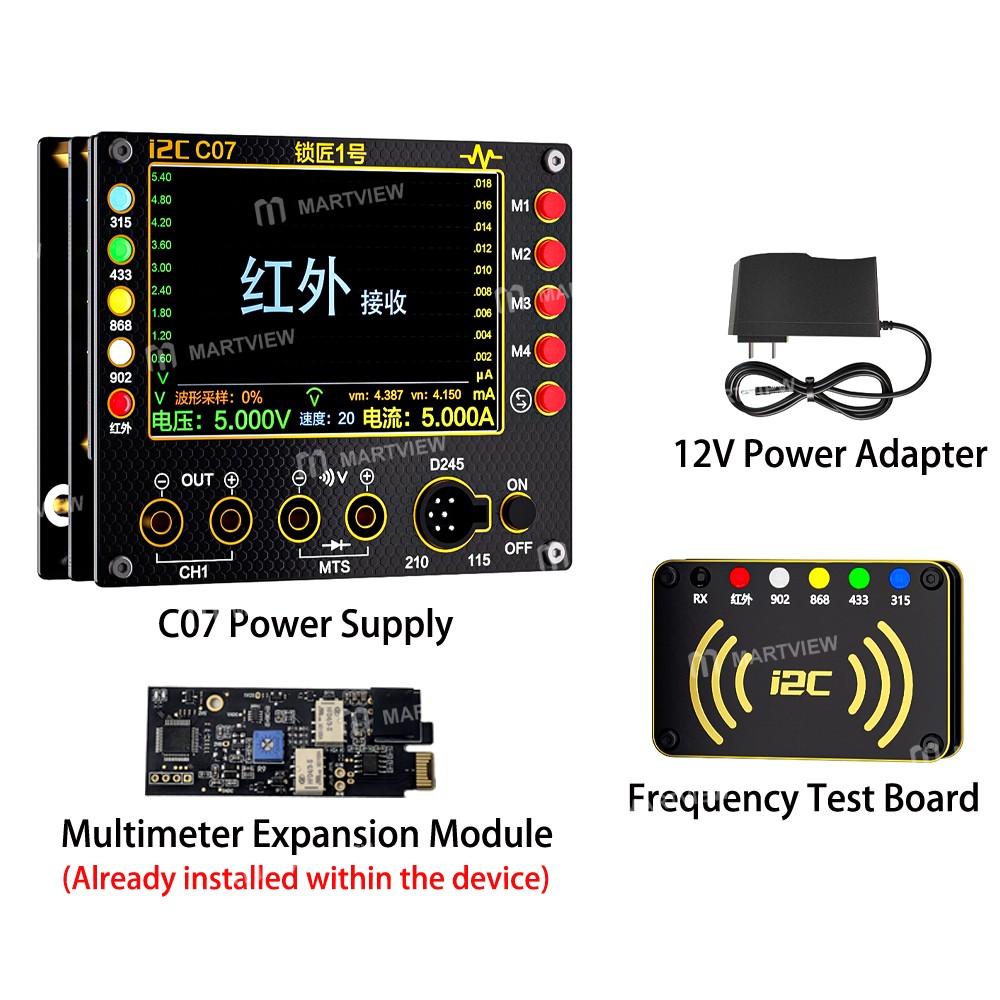

• PCIE function expansion: Built-in PCIE expansion slot design, optional

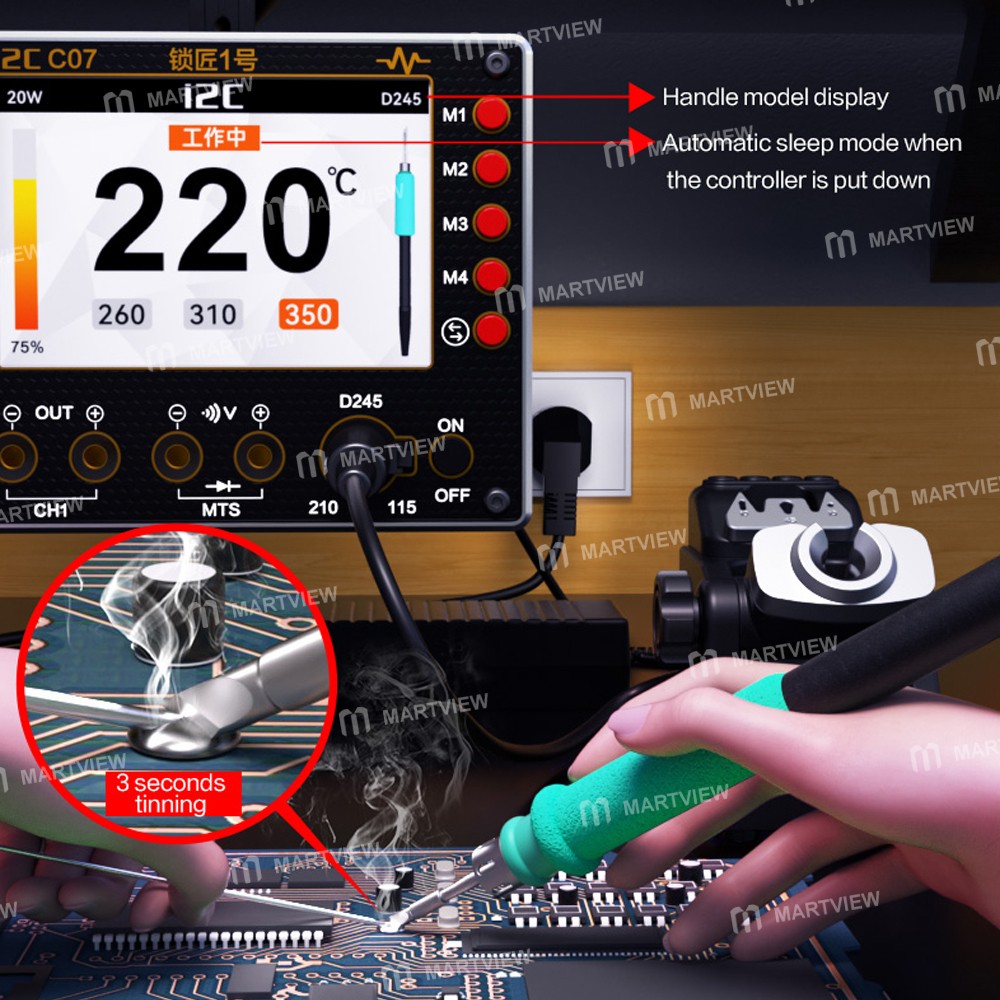

• One machine supports three kinds of handles: T210, T245, T115, perfect for all welding industries

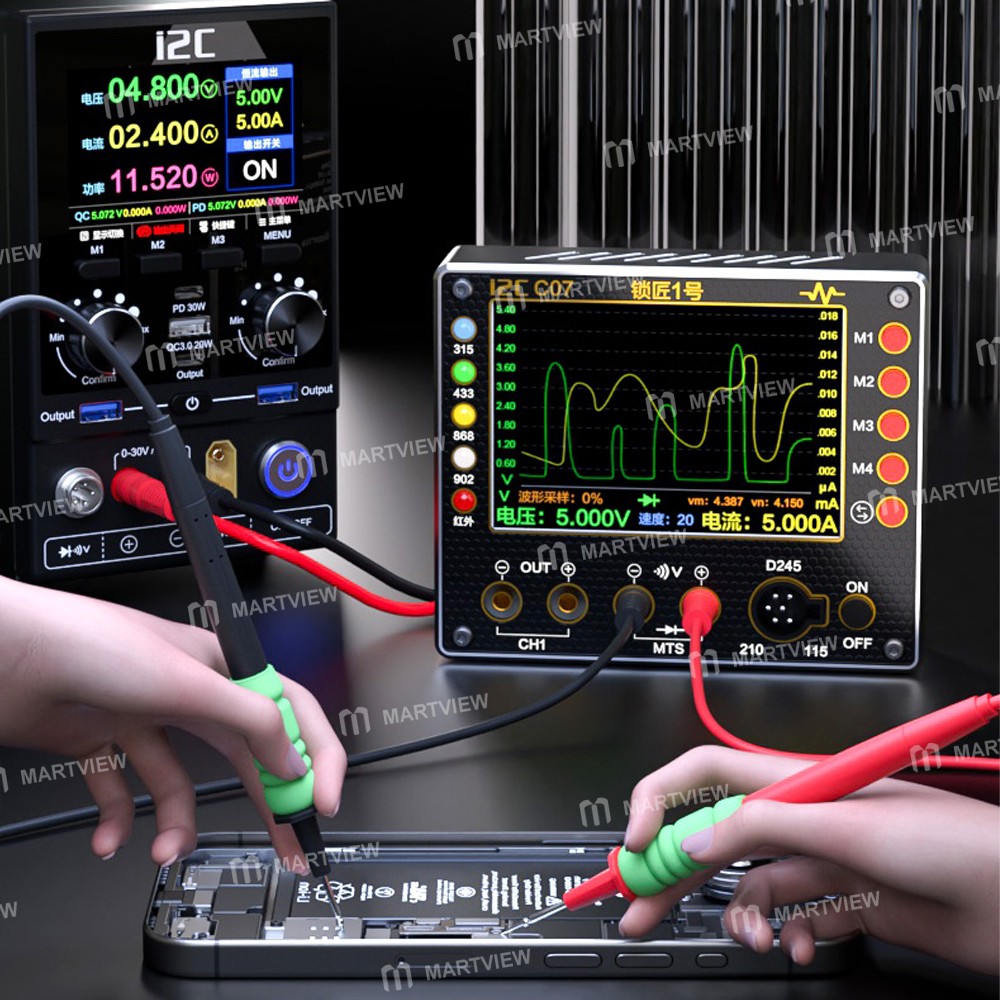

• With the same working conditions as C10, micro-ampere acquisition accuracy 0.1μA-8A, wide current sampling 0- 40V, DC voltage sampling can be used for low power consumption testing, mobile phone repair, home appliance repair, 3C digital industry, connected to the regulated power supply, instantly turned into an oscilloscope, where voltage and current can be seen everywhere

• Pointer Mode: It is highly intuitive, quick to respond, and has little interference. It can intuitively reflect the changing trend and size of the current, and is convenient for quickly judging the approximate range of the current.

• Waveform Modev: It can accurately simulate various complex current or voltage change curves. Through the curve changes, the current waveform can be viewed intuitively, thereby improving the efficiency and accuracy of troubleshooting.

• Digital display mode: Clear and easy to read. The large screen provides a clear and eye-catching digital display, and the voltage, current, and power results are clear at a glance

Specification:

• Host adapter input voltage: AC 110~230V

• Remote maintenance output voltage: 3V/6V/9V/12V

• Remote maintenance output current: 0~300mA

• Remote maintenance current accuracy: 0.1μA

• Banana plug input voltage: DC 0~30V

• Banana plug input detection current: 0~8A

• Soldering station input voltage and current: DC 24V/5A

• Product dimensions: 118.8*97*31.5mm

• Screen size: 4.0-inch

• Screen resolution: 320*480

• Diode test: 0~2.8V

• Resistor budgeting: 0~50KΩ

• DC voltage measurement: 0~30V

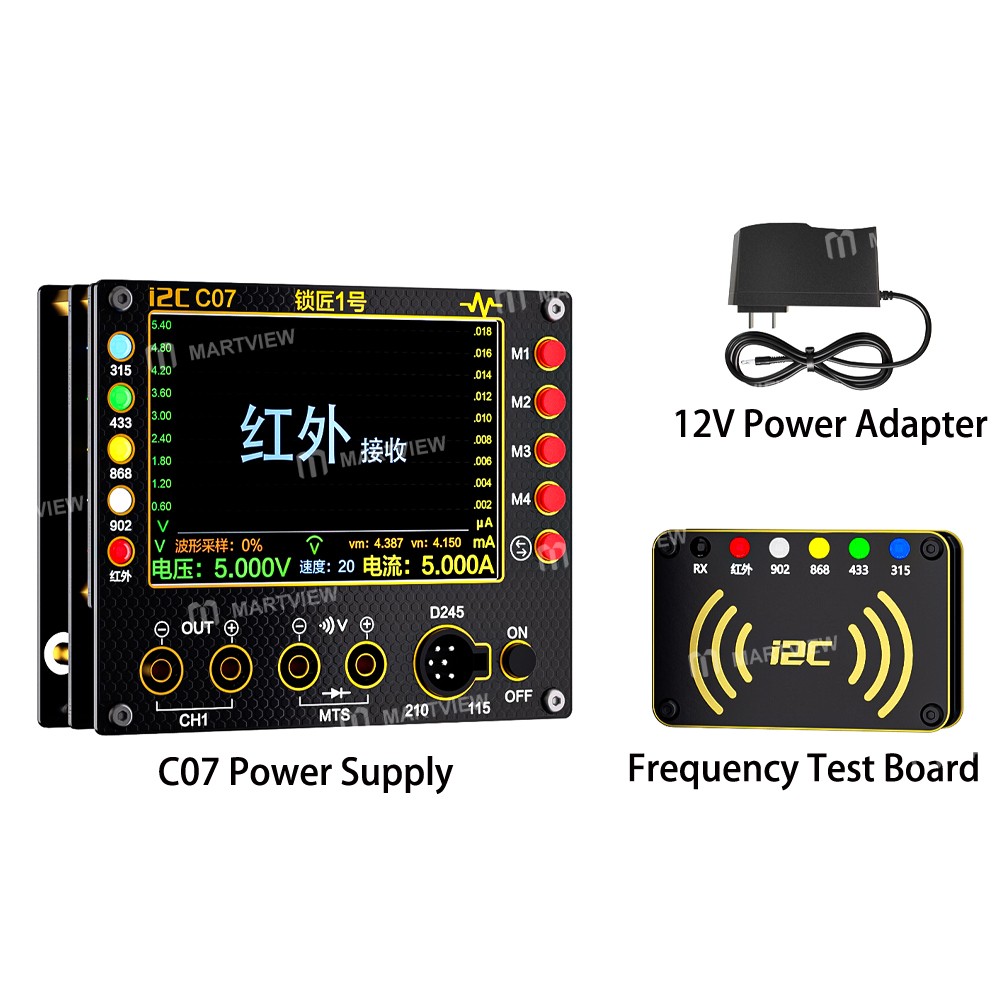

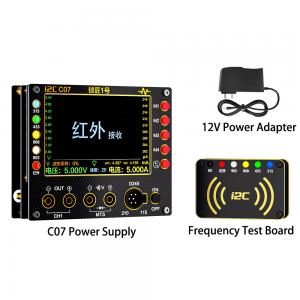

Package includes:

• 1 x According to your choice
