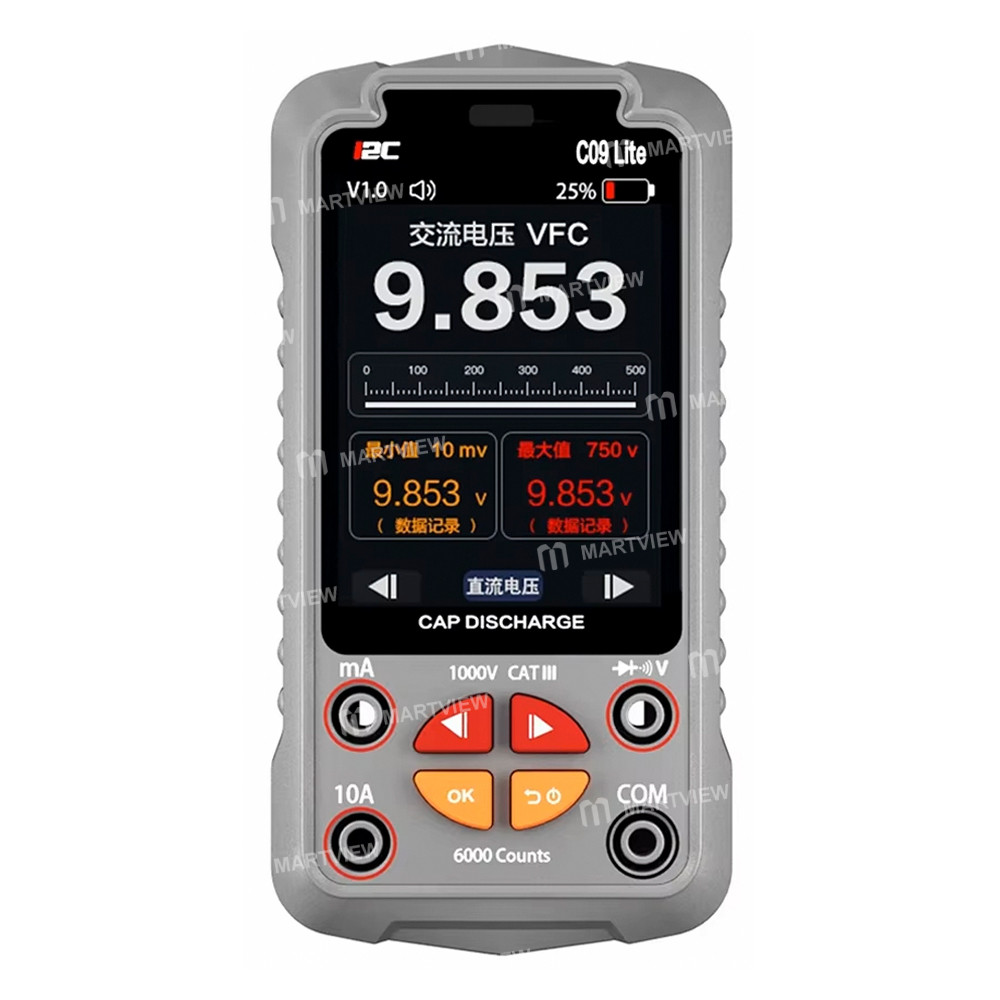

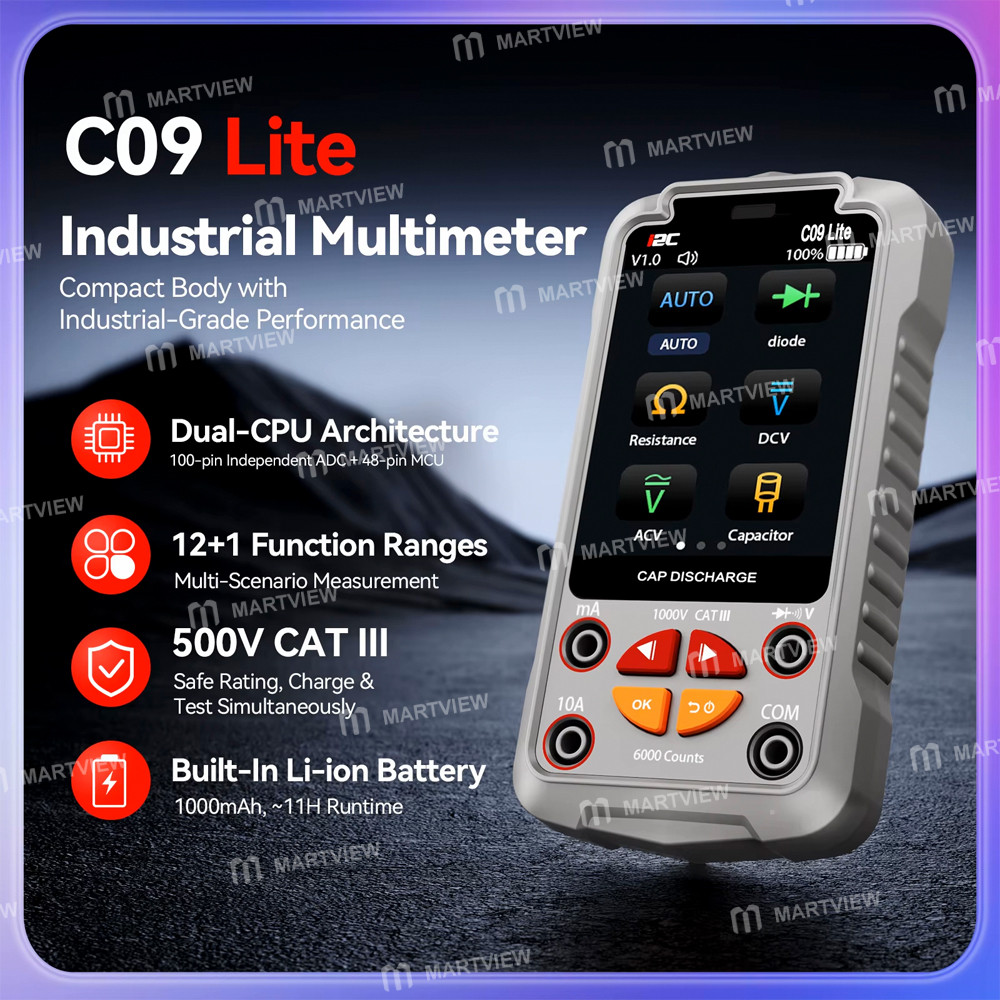

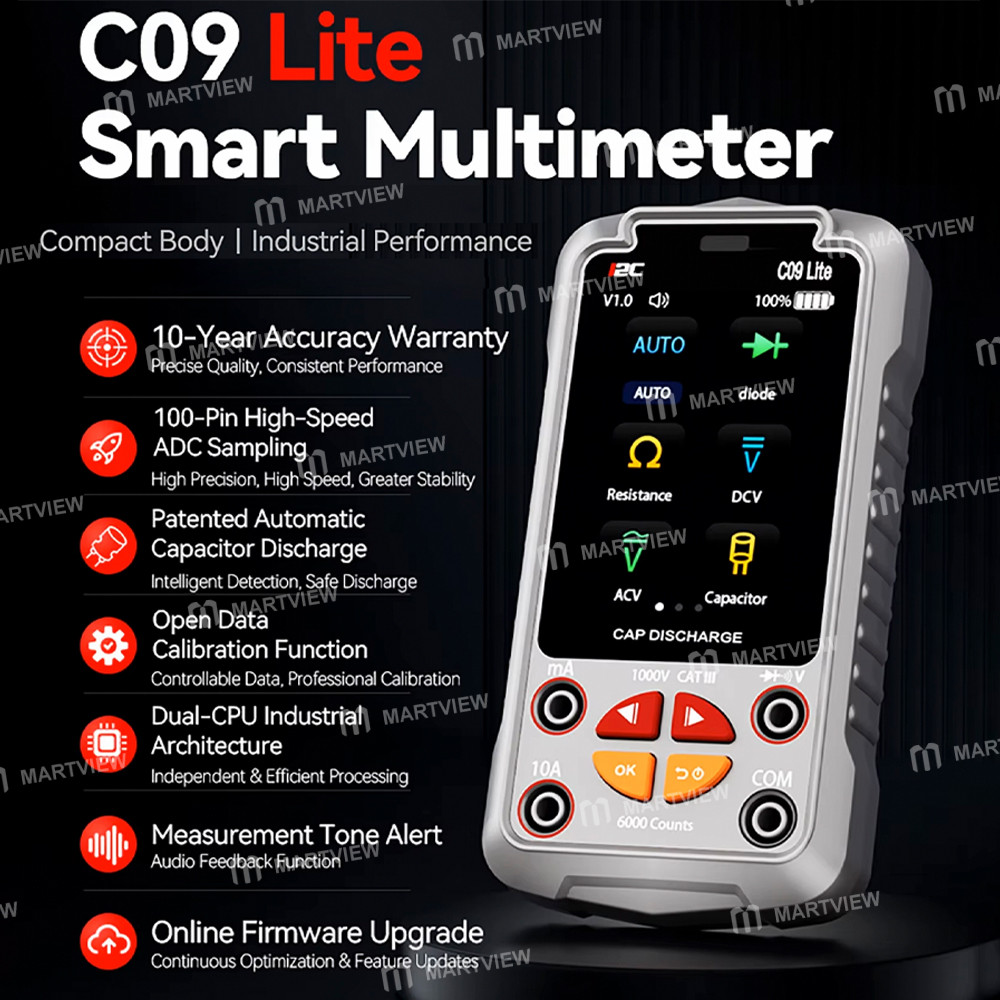

i2C C09 Lite Full Auto Industrial Multimeter Supports Capacitive Discharge & Live Screen Mirroring

i2C C09 Lite Full Auto Industrial Multimeter Supports Capacitive Discharge & Live Screen Mirroring

Features:

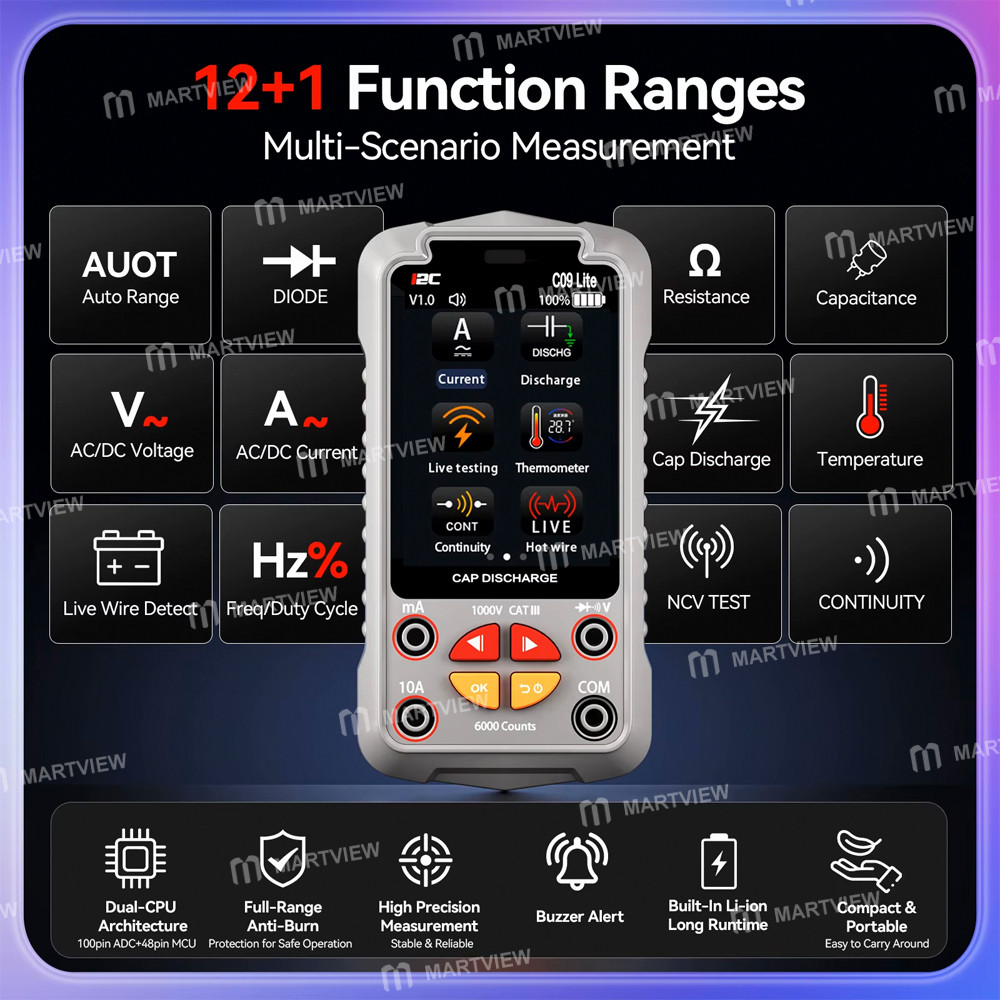

• True Smart Automatic Mode: Automatically identifies resistance, AC/DC voltage, continuity, and capacitance; automatically discharges capacitors

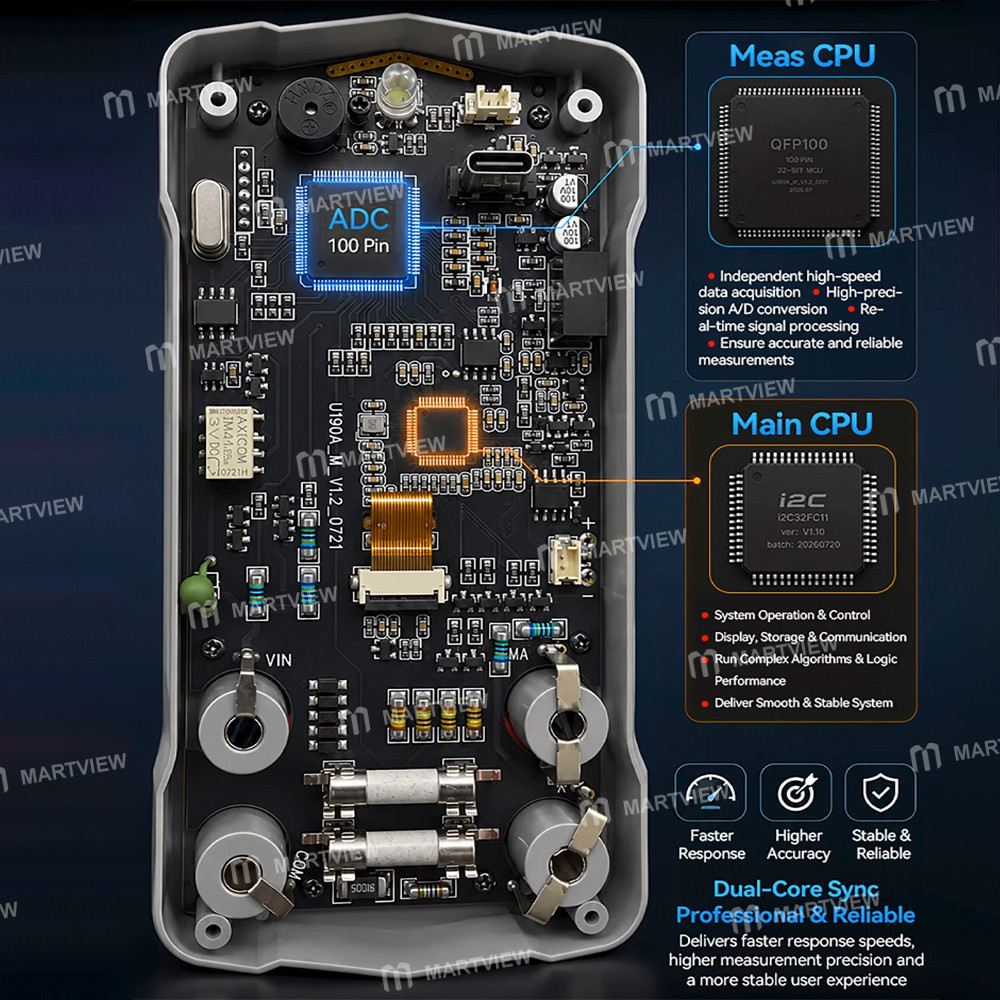

• Dual-CPU Industrial Architecture: The measurement CPU handles high-speed data acquisition and real-time signal processing; the main control CPU manages system operations and control, handling display, storage, and communication

• Dual-core collaboration ensures professional-grade reliability; the main control and measurement CPUs operate in parallel without interfering with each other, delivering faster response times, higher measurement accuracy, and a more stable user experience

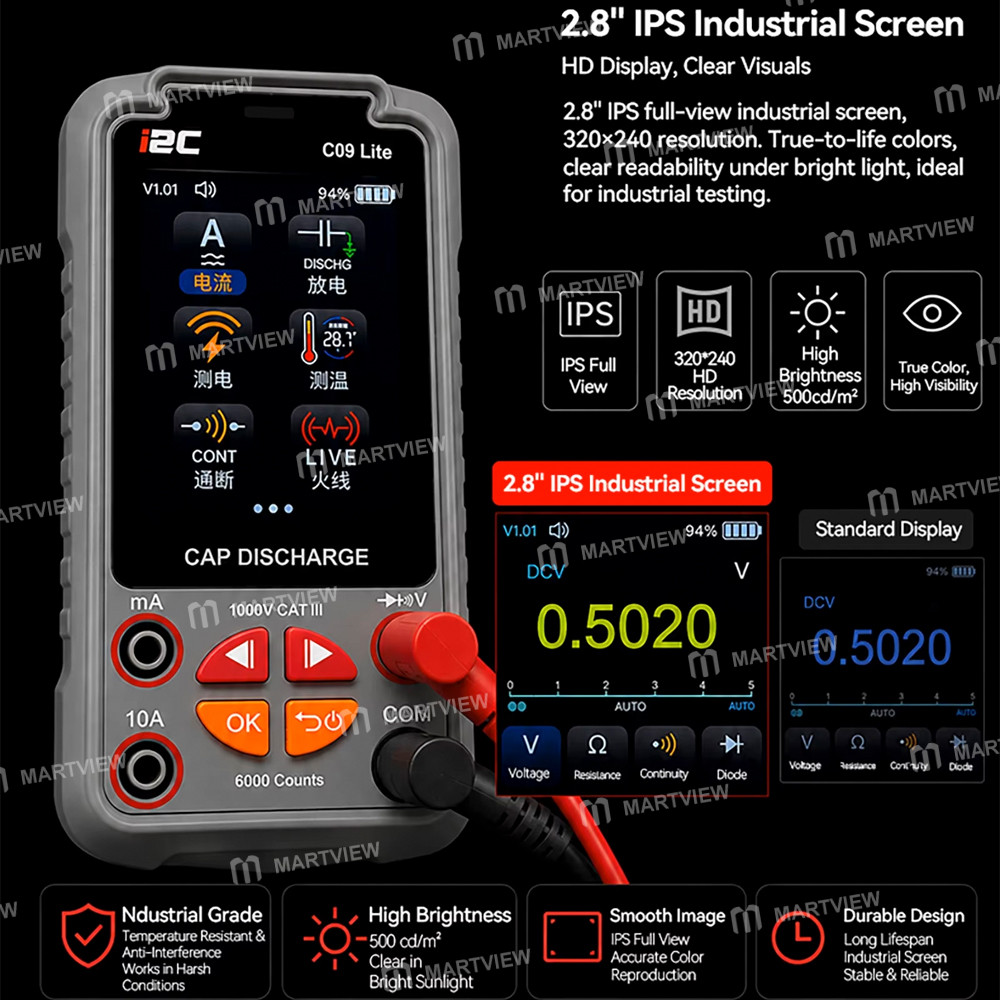

• High-definition 2.8-inch IPS industrial-grade screen with wide viewing angles and 320×240 resolution provides more true-to-life colors and a clearer display; data can be easily read even in bright light, ensuring reliable performance for industrial-grade testing

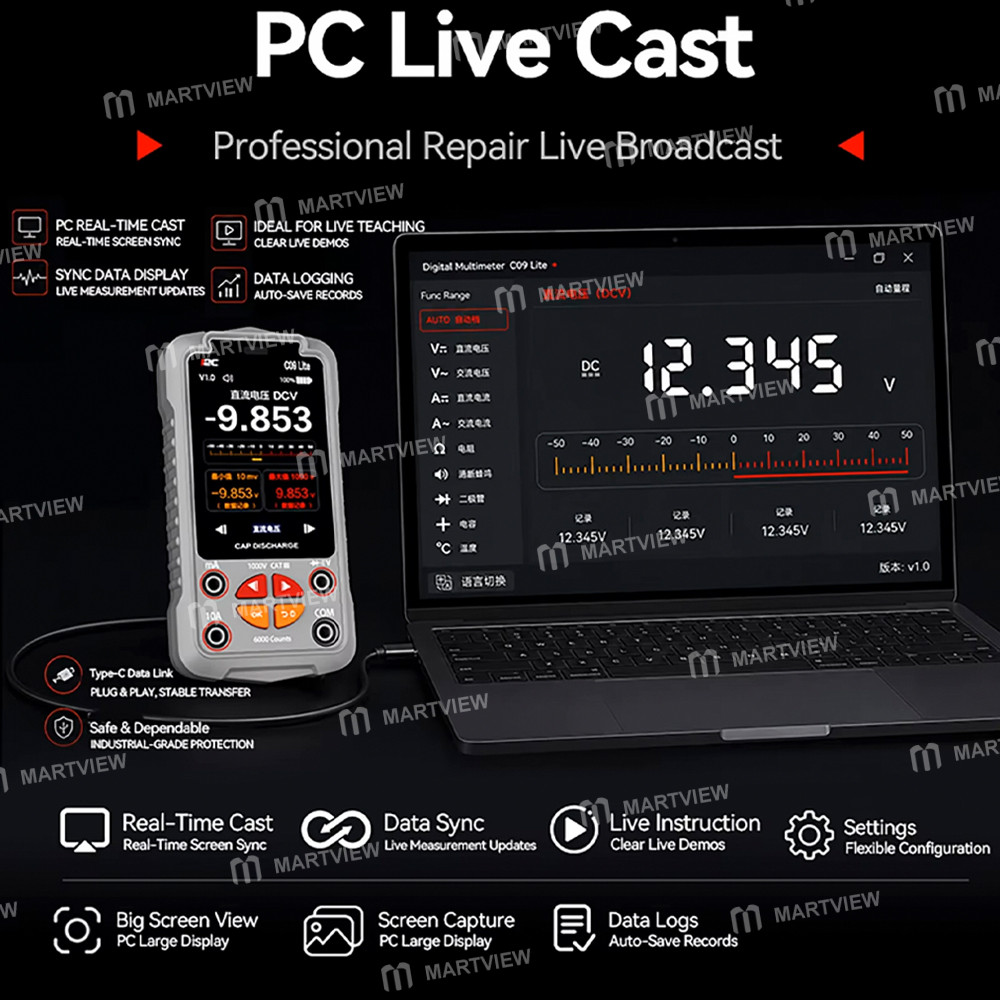

• Real-time screen mirroring from a computer with real-time synchronization of device diagrams; data is displayed simultaneously, and measurement results are updated in real time; live teaching is more efficient, and live demonstrations are more intuitive; data recording and management ensure automatic saving of measurement records

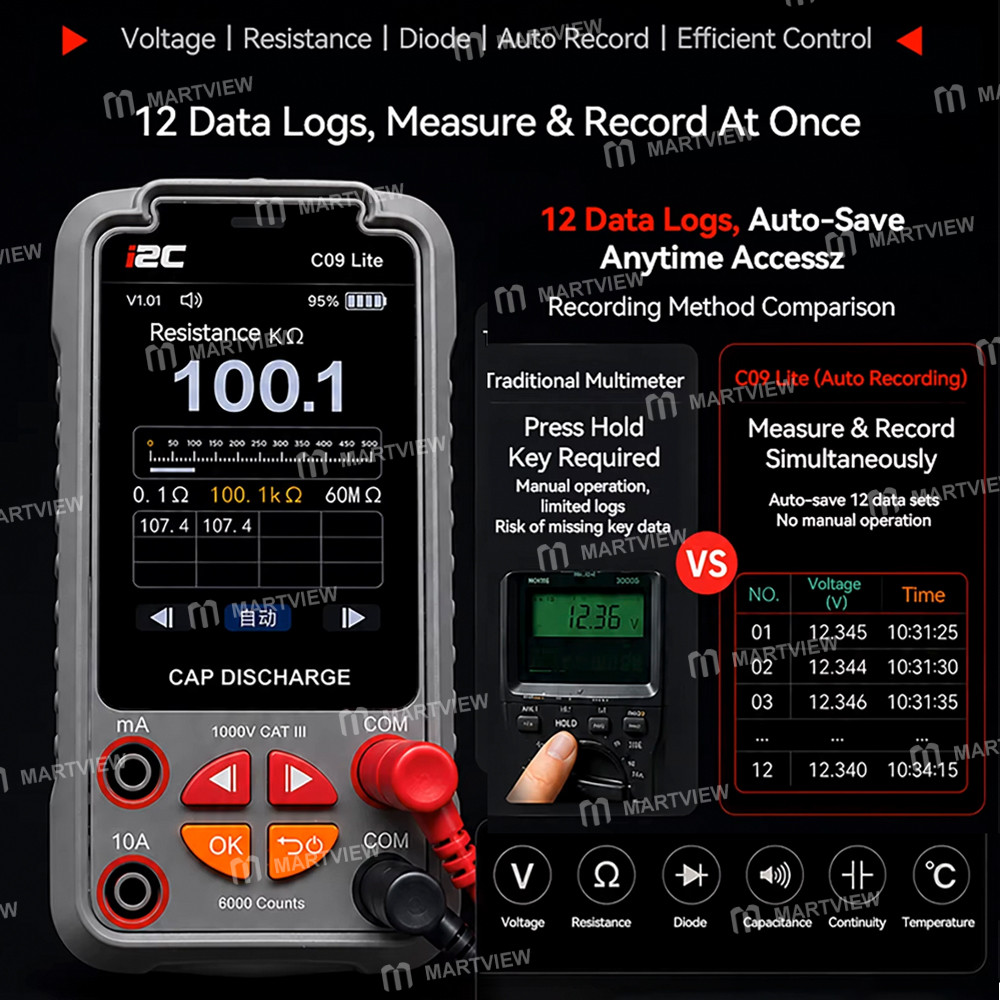

• Record while measuring: automatically log voltage, resistance, and diode readings for efficient management; 12 sets of data are automatically saved for on-demand review, allowing for side-by-side comparison of recording methods without interrupting measurements

• Wide range of applications: motherboard repair, electrical installation, automotive electronics, home appliance repair, industrial equipment, industrial control board repair, educational experiments, power supply testing, electronic development and debugging, and more

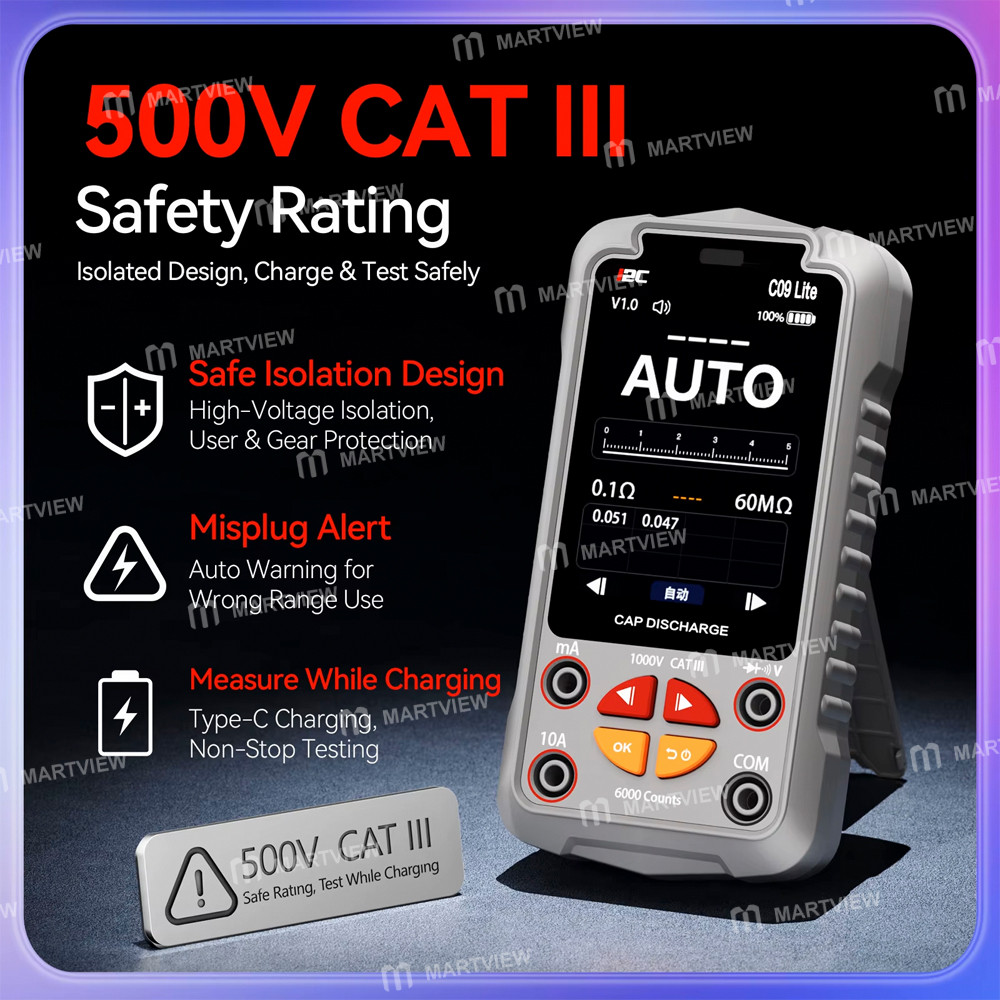

• Built-in 1000mAh lithium battery with a Type-C charging port; charge and use on the go; CAT I 1000V industrial-grade safety design

• High-voltage alarm: Voice and icon alerts for voltages exceeding 48V; full-range burn protection: Intelligent detection with alerts for incorrect pin insertion

Specifications:

• DC Voltage (VDC): 10mV to 1000V ±(0.8% + 3)

• AC Voltage (VAC): 10mV to 750V ±(1.0% + 3)

• DC Current (mA): 0.01mA to 600mA ±(1.0% + 8)

• DC Current (10 A): 0.001A to 10A ±(2.0% + 8)

• AC Current (mA): 0.03mA to 600mA ±(1.2% + 8)

• AC Current (10 A): 0.030A to 10A ±(2.5% + 8)

• Duty Cycle Measurement: 0.1% to 99.9% ±(0.1% + 5)

• Resistance Range: 0.10 to 60 MΩ ±(0.8% + 3)

• Capacitance Range: 0.01nF to 60mF ±(4% + 10)

• Temperature Measurement: -40 to 1000 °C ±(1.5% + 5)

• Frequency Measurement: 10 Hz to 6 MHz ±(0.1% + 5)

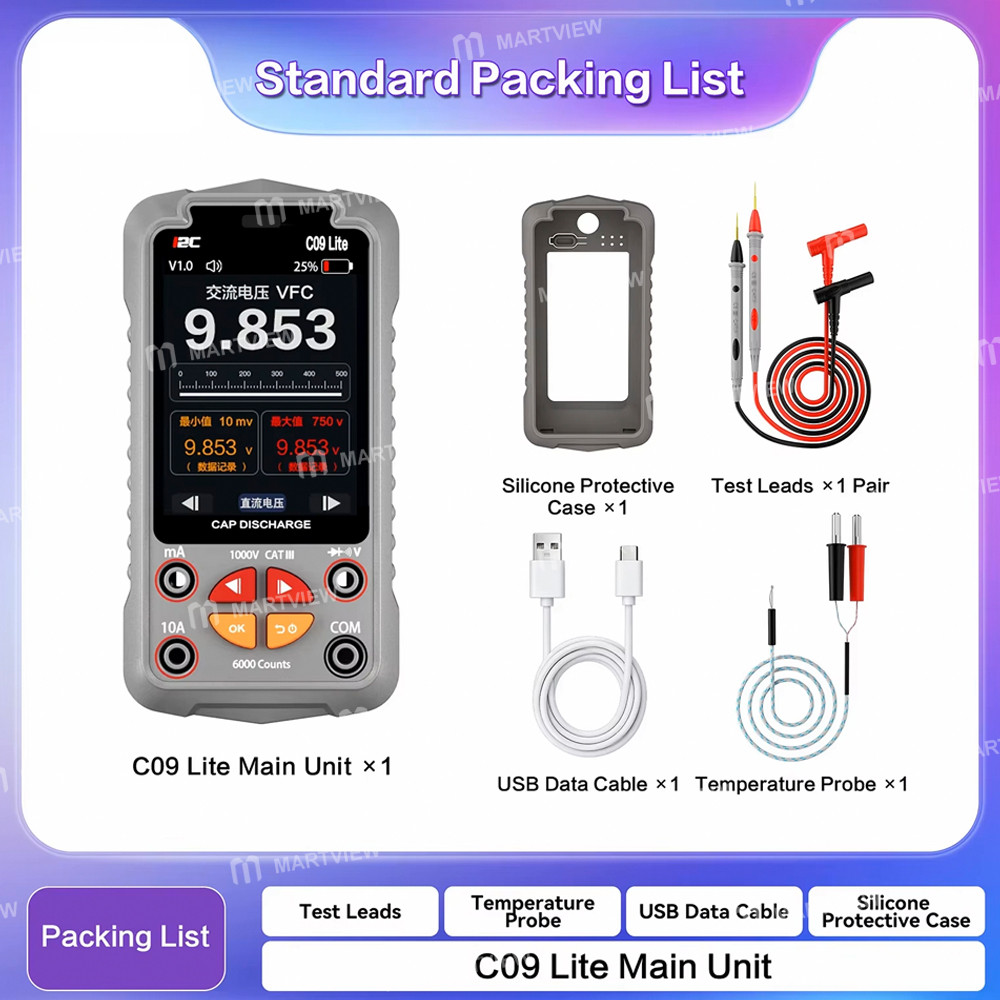

Package includes:

• 1 x Multimeter

• 1 x Test Leads

• 1 x Temperature Probe

• 1 x PC Data Cable

• 1 x Silicone Protective Case
