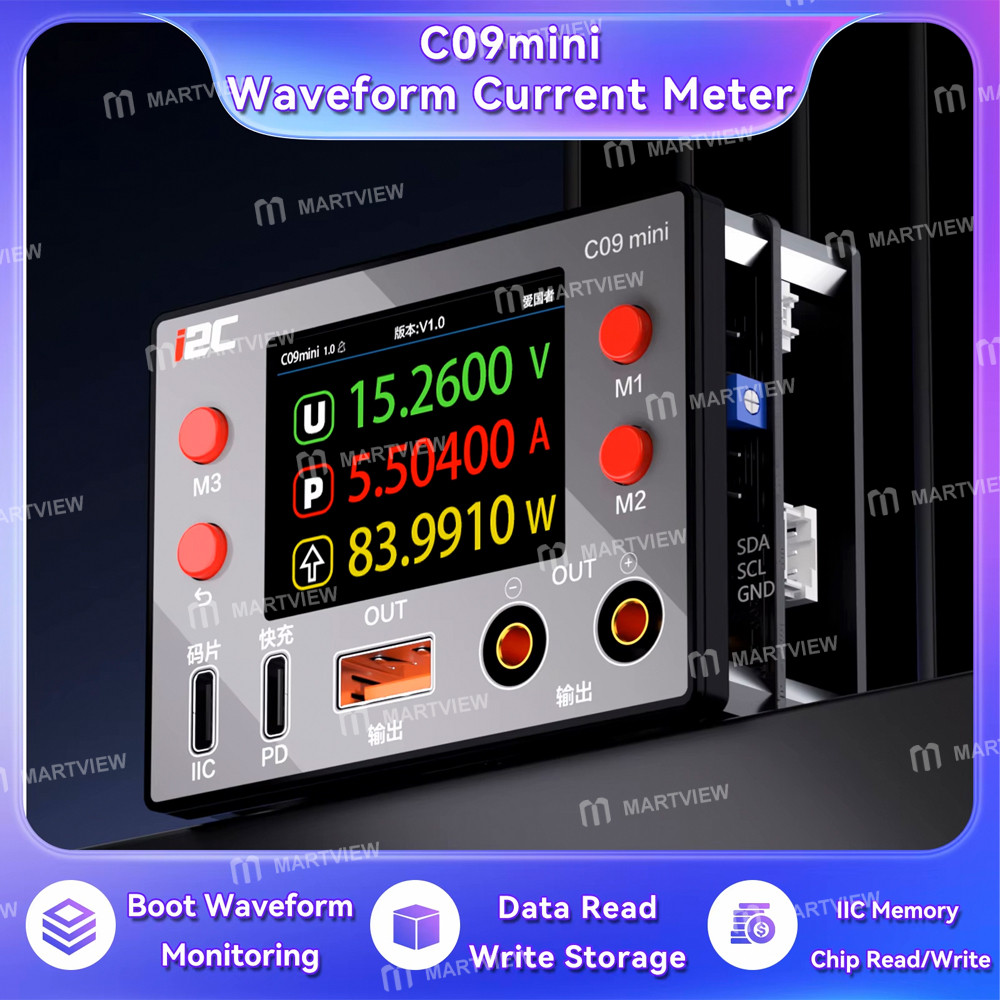

i2C C09mini Waveform Ammeter Supports Current Waveform Acquisition & IIC Protocol Code Chip Read / Write Operations

i2C C09mini Waveform Ammeter Supports Current Waveform Acquisition & IIC Protocol Code Chip Read/Write Operations

Features:

• C09mini waveform ammeter, startup current waveform monitoring, waveform, pointer, digital display, accurate display of charging parameters, PWM external pointer meter, IIC chip reading and writing function, data reading, writing, and storage

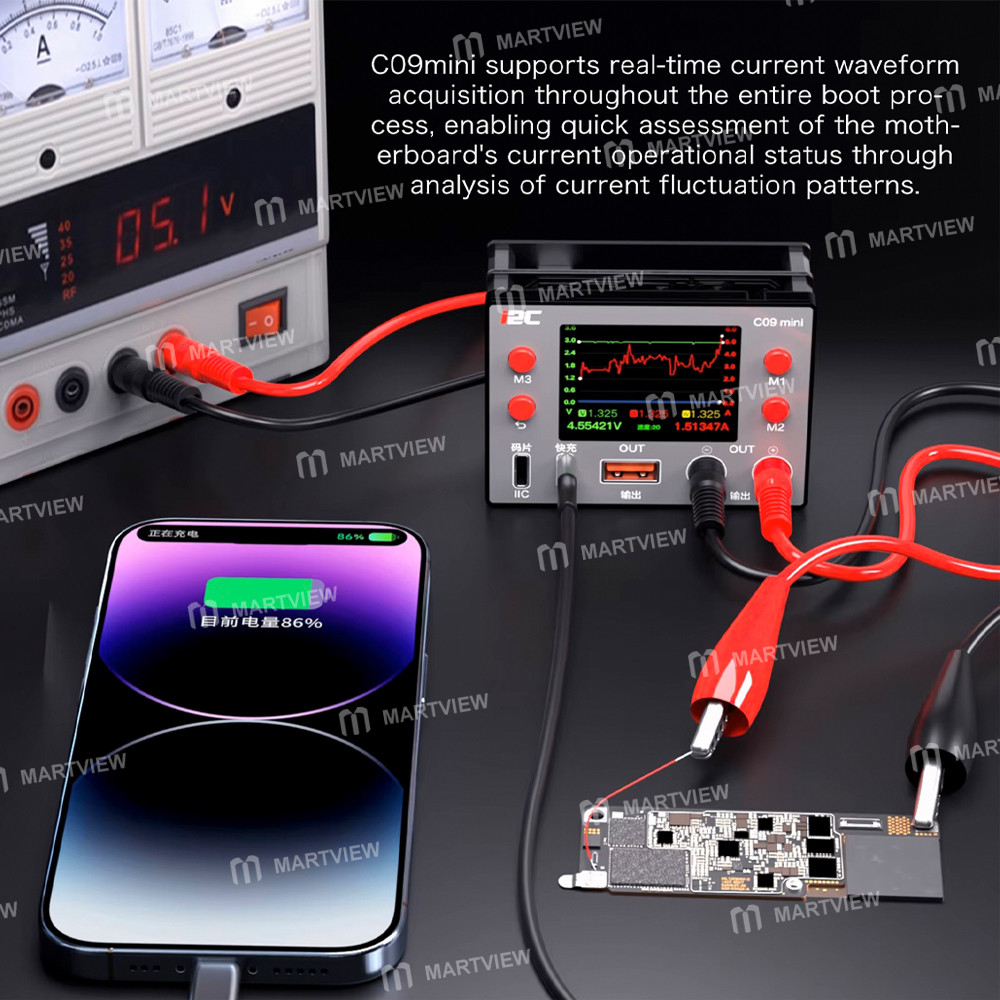

• The C09mini supports real-time collection of the current waveform throughout the startup process. Through the current change curve, it can quickly determine the current working status of the motherboard

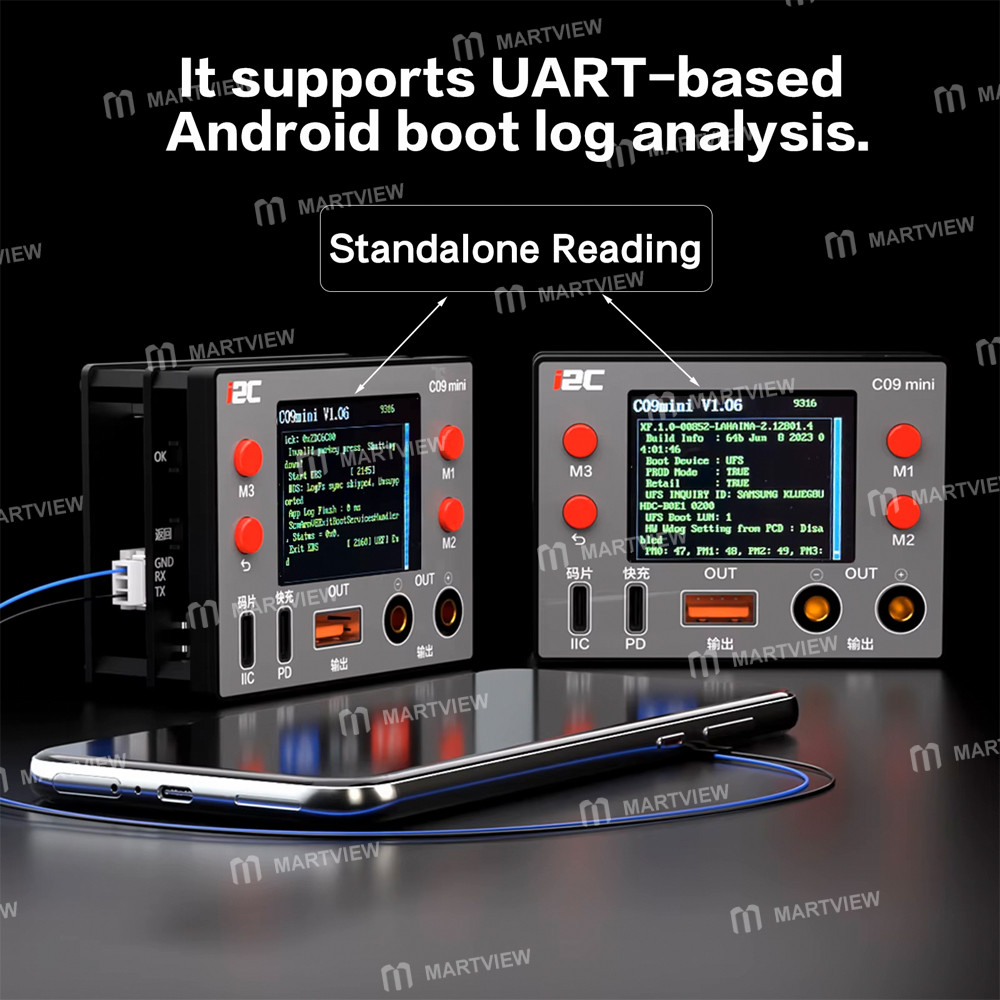

• Connect the C09mini, and the old regulated power supply will be revived in one second, directly upgrading to the new waveform experience. PC-side reading, Al automatic fault analysis: directly provides analysis results

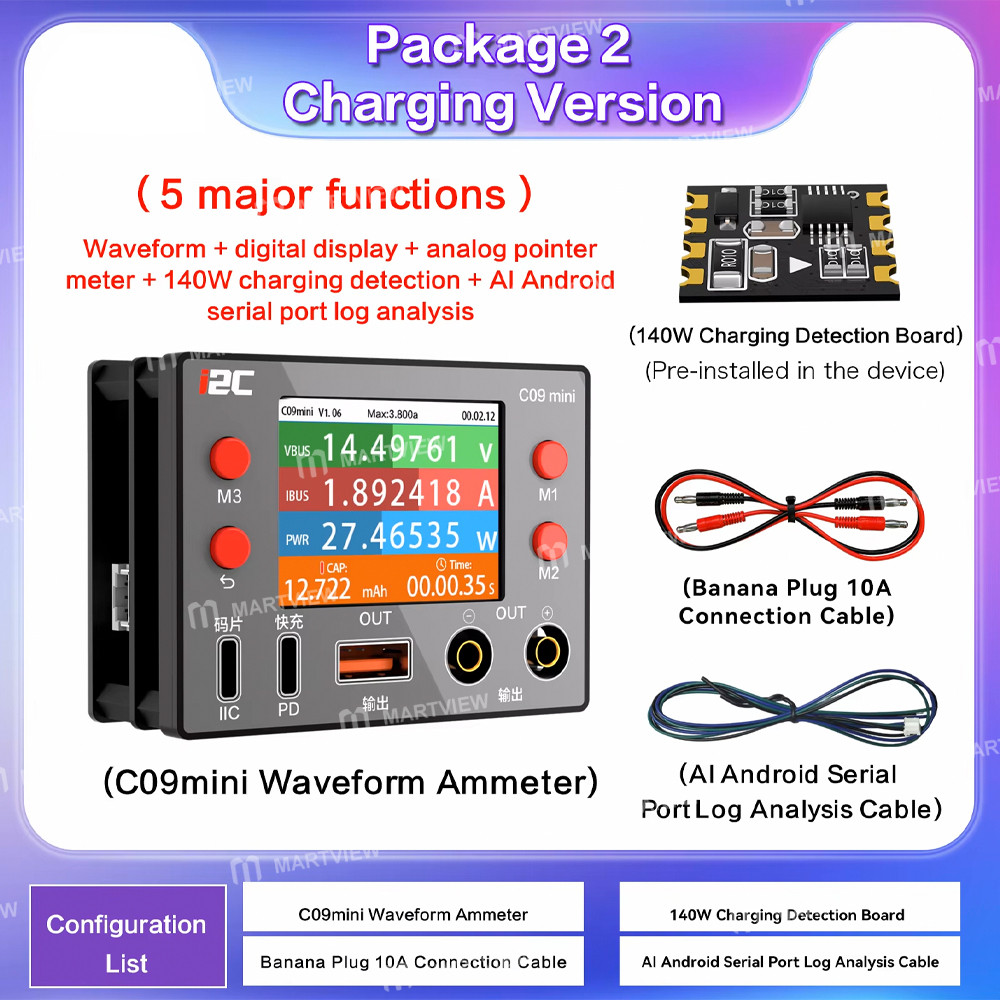

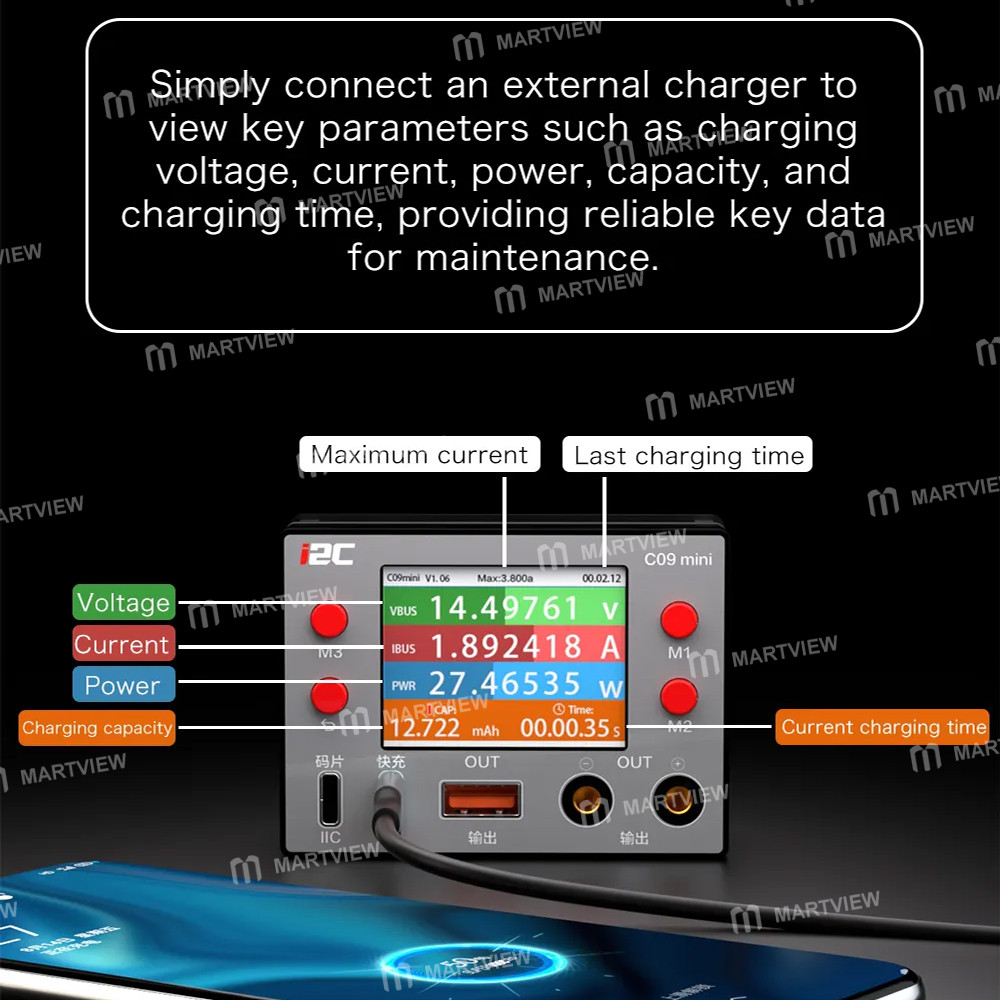

• Simply connect an external charger to view key parameters such as charging voltage, current, power, capacity, and charging time, providing reliable key data for maintenance

• Supports a maximum charging power of 140W: Supported devices include mobile phones, iPads, switches, computers, drones, etc

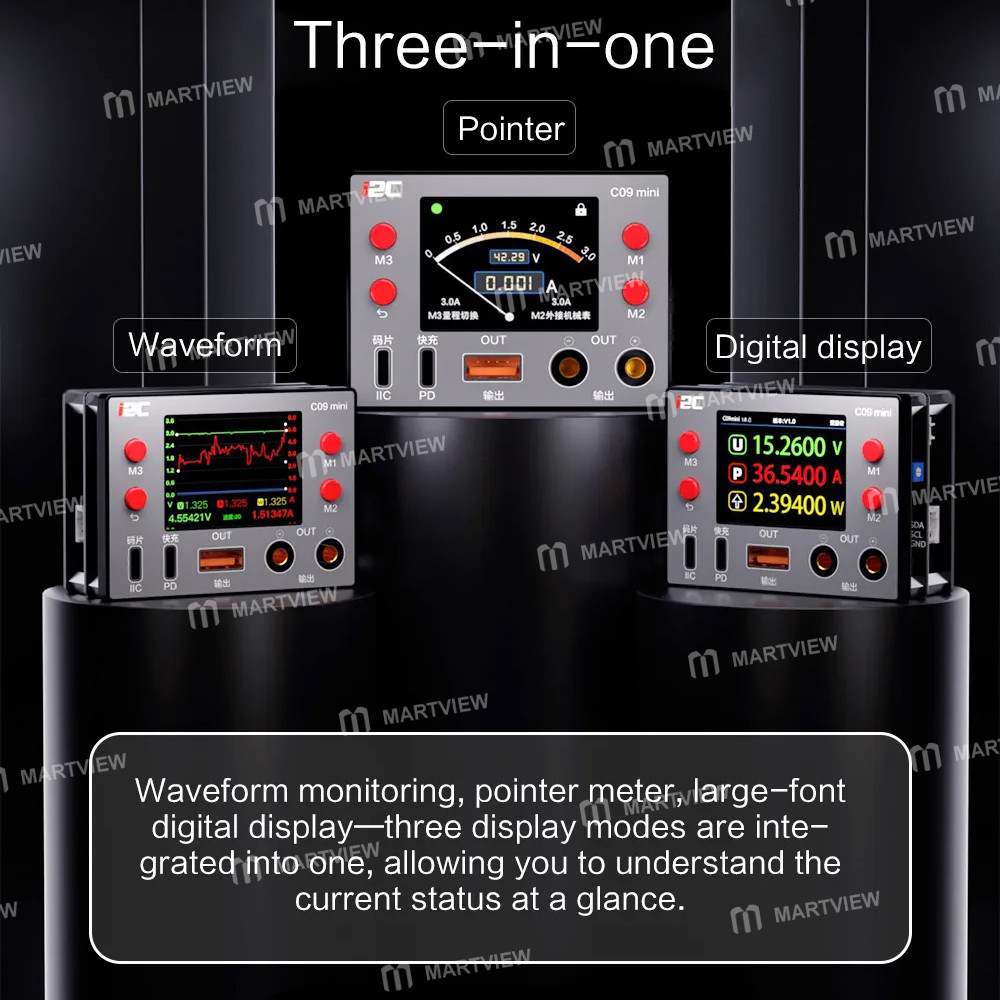

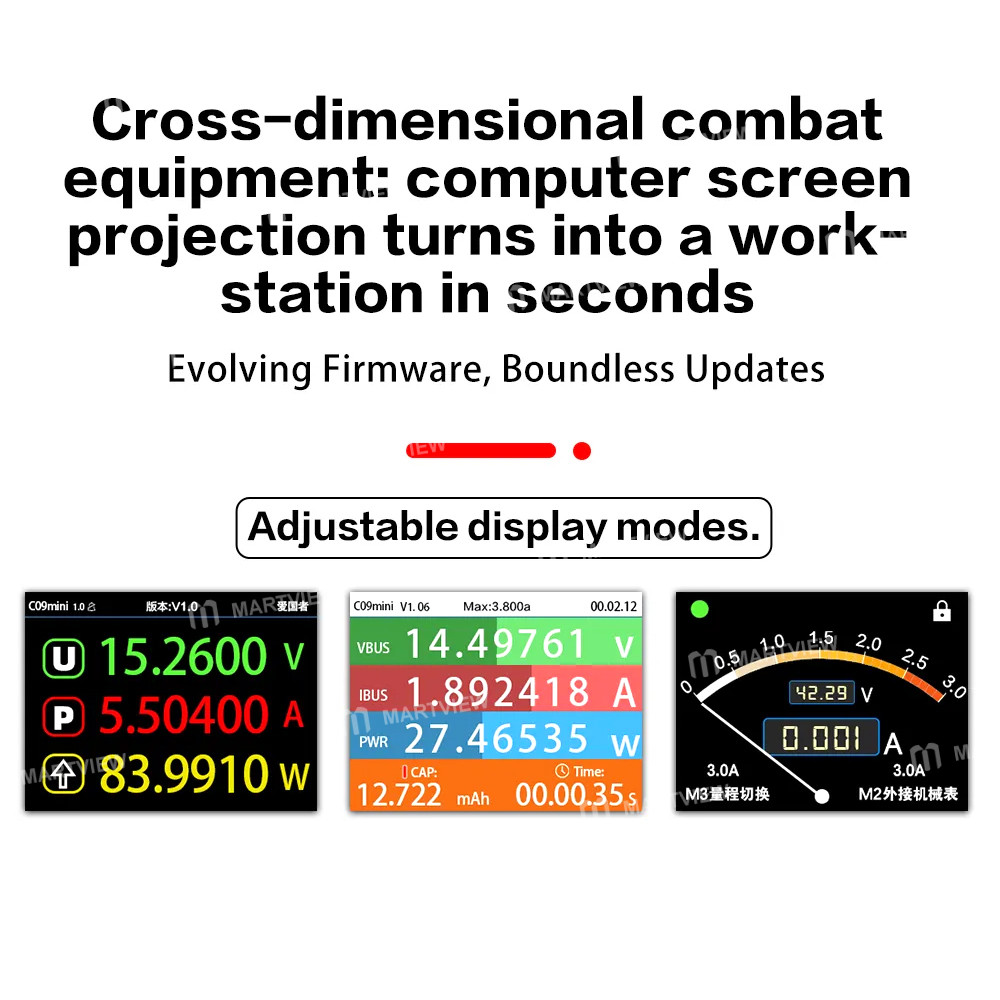

• Waveform monitoring, pointer meter, large-font digital display, and three display modes are integrated into one, allowing you to understand the current status at a glance

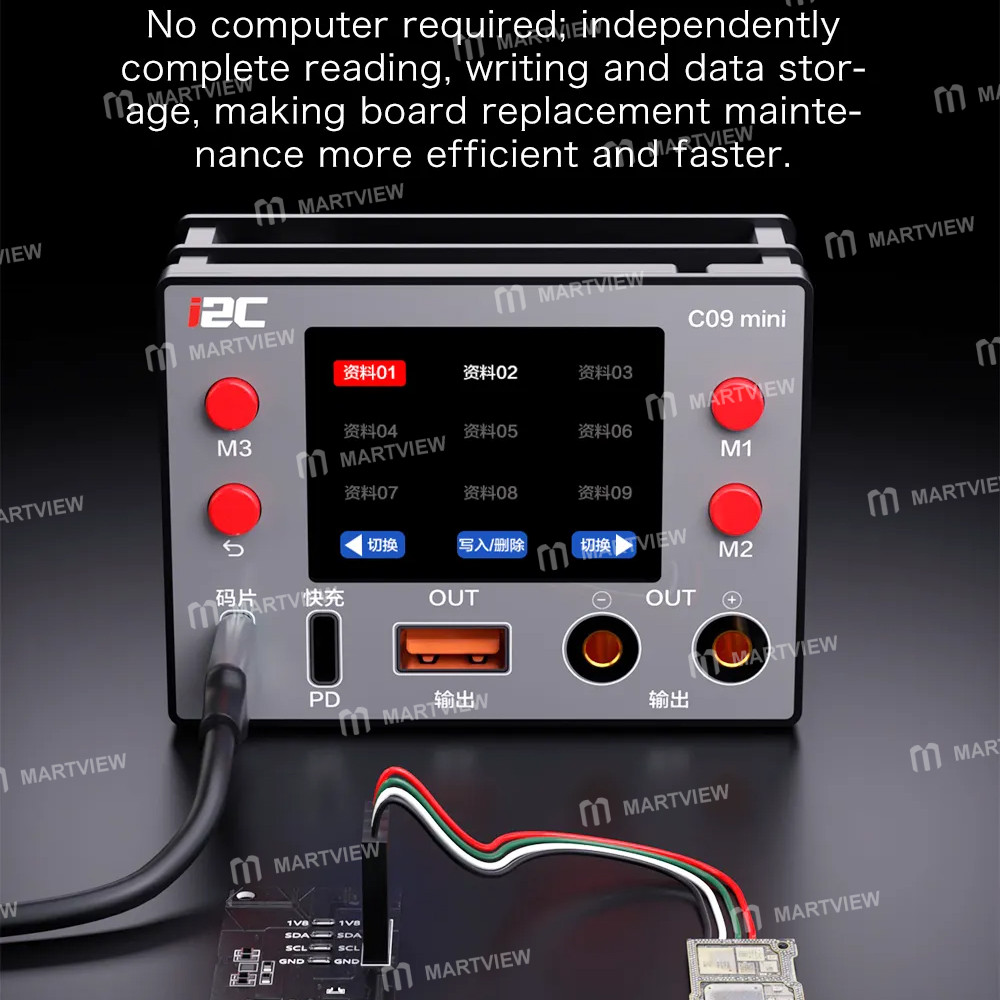

• Optional lIC chip reading and writing board: Supports lIC protocol chip reading and writing, covering iPhone 5-17PM baseband chips, no computer required; independently complete reading, writing, and data storage, making board replacement maintenance more efficient and faster

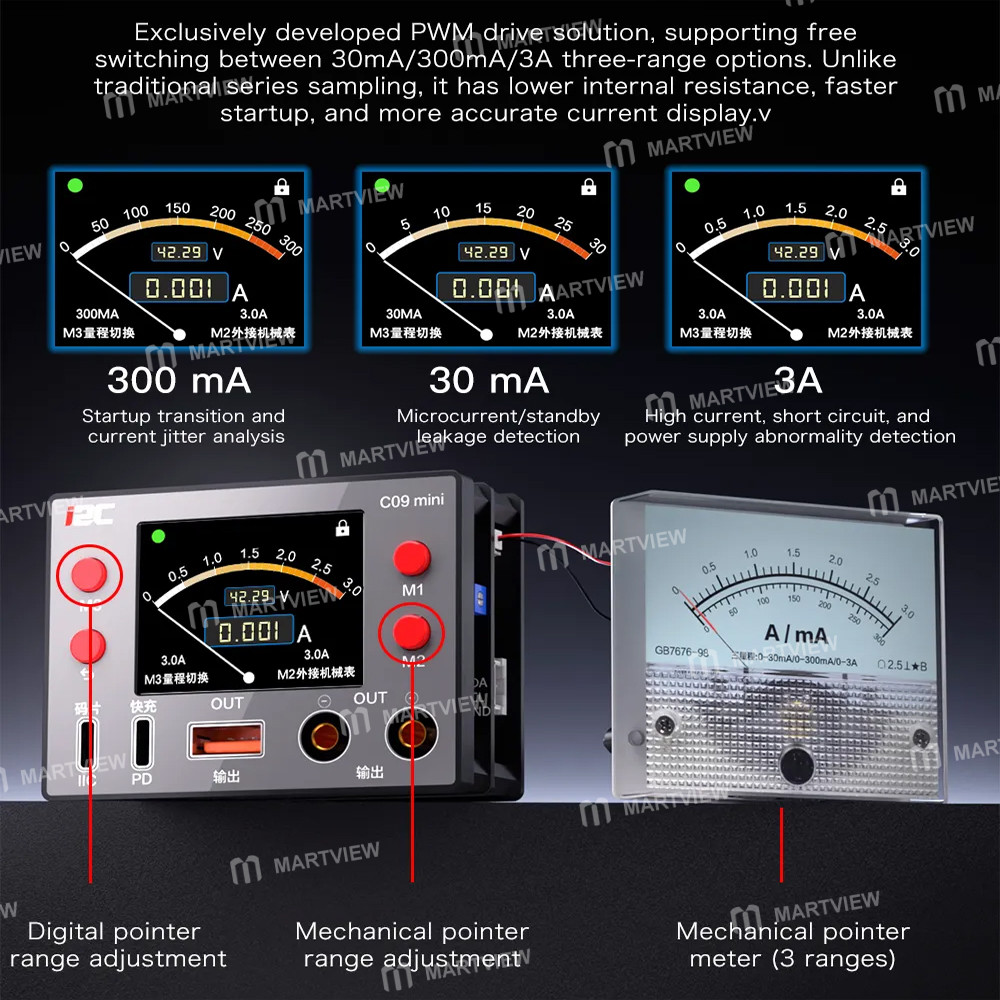

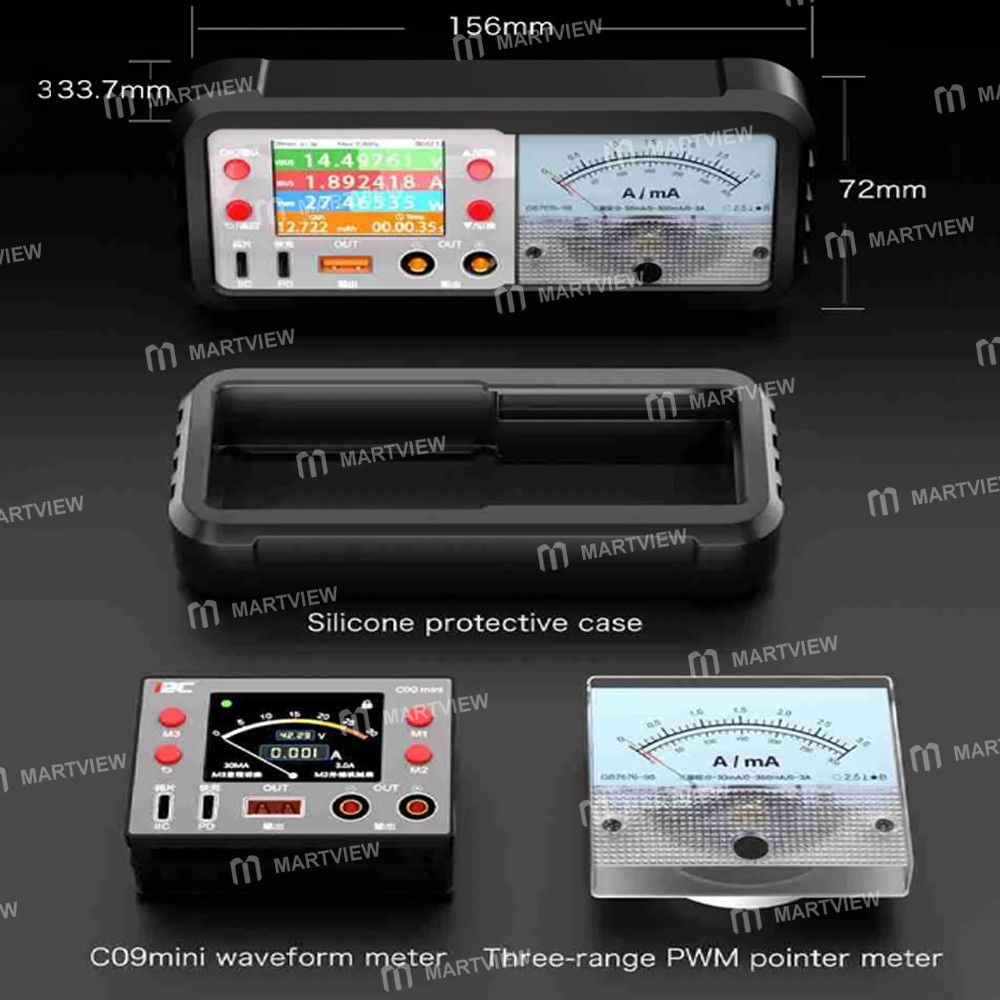

• Industry-exclusive PWM-driven mechanical pointer meter: A mechanical pointer ammeter designed specifically for experienced technicians

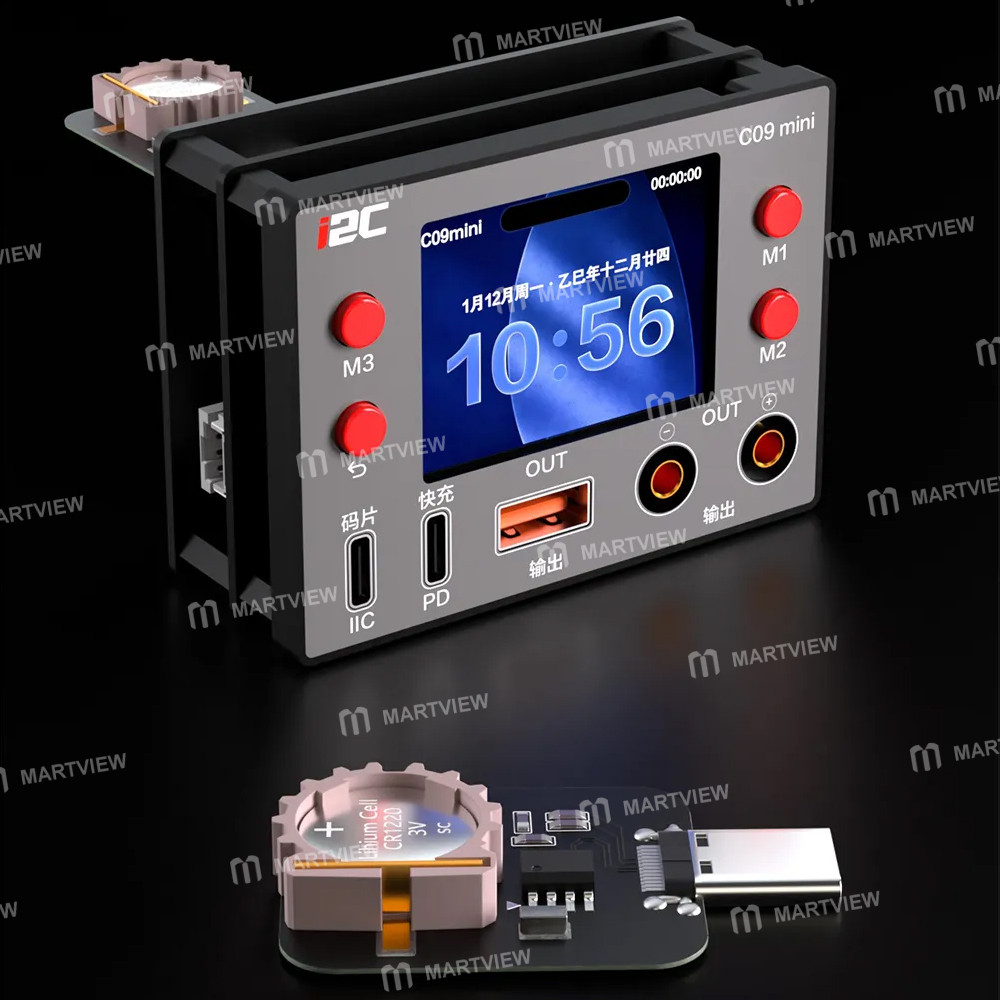

• RTC clock module: give your product a "biological clock."

• Cross-dimensional combat equipment: Computer screen projection turns into a workstation in seconds: Evolving Firmware, Boundless Updates

Specifications:

• Input voltage: DC 0-36V

• Detection current: 0~8A

• Current accuracy: 100µA

• Screen resolution: 320*480

• Screen size: 2.0-inch

• Protection voltage: <60V

• Protection current: <15A

• Banana plug output-voltage and current: 40V/8A

• Device power supply: 5V 2A

• Two-channel voltage measurement: 0~36V

• USB output voltage and current: 20V/2A

• Voltage resolution: 1mV

• Current resolution: 0.1mA

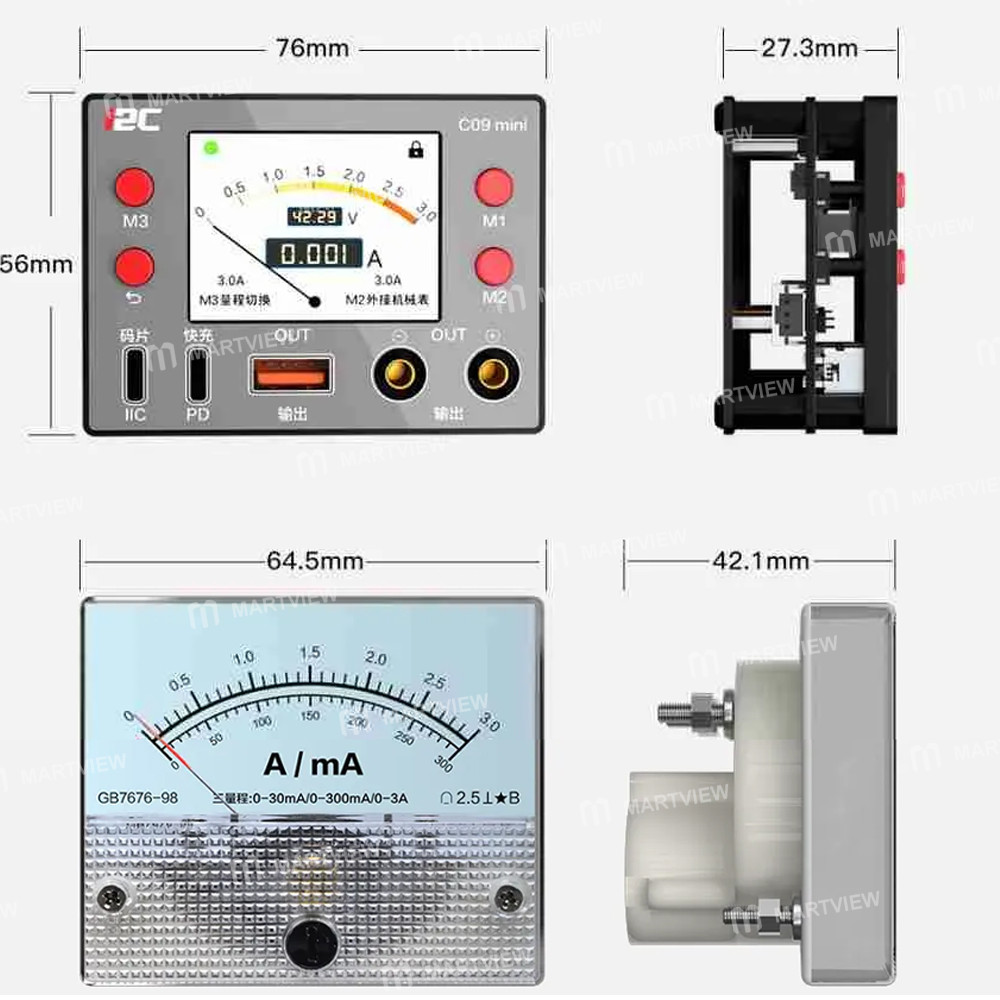

• Product size: 56*76*27.3mm

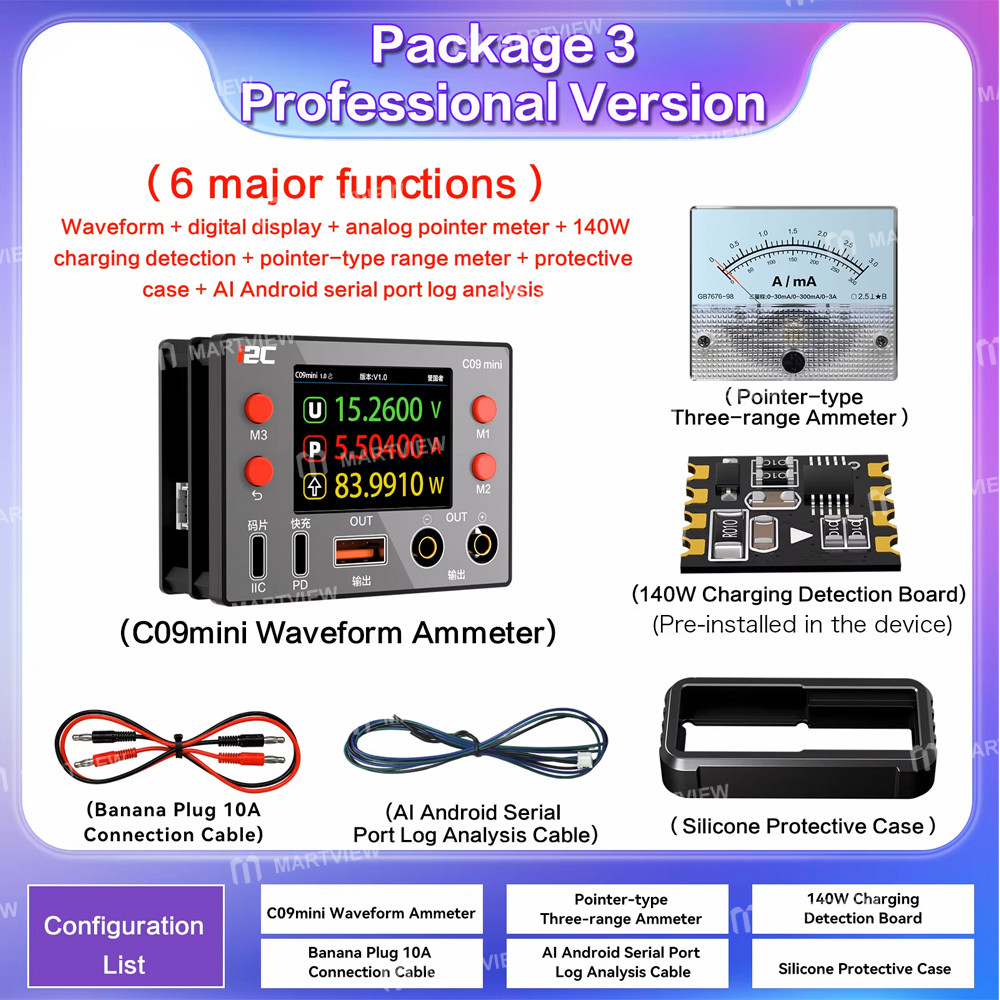

Package includes:

• According to your choice
