ICFriend EMMC UFS Cable Kit with UFS-EMMC-BGA-254 Adapter & UFS ISP Cable

ICFriend EMMC UFS Cable Kit with UFS-EMMC-BGA-254 Adapter & UFS ISP Cable

Features:

• Support ICFriend 2-in-1/ 3-in-1 / 4-in-1/ 6-in-1 Modify FPC ISP Cable

• Recommended to use a regulated power supply power supply without USB. press and hold the on button, the current 100~200mA, UFS power up successfully

• Using USB power supply and battery device manager need to appear CPU port. If not, UFS power-up is unsuccessful and can not be online

• UFS2.0, 2.1, 2.2 use VCC-3.3 V, VCCQ2-1.8V; UFS3.0, 3.1, 4.0 TX RX CLK RST GND all access to the flywire. Like the seat can no longer use USB and power supply, only the host power supply.

• GND TX RX signal can not exceed 15mm, GND junction point as close as possible to TX RX to keep equal length, some CPU need RST signal wiring

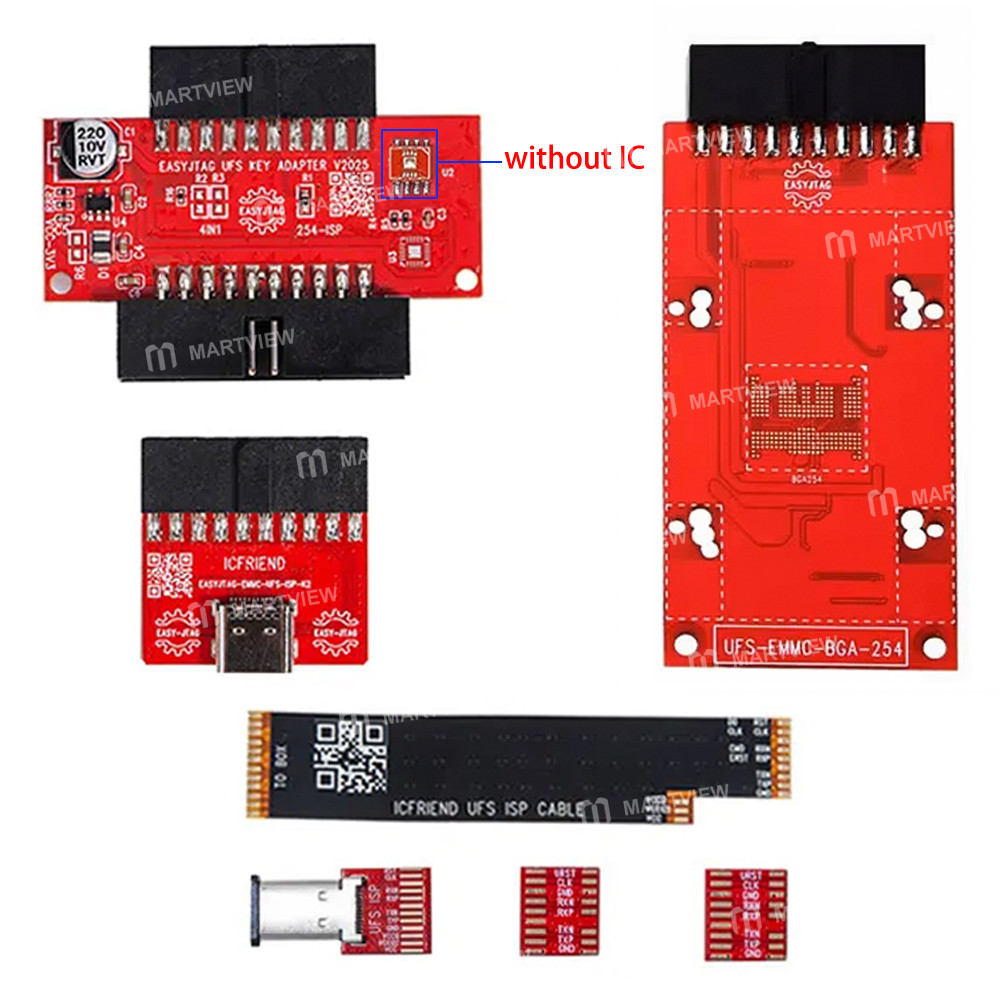

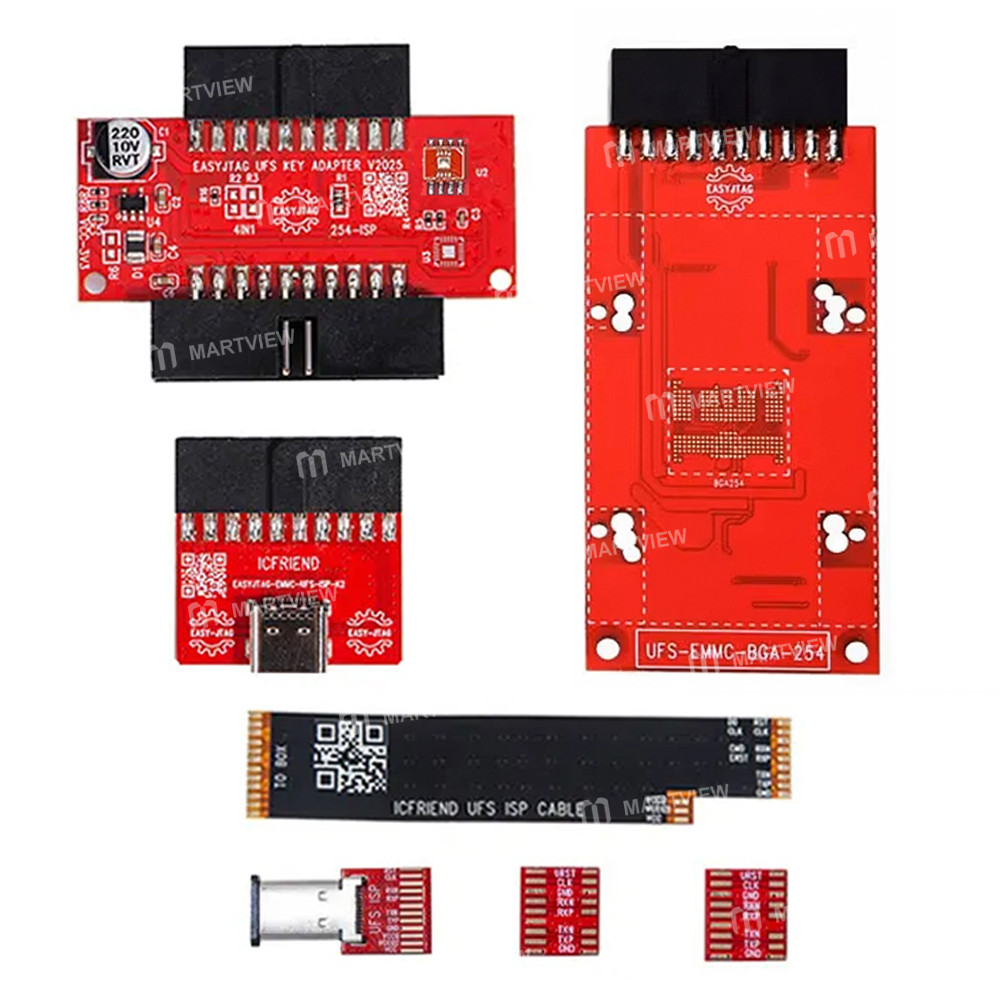

Package includes:

• 1 x UFS ISP Cable

• 1 x EJ2025 Adapter

• 1 x EMMC ISP K2 Adapter

• 1 x UFS-EMMC-BGA-254 Adapter
