IIT ShortCam Lite One-Click Infrared Thermal Imaging PCB Rapid Diagnostic Instrument

IIT ShortCam Lite One-Click Infrared Thermal Imaging PCB Rapid Diagnostic Instrument

Features:

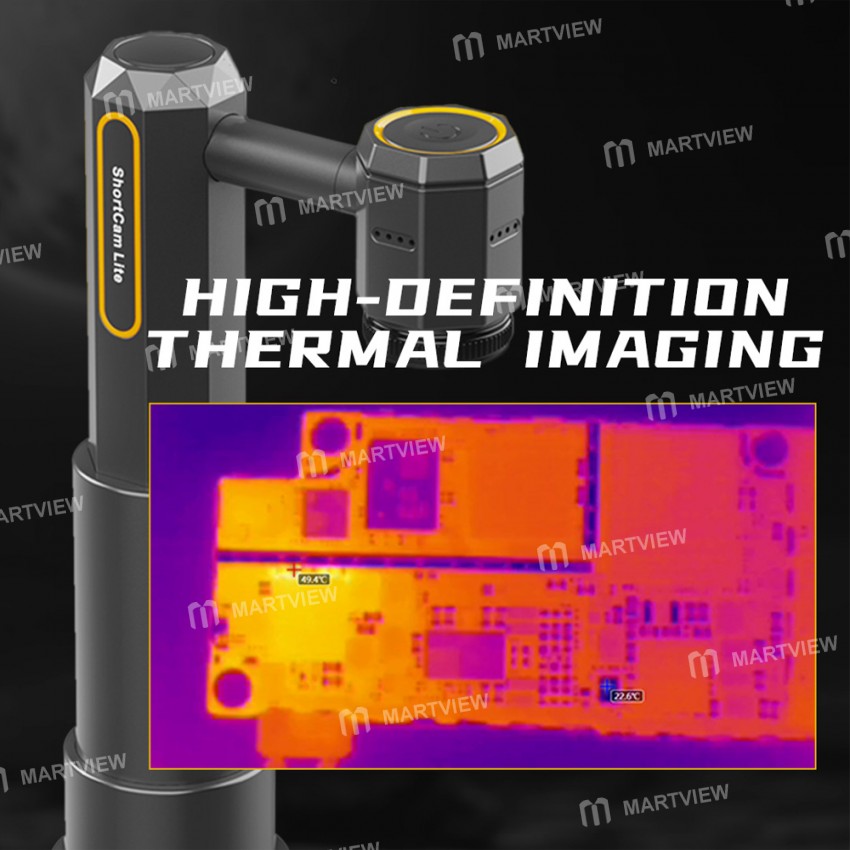

• 256x192 high-definition thermal imaging. Determine the precise location of abnormally high-temperature components and visualize the faults in real-time

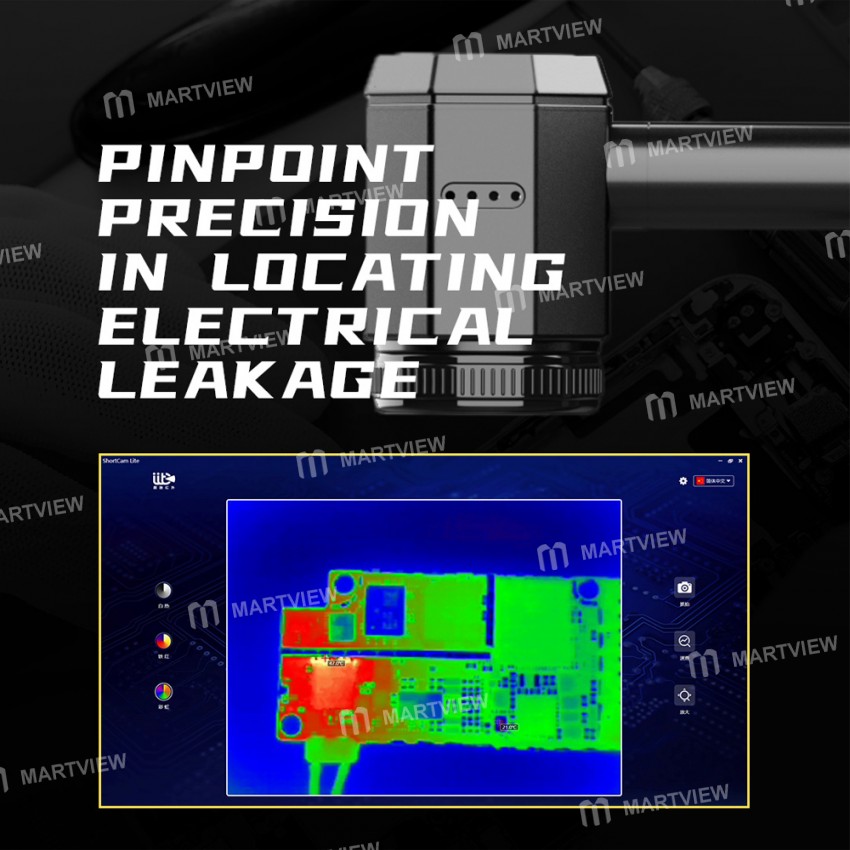

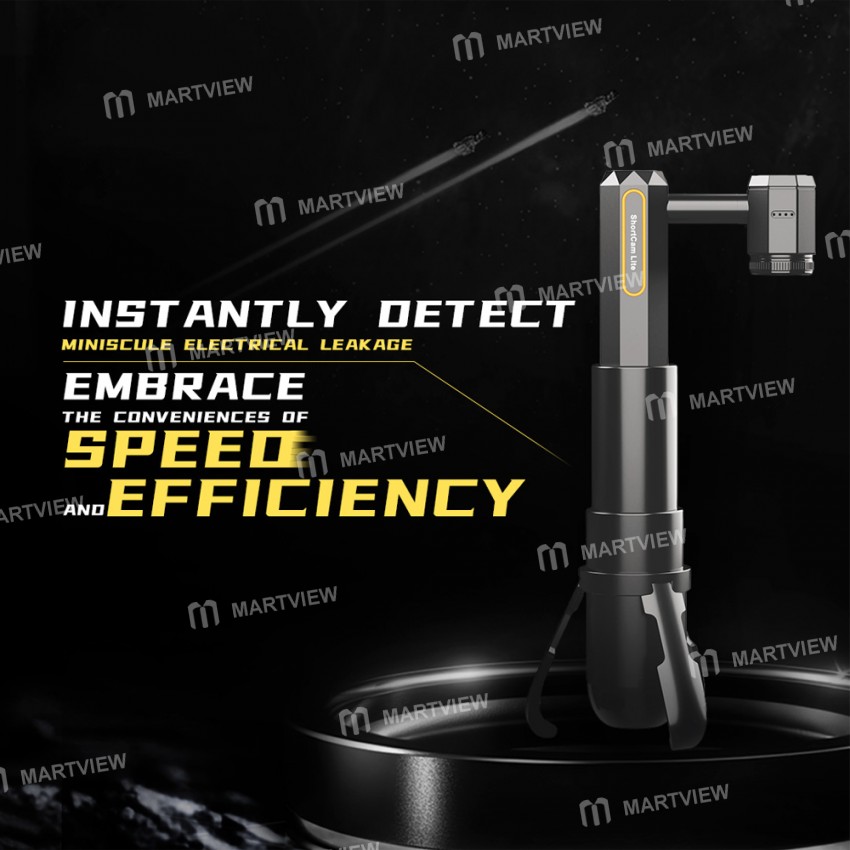

• Pinpoint precision in locating electrical leakage, detects electrical leakage in a snap, making repairs easy and efficient

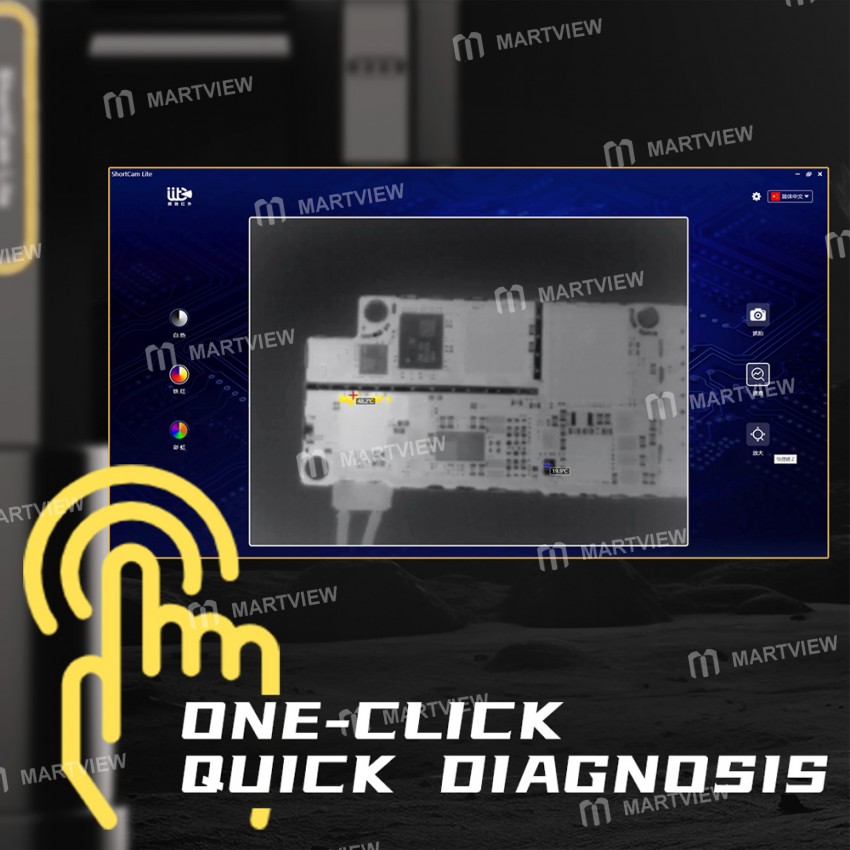

• 3One-click quick diagnosis function, switch to the "one-click quick diagnosis" mode to reveal electrical leakage with enhanced visibility and efficiency

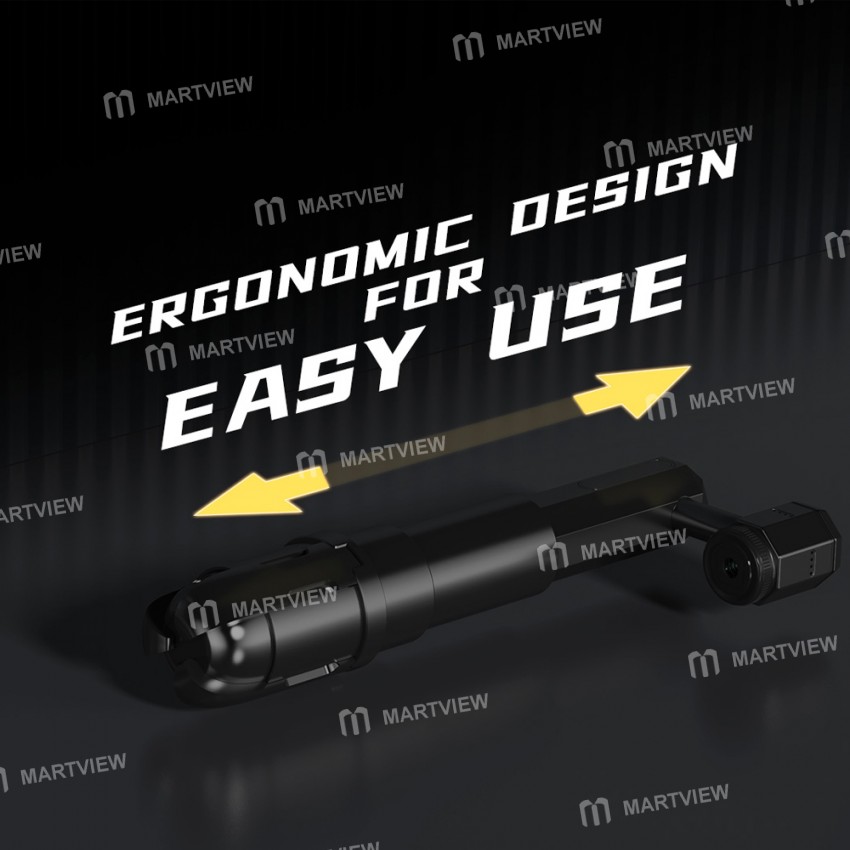

• Compact and foldable design for easy storage and use

• Compatible with multiple operating systems. Equipped with a WiFi function, seamlessly connects with iPhone and Android phones and laptops

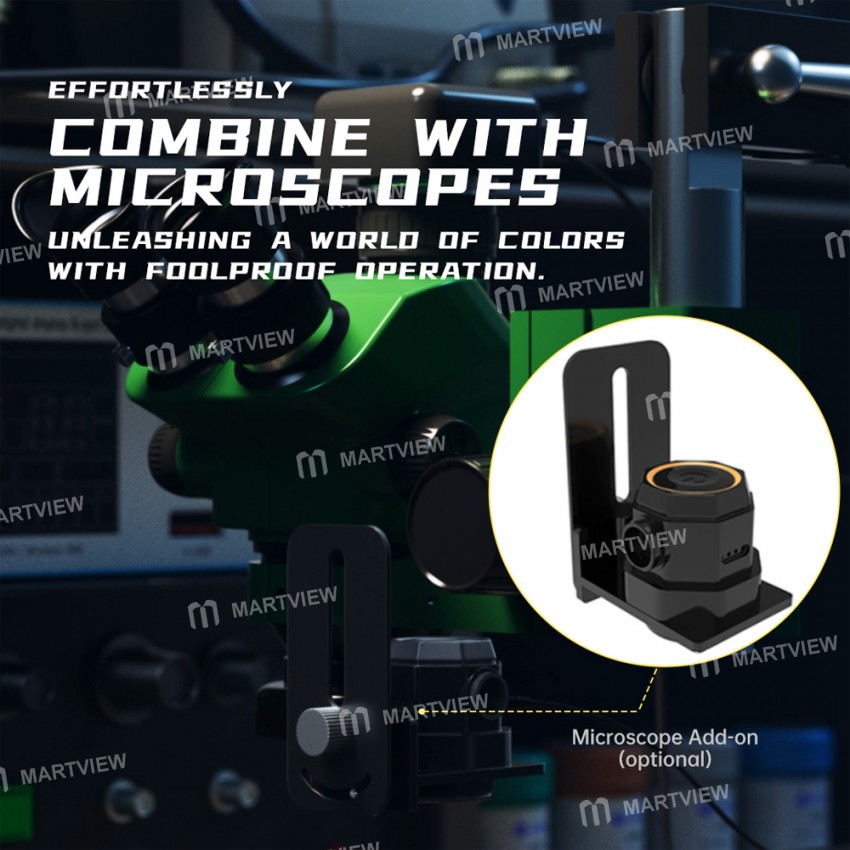

• Compatible with microscopes, with a detachable infrared lens for seamless integration with microscopes

• Applications: cell phone motherboard repair, computer motherboard repair, hard disk data recovery, smartwatch repair, logic board BGA SMD repair, ect

Specification:

• Sensor type: Uncooled VOx Detector

• Resolution: 256*192

• Wavelength range: 7.5-13.5um

• Field of view: 25°*18°

• Display mode: Thermal camera

• Interface: Type-C

• Image display format: JPG

• Input voltage: 5V DC

• Power consumption: 2.5W

• Storage temperature: -20℃~60℃

• Working environment: 3℃~45℃

• Humidity: 95% relative humidity

• Temperature measurement distance: 5cm~25cm

• Temperature measurement accuracy: ±5°C or ±5% (Take the maximum value)

• Temperature measurement range: -20°C~550°C

• Package size: 190*157*73mm

Package includes:

• 1 x Diagnostic Instrument
