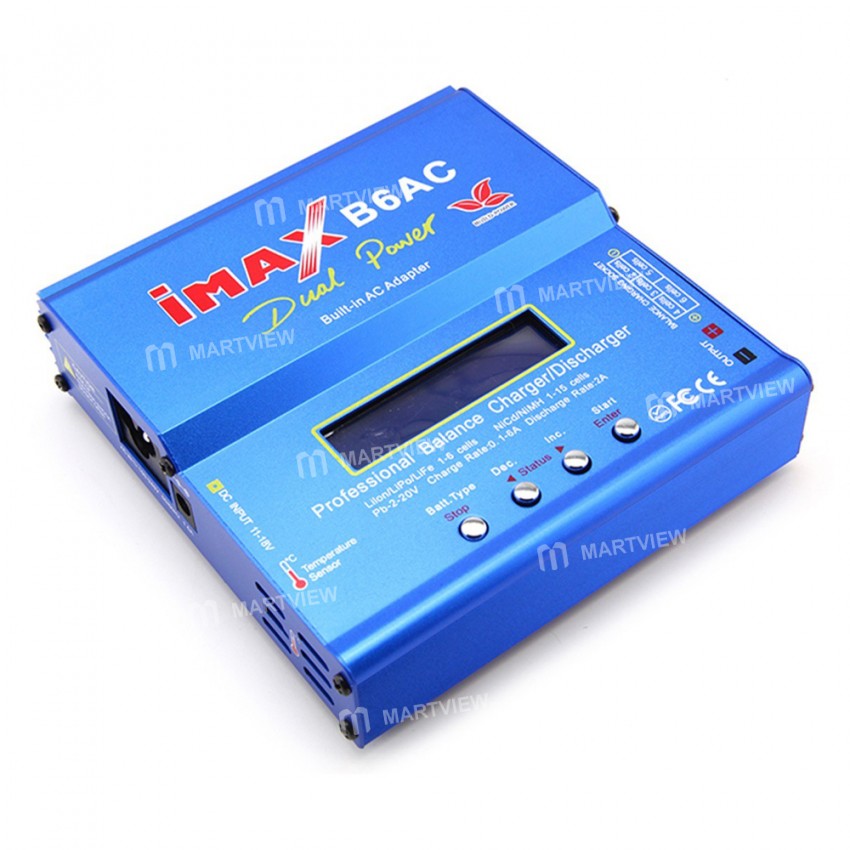

iMax B6AC 80W Digital Display Balance Charger for Li-ion / LiFe / Nimh Nicd / PB Lipo Battery

iMax B6AC 80W Digital Display Balance Charger for Li-ion/LiFe/Nimh Nicd/PB Lipo Battery

Features:

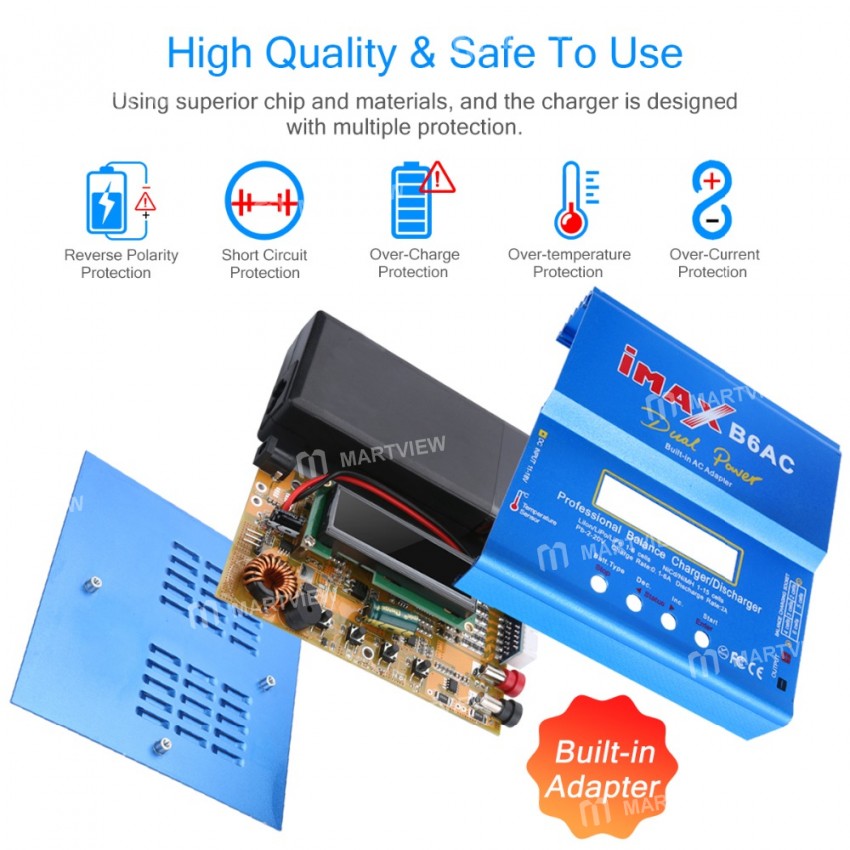

• Using superior chips and materials, the charger is designed with multiple protection

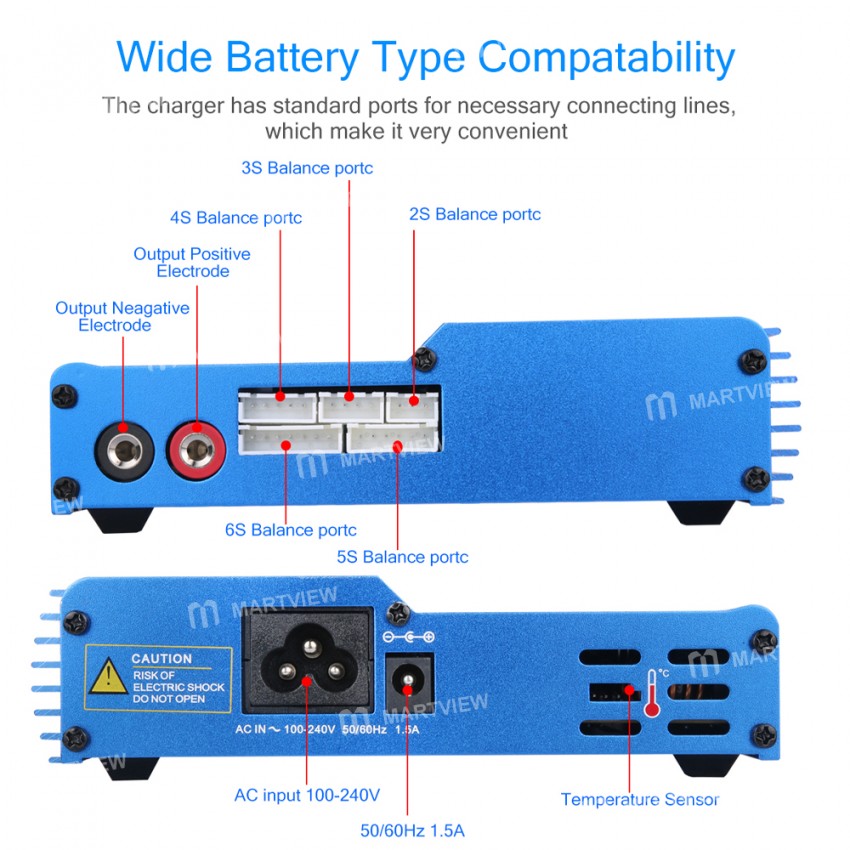

• The charger has standard ports for necessary connecting lines, which makes it very convenient

• One Charger for all of your battery packs is compatible with Li-ion, LiPo, LiFe, NiMH/NiCd, and PB batteries

Specification:

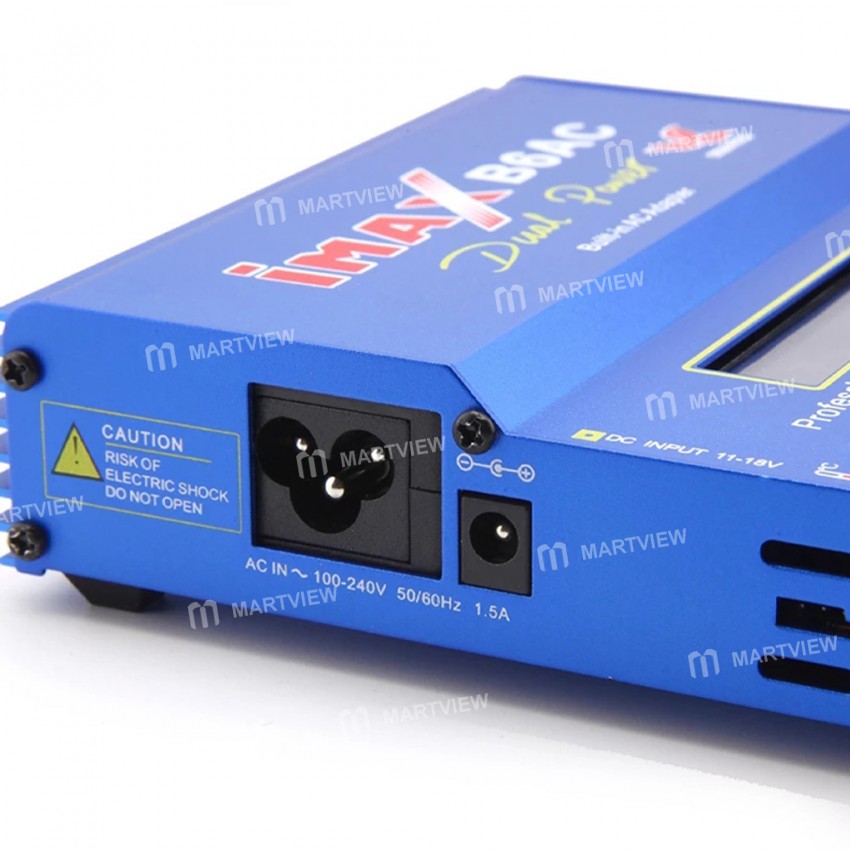

• Operation voltage range: DC 11.0 ~ 18.0 Volt or AC 100V ~ 240V 50/60Hz

• Circuit power: AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)

• Max. charge power: 80W

• Max. discharge power: 5W

• Charge current range: 80W: 0.1~6.0A; 50W:0.1-5.0A

• Discharge current range: 80W:0.1~2.0A; 50W:0.1-1A

• Current drain for balancing Li-Po: 300mAh/cell

• NiCd / NiMH battery cell count: 1~15 cell

• Li-Ion / Polymer cell count: 1~6 series

• Pb battery voltage: 2V~20V

• Dimensions: About 135*144*36mm

Package includes:

• 1 x iMax B6AC Charger

• 1 x Extension Wire

• 1 x Universal Crocodile Clip

• 1 x JST Plug

• 1 x Power Cable Plug

Notes:

• Our machine can't support measuring the 1s battery's voltage and resistance

• About the positive electrode and negative electrode interfaces, you need to connect them correctly, otherwise, they will fail to charge

• About the connectors, you need to connect them correctly, otherwise, it will fail to charge

• If you choose the balance mode for the balance ports, you need to connect correctly, otherwise, it will fail to charge

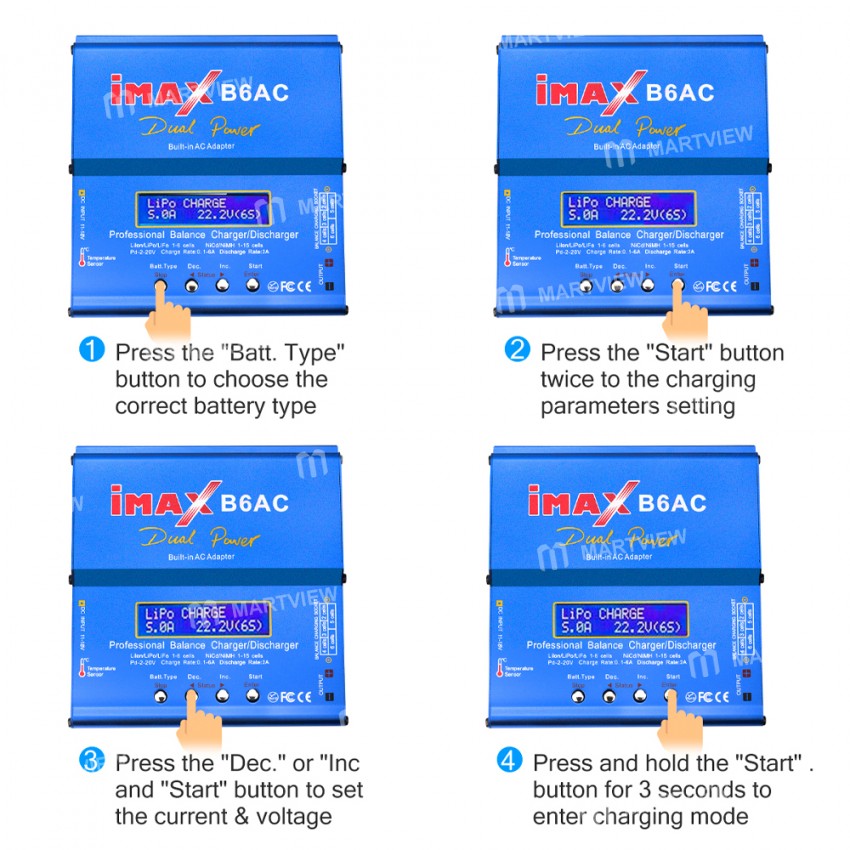

• After setting, press the "ENTER" button for 3 seconds, then you can charge the battery

• PROGRAM SELECT LIPO BATT: To charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries

• USER SET PROGRAM: To set the parameter of charge batteries you need

• PROGRAM SELECT NIMH BATT: To charge/discharge/cycle/NiMH/NiCd batteries

• PROGRAM SELECT SAVE DATA: Save setting data

• PROGRAM SELECT PB BATT: To charge/discharge the PD (lead acid）batteries
