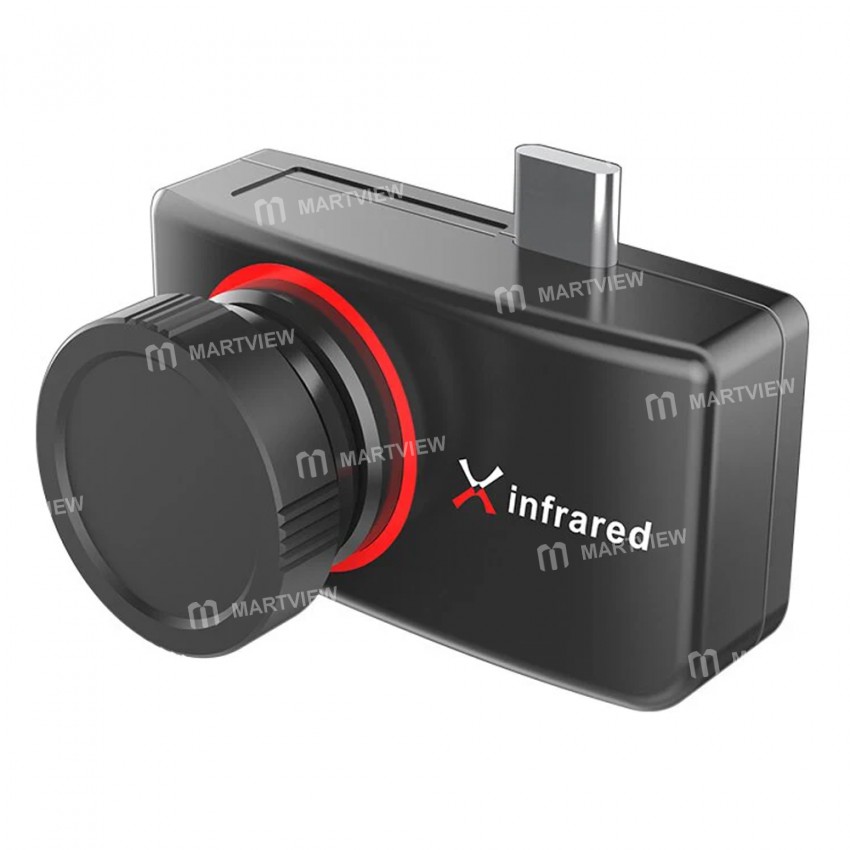

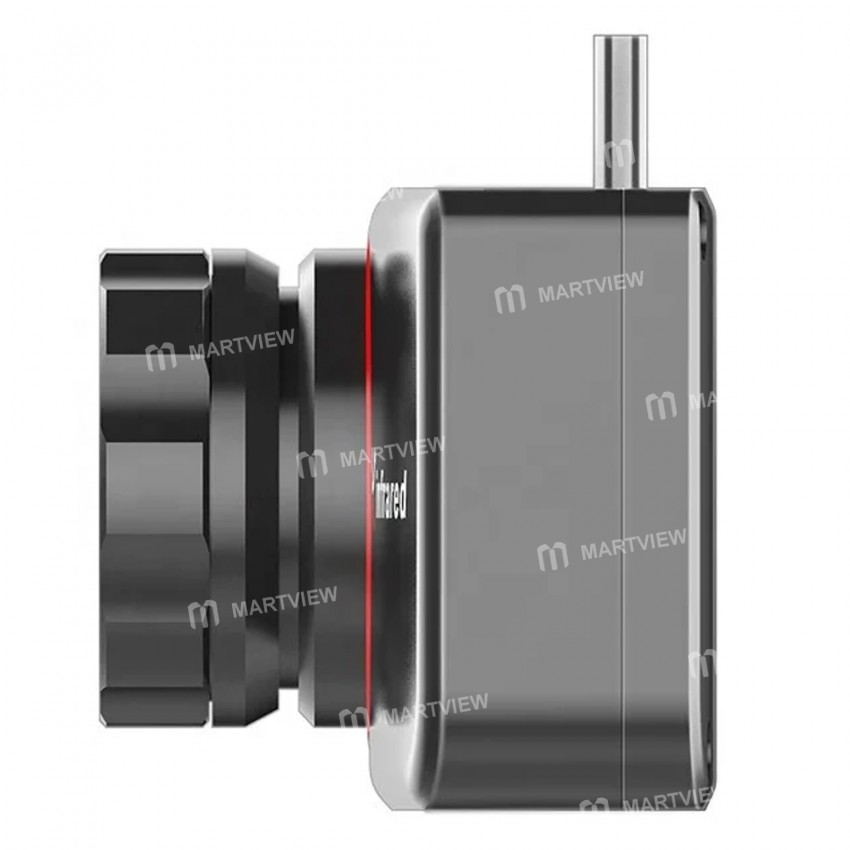

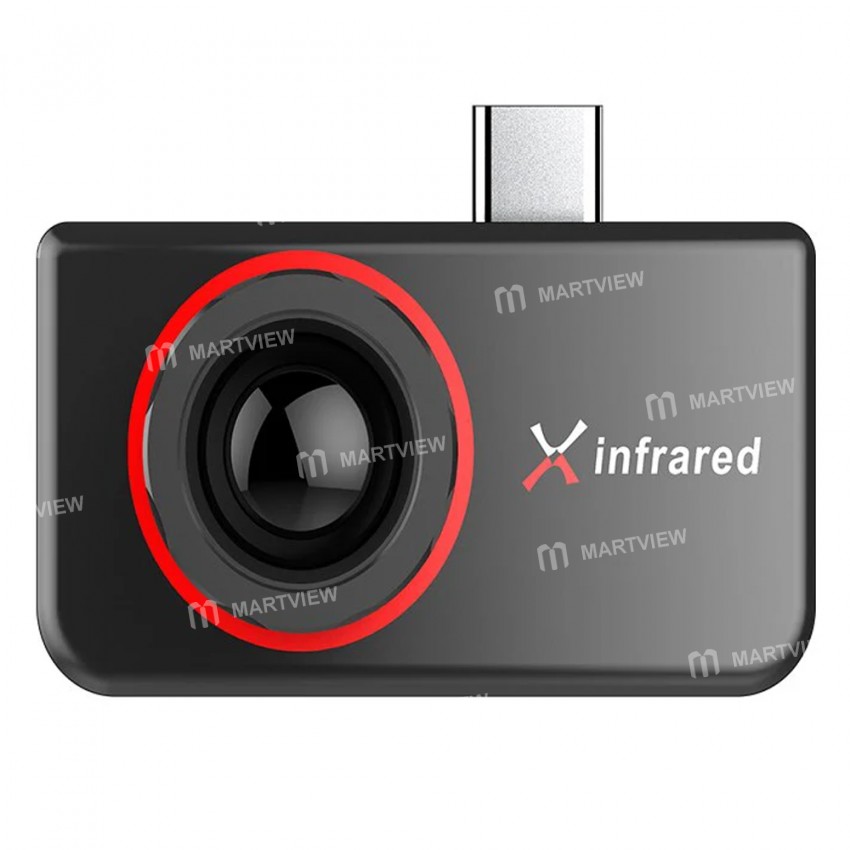

InfiRay T3 Pro Industrial Mobile Type-C Infrared Thermal Imager Thermometer with Night Vision

InfiRay T3 Pro Industrial Mobile Type-C Infrared Thermal Imager Thermometer with Night Vision

Features:

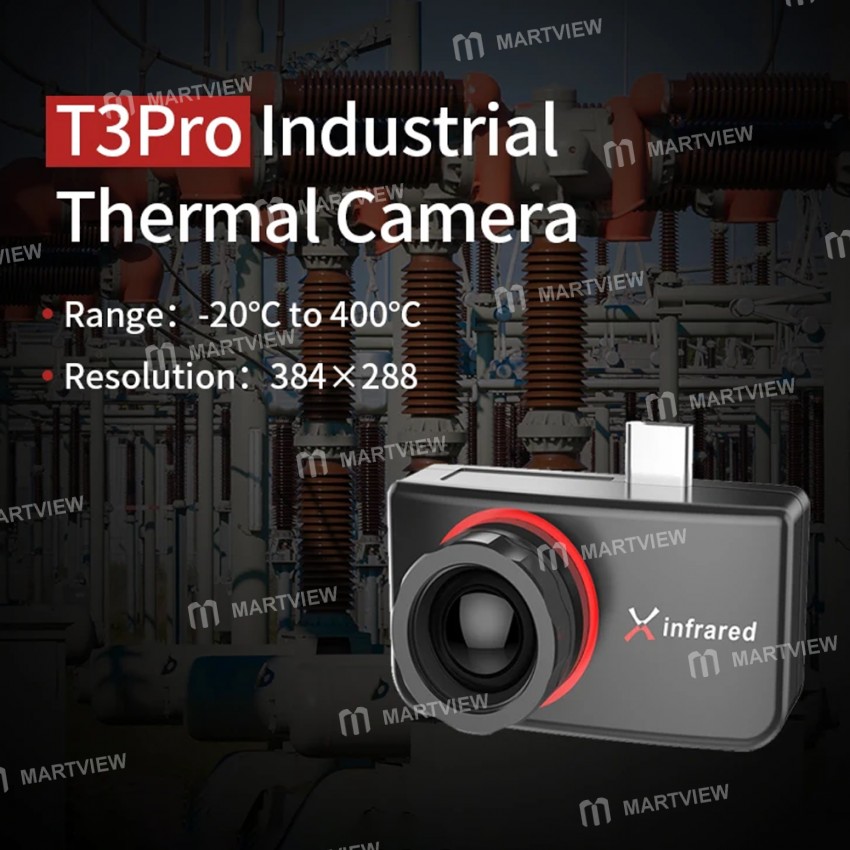

• T3 Pro industrial thermal camera, range: -20°C to 400°C; resolution: 384*288

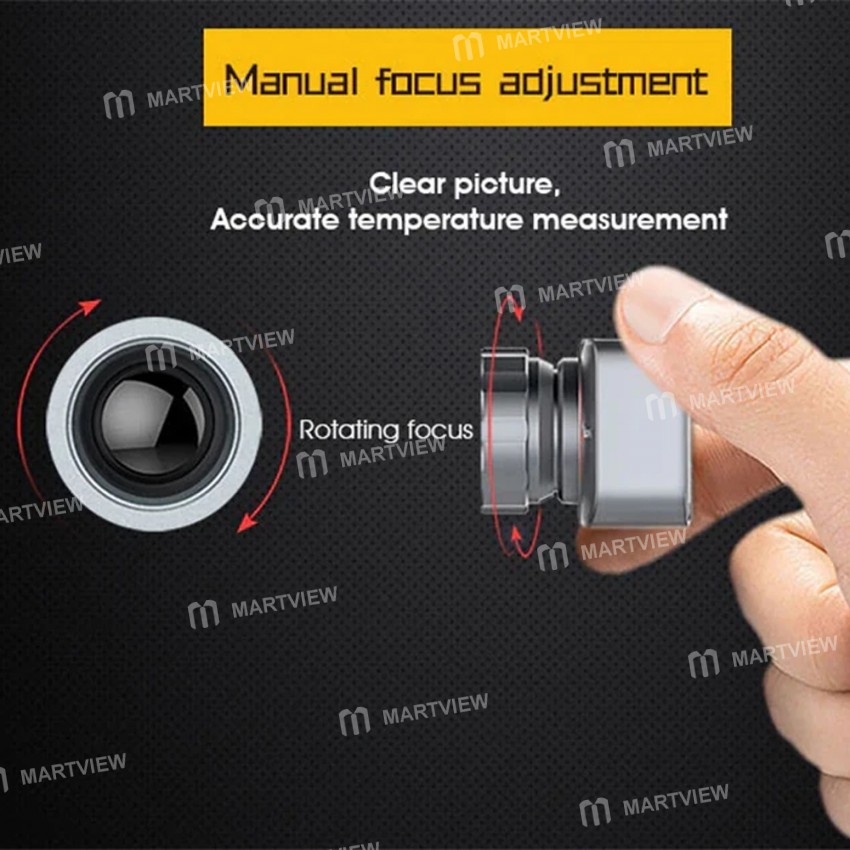

• Manual focus adjustment, clear picture, accurate temperature measurement

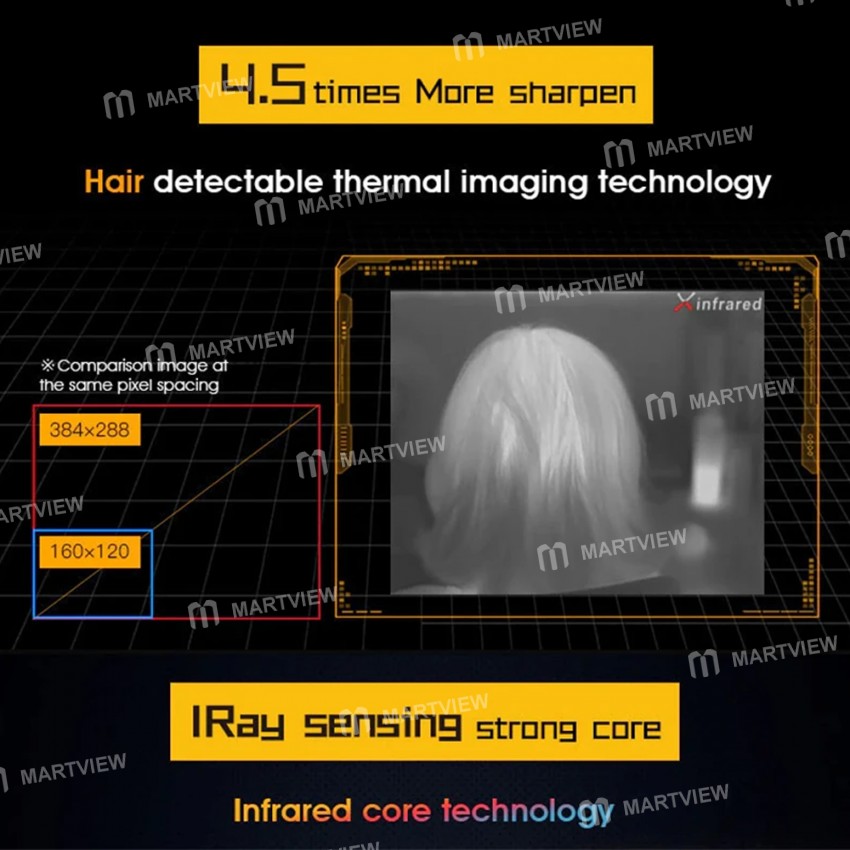

• 4.5 times more sharpened, hair-detectable thermal imaging technology

• Full frame temp. measuring, high-speed instant refresh, high/low-temperature dynamic tracking fault location, instantaneous positioning

• 25HZ high frame rate, perfect capture of beautiful moments, lets each frame feel the temperature

• Small and convenient, putting the thermal imaging camera into the shirt pocket

• Plug and Play, Type-C & USB(Need to adapter cable) interface devices are supported

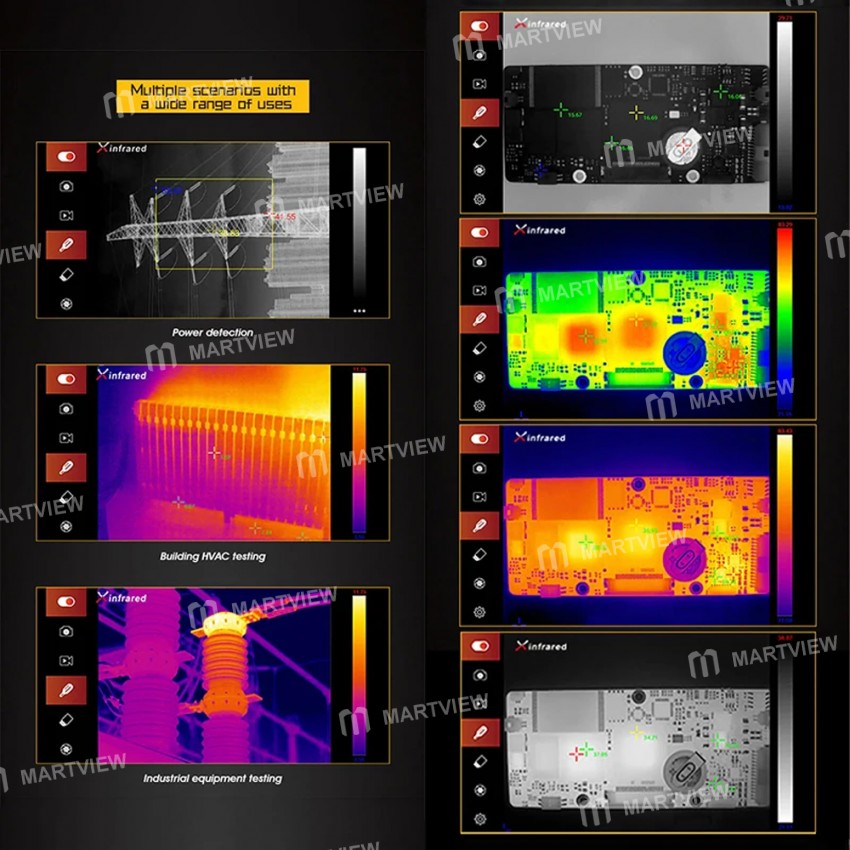

• Multiple scenarios with a wide range of uses, such as: Power detection; Building HVAC testing; Industrial equipment testing

Specification:

• Model: T3Pro

• Resolution: 384×288

• Pixel Pitch: 17μm

• Spectral Band: 8~14μm

• Objective Lens: 13mm

• Focusing Mode: Manual

• Frame Rate: 25Hz

• NETD: ≤60mK@25℃,f#1.0

• MRTD: ≤500mK@25℃,f#1.0

• Operating Temperature: -10℃～+50℃

• Measuring Range: -20℃~+120℃ (Support extended range -20℃~400℃)

• Measurement Accuracy: ±2℃ or ±2% of temperature measuring range

• Temperature Correction: Manual/Auto

• Power Consumption: <0.5W

• Weight (with lens): <40g

• Size (with lens): 49.5*26*27.5mm (13mm Lens)

• Phone Compatibility: Android 6.0 and above

• Image Enhancement: Digital detail enhancement

• Image Correction: Manual

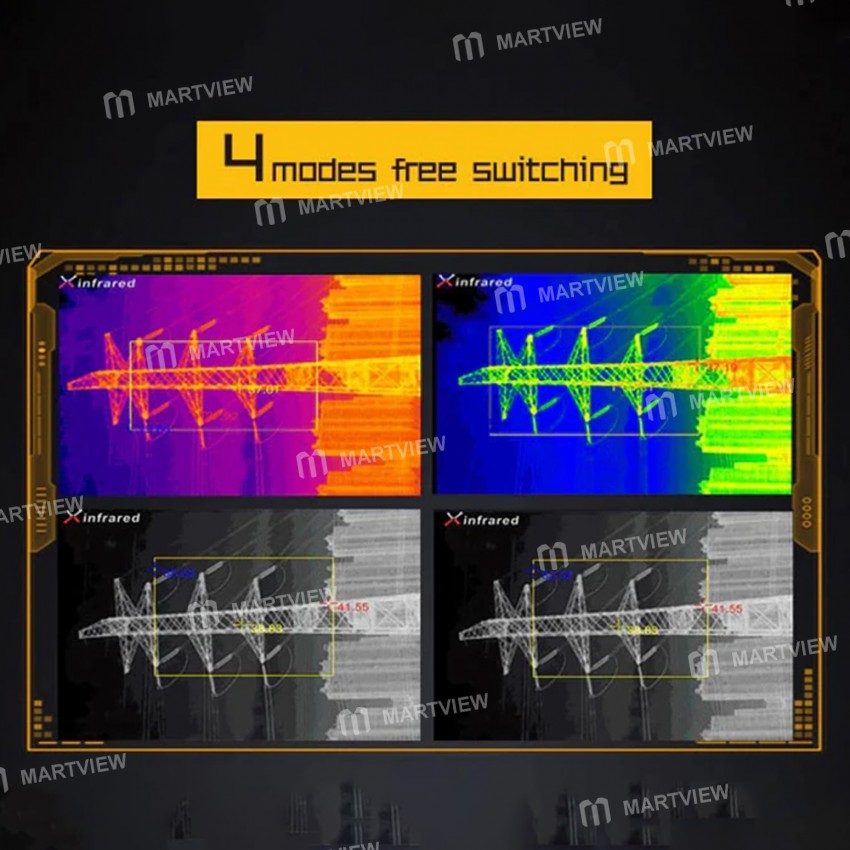

• Color Palette: White hot/Black hot/Multiple pseudo-color options

• SDK Develop: Support

• Temperature Statistics: Support Dot/Line/Area Analysis Statistic and Reporting Functions; Support Max. / Min. / Center Temp. Display, with up to Three Points Statistic Photo & Video: Support

• Online Software Update: Support

Package includes:

• 1 x Infrared Thermal Imager
