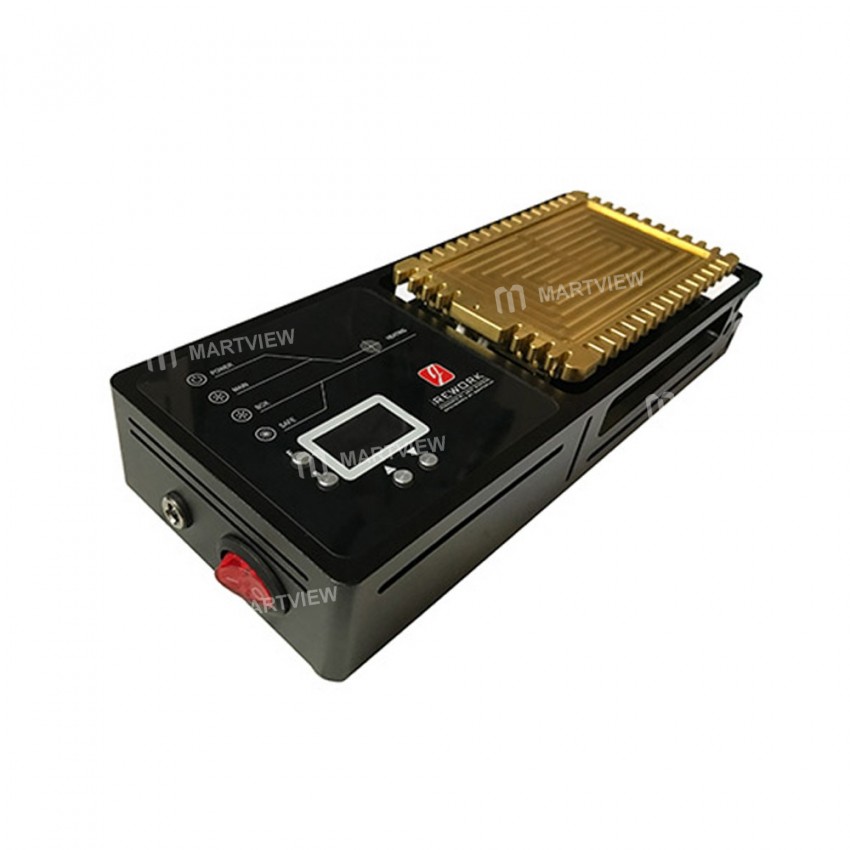

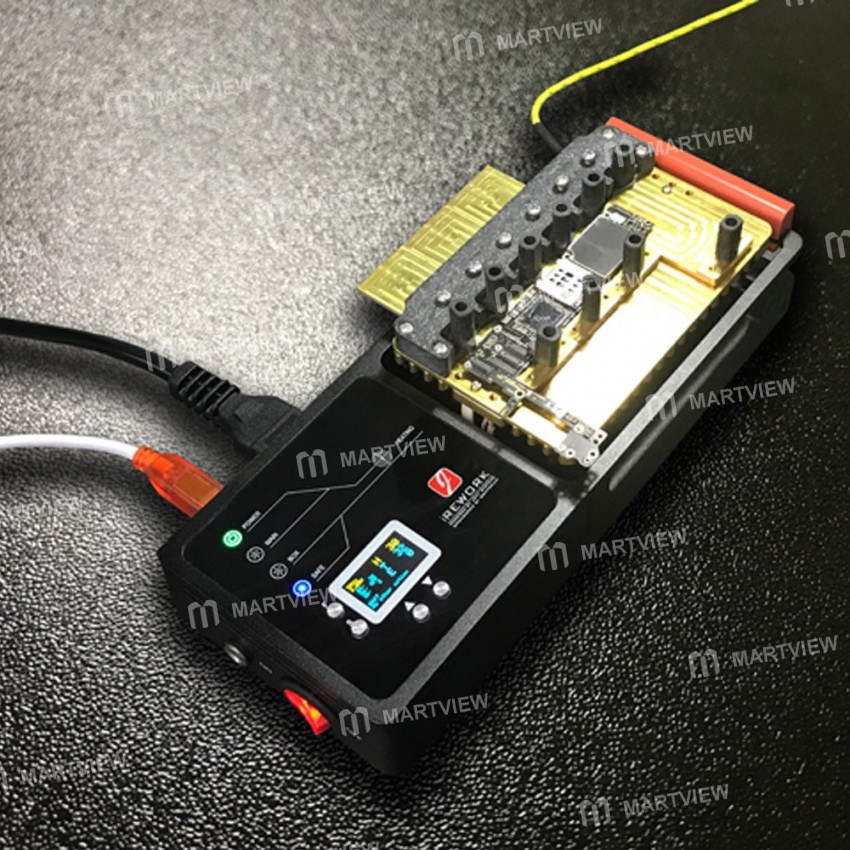

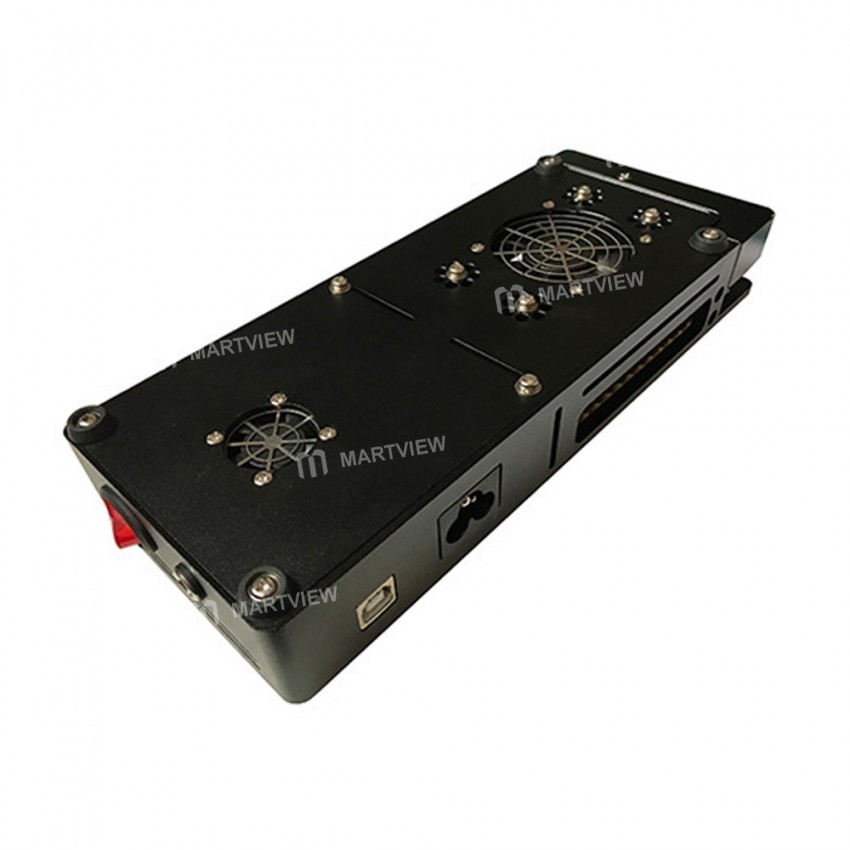

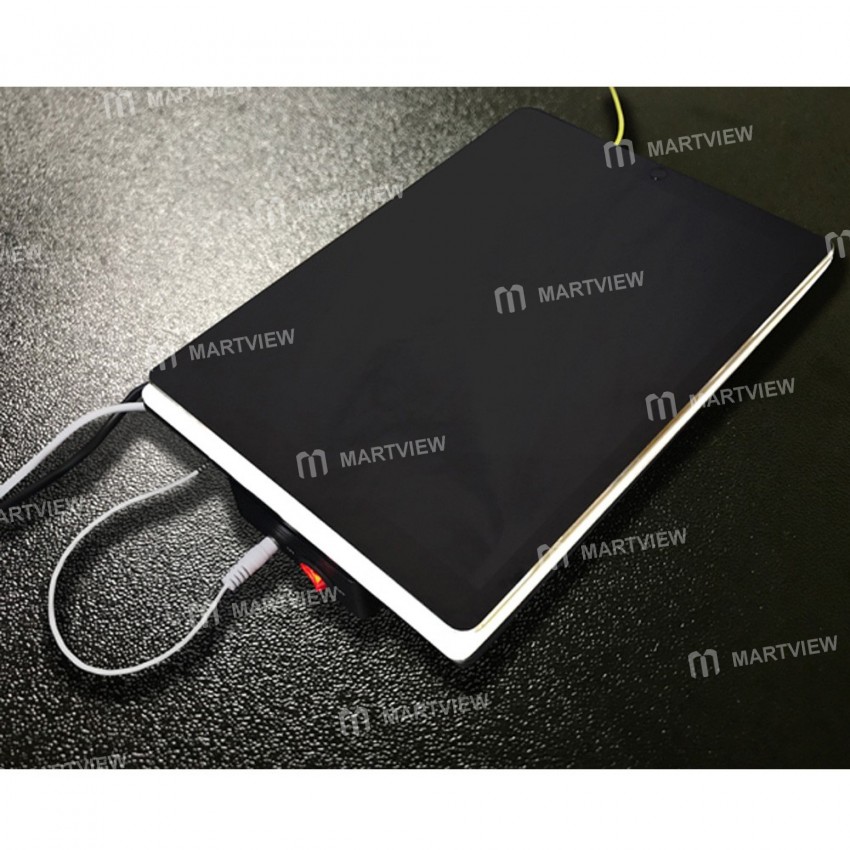

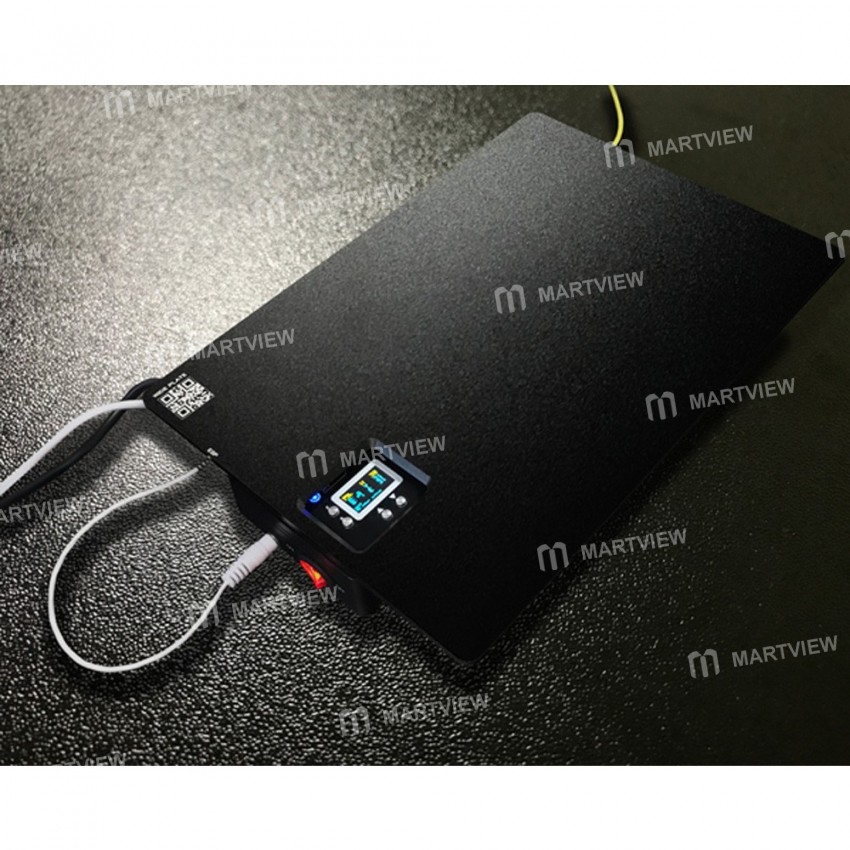

iREWORK Phone Circuit Board Rework Smart Heating Platform

$299.00
In stock
SKU
MV103000
  • Buy 3 for $290.33 each and save 3%
  • Buy 5 for $284.35 each and save 5%
  • Buy 10 for $275.38 each and save 8%
Description
  • iREWORK is a proffesional rework station that enables the user to remove eMMC / IC Chips from phone and tablet logicboards.
  • iRework does not use hot air or infra red heaters, it uses the a new heat conduction technology.
  • This technology is not only safer, but is much more precise. You can quickly set different tempretures for different stages of your work.
  • For example if you need to remove an IC Chip or eMMC chip, you can set the temperature low to enable you to remove the protection can, then increase temperature slightly te help remove resin from surrounding the chip, and then finally increase the temperature again to enable you to remove the chip from the logic board


Features:

  • All functions are finely controlled using our custom made software control system with real time data display
  • General settings and operating ambient temperature ranges can be programmed using our software in order to work with or without computer
  • Has 4 integrated temperature sensors (internal temperature, heater temperature, external temperature and real time temperature tester K Type sensor)
  • The heating system has automatic temperature control that can keeping temperature constant and accurate while you work
  • An integrated 0.96" OLED that can display all necessary data including state, temperature and voltages
  • A built in temperature tester function that can accurately and efficiently measure solder iron and hot air temperature (Measurement range: -125 - 1200 ℃, Tolerance: ± 1 ℃) in real time . This way you can be sure your rework tools are correctly calibrated and working at peak performance

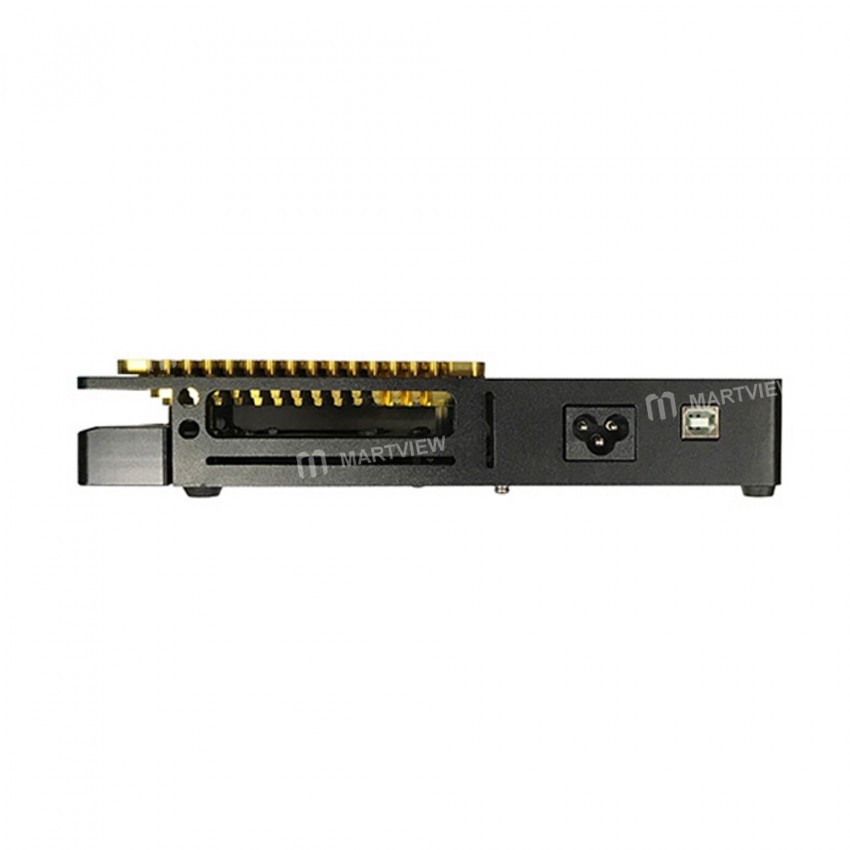

  • Heating plate made from high purity copper with an efficient method for high heat flux design
  • Wide plate made from aluminum can separating glass etc(Compatible size for 13 inch and below)
  • With Wide plate can use for baking、drying、aging etc (Eg.water-flooded components of UMT mainboard)
  • Almost all current PCB integrated circuits can be soldered and de-soldered without the need of a soldering iron or a hot air gun. (Eg,Apple A7 A8 A9 A10 CPU 、baseband IC or harddisk IC etc)
  • Can act as a pre-heater for your everyday needs to minimize the risk of component damage
  • Smart phones, iPad products's glass lens, touch screens & LCD displays can be separated in a few mins
  • Default factory settings with general working conditions specification (Eg. Glue remove、IC de-soldering & Soldering、lens & touch screen assembly settings etc)
  • Integrated self-resetting overheat protection
  • Warning alerts and sound alerts
  • Voltage overload protection integrated
  • Short circuit detection integrated
  • Automatic shutdown function integrated
  • All functions are user customization
  • Lifetime free software upgrades and more


Technical Data:
Operating voltage: 230VAC/50Hz
Output Power: 300 Watts
Temperature Range:Room temperature - 350 ℃
Temperature Tolerance: ± 3 ℃
iREWORK Box Size: 230*90*45 MM
Pachage Size: 350*280*100 MM
Gross Weight: 3.7Kg

Add-ons Software (Activation required):
Working with all Apple product and Huawei Android Mobile Hisilicon based mobile device (Called iMFC)

Package include:
1 x iREWORK Station

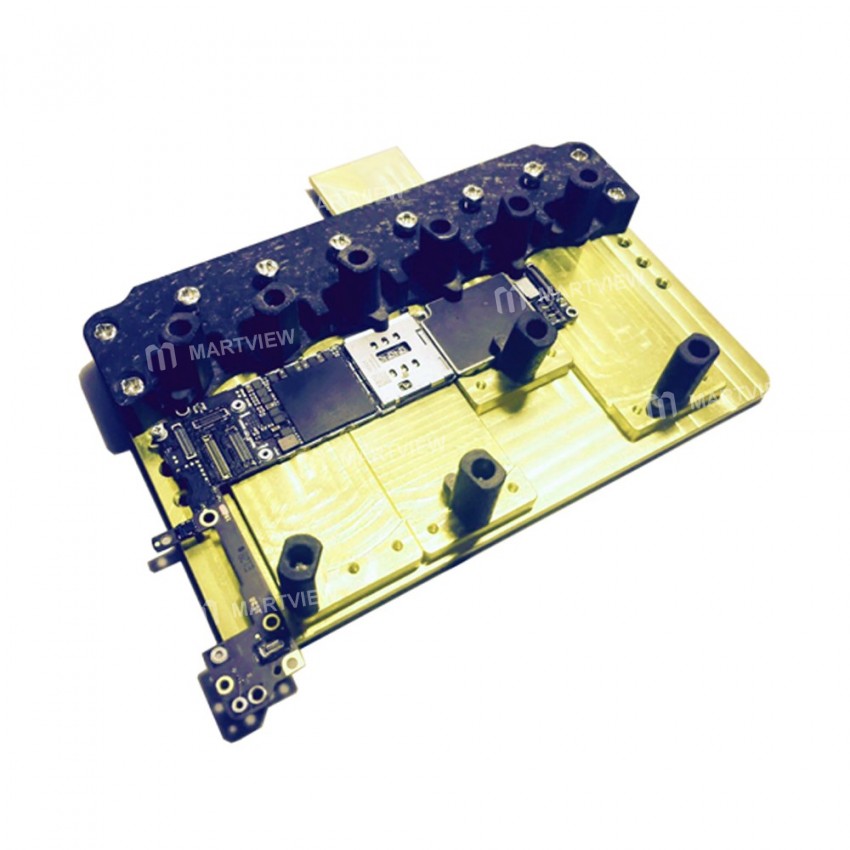

1 x Universal PCB holder(PCB fixture)

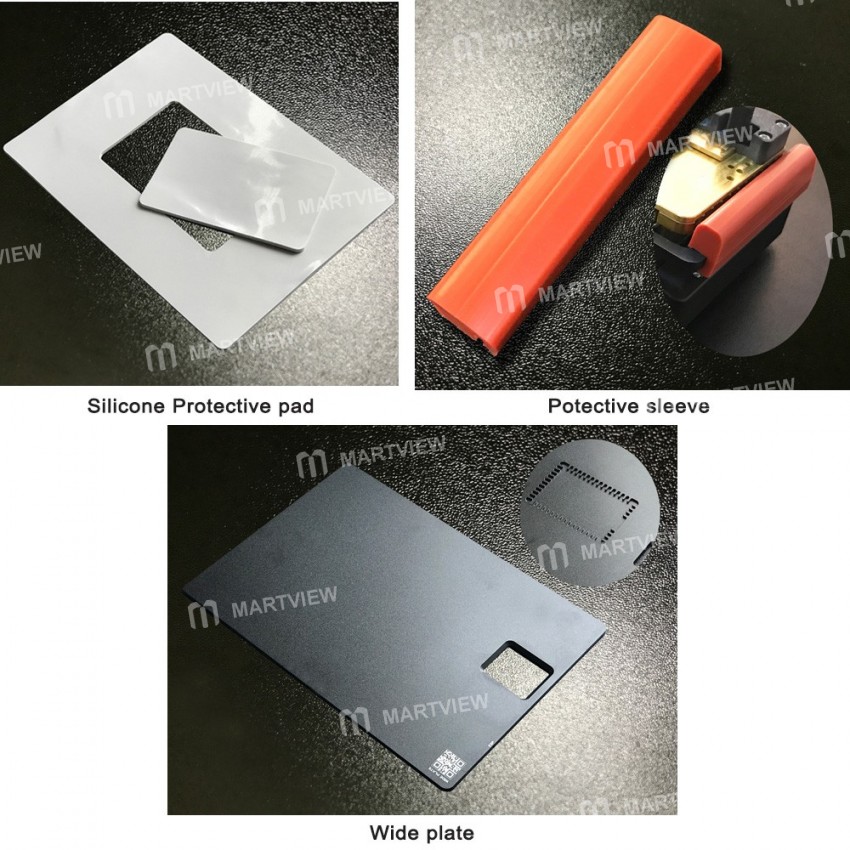

1 x Wide plate

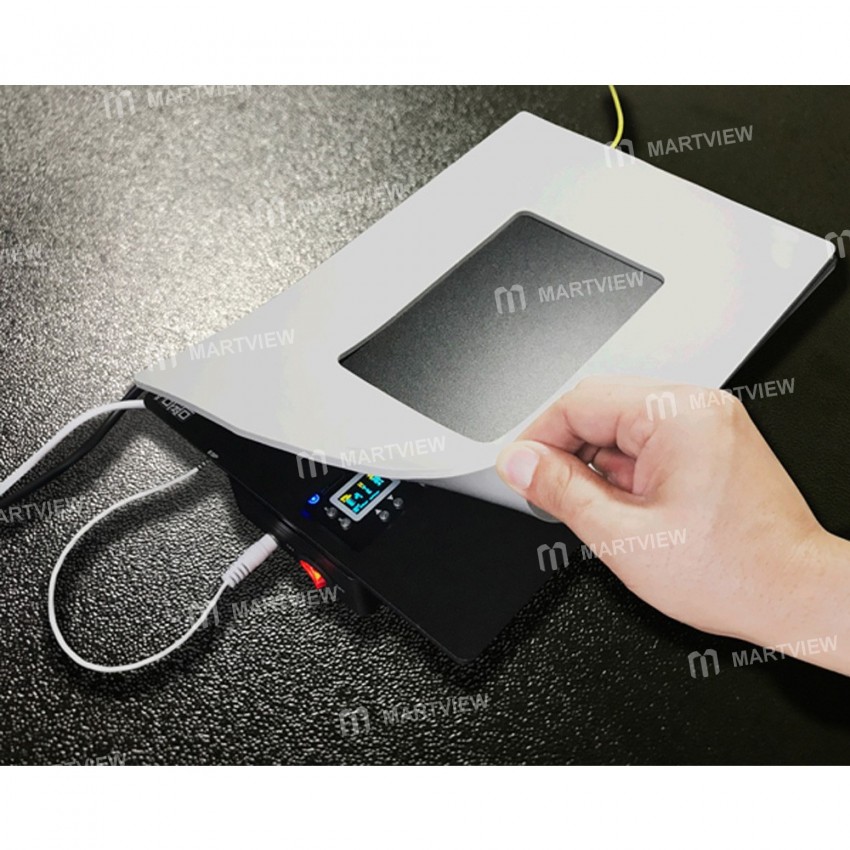

1 x Silicone Protective pad

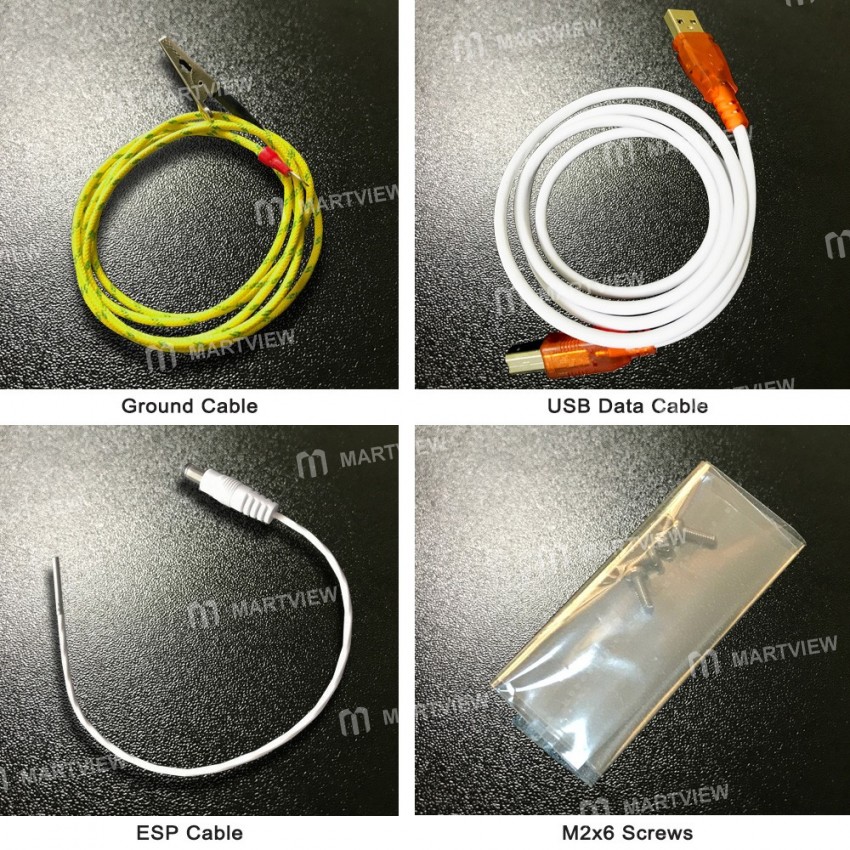

1 x ESP cable
1 x Mini suction cup

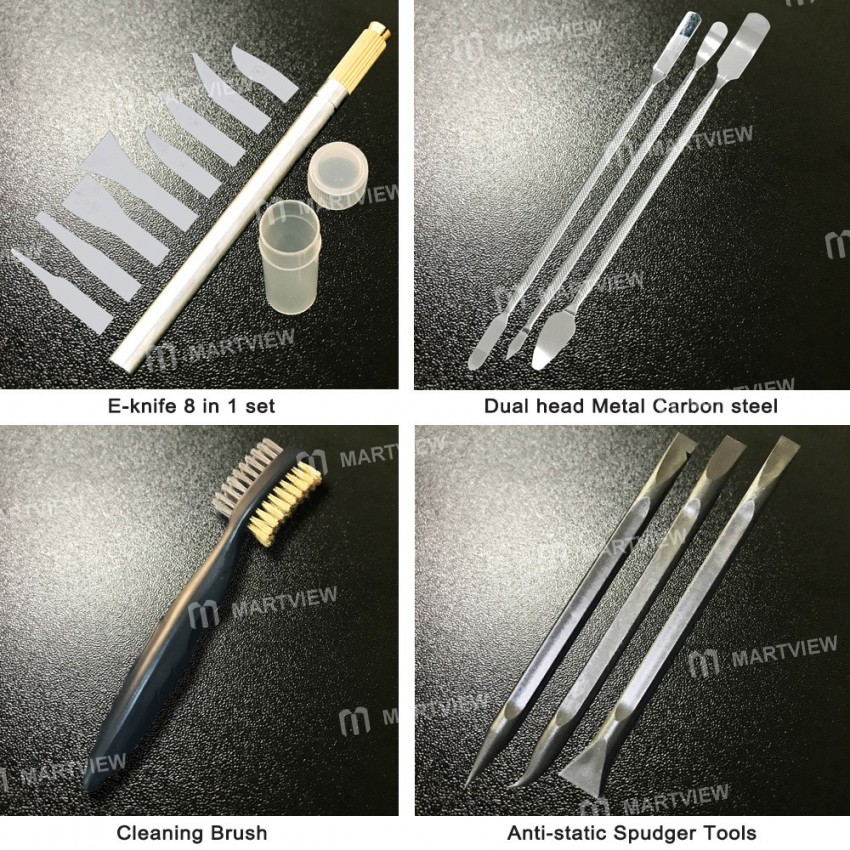

1 x E-knife 8 in 1 set

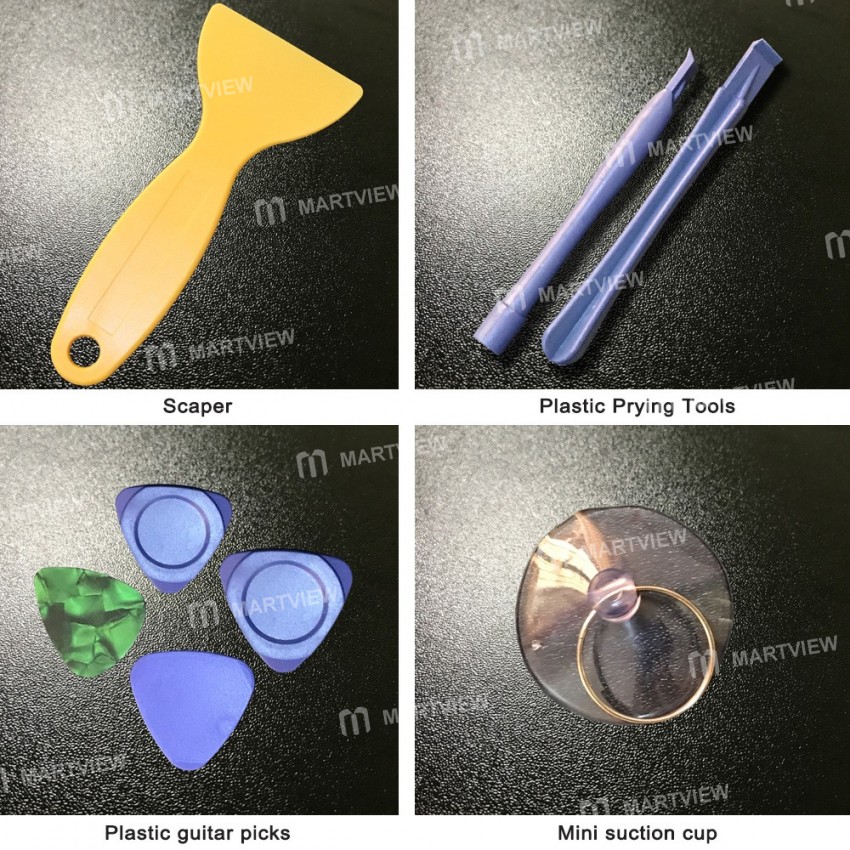

2 x Plastic Prying Tools
3 x Anti-static Spudger Tools
3 x Dual head Metal Carbon steel
4 x Plastic guitar picks
1 x Potective sleeve (Red Color)
1 x Scaper (Yellow Color)
1 x Cleaning Brush
1 x Power Cable
1 x Ground cable
1 x AB USB Cable
