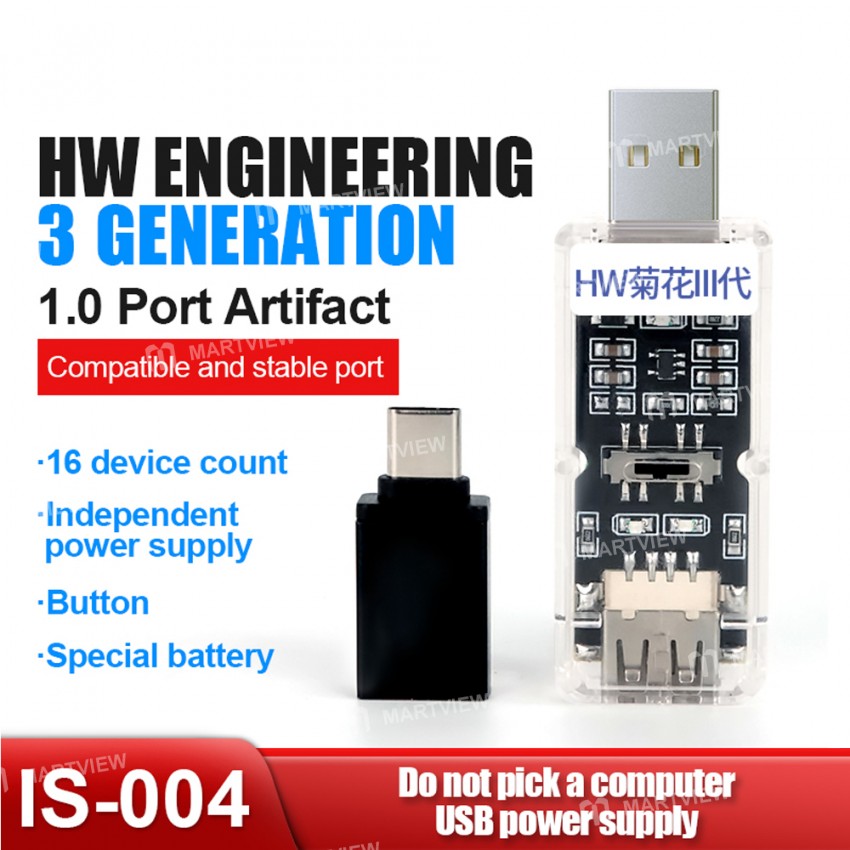

iSOFT IS-004 HW Chrysanthemum 3rd Gen USB 1.0 Port Artifact with Card Brush Head

iSOFT IS-004 HW Chrysanthemum 3rd Gen USB 1.0 Port Artifact with Card Brush Head

Product introduction:

• This is a tool to solve the problem that the new batch of chrysanthemum and the Hongmeng system cannot be connected to the USB1.0 port under normal short-circuit

• Series of operations (still need to disassemble the machine, the operation method is the same as before)

Product use:

• Solve the problem that USB1.0 does not appear after the new version is disassembled and short-circuited

• It supports bottom-level programming with related software and mobile phone operations

• Supported models: Chrysanthemum Kirin series (including Hongmeng)

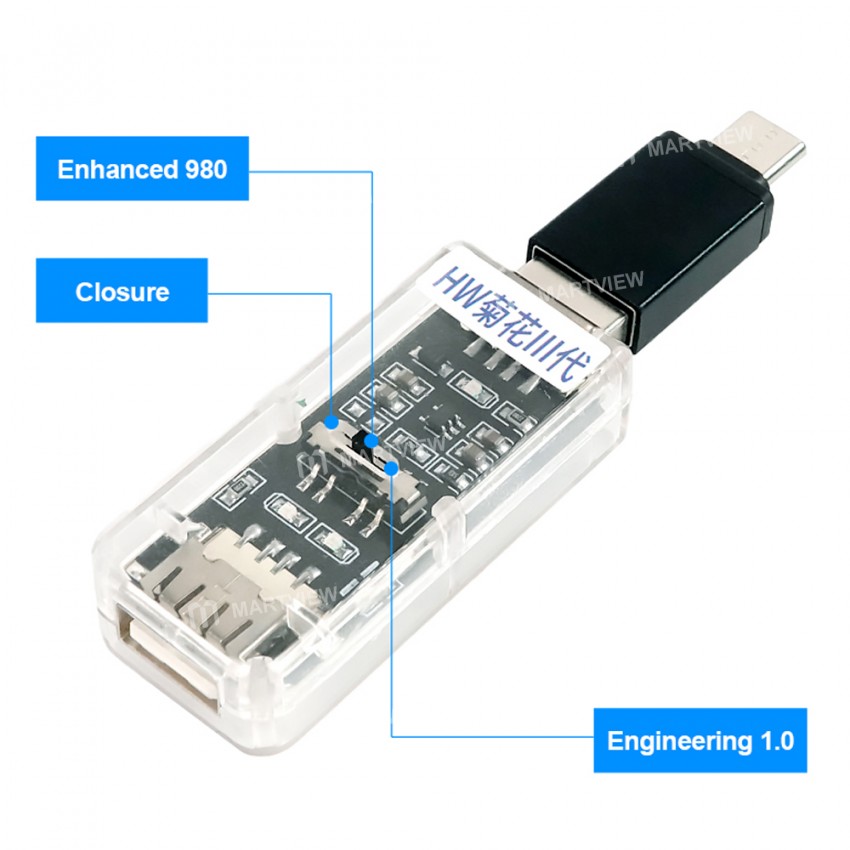

• Button Description: (The transfer switch is the button to start and close the engineering mode) *In the off state, the adapter can be used as a normal line by plugging in the data cable to connect to the mobile phone.*In the startup state, enter the engineering mode, you can force the usb1.0 port to start the engineering mode, plug the adapter into the computer separately, and the computer will prompt that the USB device cannot be recognized

• When the mobile phone is connected, there will be no such prompt, and it can be connected normally

Instructions for use:

• Short-circuit the mobile phone (the same steps as before)

• Start the adapter to the engineering mode and insert it into the mobile phone (the steps are the same as before but with an extra adapter)

• The computer will have a long-lost usb1.0 port, then burn the bottom layer through your software (that is, turn on BL)

• After writing the bottom layer and switching to fast boot mode, press the switch twice (you can test it by yourself at an interval of 3 seconds)

• The computer will come out ADB driver, hi yourself later

Package includes:

• 1 x Tester

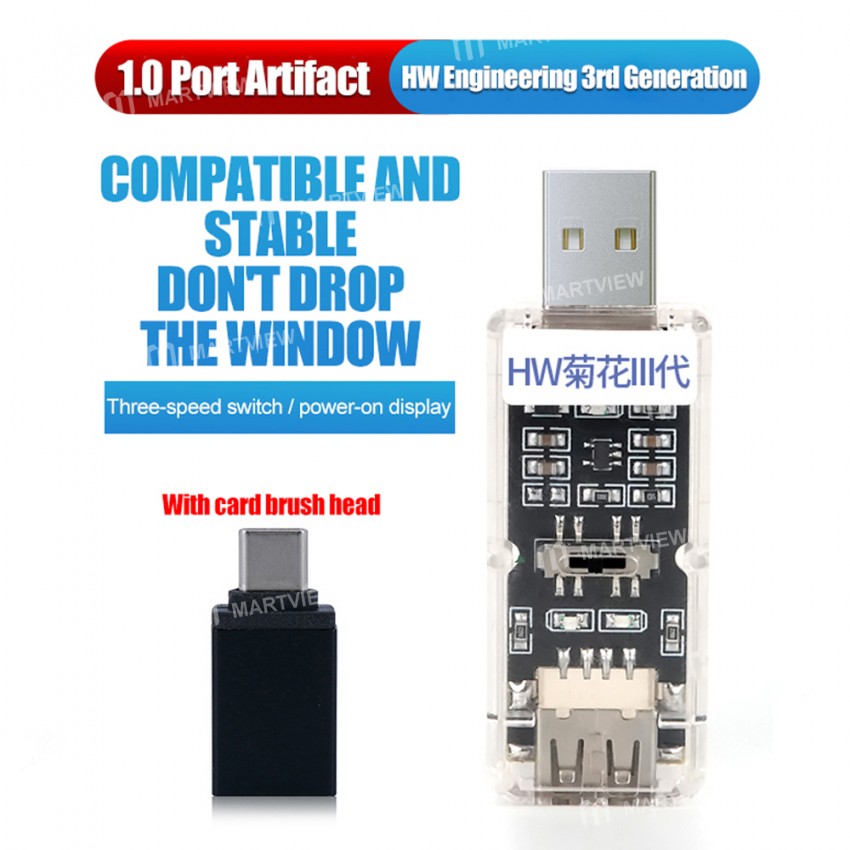

• 1 x Card Brush Head

Notes:

• It is only to assist in entering the 1.0 mode, and it still needs to be short-circuited

• At present, it cannot be directly unlocked, just the adapter, and then connect to ordinary data cable products through this header

• This product is only suitable for senior maintenance personnel
