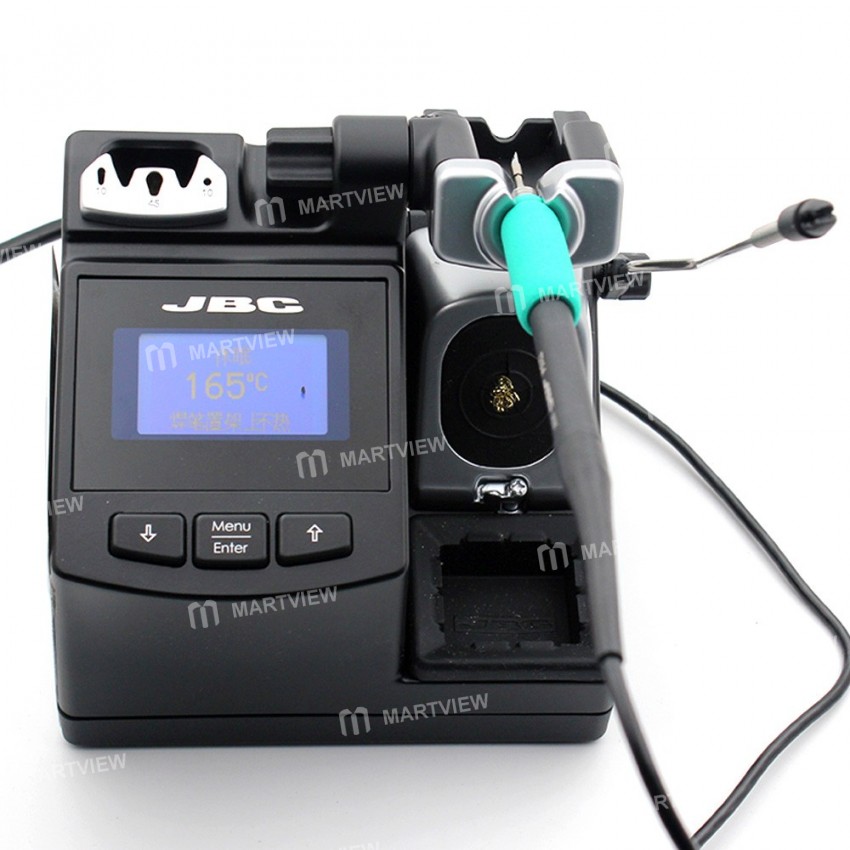

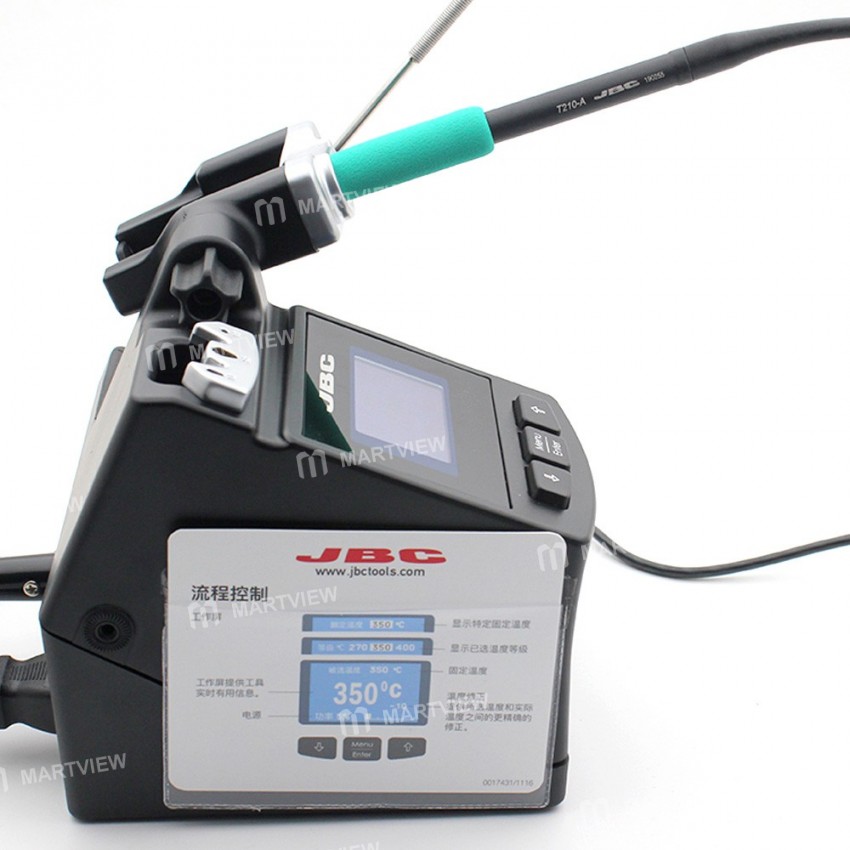

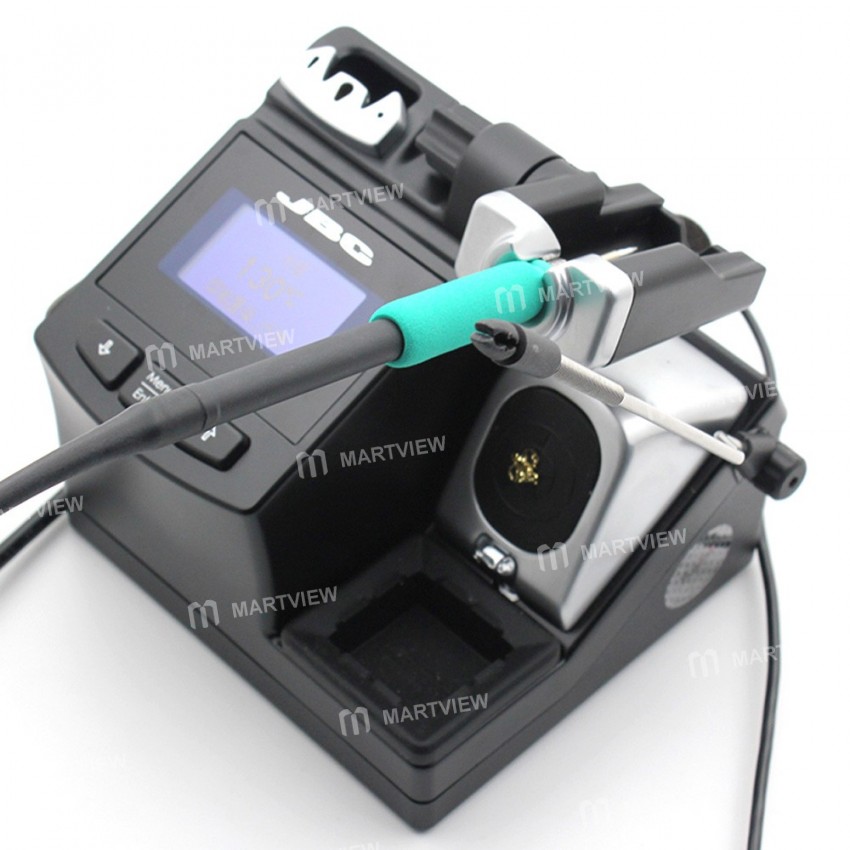

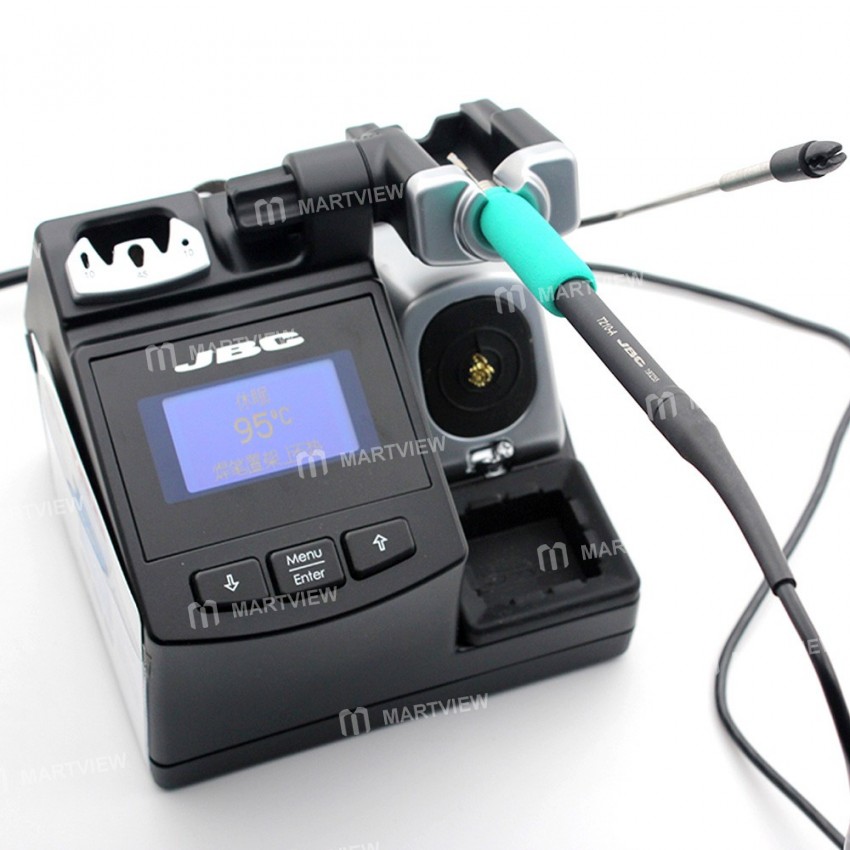

JBC CD-2SHE 230V Precision Soldering Station With Handle

In stock
  • Buy 3 for $440.47 each and save 2%
  • Buy 5 for $435.98 each and save 3%
  • Buy 10 for $431.49 each and save 4%


  • It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
  • Using the menu you can personalize over 20 parameters to help manage the soldering process.
  • It features a USB connector to update software, create graphs and manage parameters from a PC.
  • Complete cleaning system with an antisplash membrane to keep the work area clean.
  • Use the integrated wiper to remove excess solder from the tip.
  • Use T210 series handle, with T210 series iron head for precision welding
  • Power 40W. Can be used 300 degrees low temperature welding
  • You can use the USB-B type data cable to connect the computer to observe the temperature curve.
  • 2 seconds to 350°C
  • Up to 20 sets of parameters can be set using the menu
  • Unique sleep + sleep function can extend the life of the tip 5 times
  • User-friendly handle control, very comfortable to use the feel


  • Ambient operating temp.: 10-40 C / 50-104 F
  • Input Fuse: 1A (230V)
  • Output Peak Power: 130W / 23.5V
  • Temperature selection: 90-450 C / 190-840 F
  • Tip to ground resistance: <2 ohms
  • Tip to ground voltage: <2mV RMS
  • Voltage: 230V

Package include:
1 x Soldering Station
1 x Handle
1 x Manual
