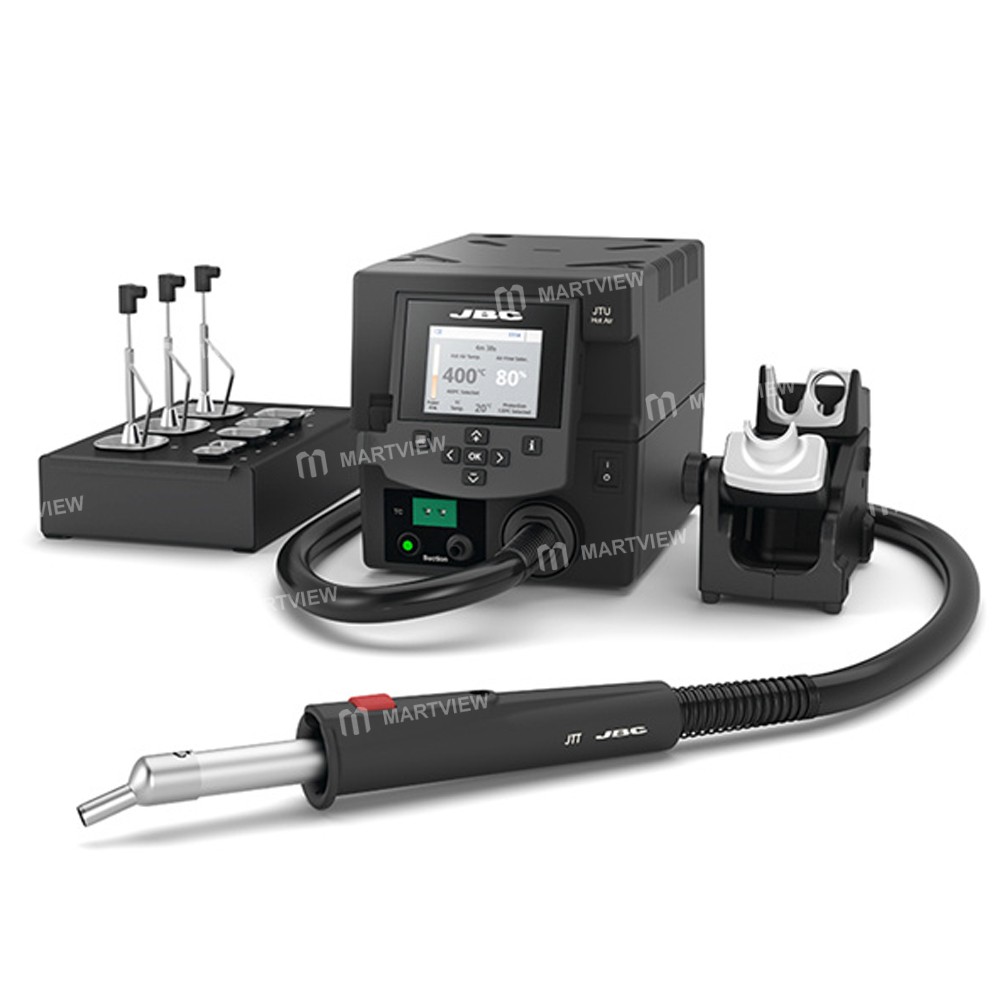

JBC JTSE-2HB High Power Intelligent Hot Air Desoldering Station for Rework SMD Components (Pre Order 2-4 Days)

JBC JTSE-2HB High Power Intelligent Hot Air Desoldering Station for Rework SMD Components

Features:

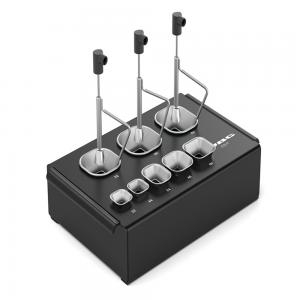

• The JBC Intelligent Thermal Management System works in conjunction with protective shields, tripods, and suction bar devices to concentrate heat on components to ensure

• simple and safe desoldering operations: 1. Placement: choose the appropriate suction bar device or protective shields and tripods; 2. Heating: heat the component without affecting surrounding components; 3. Extraction: the component automatically lifts away when the solder melts.

• By connecting a PH218 K-type thermocouple to the soldering station for high-precision closed-loop control of components/PCBs during rework, it can be used to protect specific areas on components or PCBs.

• Like other JBC soldering stations, the JTSE can be set with more than 10 parameters to customise the control mainframe.

• Equipped with JTT hot air hose kit, including JN2015 hot air nozzle, JN2012 hot air nozzle, JN2020 hot air nozzle.

• Adjustable bracket: Adjust the angle of the tool holder to fit your operating position.

Specification:

• Antistatic: Meet ANSI/ESD S20.20-2021

• Rated power: 700W

• User profile: 25 (up to 10 steps for each),1 preset profile

• Vacuum: 30%/228mmHg

• Temperature optional range: 150 to 450°C

• Air flow: 5 to 50 SLPM

• Type K thermocouple:

• 1 for Control Protection

• USB-A(front): Firmware update, Graphics, and profiles

• Pedal: Tool control

• USB-B(front): PC communications

• Robot(RJ12): Remote control or FAE Fume Extractor connection

• Equipotential bonding: Connection to EPA

• Package: 545*345*275mm

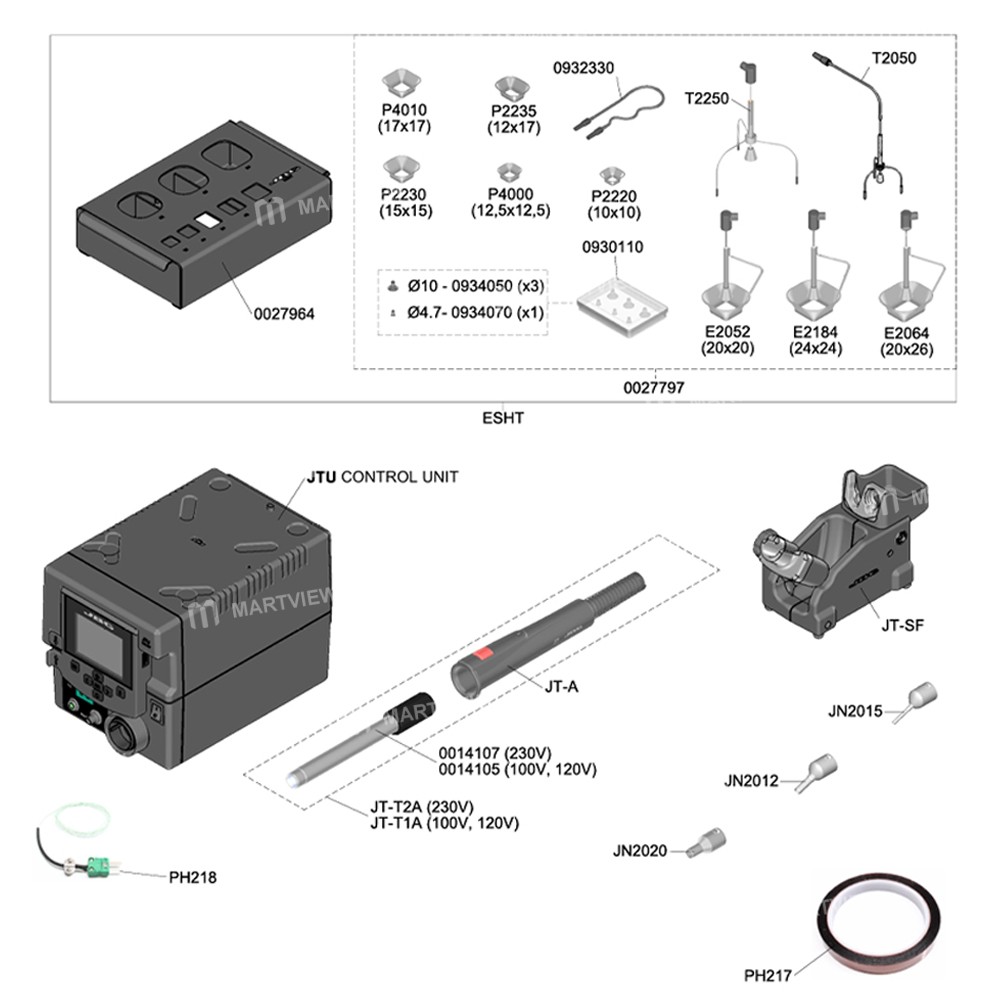

Package includes:

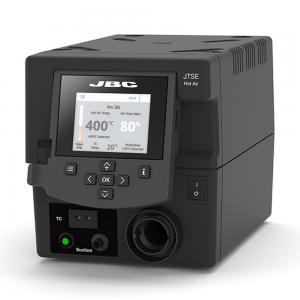

• 1 x JTSE Power Hot Air Control Unit

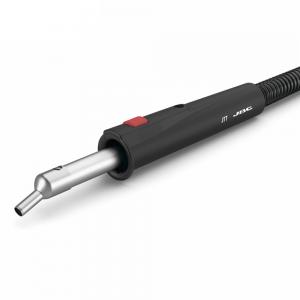

• 1 x JTT Heater Hose Set

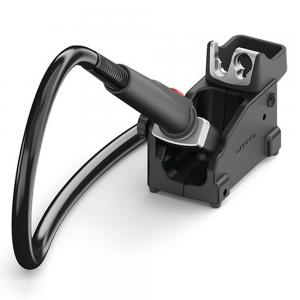

• 1 x JTS Stand for JTT Heater Hose Set

• 1 x PH218 Thermocouple Type K

• 1 x PH217 Kapton & Thermally Conductive Tapes
