JC C1 Smart Repair Box for iPhone Xs Max / Xs / X / 8 Plus / 8 / 7 Plus / 7 / 6S Plus / 6S / 6 Plus / 6

JC C1 Smart Repair Box for iPhone Xs Max / Xs / X / 8 Plus / 8 / 7 Plus / 7 / 6S Plus / 6S / 6 Plus / 6

Feature:

• Support iPhone Xs Max / Xs / X / 8 Plus / 8 / 7 Plus / 7 / 6S Plus / 6S / 6 Plus / 6

• Support charging/rooting/fault detect

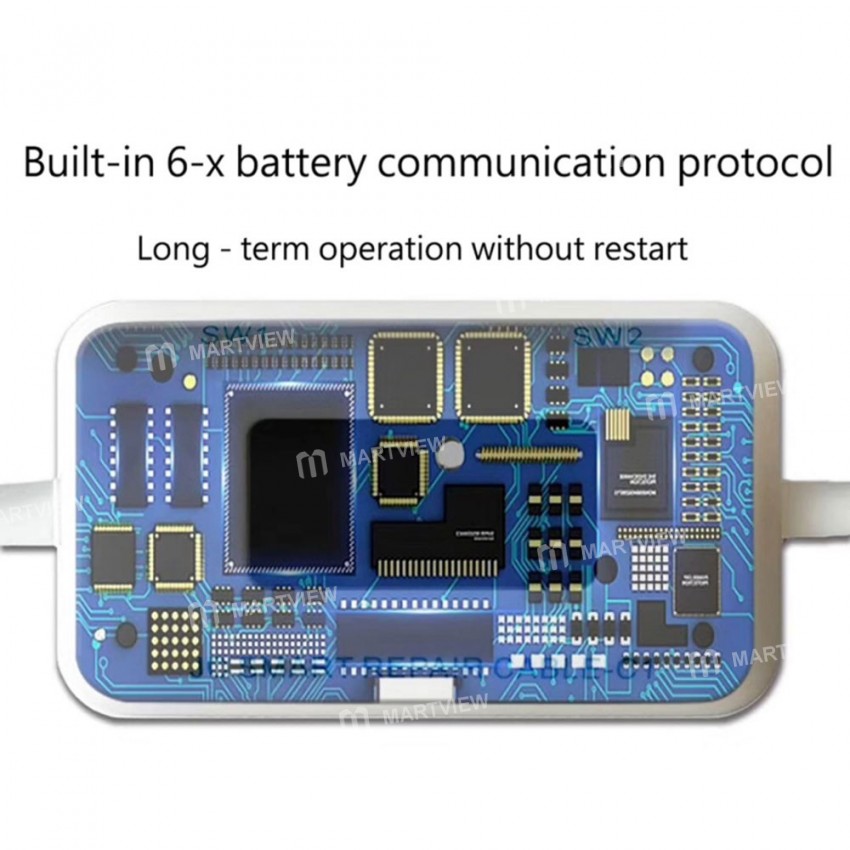

• Built in battery communication protocol

• Super protection

• Extreme experience

• Real-time display of four high stator current

• 1.3-inch OLED screen

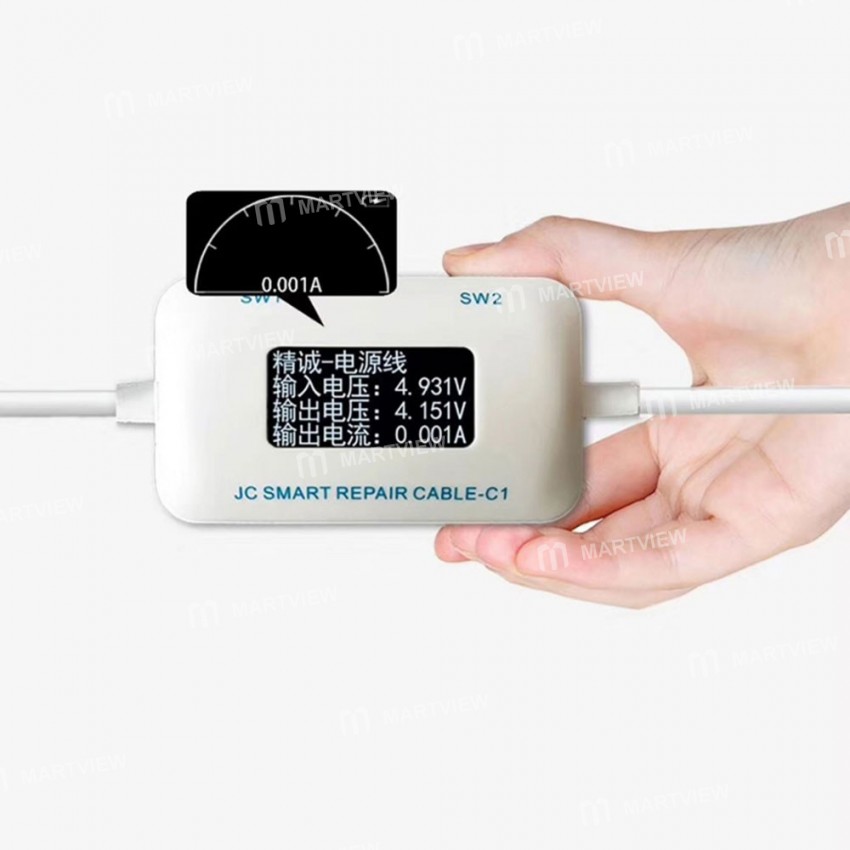

• Support dial mode, digital mode one key switch

• Compatible with IOS/Android devices

• Support phone/motherboard quick swipe test

• Double key function quick switching

• Support flash/on/off akey switch

• Support main board on in a key

• Support Language in English/Chinese

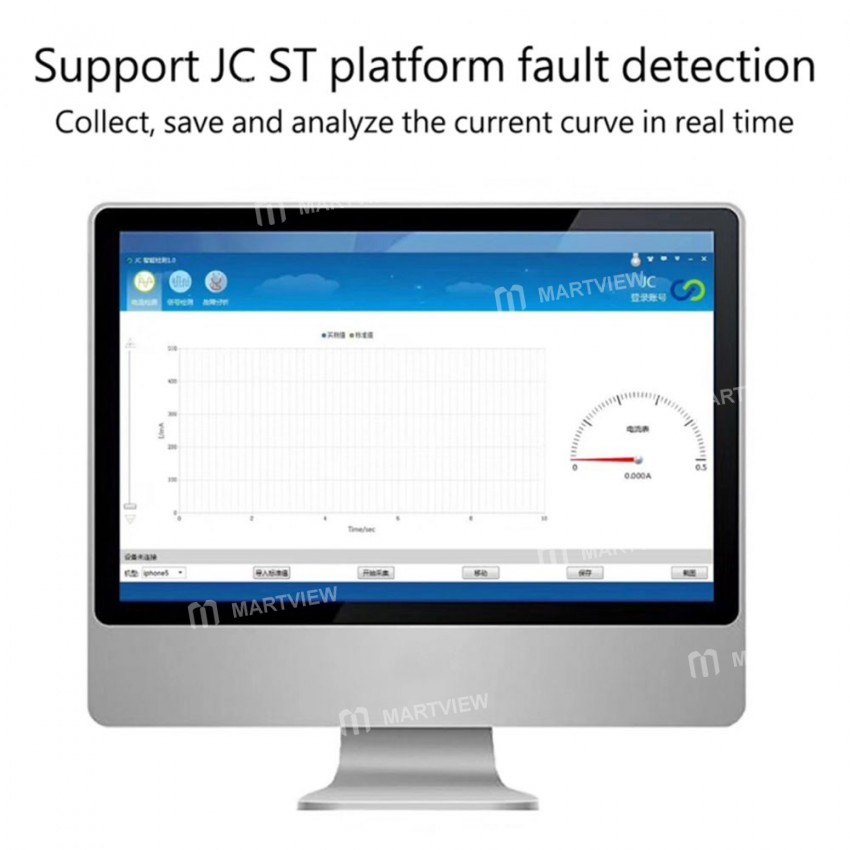

• Support JC ST platform fault detection

How to use:

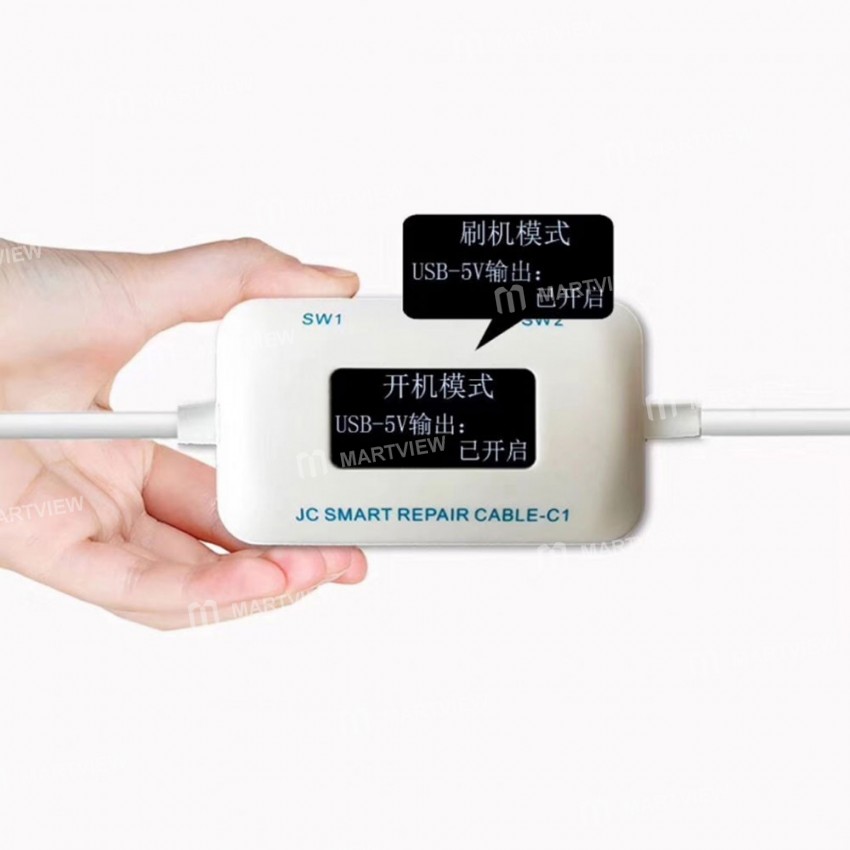

• Press Sw1 to shift the boot-on mode/Brushing mode, press SW1 for 3-second to shift the Chinese/English version.

• Press SW2 to shift the current display mode(Dial mode or Digital mode),press SW2 for 3-second to boot on the PCB or phone.

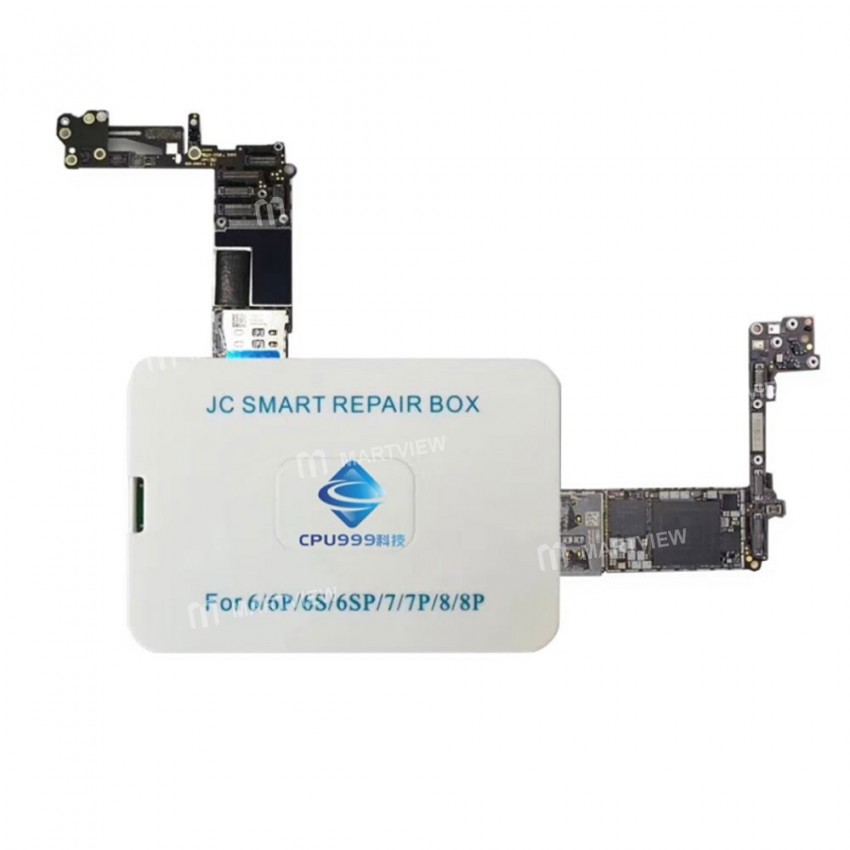

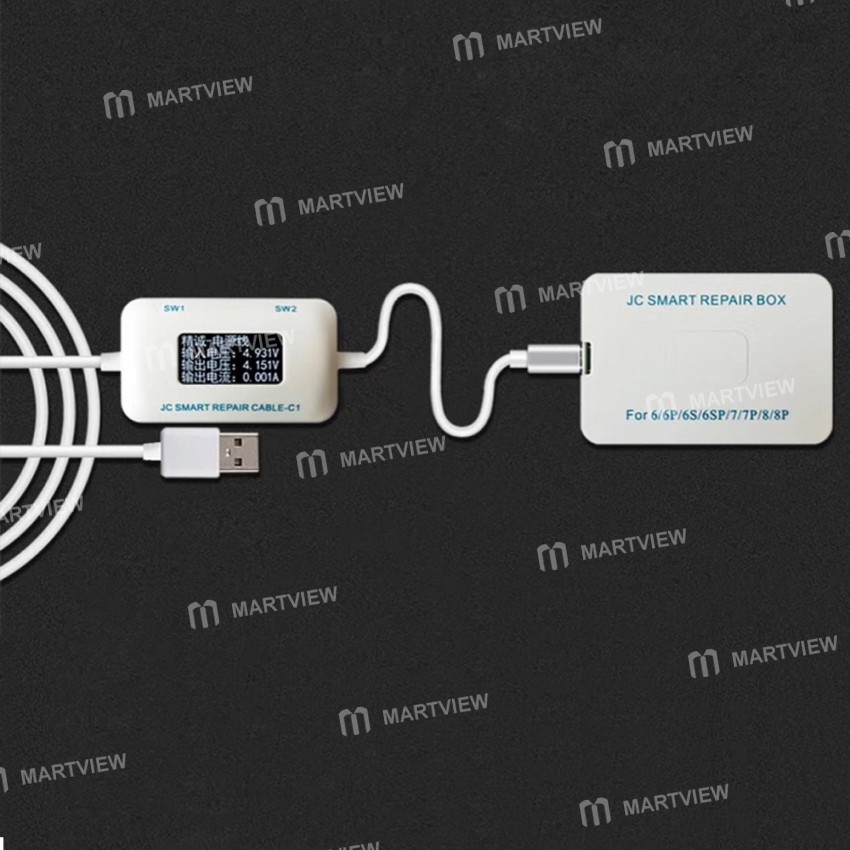

• Connect C1 to PC or USB adapter,then put the PCB in the correct location of the repair box,then press SW2 for 3-second to boot on the PCB or phone.

• Connect C1 to PC,then put the PCB in the correct location of the repair box to proceed the brushing by iTunes,can also open JC ID platform collect the current curves to do the failure analysis

Package includes:
1 x JC C1 Smart Repair Box

Software downlaod link:
https://drive.google.com/open?id=1nlzhRQTp847GqR6rXQfSWRJu-_B1wvoM
