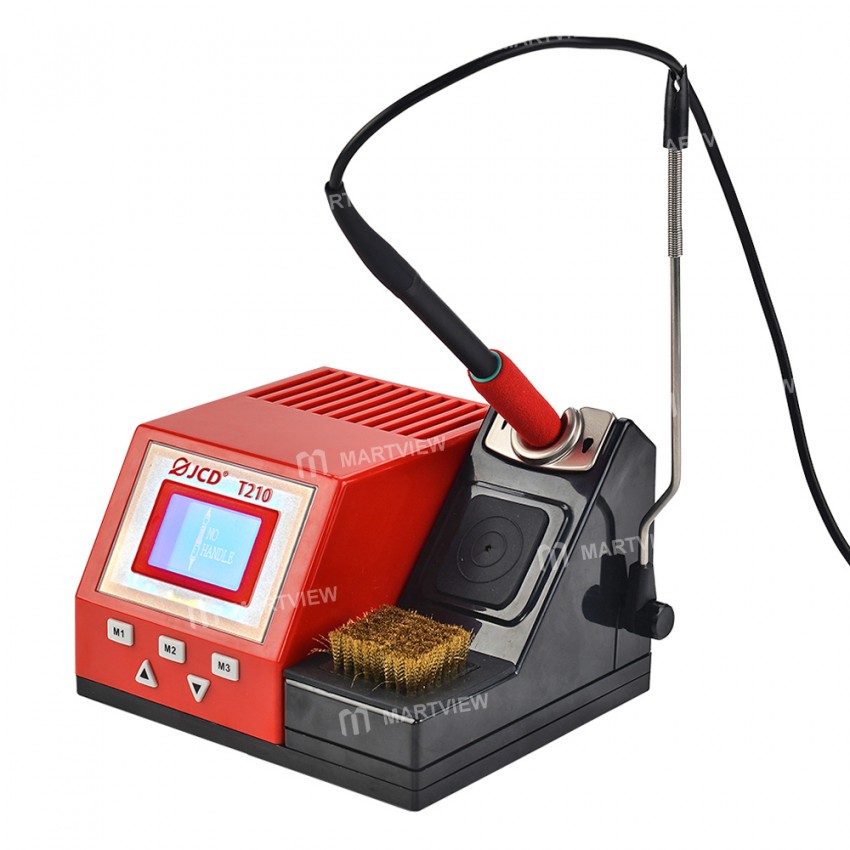

JCD T210 85W LCD Digital Display Adjustable Temperature Professional SMD Soldering Station

JCD T210 85W LCD Digital Display Adjustable Temperature Professional SMD Soldering Station

Features:

• With 3 storage channels, the temperature of each channel can be set separately for storage and recall

• Easy to operate in real-time, put your hand on the stand to enter sleep mode immediately

• The single-chip microcomputer control system can make the temperature of the soldering iron tip rise rapidly, and can work at a lower temperature, thereby improving the welding quality and work efficiency

• When the soldering iron is in a sleep state, it can extend the service life of the heating part

• The handle of the soldering iron handle is light and ergonomic, which fits the special tip of the soldering iron tip, and it is safer and more convenient to use suitable accessories

• With a complete cleaning system and anti‑splash film, it can keep the working area cleaning, use the integrated tap to remove excess solder from the front end

• T210 has a temporary temperature increase function, the soldering iron tip part touches the soldering iron stand to temporarily increase the temperature by 80℃, quickly melting large solder joints

Specification:

• Item Type: Soldering Station

• Model: JCD T210

• Power Consumption: 85W

• Optional Input Voltage: AC 110V/220V

• Output Voltage: 16V + 16V

• Temperature Range: Determined by the working mode (200℃-500℃)

• Maximum Ambient Temperature: 40℃

• Temperature Stability: ±2℃/no air flow, no load

• Resistance of Soldering Iron Tip to Ground: <1Ω (DC)

• Needle Tip to Ground Potential: <25mV (true effective value)

Package includes:

• 1 x Soldering Station

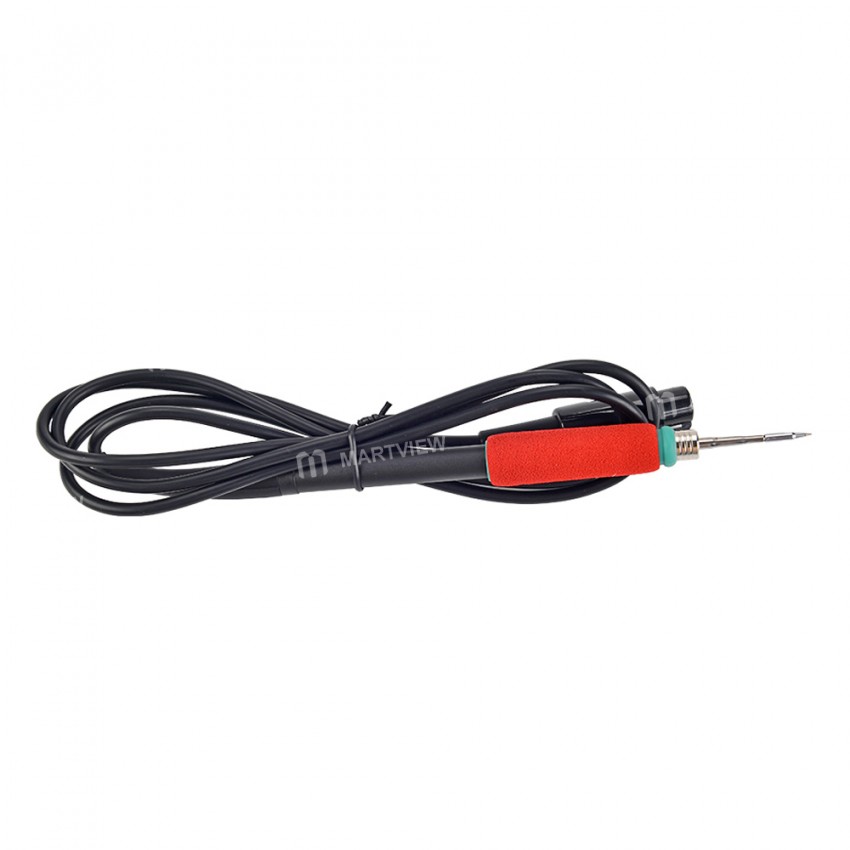

• 1 x Handle

• 1 x Soldering iron tip

• 1 x Power cable

Note: When connecting and disconnecting the handle, be sure to turn off the power to avoid damaging the control circuit board
