JDY-68A BLE Dual-Mode Bluetooth Audio Module

JDY-68A BLE Dual-Mode Bluetooth Audio Module
JDY-68A is Bluetooth 5.1 audio +BLE dual-mode Bluetooth module, supporting mobile phone music playback and BLE through transmission at the same time, audio support serial port control and button control, communication distance of 60 meters, BLE support 16-bit and 128 UUID, BLE all UUID support serial port configuration, UUID parameters can be arbitrarily configured by users

Specifications:

• Model: JDY-68A

• Working frequency band: 2.4G

• Transmission power: 4dB(Max)

• Communication interface: UART

• Working voltage: 2.4V~5.5V

• Working temperature: -40℃-80℃

• Antenna: Built-in PCB antenna

• Reception sensitivity: -96dbm

• Transmission distance: 60 meters

• Master-slave support: From the machine

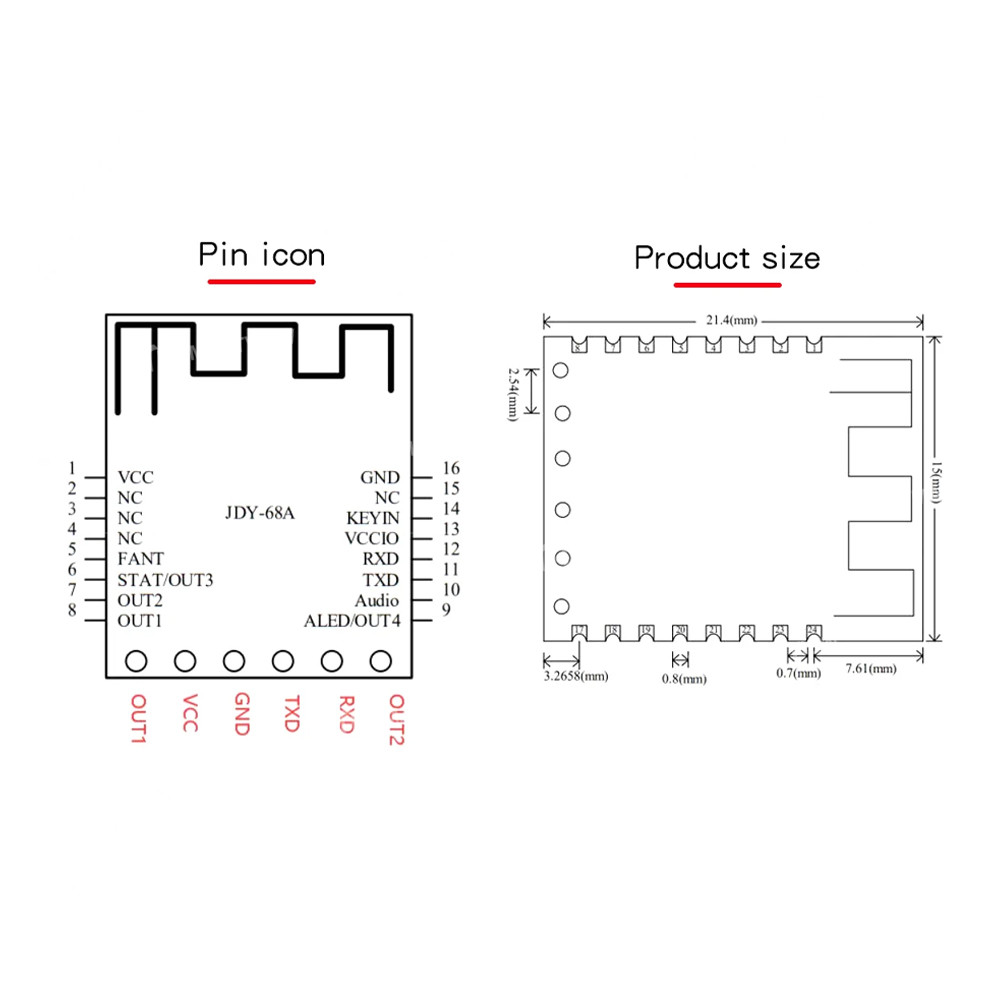

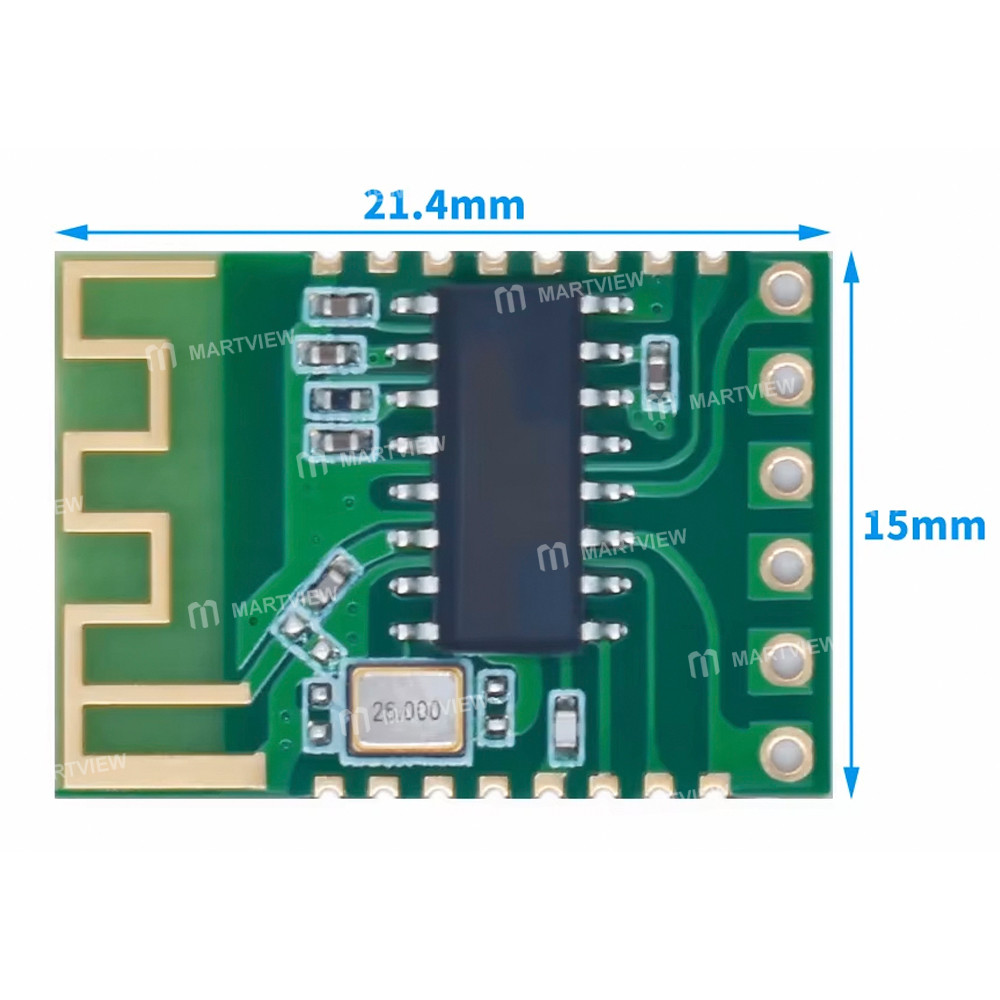

• Module size: 21.4*15*3mm (Length, Width and Height)

• Bluetooth version: BLE 5.1 (compatible with BLE4.0, BLE4.2, BLE5.0)

• Instruction parameter saving: Parameter Configuration Power failure data is saved

• SMT welding temperature: <250℃

• Serial port sends messages to the mobile phone: 6K Byte/S(Actual non-packet loss rate)

• Mobile phone sends messages to the serial port: 12K Byte/S(Actual non-packet loss rate)

• Android MTU support: ≤247byte

• Apple MTU support: ≤185byte

• Working current: 12mA to 20mA, requires sleep and direct power outage

• Sleep function: Don't support sleep

Package includes:

• 1 x Module
