Jonsbo BO102 Triangle ITX Desktop Computer Gaming Case Supports 360 Water-Cooling

Jonsbo BO102 Triangle ITX Desktop Computer Gaming Case Supports 360 Water-Cooling

The picture of the motherboard, graphics card, power supply for reference only, the actual package contains only the case!!!

Features:

• Conceptual vertical triangular prism appearance design

• In order to reduce the sharpness of the transition between the triangular plane and the elevation,  the aluminum alloy plate of the BO 102 top cover and bottom cover into a large arc to soften the overall outline and easily integrate it into the home environment.

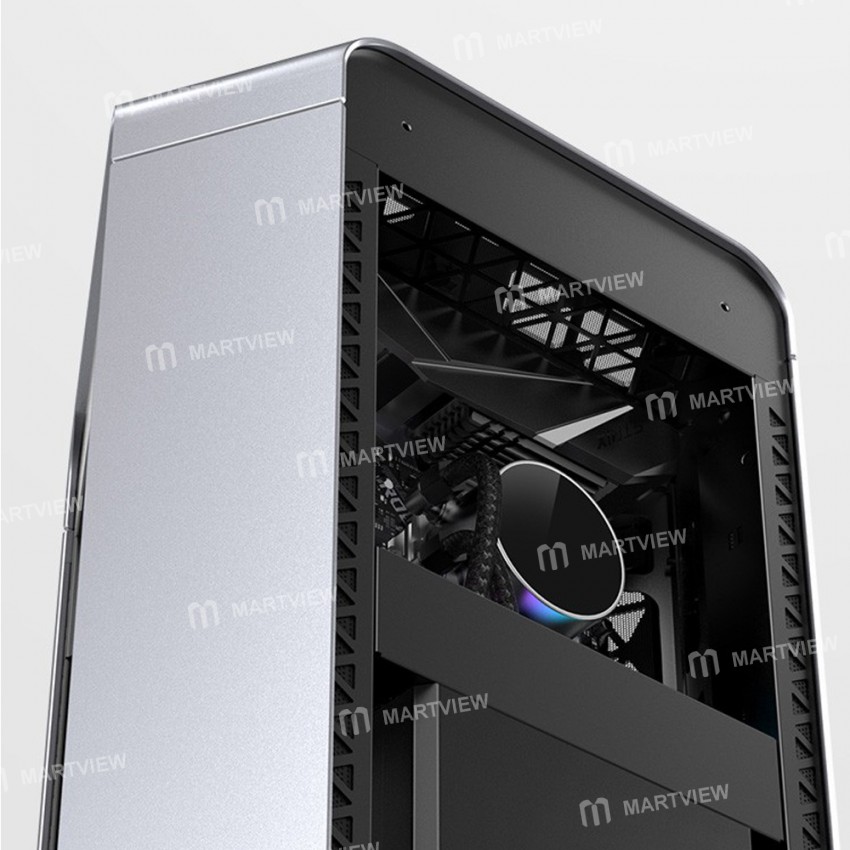

• 4mm thick double tempered glass side panel, 29.3% light transmittance

• The hardware specifications under the special form of the chassis layout are usually limited by its special shape and compromise some hardware specifications

• Makes full use of internal space and supports Mini-ITX basic specifications while maintaining compatibility and practicality with other high-performance hardware

• Supports standard Mini-ITX motherboards(17x17cm, located at the top), and standard ATX power supplies (limited to 21cm in length, located at the bottom)

• The RGB light effect of the motherboard hardware can be seen through the tempered glass side panel

• It supports the max. 88mm thickness of a 3-slot PCI slots card(only two slot openings), and the length is limited to 330~380 mm (depending on the storage installation).

• Below the graphics card is the storage cage

• Supports up to 3.5"HDD x2 and 2.5"HDD x1 at the same time to meet the storage capacity requirements of most users

• This chamber uses tempered glass to visualize the RGB light effect of the graphics card hardware

• Supports the installation of a 360 liquid cooling radiator to meet the heat dissipation requirements of high-power CPUs

• The radiator can be adjusted up and down to a certain range to adapt to the length of the pipes

• This chamber is located at the rear of the chassis and is closed by a powder-coated steel side panel full of venting holes

• Hidden wire slot/fast routing design in the corner

• Support air coolers with a height of less than 75mm (in the default side panel installation mode, 75mm is the height limit, it is recommended to reserve at least 10mm to ensure airflow; through the side panel heightening kit, you can increase the installation space of 8mm to 83mm), limited by the performance limitations of the top-flow air cooler in this size range

• It is recommended to use a liquid cooler when using the high-performance (high TDP)CPU

• 8mm heightening kit for enhancing the ventilation efficiency for M/B and GPU chambers

Specification:

• Product Model: BO102

• Product Version: Ver.1(Tempered glass version, silver)

• Product Size: 285mm(L)*317mm(W)*595mm(H/with feet)

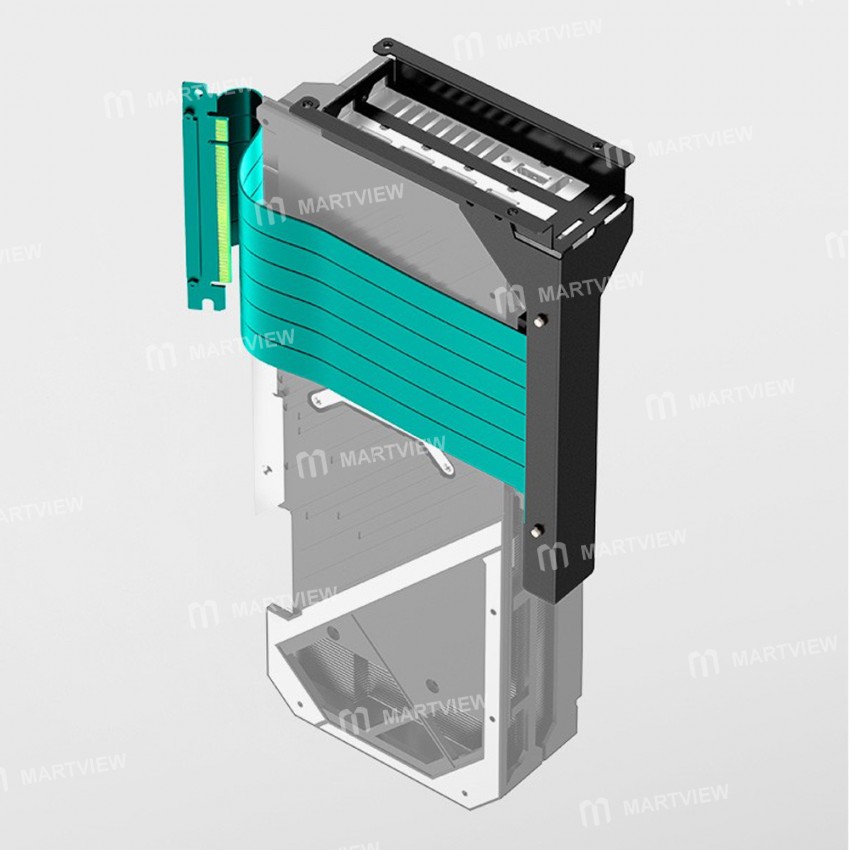

• Graphics card support: limited length: 330mm~380mm (depending on the hard drive installation method / Pcl-E4.0 adapter cable included)

• Motherboard support type: Mini-ITX

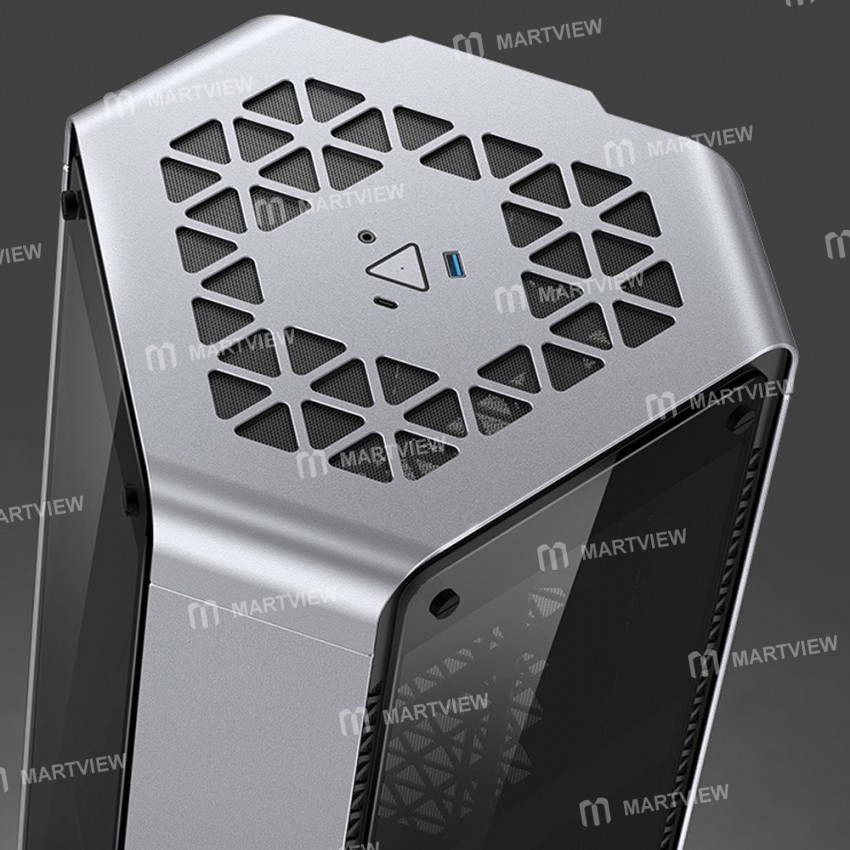

• Front Interface: 1*POWER button; 1*USB3.2 Gen 2 Type-C (10Gbps); 1*USB3.2 Gen 1 Type-A (5Gbps); 1*AUDIO/MIC composite audio interface

• PCI expansion slot: 2

• HDD support: Vertical: 3.5" HDD x2+2.5" SSD x1 or 3.5" HDD x1+2.5" SSD x2; Horizontal: 3.5" HDDx1+2.5" SSDx1

• Package size: 698*404*378mm

• Power supply support: ATX PSII specification, limited length 210mm

• Product net weight/gross weight: 10.8KG/14KG

• Dust filter system: bottom, top, cold vent, side panel gap air inlet, and outlet fully covered

• Air-cooled radiator support: height limit: 75mm ~ 83mm hardware accommodation height (recommended to leave at least 10mm to ensure airflow through, or use water-cooled radiator)

• Cold exhaust technology support.

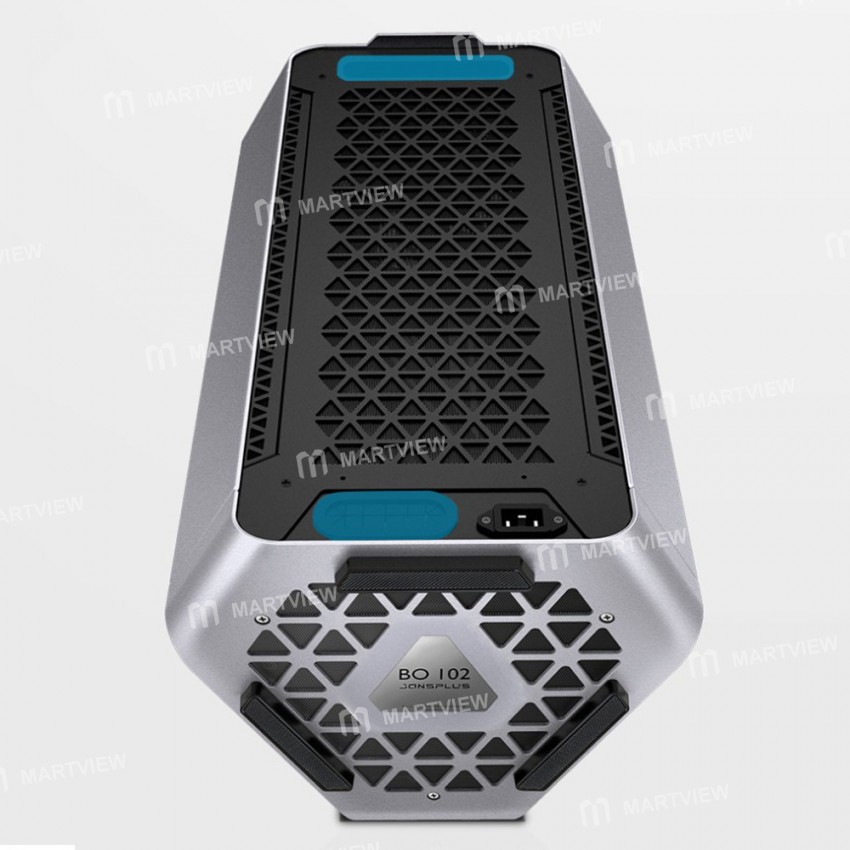

• Fan support: bottom: 20cm (factory included)

Package includes:

• 1 x Computer Gaming Case
