Jonsbo HF120 12cm S-FDB Bearing Low Noise Performance Air Pressure Fan

Jonsbo HF120 12cm S-FDB Bearing Low Noise Performance Air Pressure Fan

Features:

• Jonsbo HF120 120mm high-performance fan, S-FDB long-life bearings, ultra-low noise

• High-pressure 9-blade impeller design, Curved sickle-shape low noise blades, Magnetic stabilization system

• Sickle-shaped 9 blades, multi-point dynamic balancing

• 16 levels of winding, high carbon steel shaft, high torque, start more smoothly

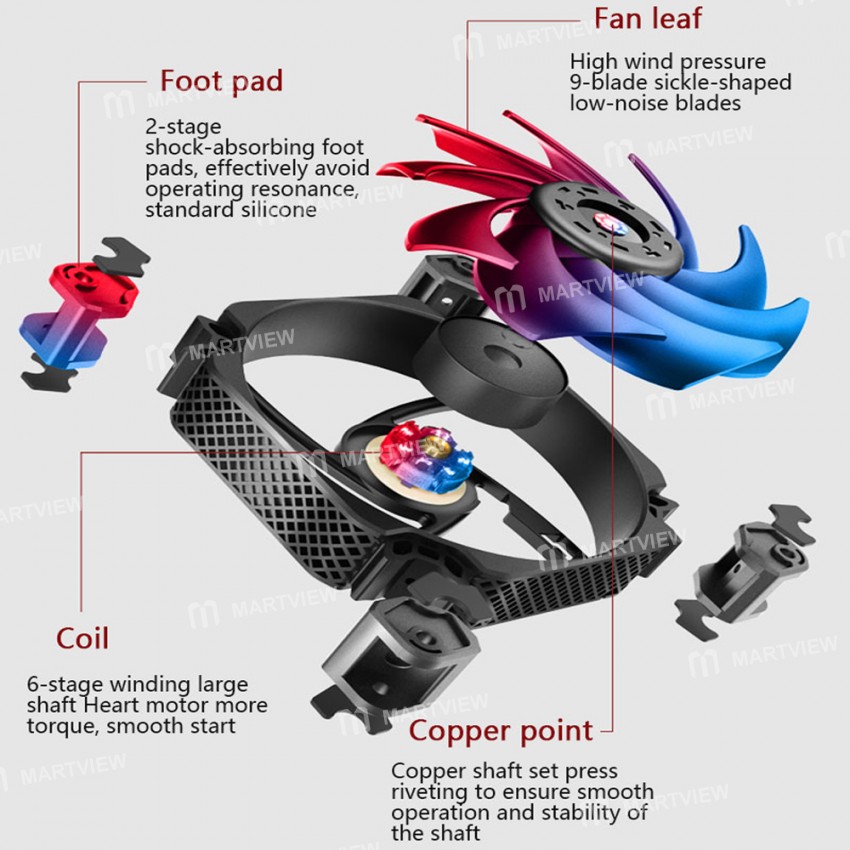

• 2-stage shock absorbing feet, effectively avoid operation resonance, standard with silicone pads.

• Copper bushing riveted to ensure smooth operation and stability of the shaft

• PWM intelligent speed control, speed range: 600-2000RPM (±10%)

Specification:

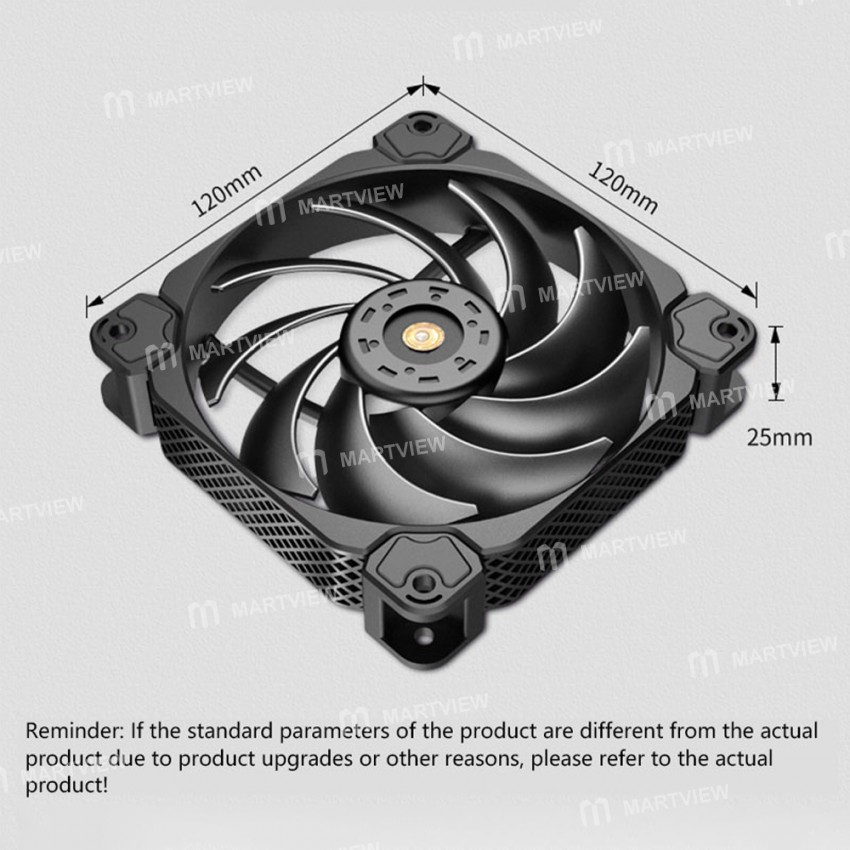

• Fan size: 120(L)*120W0*25(H)mm

• Bearing form: S-FDB bearing

• Rated voltage: DC 10.8~13.2V

• Input current: 0.14±0.05A

• Voltage: DC 12V

• Starting voltage: ≥7V

• Speed: 600-2000rpm(±10%)

• Airflow: 14.98~65.5CFM

• Wind pressure: 0.21~2.63mm H2O

• MTTF:≥30000 h Room Temp:25°C

• Noise Level:18.5~29.2dB(A)

• Interface: 1*4PIN

• Input Power: 1.68W

Package includes:

• 1 x Cooling Fan
