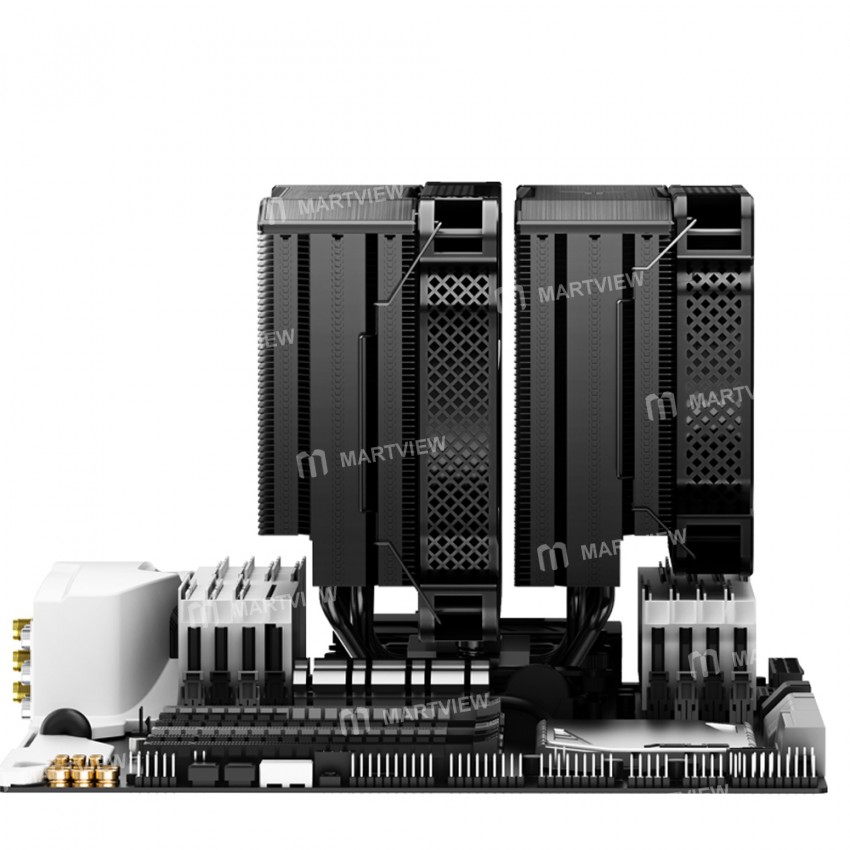

Jonsbo HX7280 7-Heatpipe Silent Air-cooled Tower CPU Cooler for Intel LGA 1700 AMD AM4

Jonsbo HX7280 7-Heatpipe Silent Air-cooled Tower CPU Cooler for Intel LGA 1700 AMD AM4

Features:

• Overall reflow process, the base-heat pipe fins conduct smoothly in one go

• Each fan blade undergoes two dynamic balance debugging, better vibration suppression, lower noise, and smoother

• 2+1 fan matching, used in combination with memory height and cooling requirements

• 56 layers of high-density fins provide a 7459cm² large cooling area

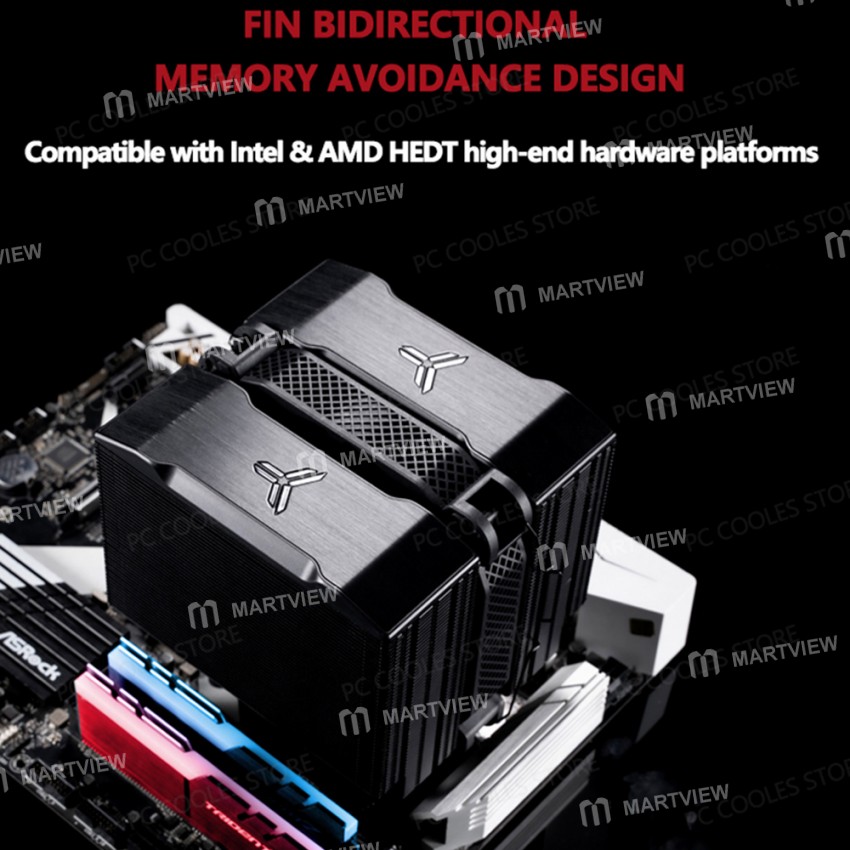

• Compatible with Intel AMD HEDT high-end hardware platforms

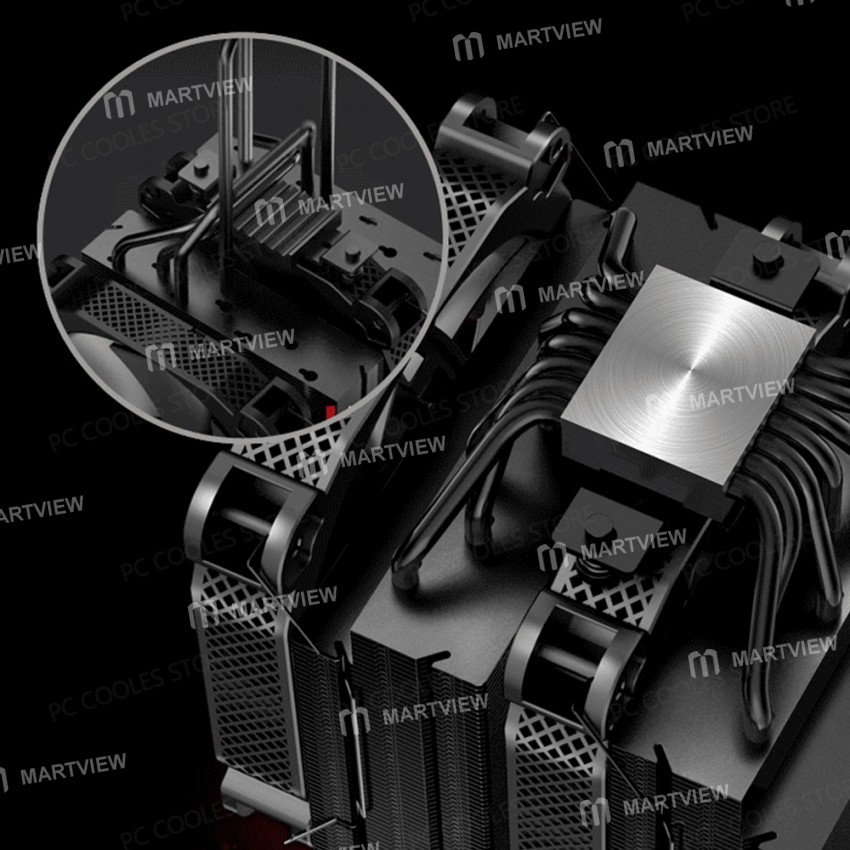

• It can avoid the problems of cracking and falling off of the plastic fasteners that may be caused by the plastic fasteners

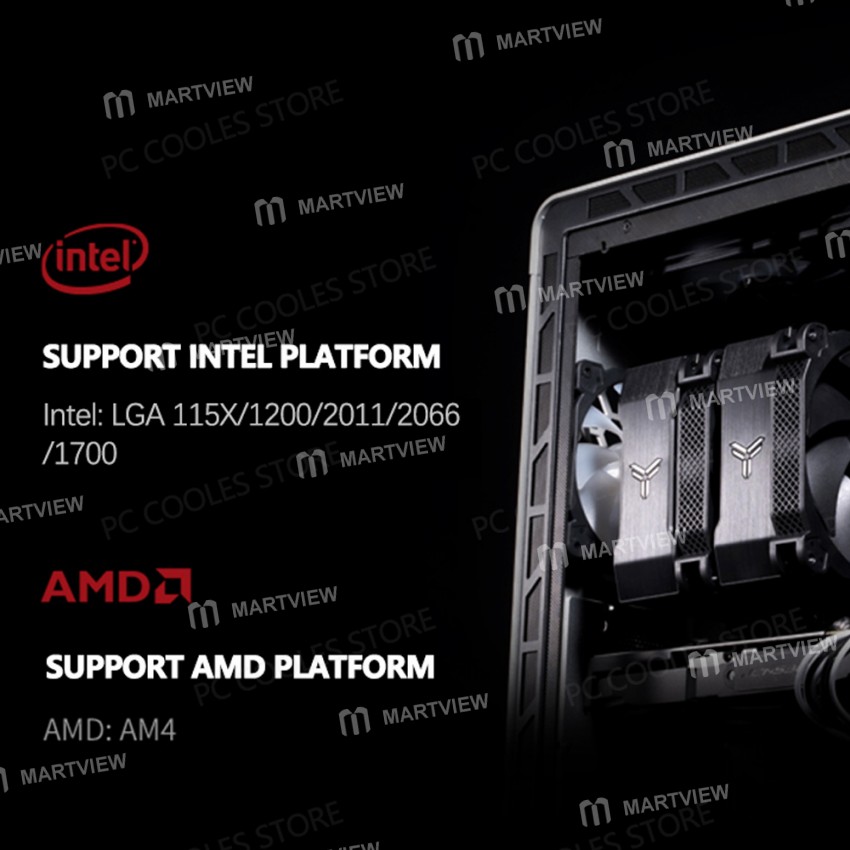

• Support platform: Intel: LGA 115X/1200/2011/2066/1700; AMD: AM4

Specification:

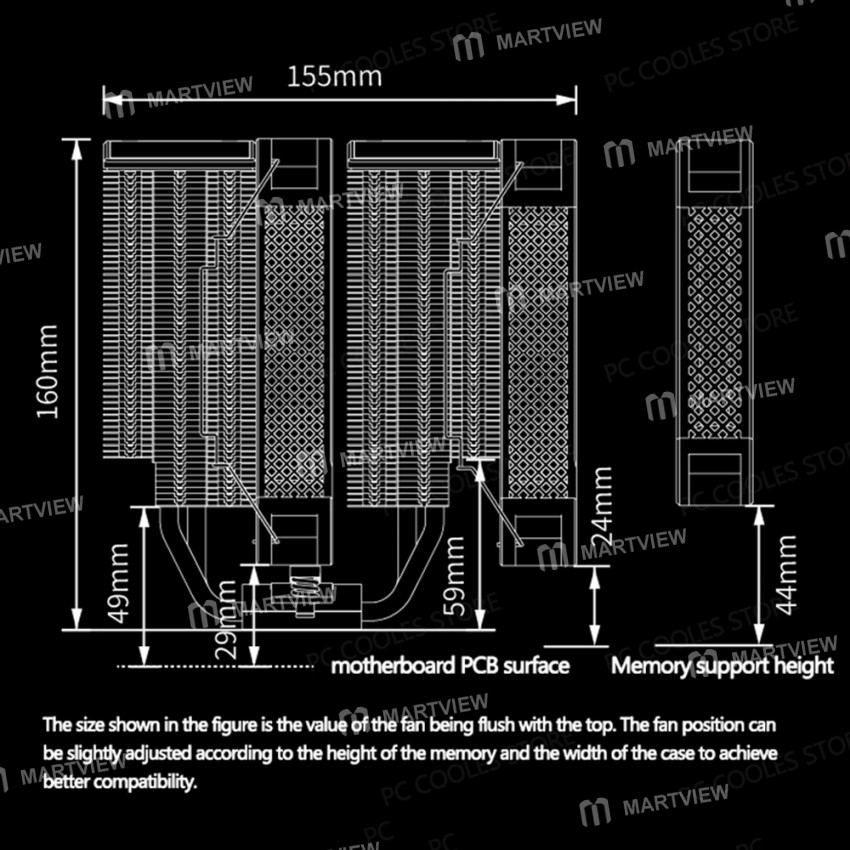

• Product size: 140 * 155 * 160 mm

• Heatsink set size: 140*127*160mm

• Fan size: 140 * 140 * 25mm *2

• Fan size: 120 * 120 * 25mm *1

• Heat pipe specification: ∅6mmx7pcs

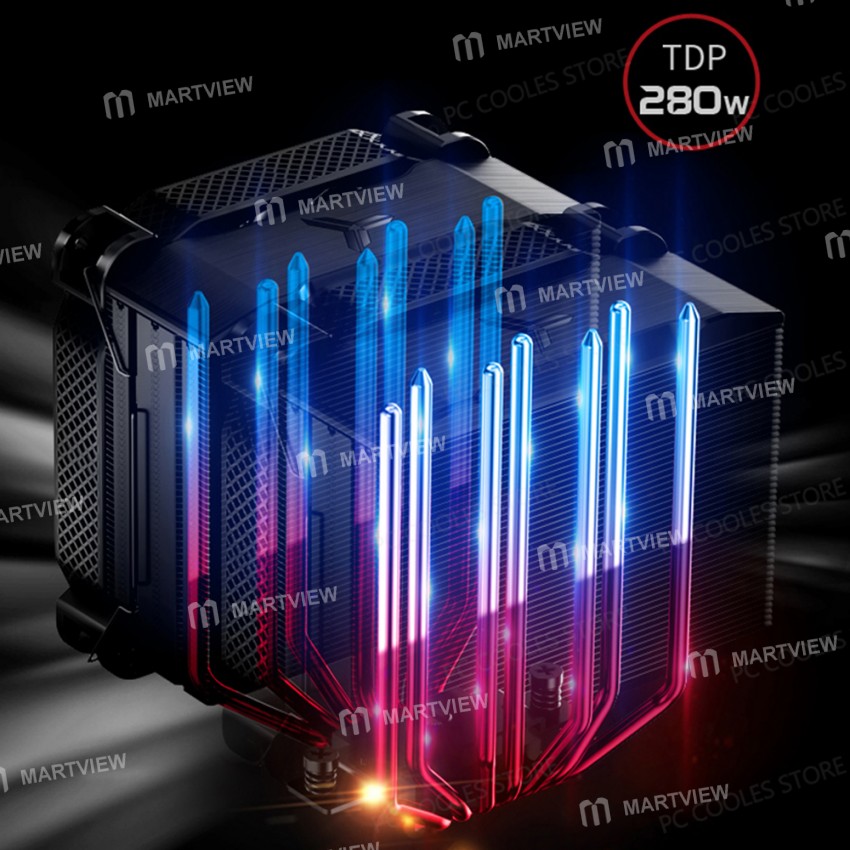

• Cooling power: 280W

• Fan speed (14cm): 700-1800RPM+10%

• Fan air volume (14cm): 34.57-90.2 CFM

• Fan air pressure (14cm): 0.46-2.74 mmH2

• Fan noise (14cm): ≤38 dbA

• Fan speed (speed reduction line 14cm): 1200RPM ± 10%

• Fan air volume (speed reduction line 14cm): 57.81 CFM (Max)

• Fan air pressure (speed reduction line 14cm): 1.14 mmH20 (Max)

• Fan noise (speed reduction line 14cm): ≤28dbA

• Fan speed (12cm): 700-1800RPM+10%

• Fan air volume (12cm): 32.47-83.04 CFM

• Fan air pressure (12cm): 0.47-2.68 mmH20

• Fan noise (12cm): ≤37.6dbA

• Fan speed (speed reduction line 12cm): 110ORPM+10%

• Fan air volume (speed reduction line 12cm): 45.56 CFM

• Fan air pressure (speed reduction line 12cm): 0.86 mmH20 (MAX)

• Fan noise (deceleration line 12cm): ≤28dbA

• Fan terminal: 4PIN PWM

• Bearing form: FDB Bearing

• Fan-rated voltage (14cm): 12V DC

• Fan-rated current (14cm): 0.21A

• Fan power consumption (14cm): 2.52W

• Fan-rated voltage (12cm): 12V DC

• Fan-rated current (12cm): 0.20A

• Fan power consumption (12cm): 2.4W

• Scope of application of CPU platform: Intel: LGA 115X/1200/2011/2066/1700; AMD: AM4

Package includes:

• 1 x Cooler
