Jonsbo M.2-20 Active M.2 SSD Cooler with Fan for M.2 2280 SSD

Jonsbo M.2-20 Active M.2 SSD Cooler with Fan for M.2 2280 SSD

Features:

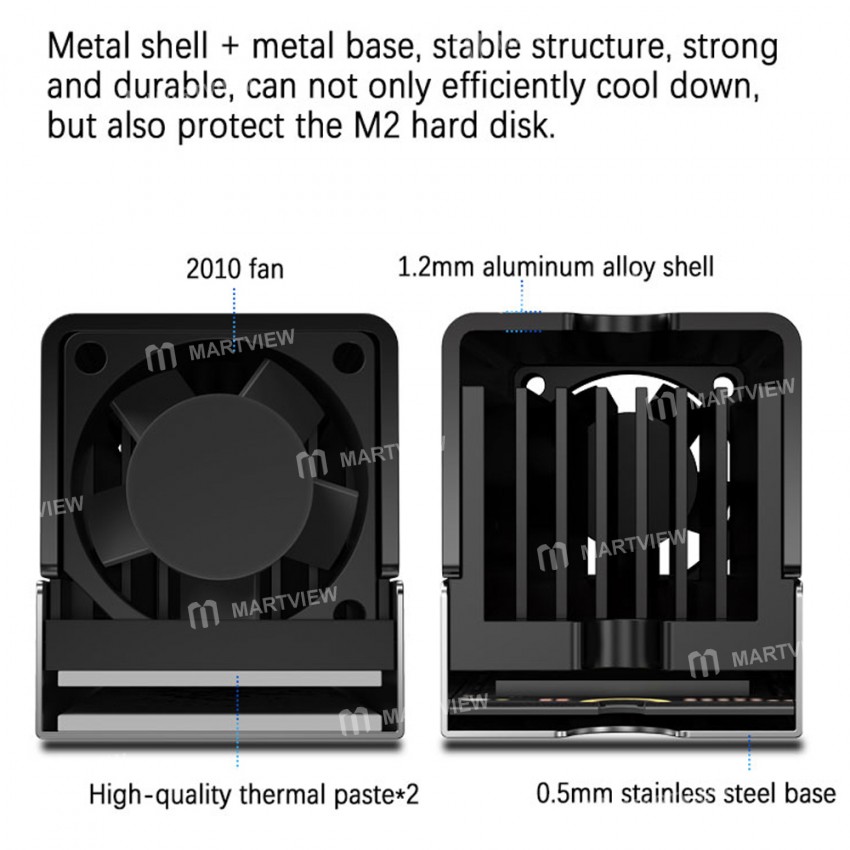

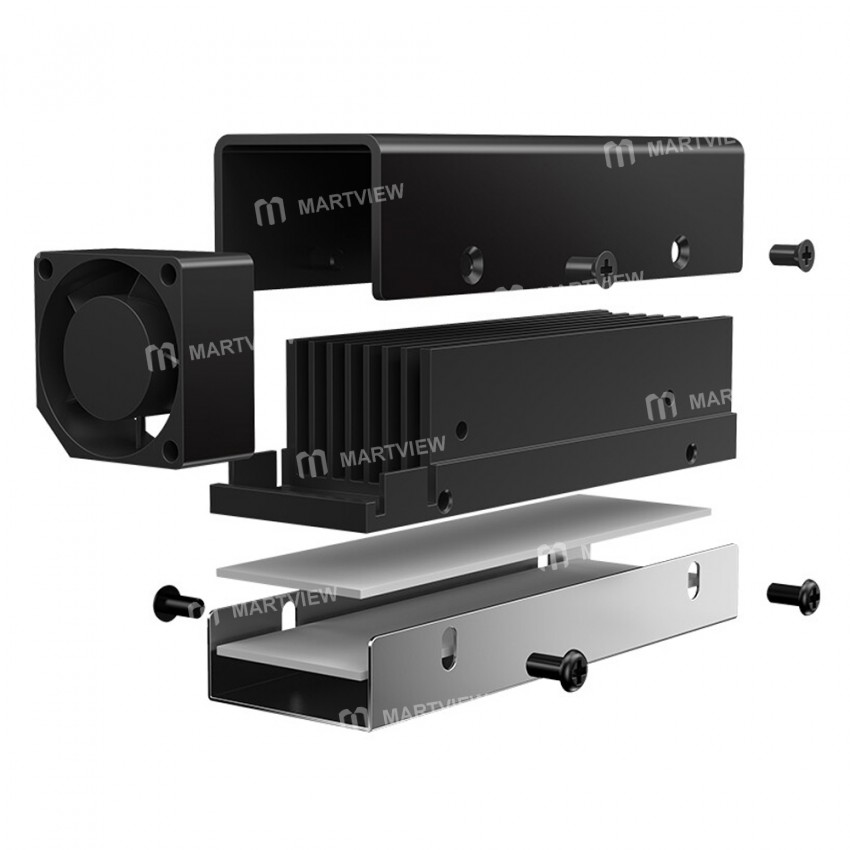

• Metal shell metal base, stable structure, strong and durable, can not only efficiently cool down, but also protect the M2 hard disk

• In order to avoid occupying too much space inside the chassis, the M2-20 uses a 20*20*10mm, exquisite fan with a speed of up to 14000RPM+10%, although it is small in size, it has strong performance

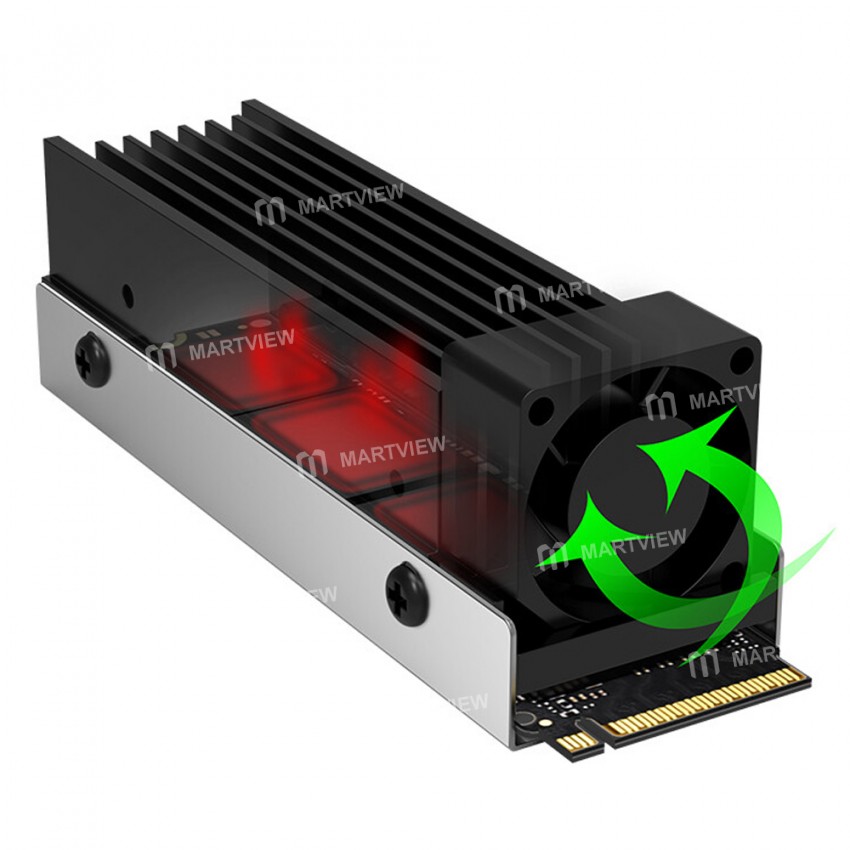

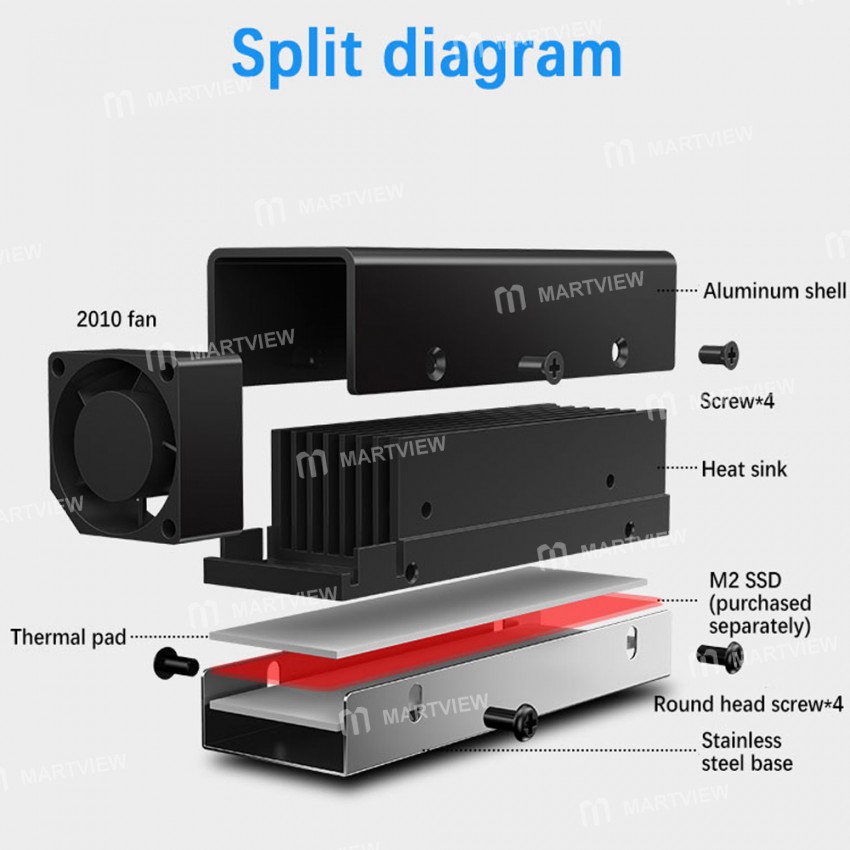

• The heat of the M2 hard disk is conducted to the aluminum alloy heat sink through the heat-conducting silicone grease, and the heat is quickly blown out by the high-speed fan to ensure the high-efficiency operation of the hard disk

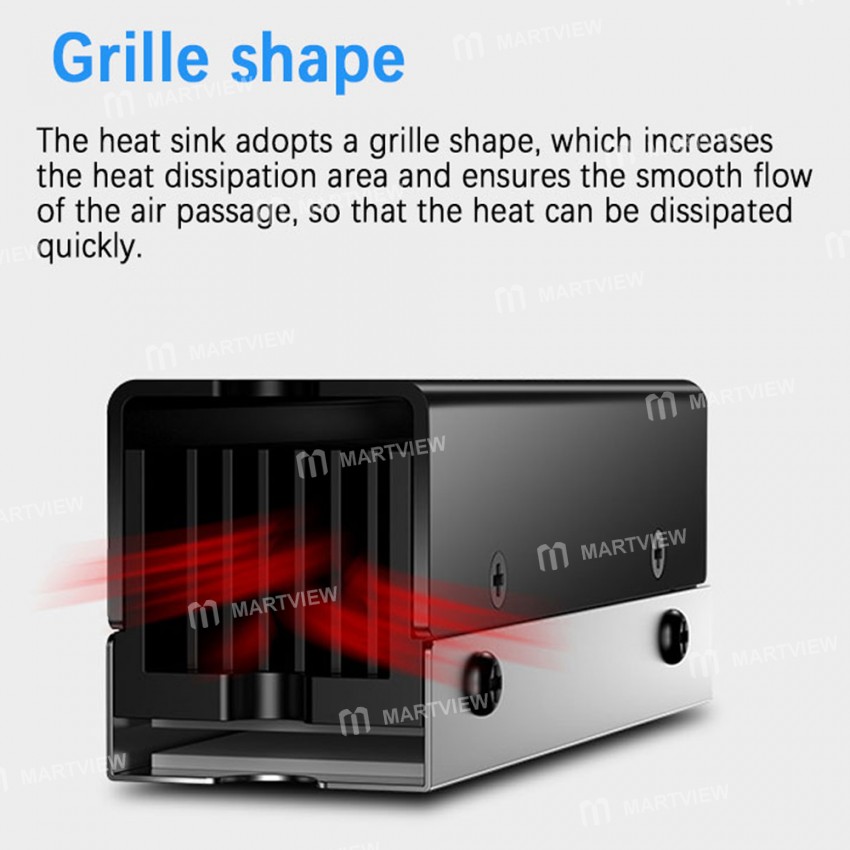

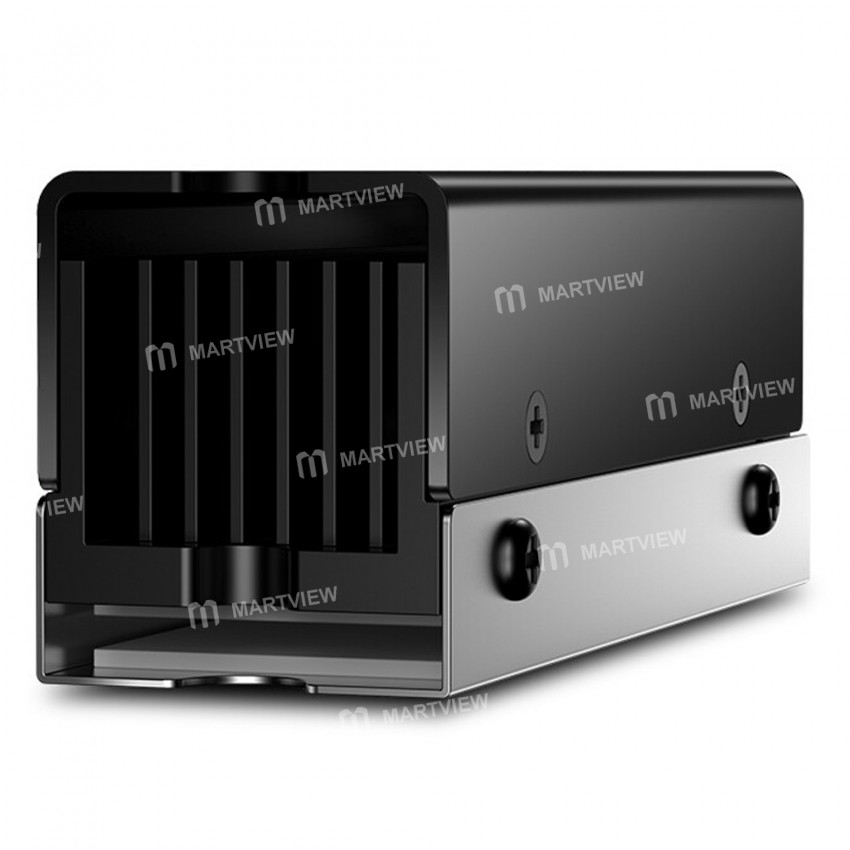

• The heat sink adopts a grille shape, which increases the heat dissipation area and ensures the smooth flow of the air passage so that the heat can be dissipated quickly

Specification:

• Product number: M.2-20

• Product Size: 74.5*24.5*27mm

• Heat dissipation method: Active heat dissipation

• Scope of application: 2280 SSD

• Rated voltage: DC 12V

• Rated current: 0.054A

• Input power: 0.65W

• Speed of the fan: 14000RPMz ±10%

• Air volume: 1.35CFM (Max)

• Wind pressure:  4.31mm H₂O(Max)

• Noise level: 24dBA (Max)

• Product Weight: 60g

Package includes:

• 1 x Cooler
