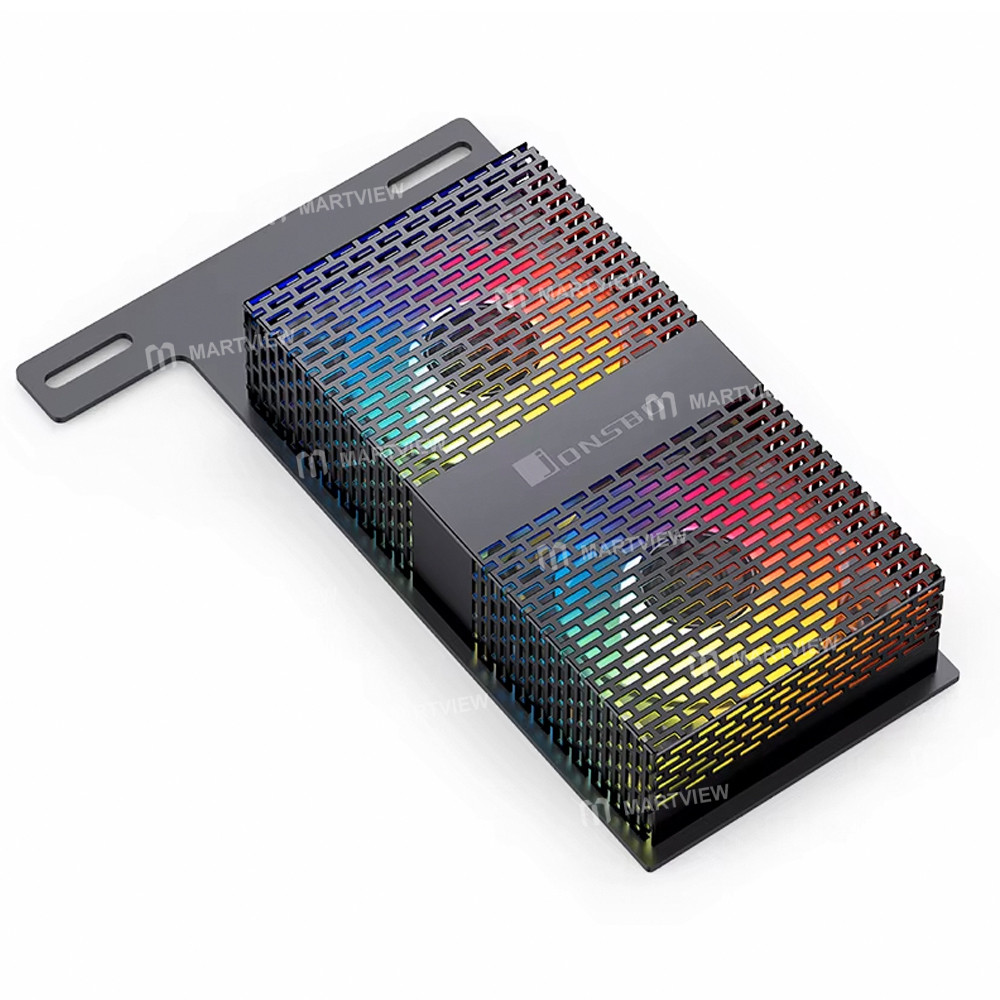

Jonsbo NF-2 ARGB Synchronous Lighting Effect Memory Heat Sink with Dual 5020 Fans

Jonsbo NF-2 ARGB Synchronous Lighting Effect Memory Heat Sink with Dual 5020 Fans

Features:

• Efficient Heat Dissipation: The memory heat sink is designed to address the issue of high temperatures associated with overclocking DDR5 memory. With its active cooling vest design, it greatly improves memory heat dissipation efficiency, enabling higher frequencies and more stable operation. *Recommend pairing with water cooling on ATX and MATX motherboards.

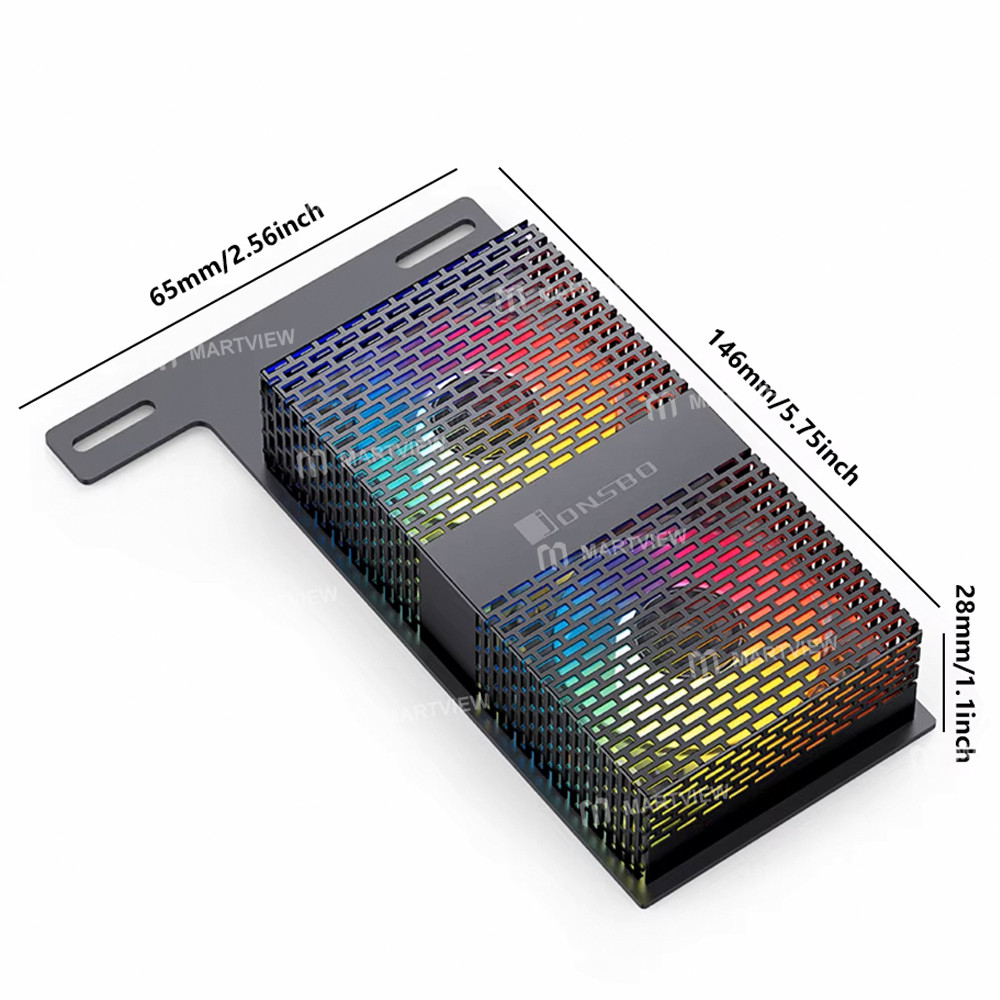

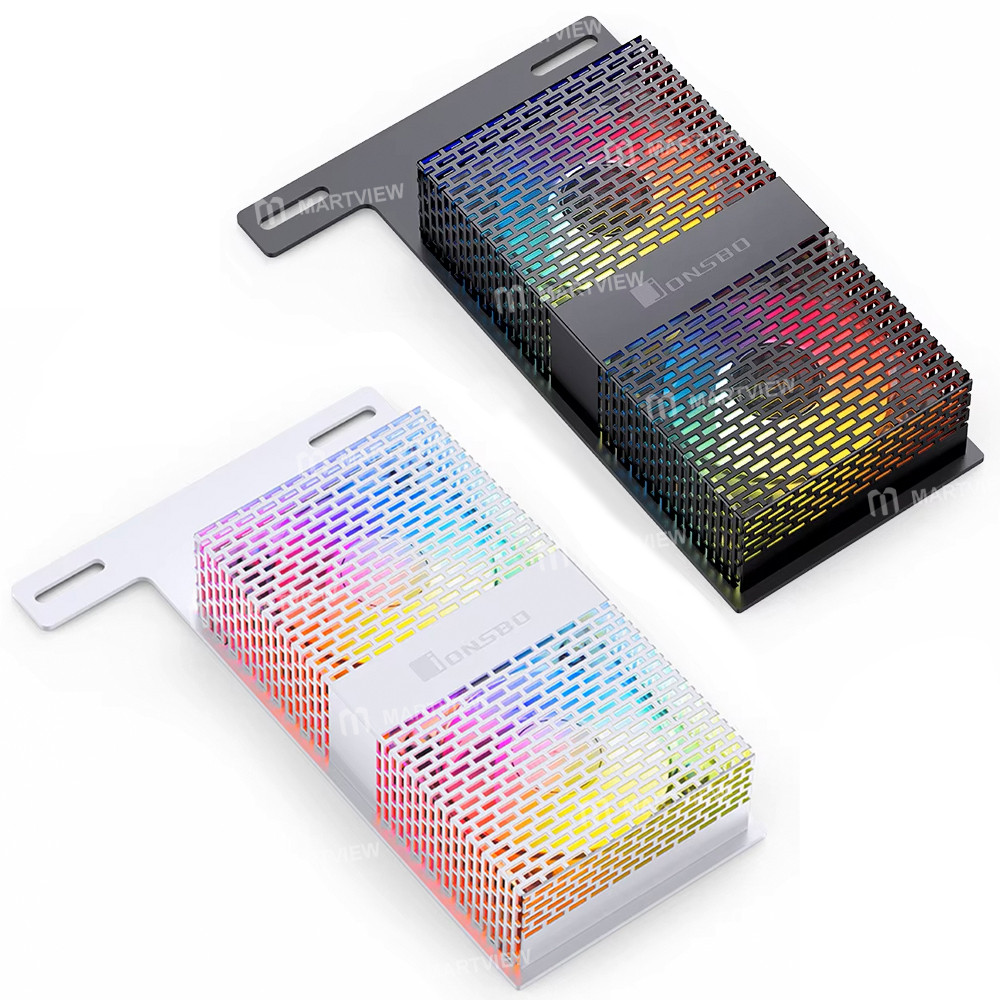

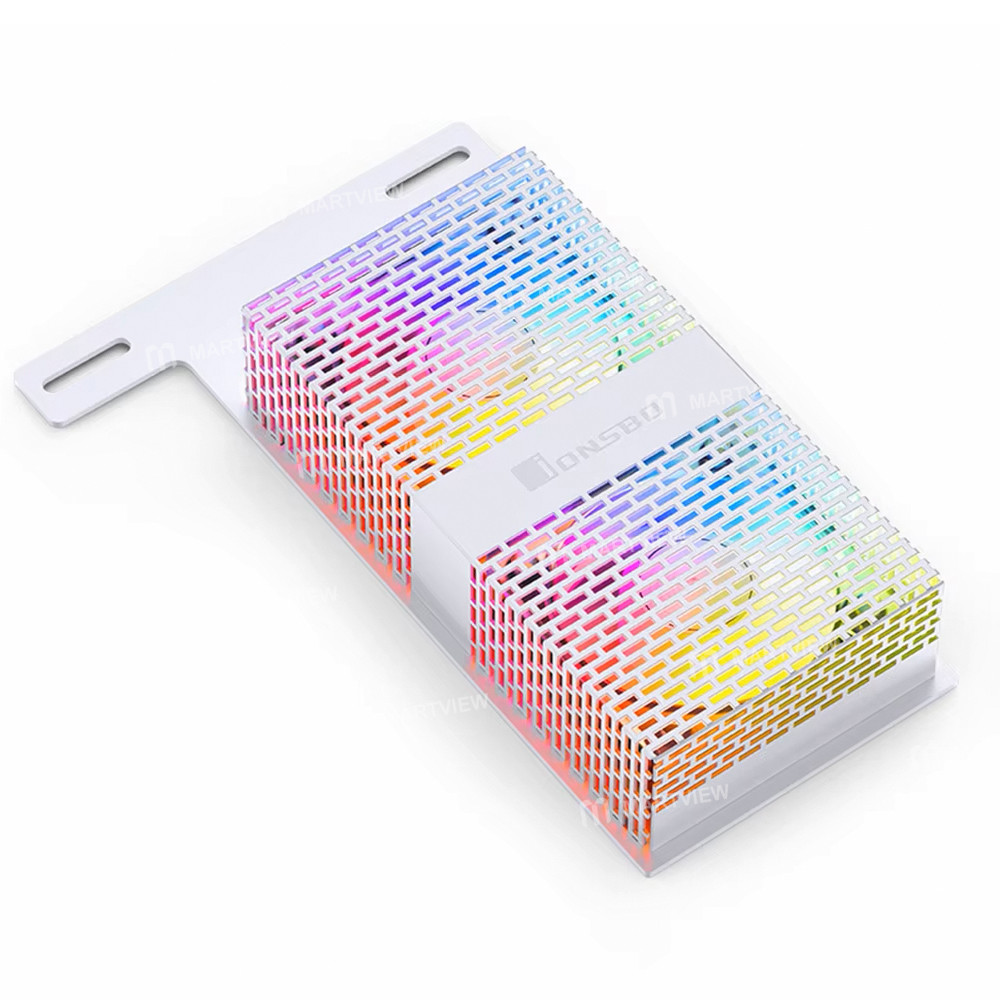

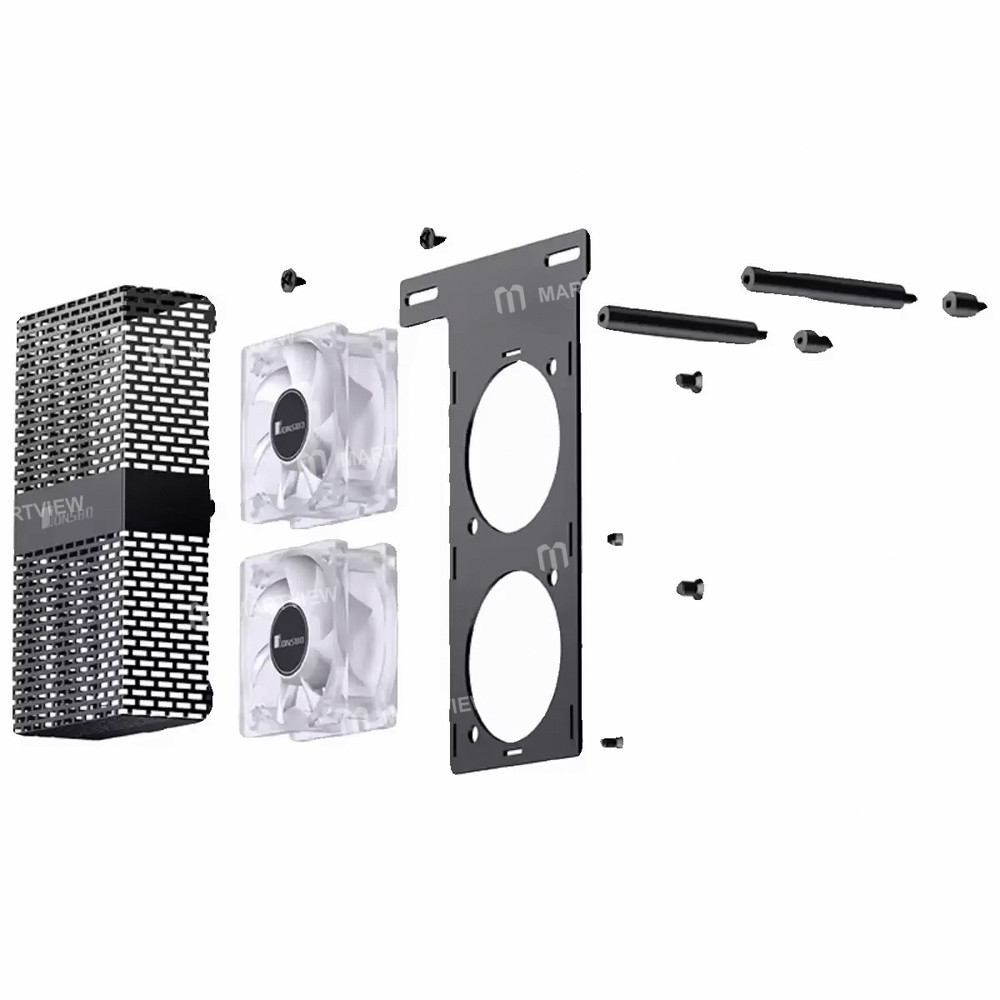

• Sleek Design: With overall dimensions of 146 mm x 65 mm x 28 mm, the RAM heatsink cooler comes in black and white color options, including an ARGB version. Its rectangular shape features a significant amount of perforation, allowing compatibility with memory modules up to 54mm in height. By using adapter copper pillars, an additional 8mm in height can be accommodated. (Product components: mounting screws, 5020 fan, mounting bracket, iron mesh cover, adapter pillars, fixing screws)

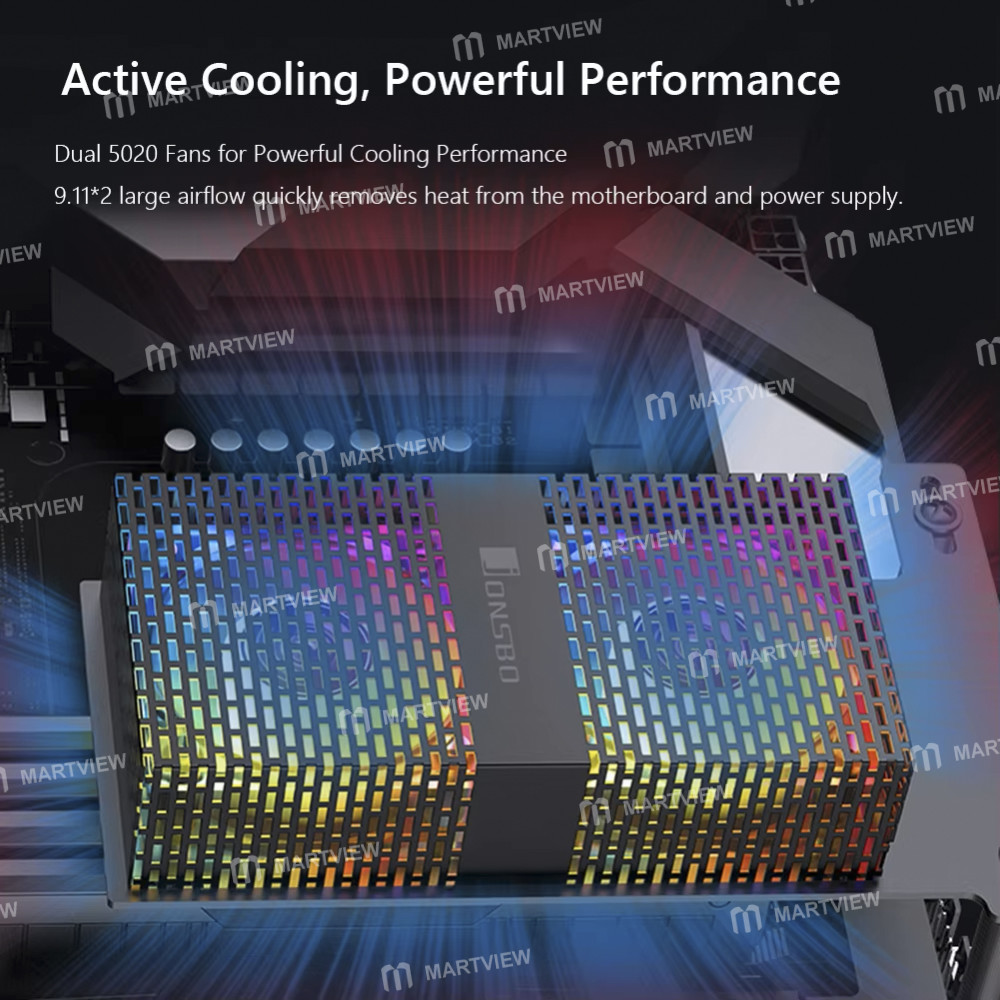

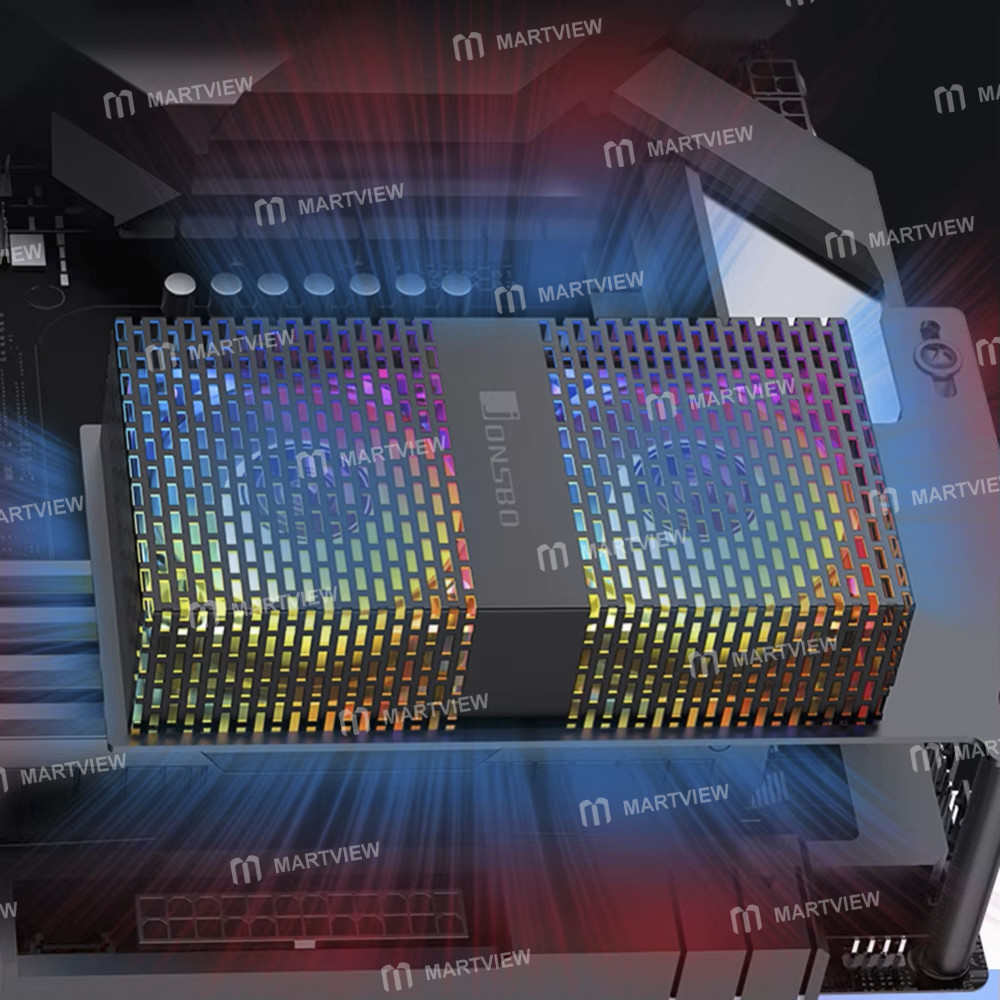

• Active Cooling: The PC memory cooling radiator is equipped with two 50mm x 50mm x 20mm fans featuring hydraulic bearings. It uses a 4Pin PWM/3Pin ARGB interface and operates at a speed of 600-3600 RPM±10%. With a lifespan of ≥20,000 hours at 25℃, it offers an airflow of 1.3-9.11 CFM and an air pressure of 0.17-1.6 mmH2O. The maximum noise level is 22.4 dB(A), providing quiet and stable performance that seamlessly integrates into any environment. It combines aesthetics (16.8 million colors ARGB) with intelligence (PWM smart fan speed adjustment system for energy-saving and noise reduction), effectively dissipating heat from the motherboard and power supply. *Recommend pairing with water cooling on ATX and MATX motherboards.

• ARGB Synchronization: The RAM cooler features ARGB lighting effects that can be synchronized and are compatible with major motherboard manufacturers' ARGB control software. Enjoy programming and a stunning experience with 16.8 million colors. It supports connection to ASUS, MSI, Gigabyte, ASRock, and other motherboards with the 5V 3-pin ARGB interface, enabling software-controlled synchronized lighting and customizable 16.8 million colors.

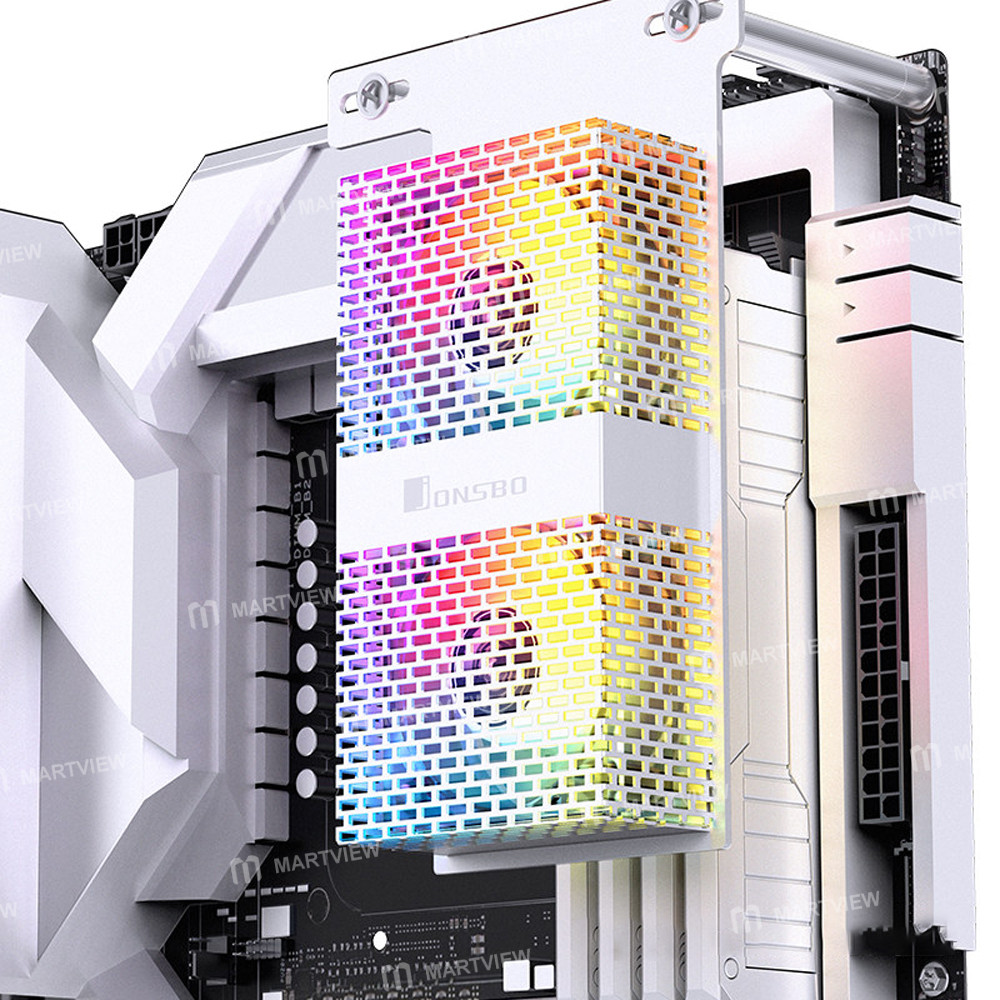

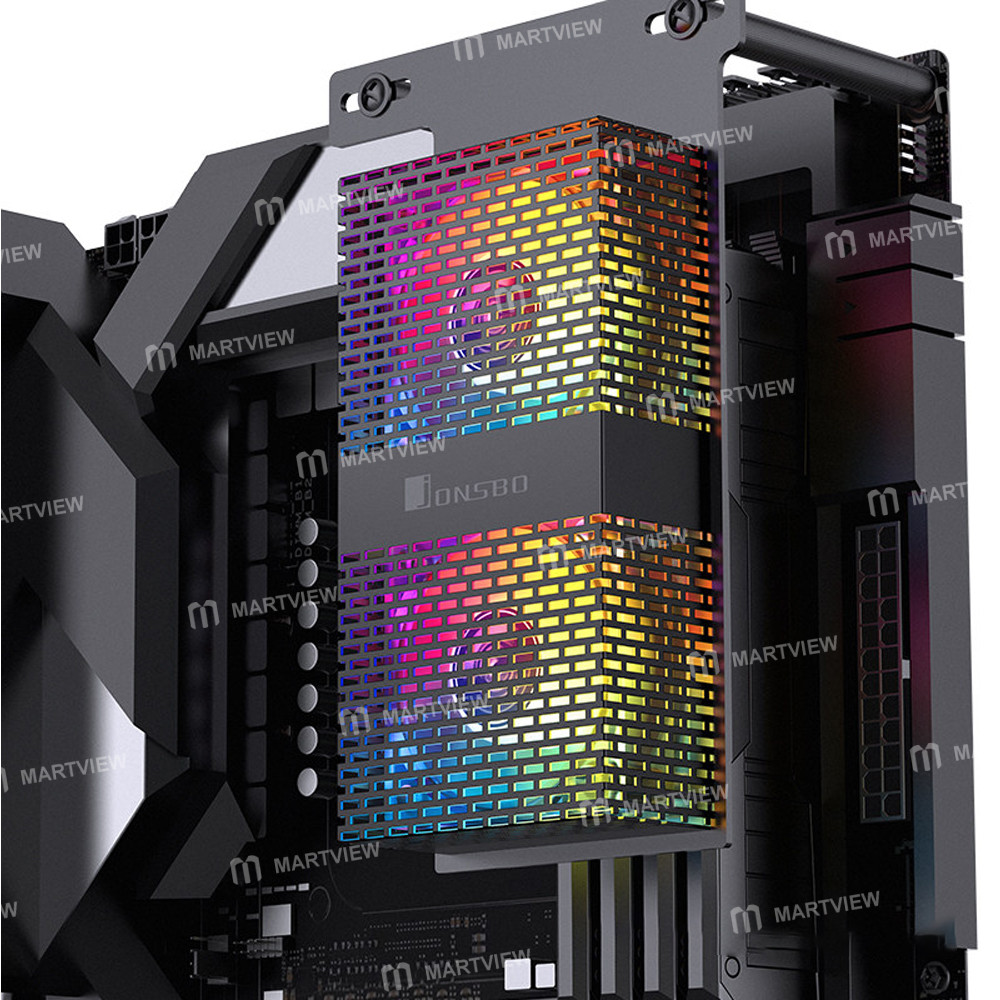

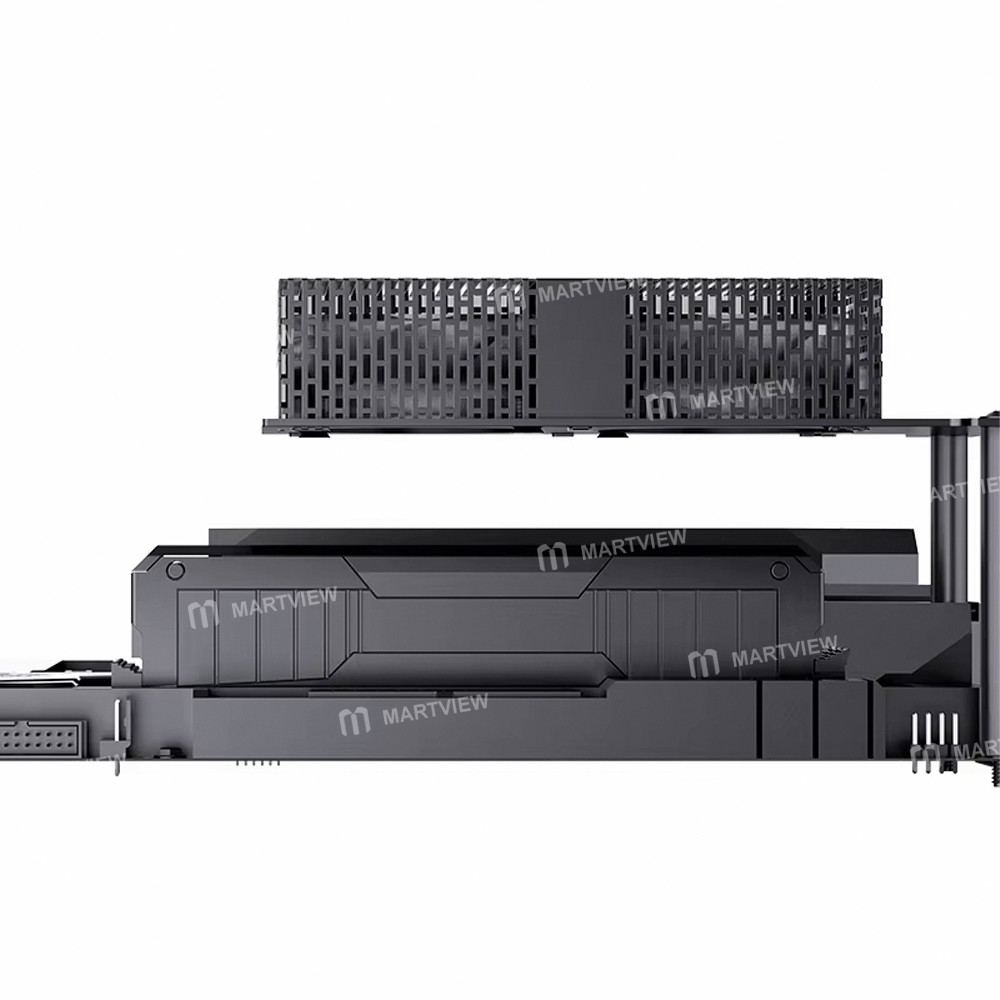

• Easy Installation and Use: The RAM cooler is designed for easy and quick installation with screw fixation. Simply secure the two screws using the mounting screws in the corresponding motherboard holes. For cases with 6-32 studs, use adapter copper pillars to first secure the fixing screws and then screw them into the motherboard studs. This allows for convenient and efficient maintenance in the future.

Specifications:

• Model: NF-2

• Material: Aluminum

• RGB Support: A-RGB

• Power Interface: 4PIN,5v-3pin ARGB

• Product version: ARGB luminous version

• Product color: Black, White (Optional)

• Fan Speed: 600~3600RPM (±10%)

• Fan airflow: (1.30~9.11)*2CFM (Max)

• Fan air : 0.17~1.6mmH2O (Max)

• Fan noise: 22.4dB(A) (Max)

• Fan bearing: hydraulic bearing

• Lifespan: ≥20000h @25℃

• Port: FAN 4Pin PWM / LED 3Pin ARGB

• Rated voltage: Fan 12V, LED 5V

• Rated current: Fan 0.06A, LED 0.24A

• Power Consumption: Fan 0.72W (Max), LED 1.2W

• Fan Size: 50mm* 50mm* 20mm

• Heat sink size: 146mm* 65mm* 28mm/5.75x2.56x1.1inch

• Product Weight: 220g

• Application: Recommended for use with water cooling on ATX and MATX motherboards.

Note: The height of the memory is limited to 54 mm. If you use an adapter, the height will increase by 8mm.

Package includes:

• 1 x Heat Sink
