Jonsbo TK-2 Hyperbolic Side Translucent Computer Game Case Compatible ITX / M-ATX / ATX

Jonsbo TK-2 Hyperbolic Side Translucent Computer Game Case Compatible ITX / M-ATX / ATX

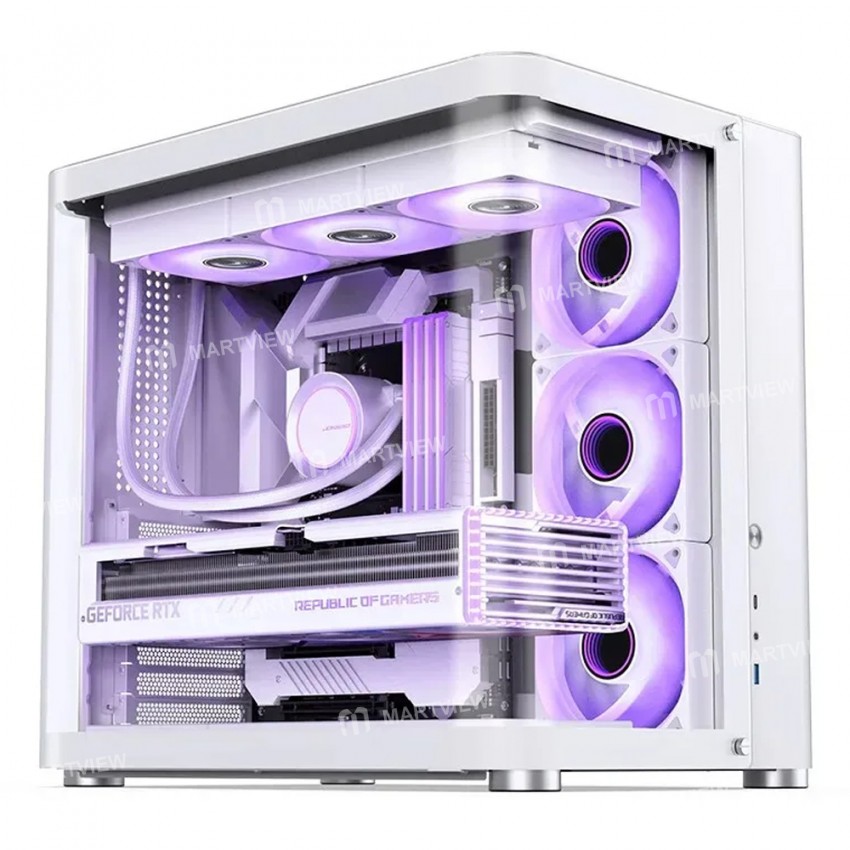

The picture of the motherboard, graphics card, power supply for reference only, the actual package contains only the case!!!

Features:

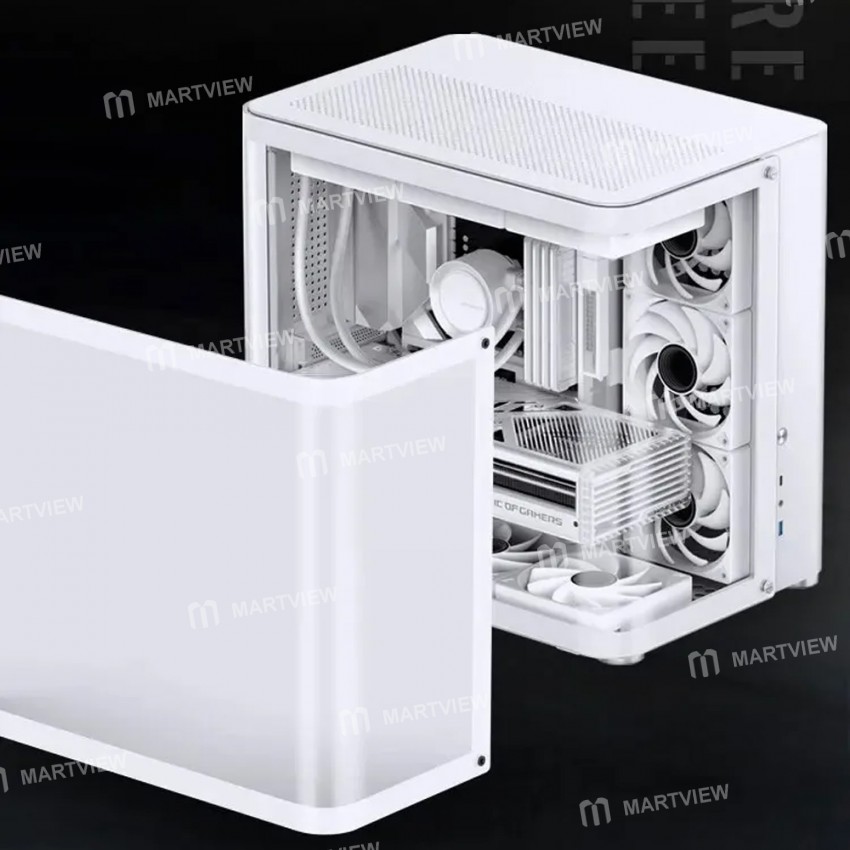

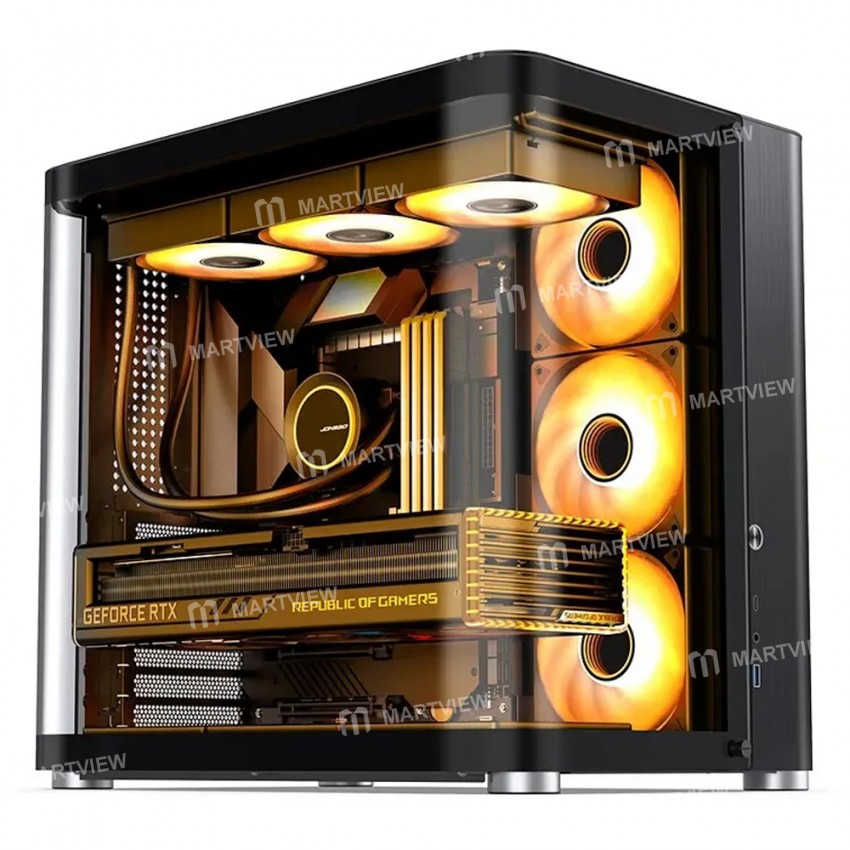

• As the sister model of TK-1, TK-2 also adopts a double-bent ring-shaped glass 2.5-side surround design, so that both hardware and Garage Kits can be fully displayed from multiple angles

• The multi-angle side see-through design supports multi-angle placement for more reasonable planning of desktop space

• The motherboard supports the ATX version and long GPU, with upper and lower fan positions and dual 360 radiator positions, supplemented by 3 fan positions on the side, for better heat dissipation in various combinations

• U-shaped hyperboloid glass side penetration fully displays the hardware inside the motherboard compartment

• The metal texture is fine and not rough, and the arc transition is elegant and natural without breaks

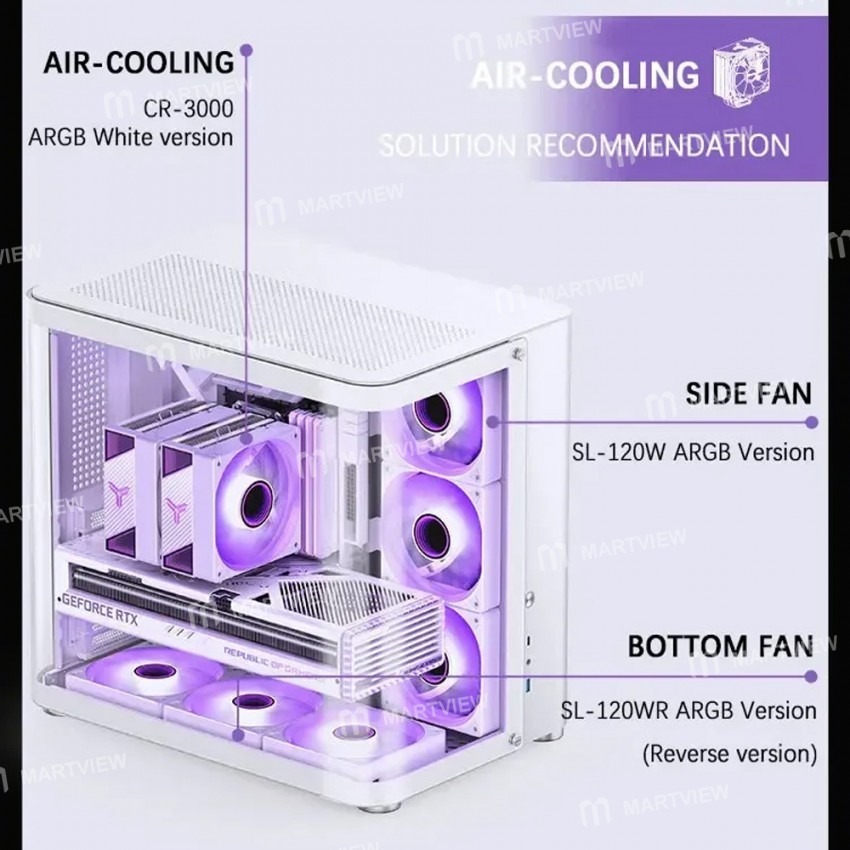

• With 9 fan positions, the bottom-up airflow can quickly cover the heating hardware, three fans are placed on the side, taking into account ventilation and heat dissipation, and can also display light effects on the front

• Top plate 360mm*1 or 280mm*1 Bottom plate 360mm*1 (The length of the bottom drain is within 398mm. Installing the bottom drain will occupy 2.5 PCI-E slots at the bottom)

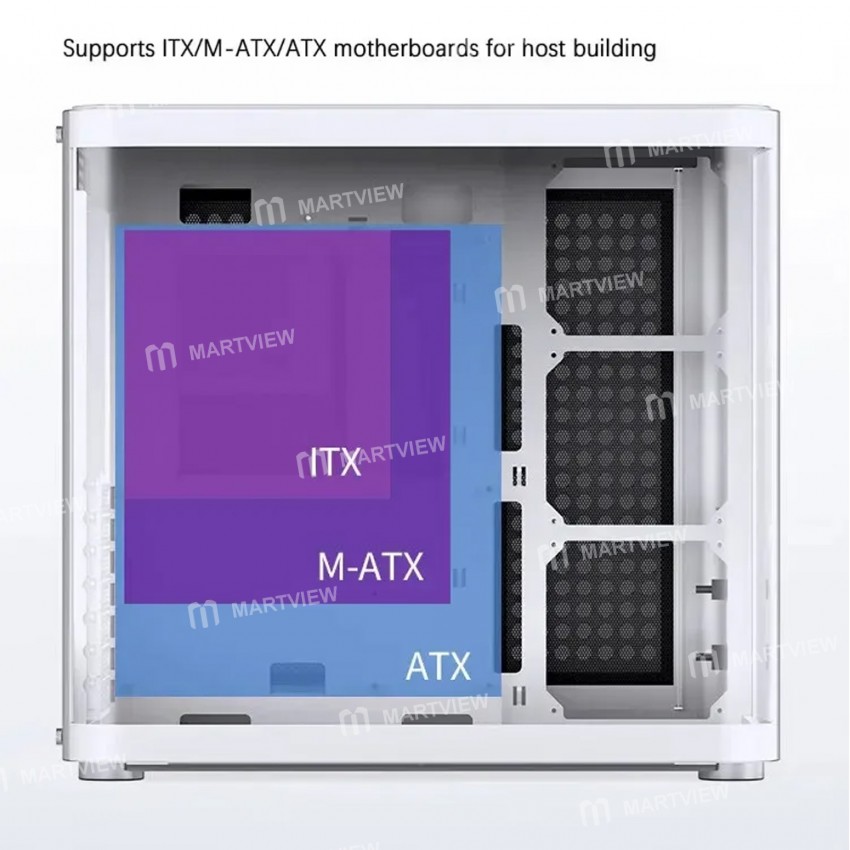

• Supports ITX/M-ATX/ATX motherboards for host building

• GPU length limit 405mm, direct cooling airflow from the bottom fan enhances heat dissipation

• Supports 3.5"HDD*2 hard drive bays or 2.5"SSD*1/3.5"HDD*1 hard drive bay

• Front USB 3.2 Gen2 Type-C (10Gbps)interface to reduce transmission waiting time

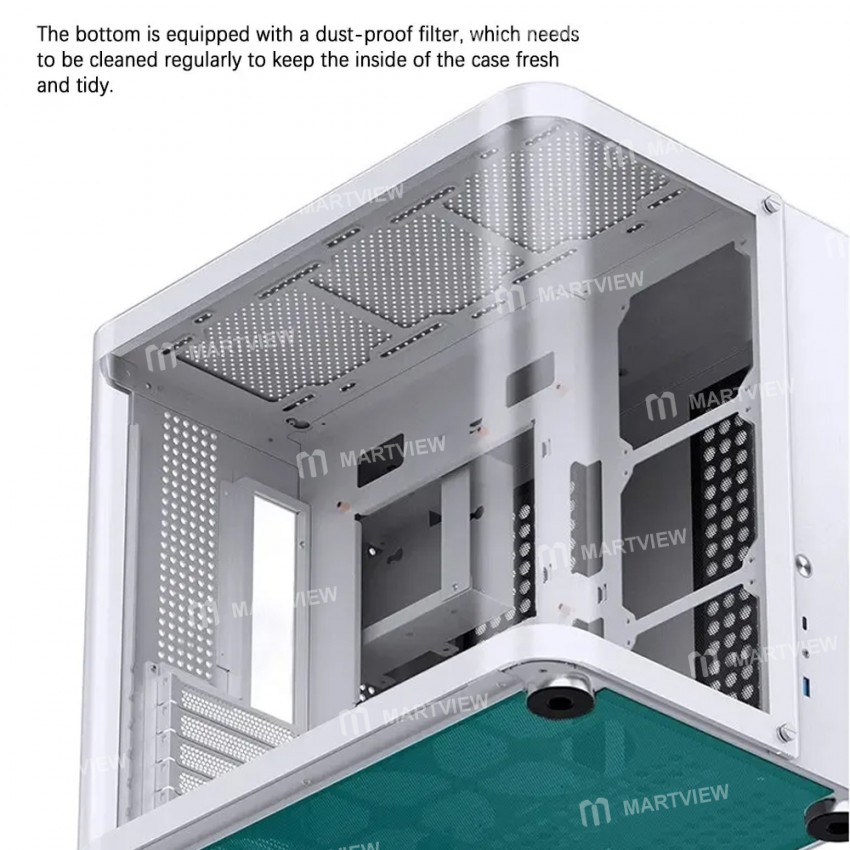

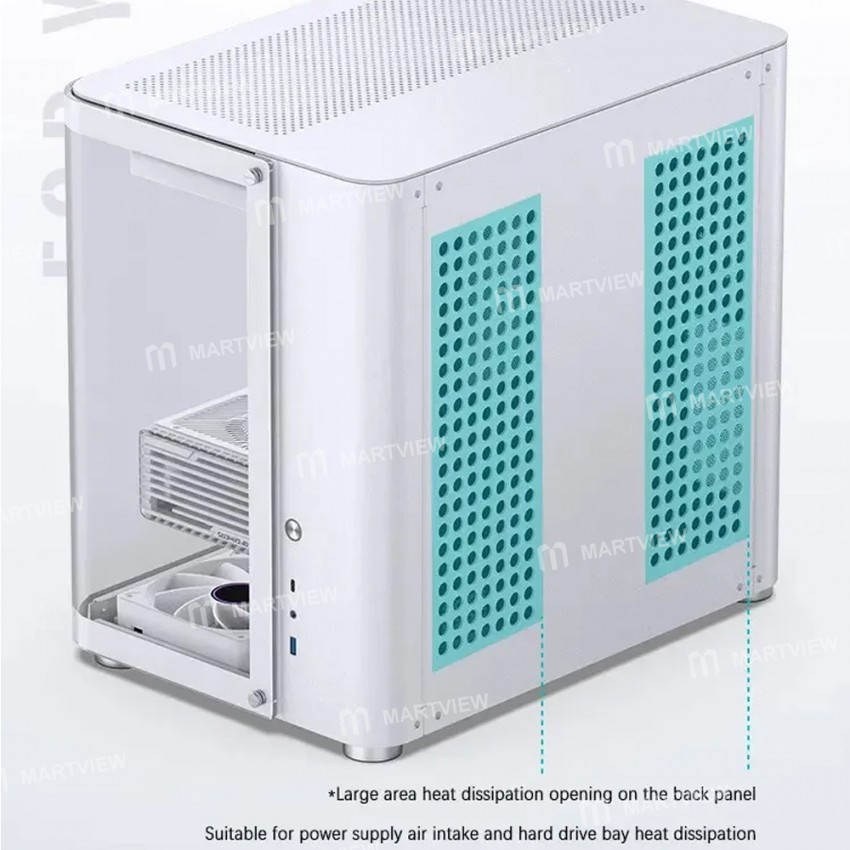

• The bottom is equipped with a dust-proof filter, which needs to be cleaned regularly to keep the inside of the case fresh and tidy

Specification:

• Model: TK-2

• Color: White/Black

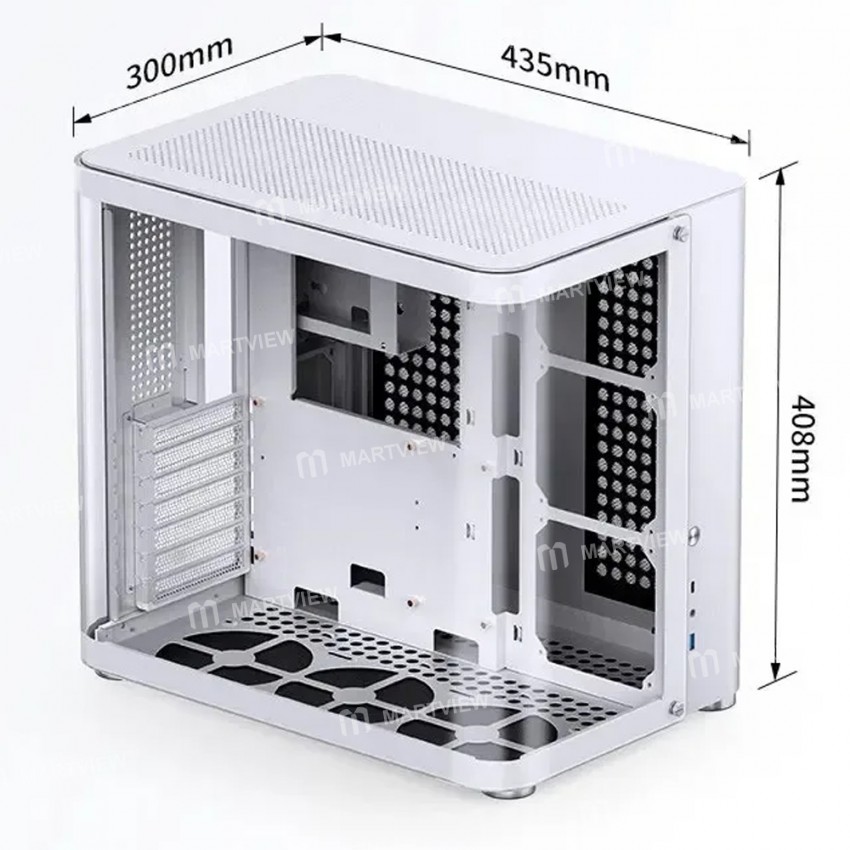

• Product size: 300mm(W)*435mm(D)*408mm(H) (Including foot pads)

• Material: 2.5mm aluminum alloy/1mm steel plate

• Compatible motherboards: ITX/M-ATX/ATX

• Drive bits: 3.5" HDD*2 or 2.5" SSD*1/3.5" HDD*1

• Front interface: USB 3.2 Gen2 Type-C*1 / USB 3.0*1 / Audio*1+Mic*1 (2-in-1)

• Power supply: ATX≤220mm

• Cpu cooler: ≤165mm

• Video card: ≤405mm

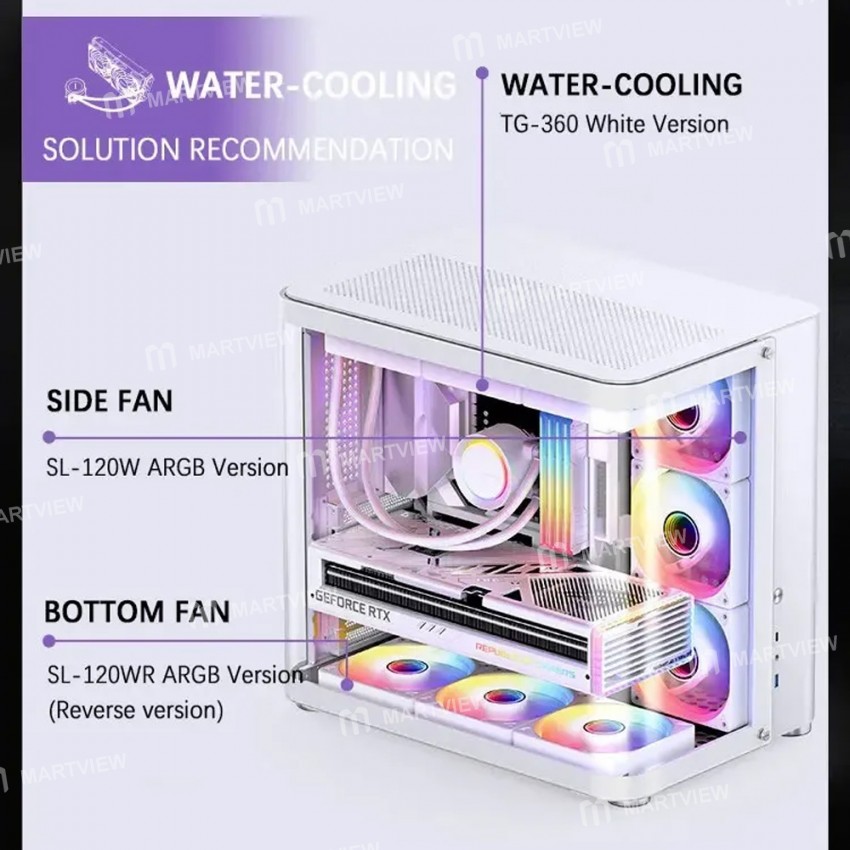

• Water cooling: Top plate 360mm*1 or 280mm*1 bottom plate 360mm*1 (The water-cooling length of the base plate is within 398mm and installing a water drain on the base plate will occupy 2.5 PCI-E slots at the bottom)

• Fan: Top plate 120mm*3/140mm*2 (Not standard); Base plate 120mm*3 (Non-standard); Motherboard side 120mm*3(Non-standard)

• Net weight: 8.5kg

Package includes:

• 1 x Computer Case
