JTX PR-20 Microscope Infrared Thermal Imaging Camera for Motherboard Detected

JTX PR-20 Microscope Infrared Thermal Imaging Camera for Motherboard Detected

Features:

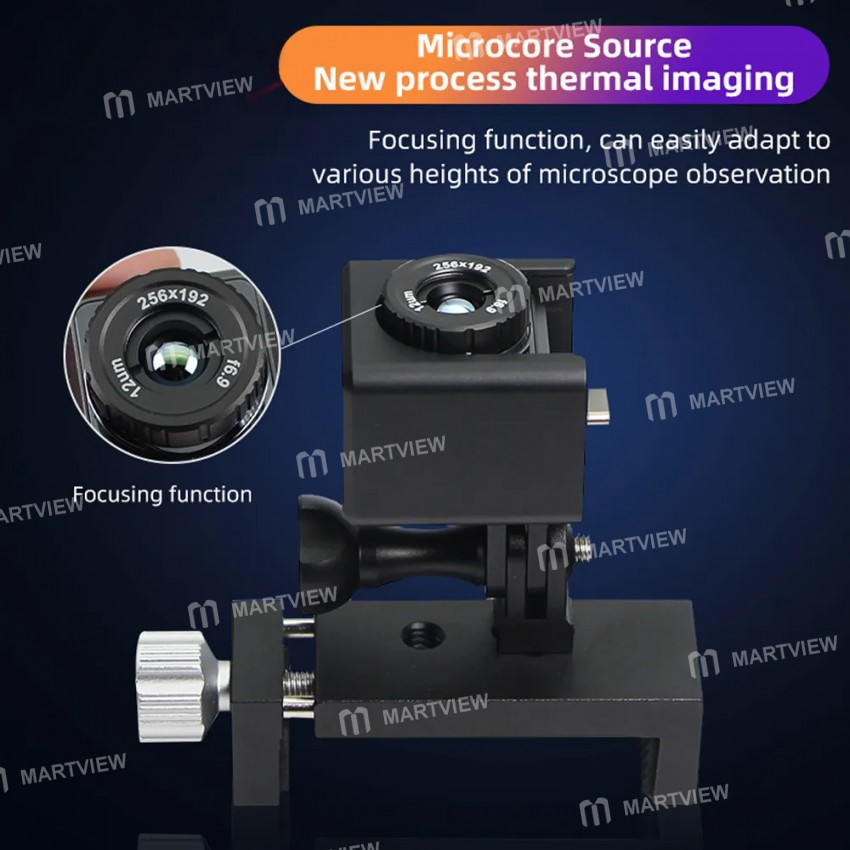

• Microcore Source, a new process of thermal imaging, with a focusing function, can easily adapt to various heights of microscope observation

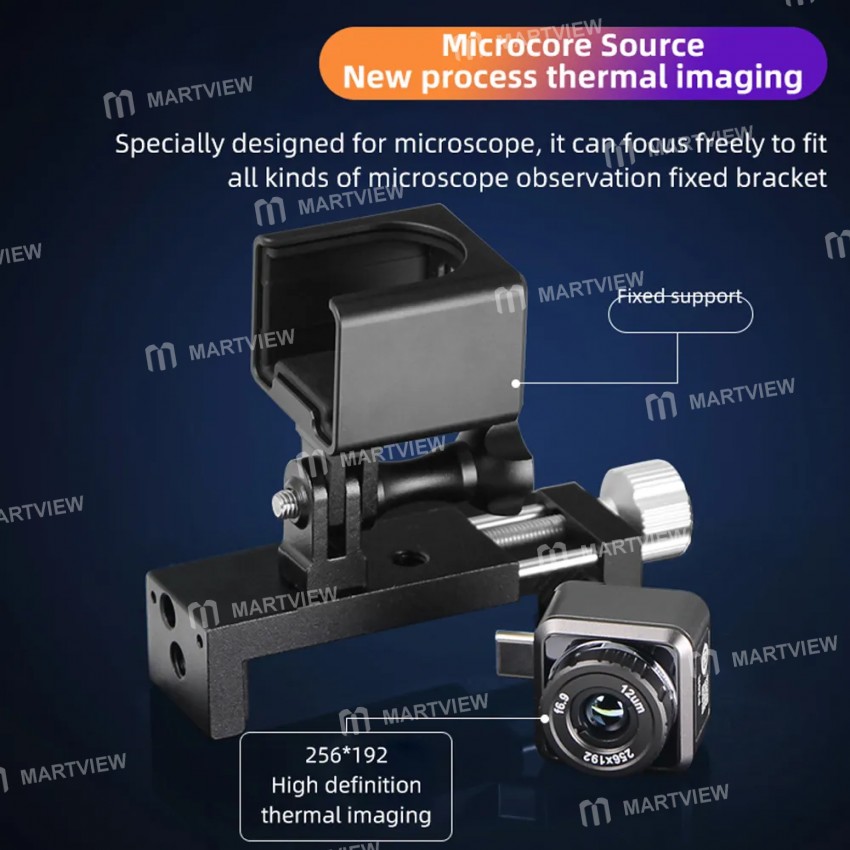

• Specially designed for microscope, it can focus freely to fit all kinds of microscope observation fixed bracket

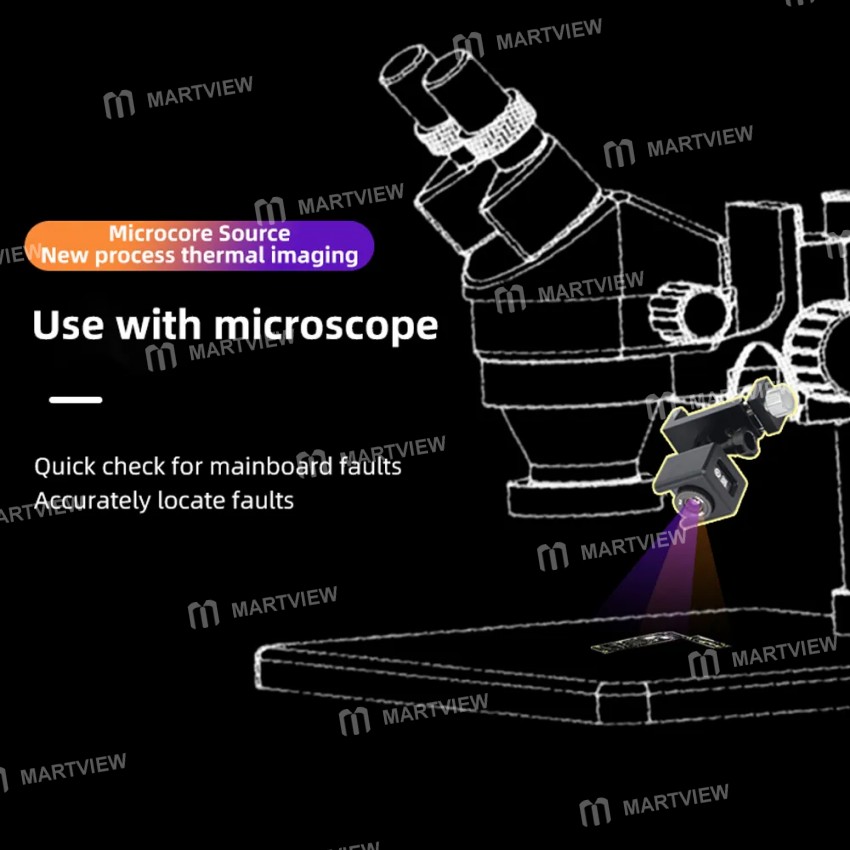

• Use a microscope, for a quick check for mainboard faults, accurately locate faults

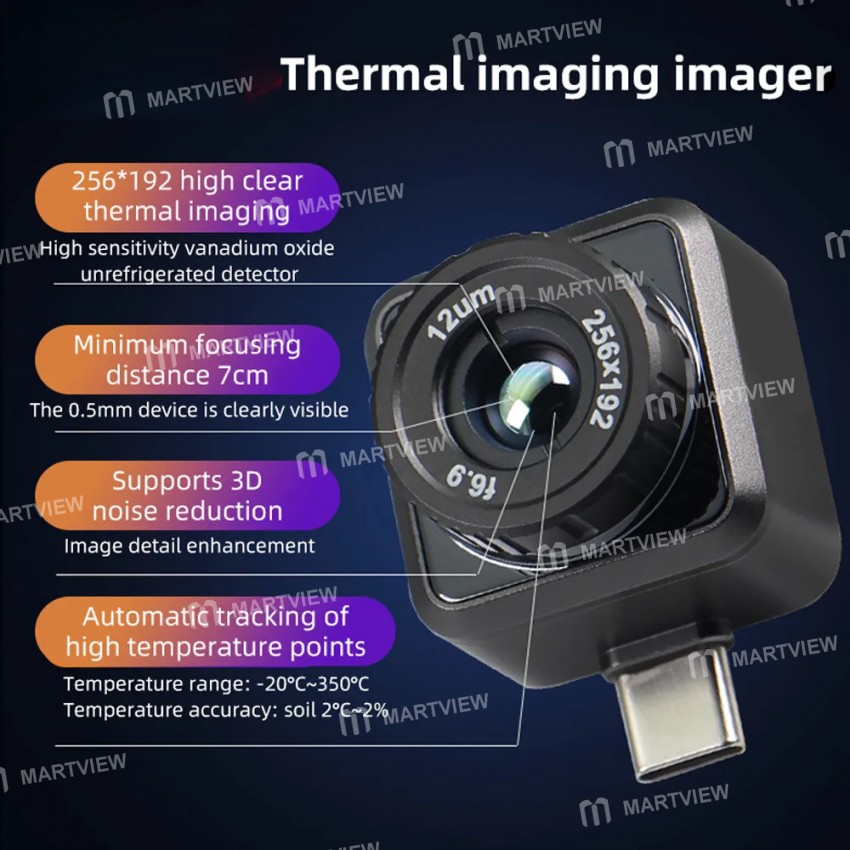

• 256*192 high clear thermal imaging, high sensitivity vanadium oxide unrefrigerated detector

• The minimum focusing distance of 7cm, the 0.5mm device is clearly visible

• Supports 3D noise reduction, image detail enhancement

• Automatic tracking of high-temperature points, temperature range: -20℃~350℃; temperature accuracy: soil 2℃~2%

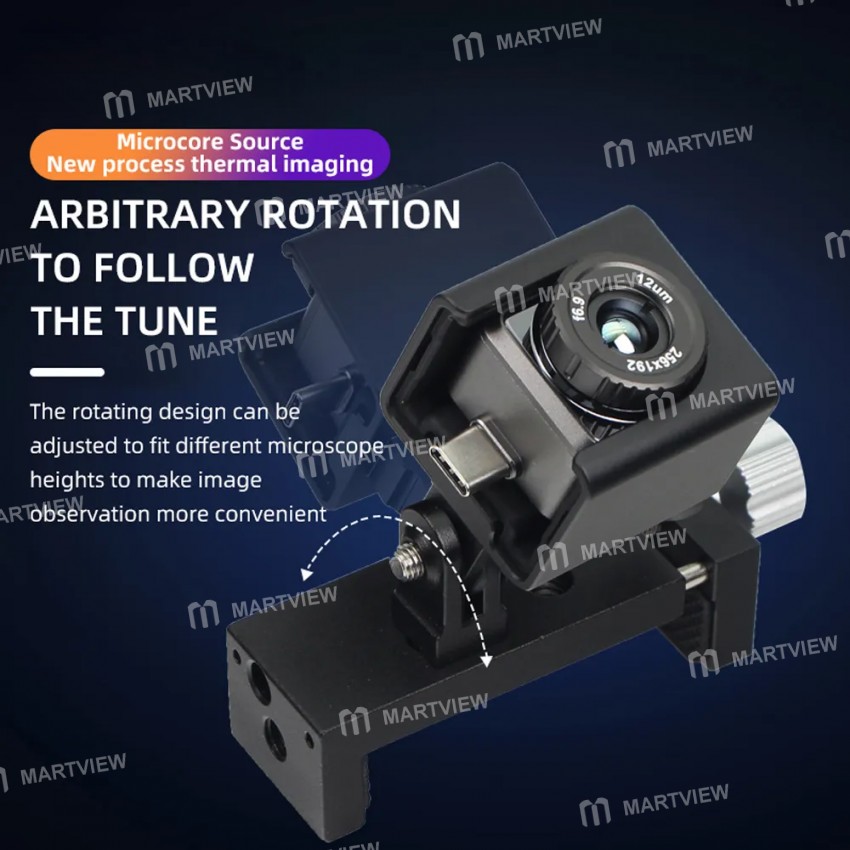

• The rotating design can be adjusted to fit different microscope heights to make the image observation more convenient

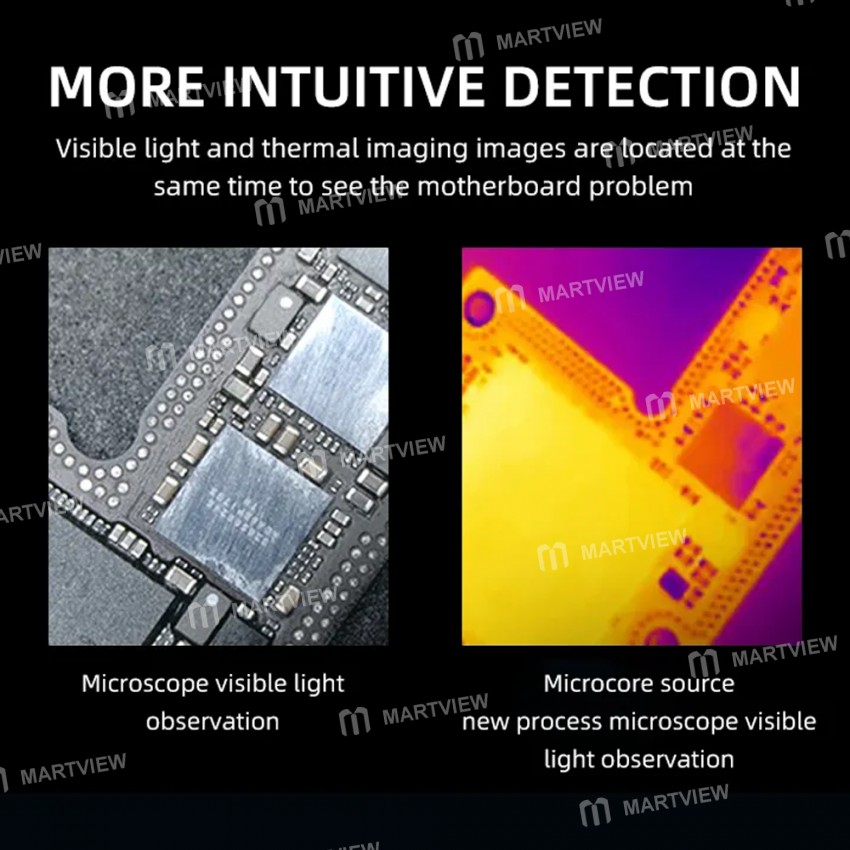

• With the use of microscope, photothermal imaging can be used to see the motherboard problems at the same time

Specification:

• Brand: Jitongxue

• Resolution: 256 * 192

• Name: Microcore source new process thermal imaging

• Temperature range: -20℃-350℃

• Package size: 112*105*92mm

• Accurate temperature measurement: +2℃~2%

• Features: Can be used with the microscope, visible light, and thermal imaging at the same time to see motherboard problems

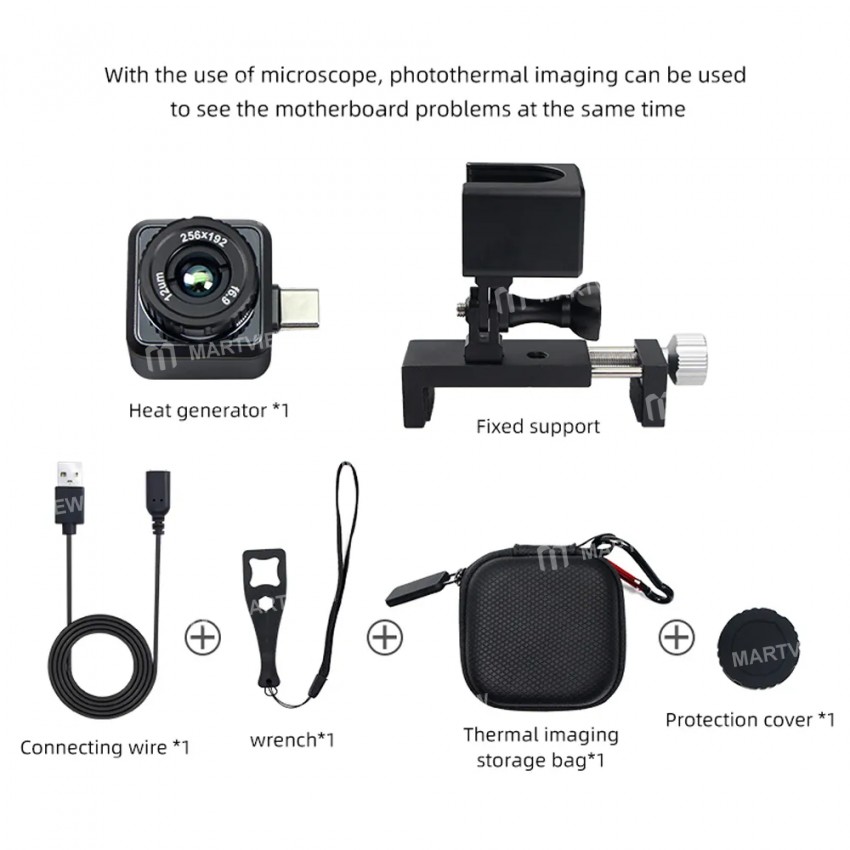

Package includes:

• 1 x Thermal Imaging Camera

• 1 x Fixed Support

• 1 x Protection Cover

• 1 x Connecting Wire

• 1 x Wrench

• 1 x Storage Bag
