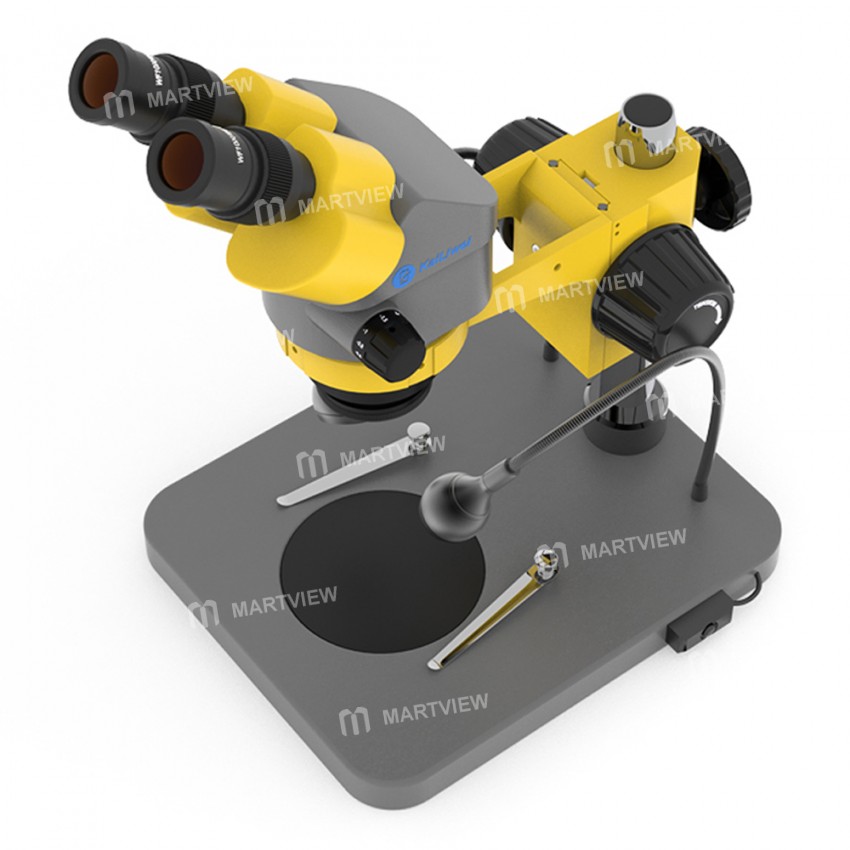

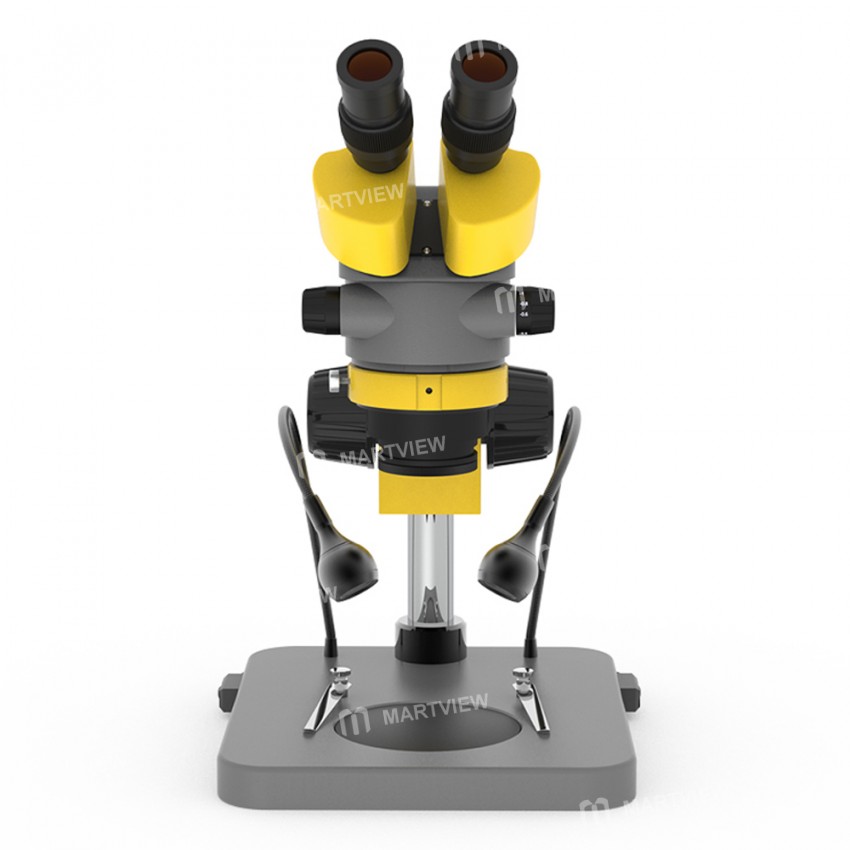

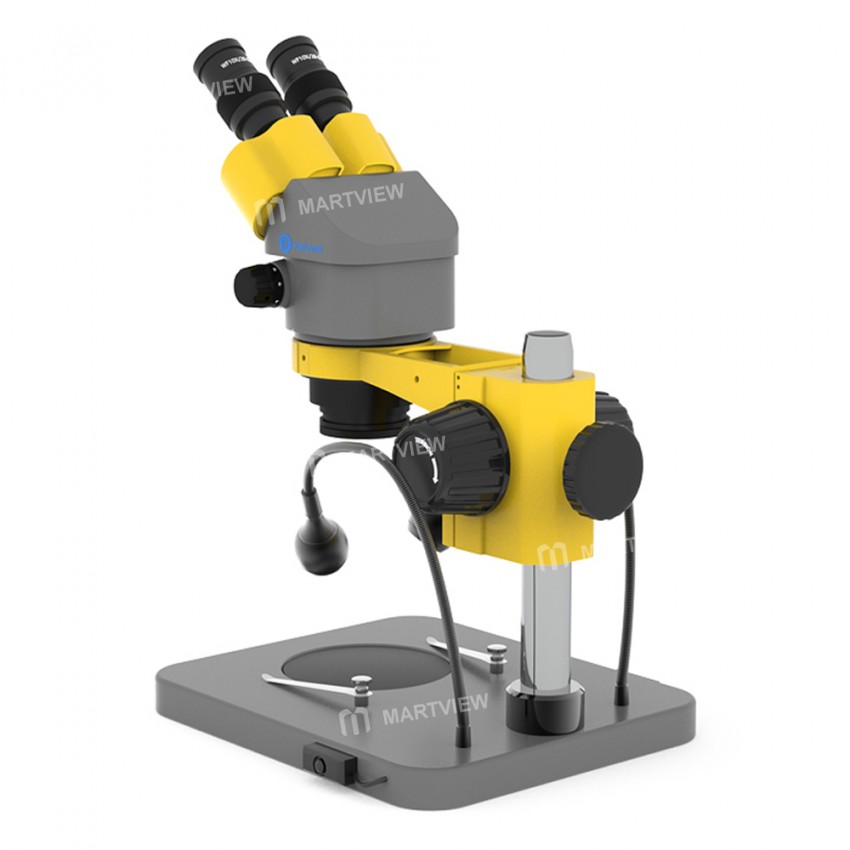

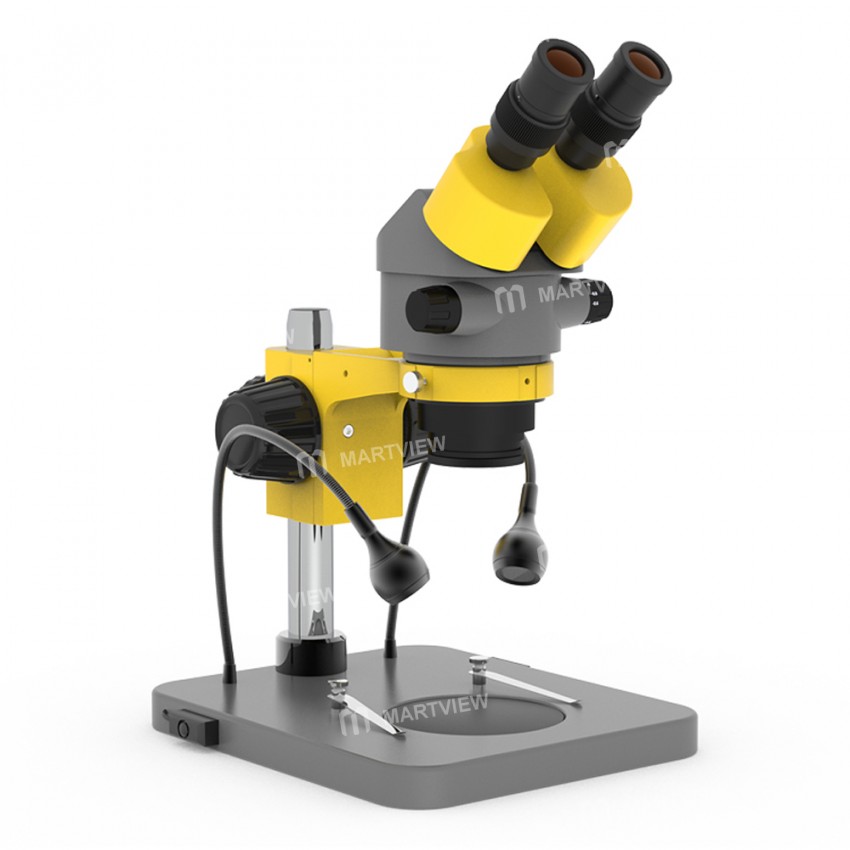

Kailiwei 0655EI 6X-55X Double Light Zoom Industrial Stereo Microscope for BGA Welding Phone Repair

Kailiwei 0655EI 6X-55X Double Light Zoom Industrial Stereo Microscope for BGA Welding Phone Repair

Features:

• Total magnification(standard outfits): 6X~55X

• Extend total magnification:K0655 series:0.22X~ 330X

• Zoom objective magnification: KH0655 series: 0.6X~5.5X, zoom ratio is 9.2:1. The working distance is 108mm

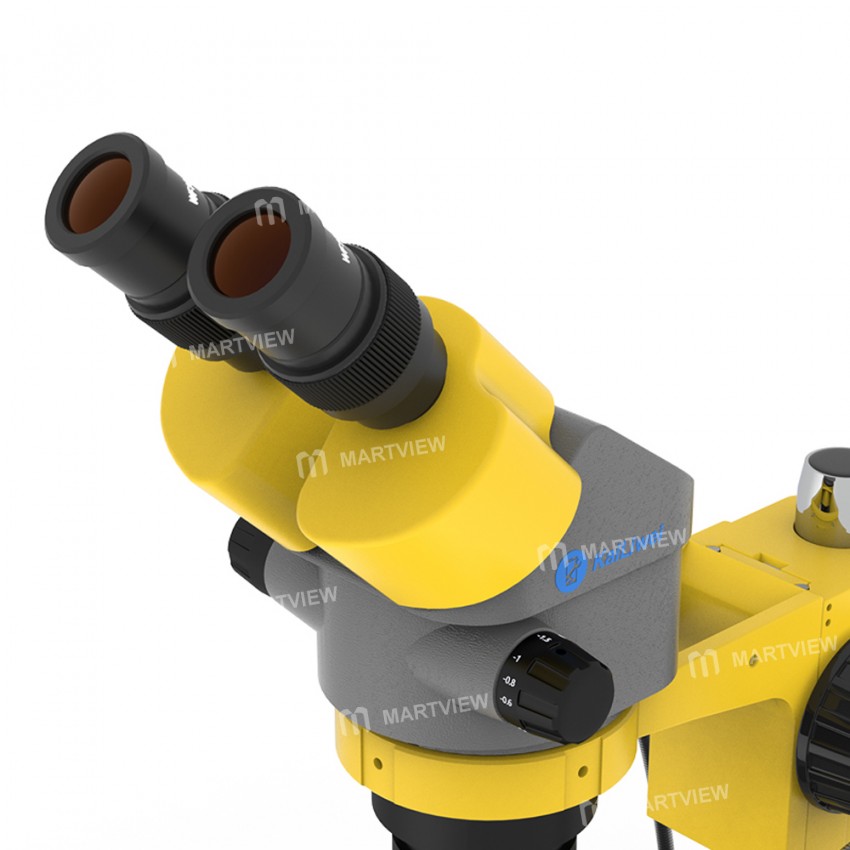

• Trinocular/Binocular drawtubes horizontal inclined 35°and main body can be rotated 360°

• The range of adjusting the diopter:±6

• Interpupillary distance adjustment range: 52mm~76mm (Left and right move at the same time)

• The range of adjusting the focus is 50mm(the square post is 100mm)

Specification:
Support parameters

• Column aperture: Φ32mm

• Lens aperture: Φ76mm

• Center distance: 155mm

• Lifting range: 50mm

The base parameters

• Column height: 240mm

• Diameter: φ32mm

• Equipped with pressing tablet and Φ95mm black and white plate

• Base: 200*255*22mm

Package includes:

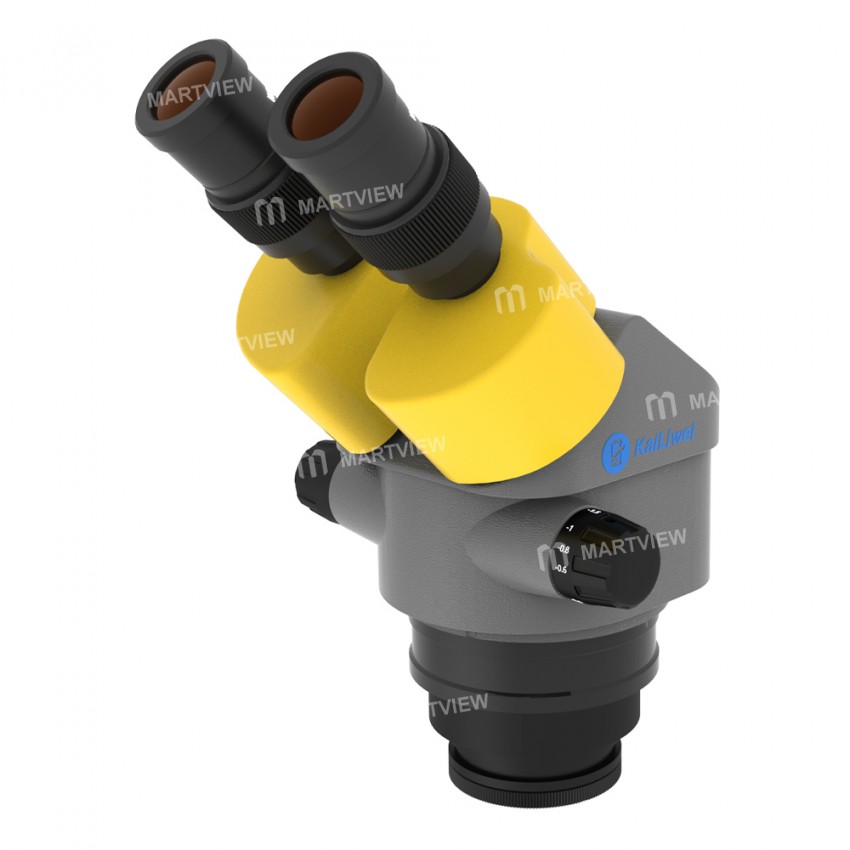

• 1 x Trinocular microscope head

• 2 x WF10X/20 Eyepieces

• 1 x Metal repair pad

• 1 x Focusing rack

• 2 x Eye-guards

• 1 x Dust cover

• 1 x Light
