Korad KA3005P 30V 5A Programmable Precision DC Linear Digital Power Supply with USB RS232 Interfaces

Korad KA3005P 30V 5A Programmable Precision DC Linear Digital Power Supply with USB RS232 Interfaces

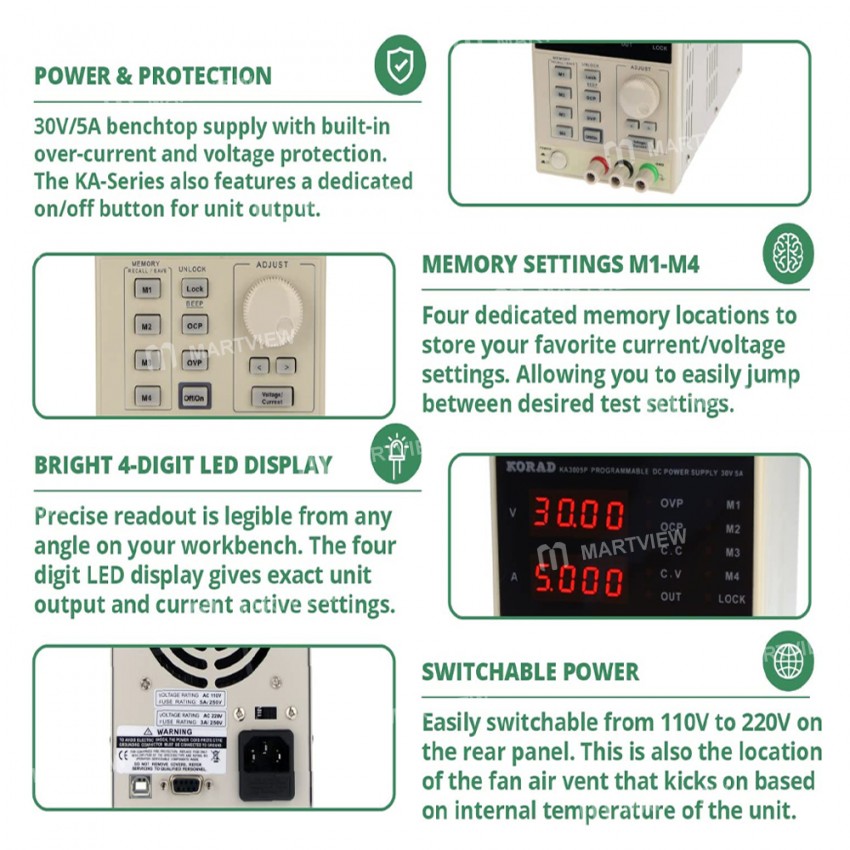

Features :

• 30V/5A full digital power control single, 10mV/1mA high accuracy and resolution

• Low noise and ripple, CV/CC given voltage and constant current mode

• Highly reliable OCP, OVP, arbitrarily set protection, power, and memory function, has Keypad lock to prevent misuse

• An intelligent temperature control fan effectively reduces the noise

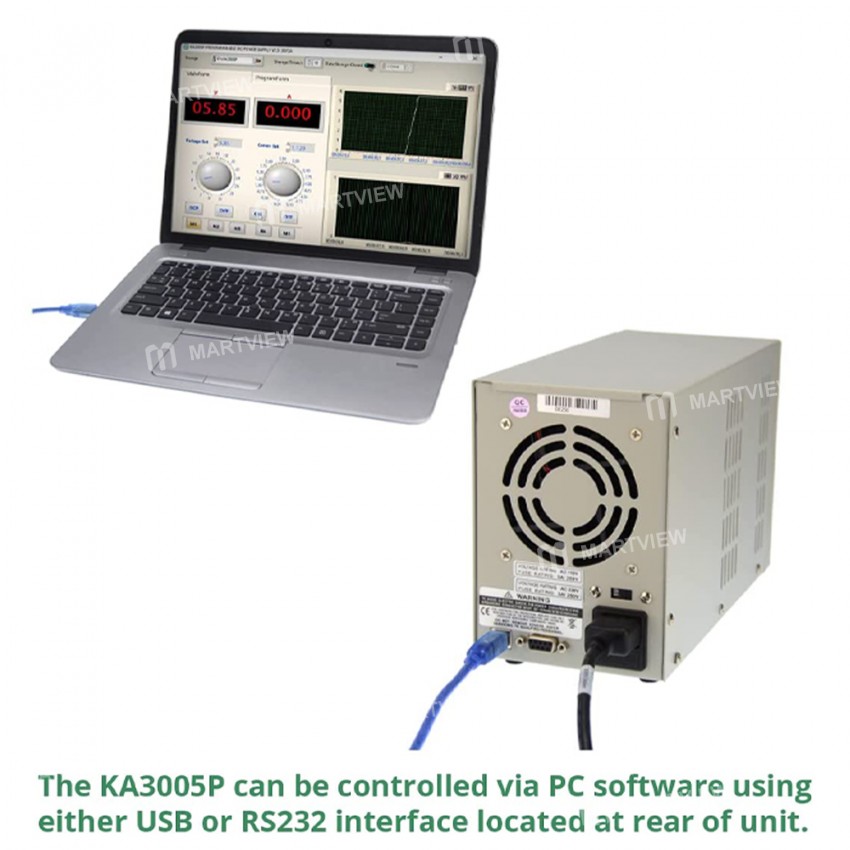

• With RS232, USB interface

• Professional power supply design with intuitive operability

• Simple and intuitive operation, fast and accurate selection of voltage and current can be realized

• To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can

• Just press the button to recall and save area a key to bring up the user to store the data and save user settings

Specification:

• Input voltage: 220V

• Frequency range: 50Hz

• Operating temperature: 32-104℉ (0~40ºC)

• Operating humidity: < 80%RH

• Storage temperature: 32-158℉ (0~70ºC)

• Storage humidity: < 70%RH

Stable Voltage:

• Output Voltage Range: 0-30V Continuously adjustable

• Setup Resolution: 10mV

• Setup Accuracy: <0.05%+20mV

• Ripple: <1mVRMS

• Read back Accuracy: 10mV

• Temp. Coefficient: <0.1% + 10mV

• Read back, Temp. Coefficient: <100ppm+10mV

Stable Current:

• Output Current Range: 0-5A Continuously adjustable

• Setup Resolution: 1mA

• Setup Accuracy: <0.1% +3mA

• Ripple: <3mARMS

• Read back Accuracy: 1mA

• Temp. Coefficient: <0.1% + 5mA

• Read back, Temp. Coefficient: <100ppm+5mA

• Dimensions : 110*156*260mm

Package includes :

• 1 x Power Supply

• 1 x Power Cable

• 1 x USB Line
