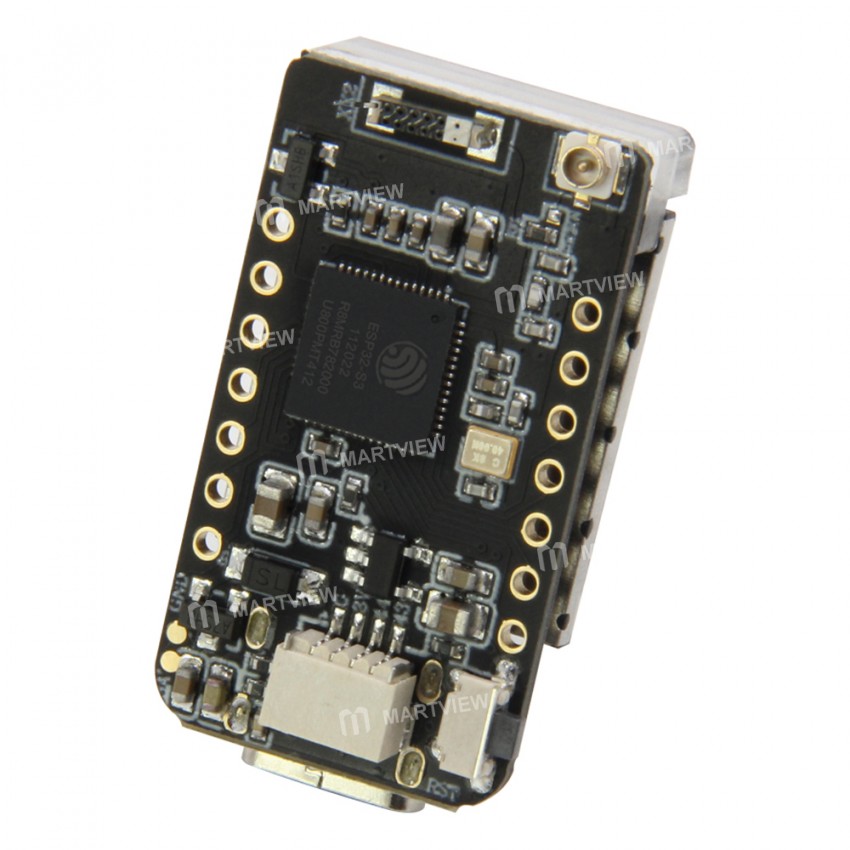

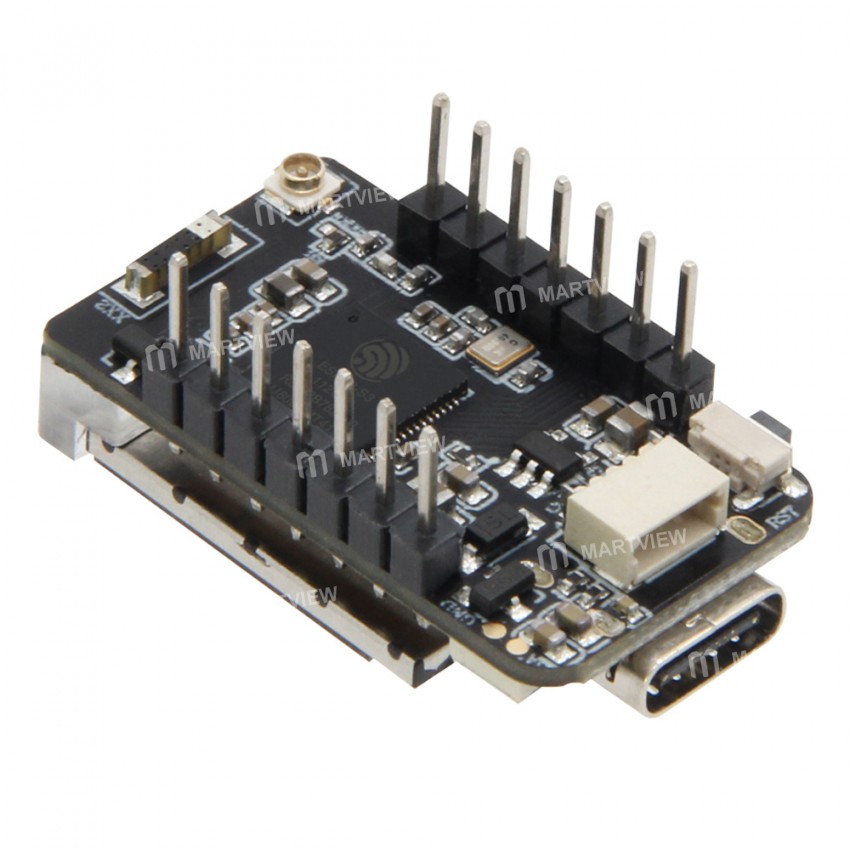

Lilygo T-QT V1.1 ESP32-S3 0.85-inch Full Color LCD Display Development Board Module

Lilygo T-QT V1.1 ESP32-S3 0.85-inch Full Color LCD Display Development Board Module

Features:

• Keeps the design style of T-Display, using 0.85 inch LCD Display equipped with ESP32-S3 main control chip, which is smaller in size based on supporting WIFI and Bluetooth.

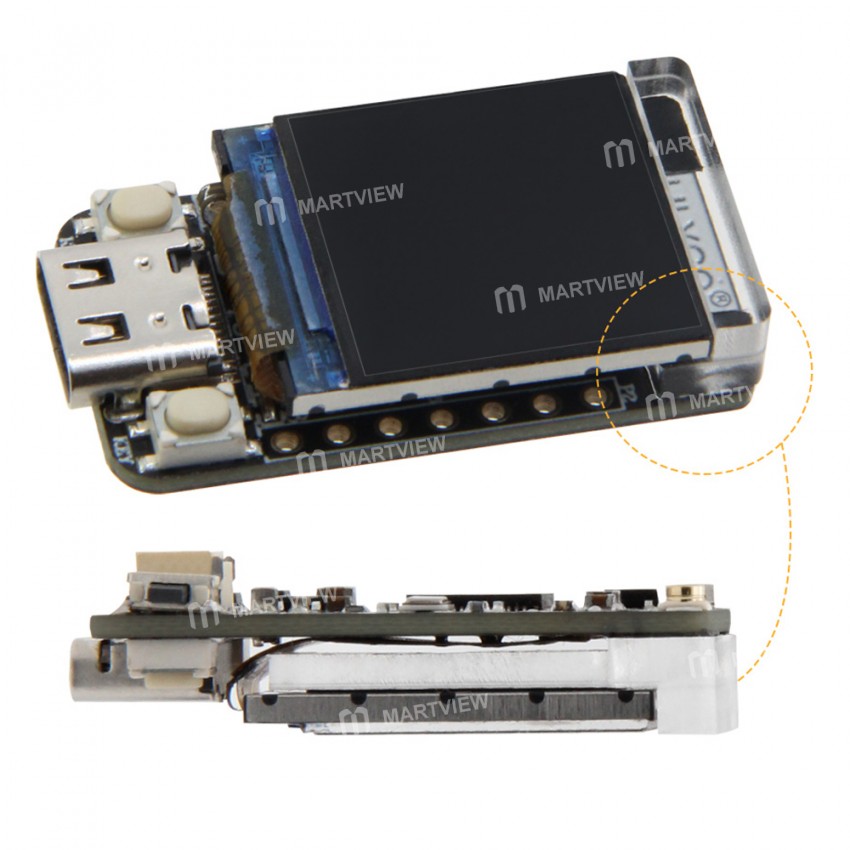

• An acrylic plate is used to fix the screen to make it more stable

Specification:

• MCU: ESP32-S3 Xtensa dual-core LX7 microprocessor

• Wireless Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth V5.0+BLE

• Programming Platform: Arduino-ide/Micropython/VS Code

• Serial chip: None

• Flash: 8M

• Clock frequency: Main frequency up to 240MHz

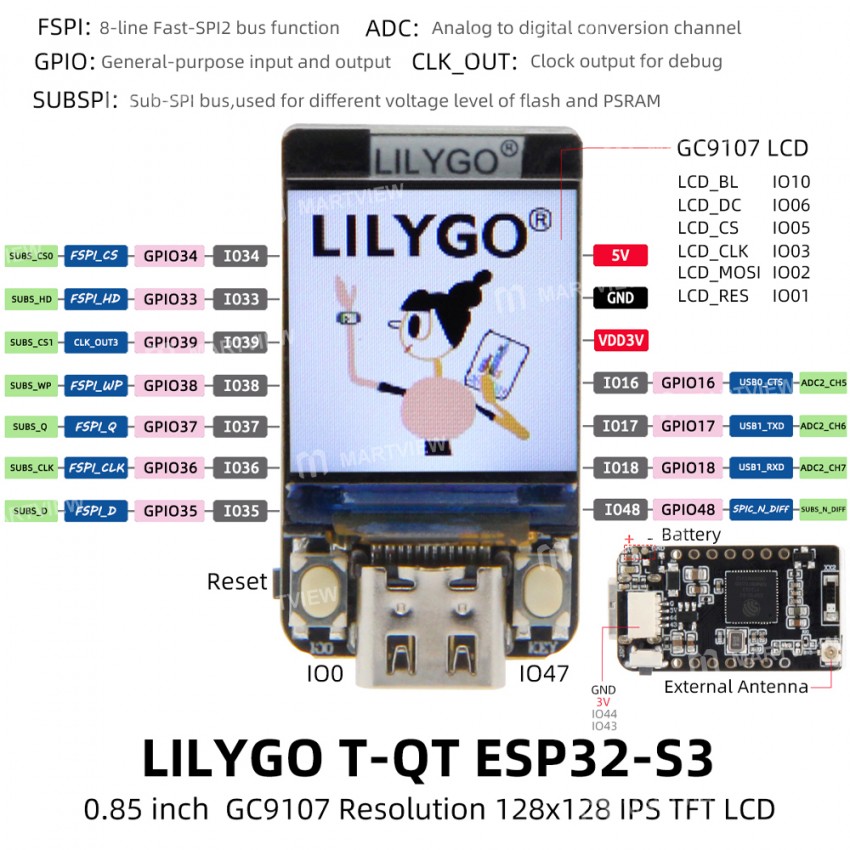

• Onboard functions: Buttons: IO00+IO47

• Battery detection: IO04

• Display: 0.85 inch GC9107 TFT IPS LCD

• Driver IC: GC9107

• Resolution: 128*128px

• SPI interface: Support 4-Wire

• Display Area: 15.2064(H)*15.2064(V)

• Display Colors: 262K

• Brightness: 260 cd/m²

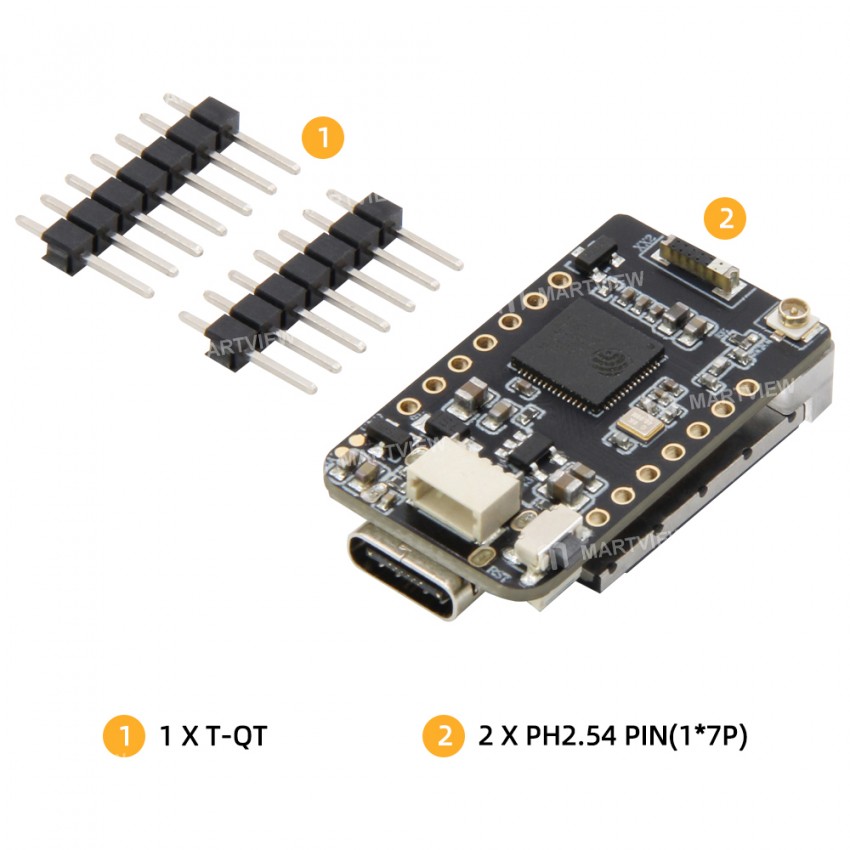

Package includes:

• 1 x Display Module

• 2 x Pin

Notice:

• Only supports USB2.0 (USBA-USBC) Protocol.

• Type-C has a power supply function, but no charging function

• Compatible With ST7789
