LINCSeek ShortCam II Thermal Imaging Diagnosis Instrument for PCB Motherboard Fault Repair

LINCSeek ShortCam II Thermal Imaging Diagnosis Instrument for PCB Motherboard Fault Repair

Features:

• Infrared thermal imaging folding rapid diagnosis instrument makes maintenance of leakage devices simpler, more accurate, and more convenient

• A one-key quick check of leakage / Accurate fault location / High-precision intelligent temperature measurement

• High contrast display / High-temperature real-time tracking / Flexible folding and portable

• Visible light pixels increased to 400W, infrared resolution increased to 256*192

• Quickly and accurately locate the position of high-temperature components, and display the details of faulty components in real-time and high-definition

• Flexible zoom in on the details of the motherboard and easily find tiny components

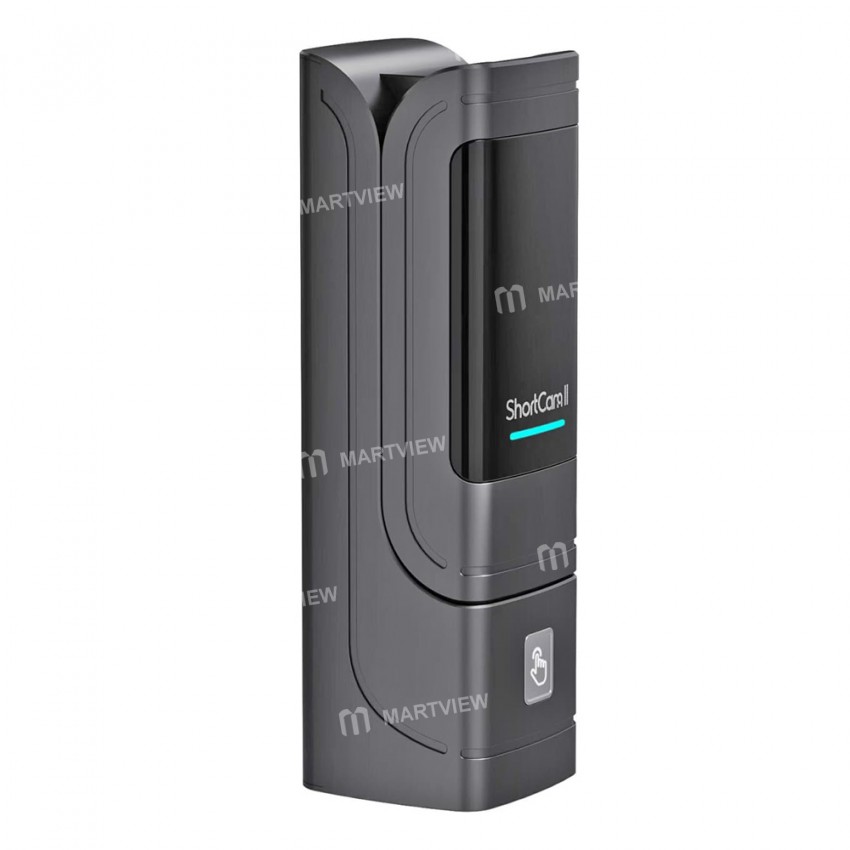

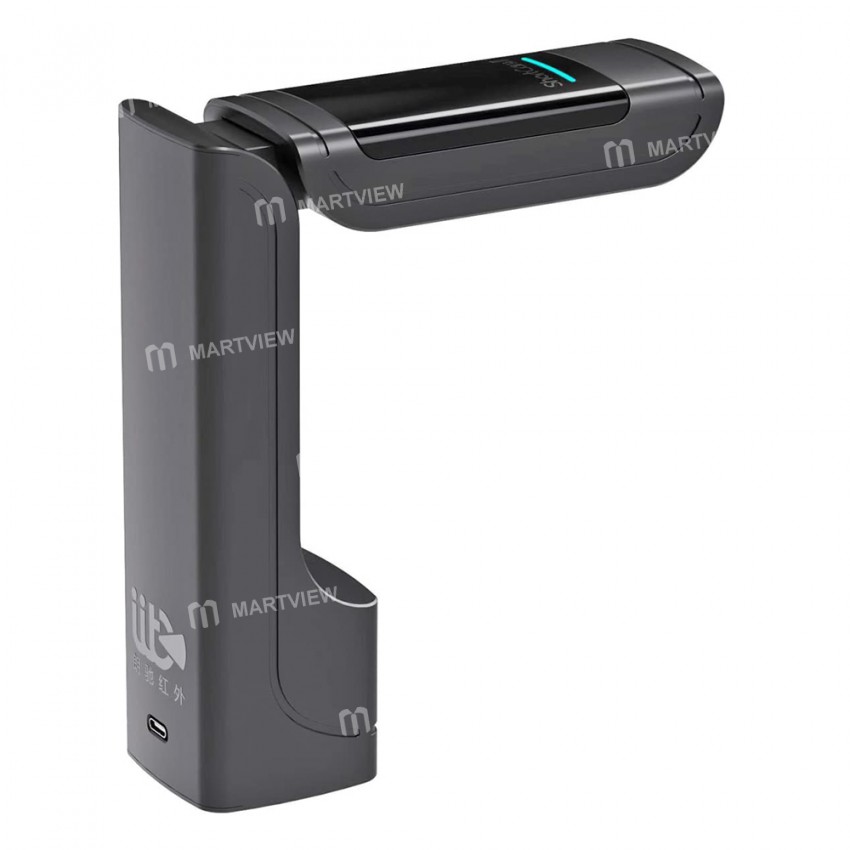

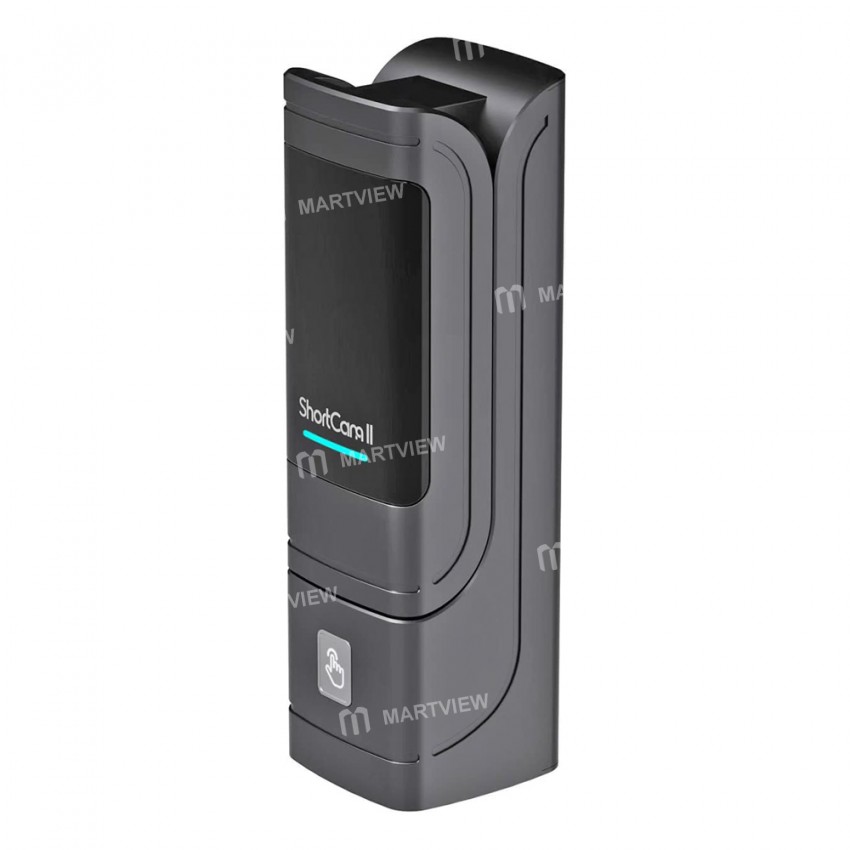

• Foldable design, stylish appearance, ultra-small size, greatly improved convenience

• The interface is fully upgraded, the operation is more convenient, the Type-C interface is configured, and the installation program can be used

• Application scenarios: mobile phone motherboard repair, computer motherboard repair, smartwatch repair, hard disk data recovery

Specification:

• Resolution: 256*192

• Pixel size: 12μm

• Wavelength range: 8-14μm

• Field of view: 25°*18°

• Visible light resolution: 2568H*1448V

• Display Mode: Visible Light / Local Fusion / Quick Look

• Interface: Type-C

• Image display format: JPEG

• Video storage format: MP4

• Application functions: one-key quick check, high and low temperature tracking, frame temperature measurement, partial zoom, comparative analysis, snapshot, video

• Temperature measurement function: full temperature measurement

• Temperature measurement distance: 13cm

• Temperature measurement accuracy: ±5°C or ±5% (take the maximum value)

• Temperature measurement range: -20℃~550℃

• Product size: 48mm*48mm*154mm

• Output voltage/power consumption: 5V DC/2.5W

• Storage temperature: -20℃~60℃

• Working environment: 3℃~45℃

Package includes:

• 1 x Host

• 1 x Type-C power cord
