LS173 Portable Multifunctional Colorimeter with Touch Screens

LS173 Portable Multifunctional Colorimeter with Touch Screens

Features:

• LS173 is a portable multifunctional colorimeter with D/8° (SCI) optical geometry design

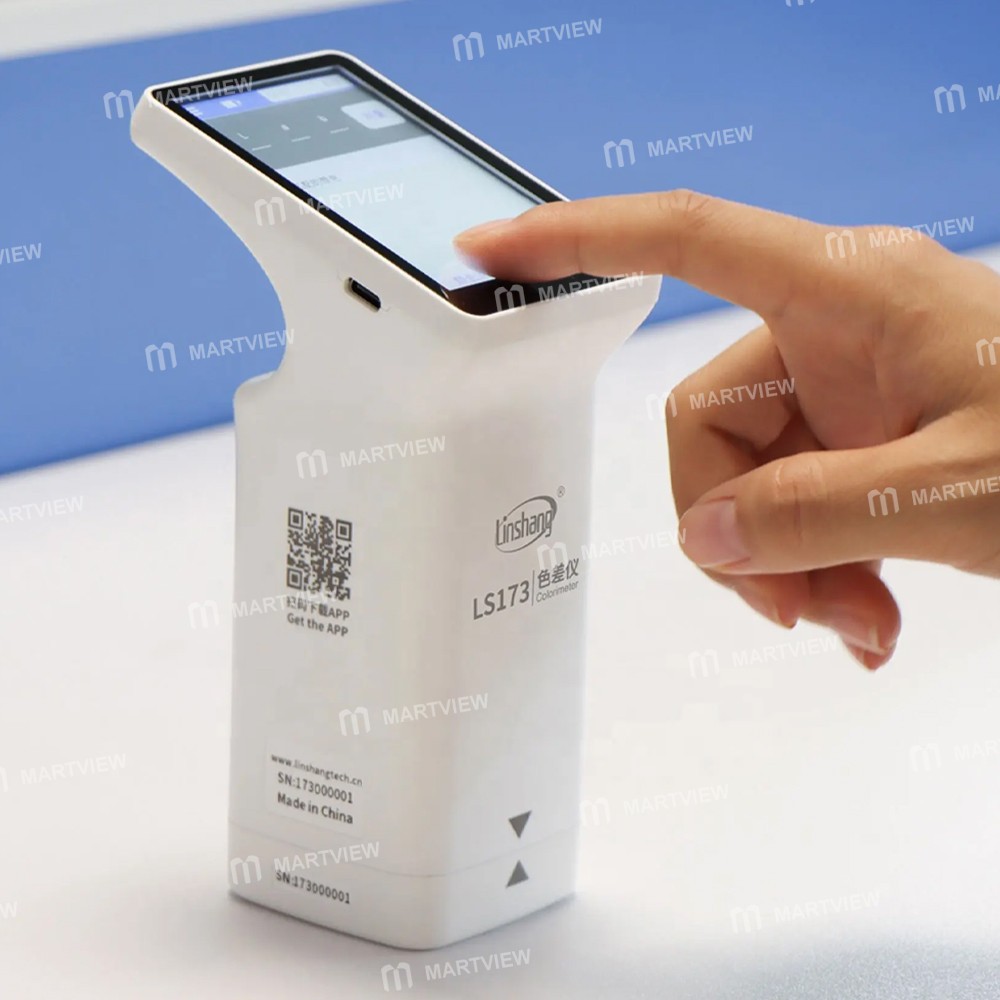

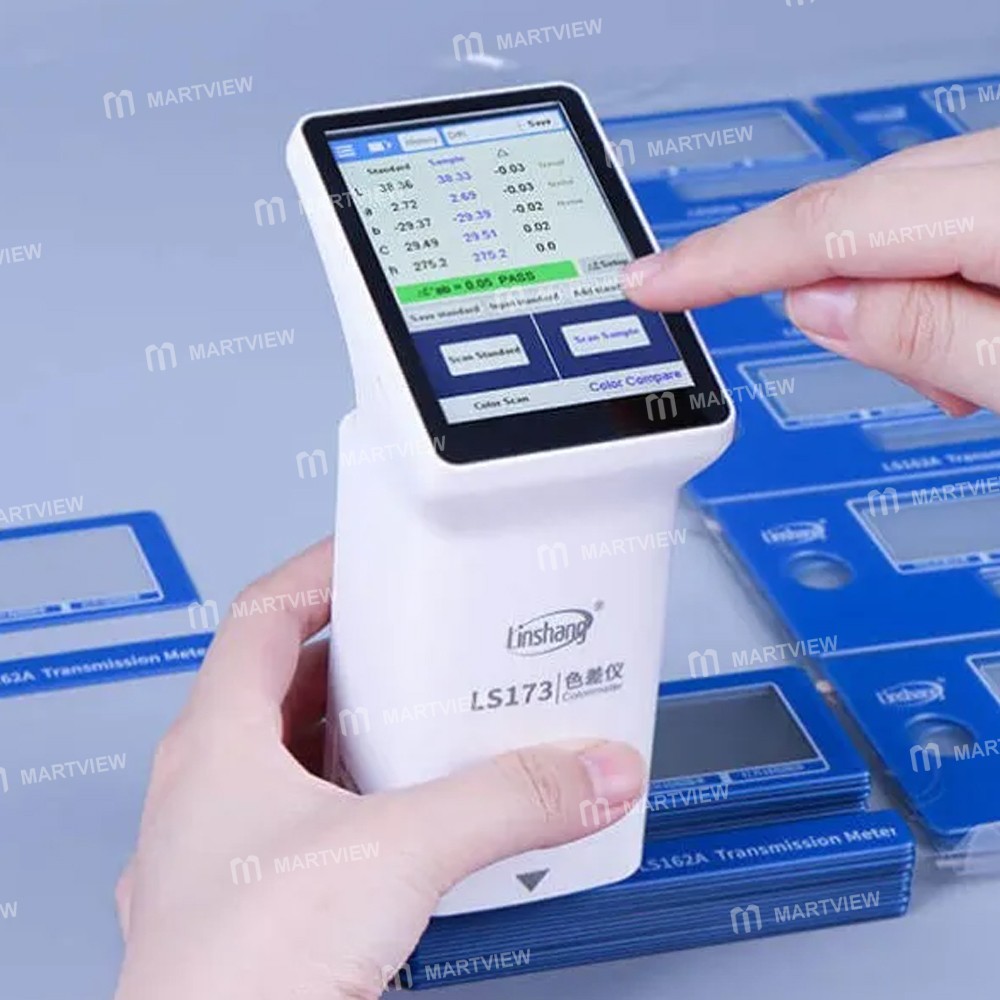

• The color analyzer is equipped with a 3.5-inch IPS color capacitive touch screen, providing an excellent operating experience

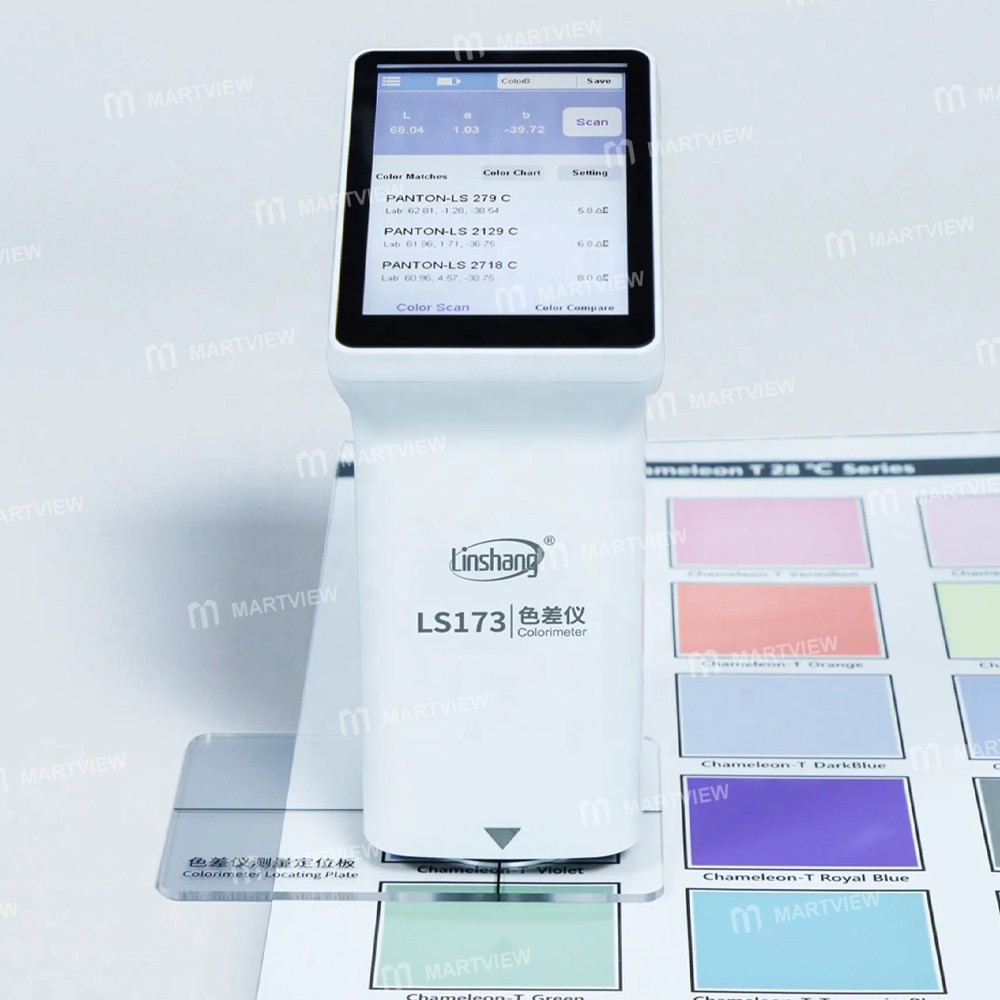

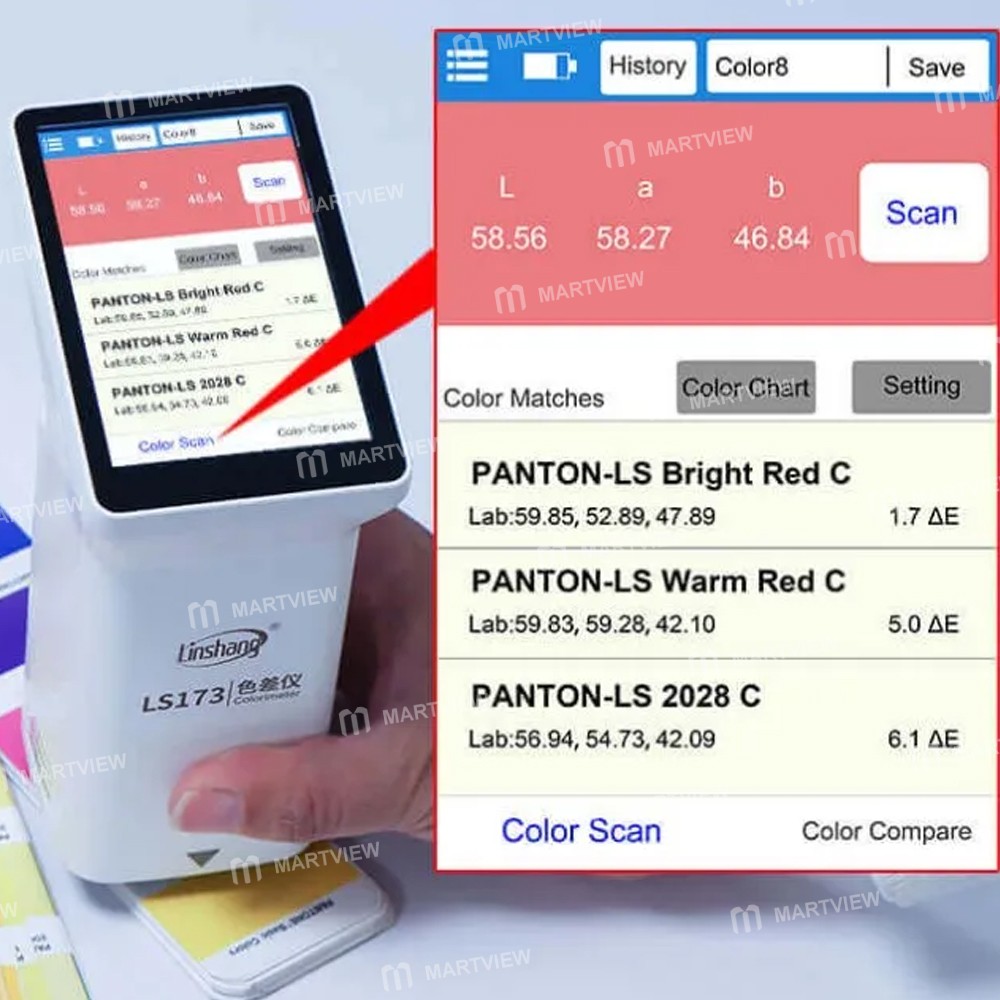

• The colorimeter integrates multiple natural color charts, and can quickly match the measured color to the closest color codes

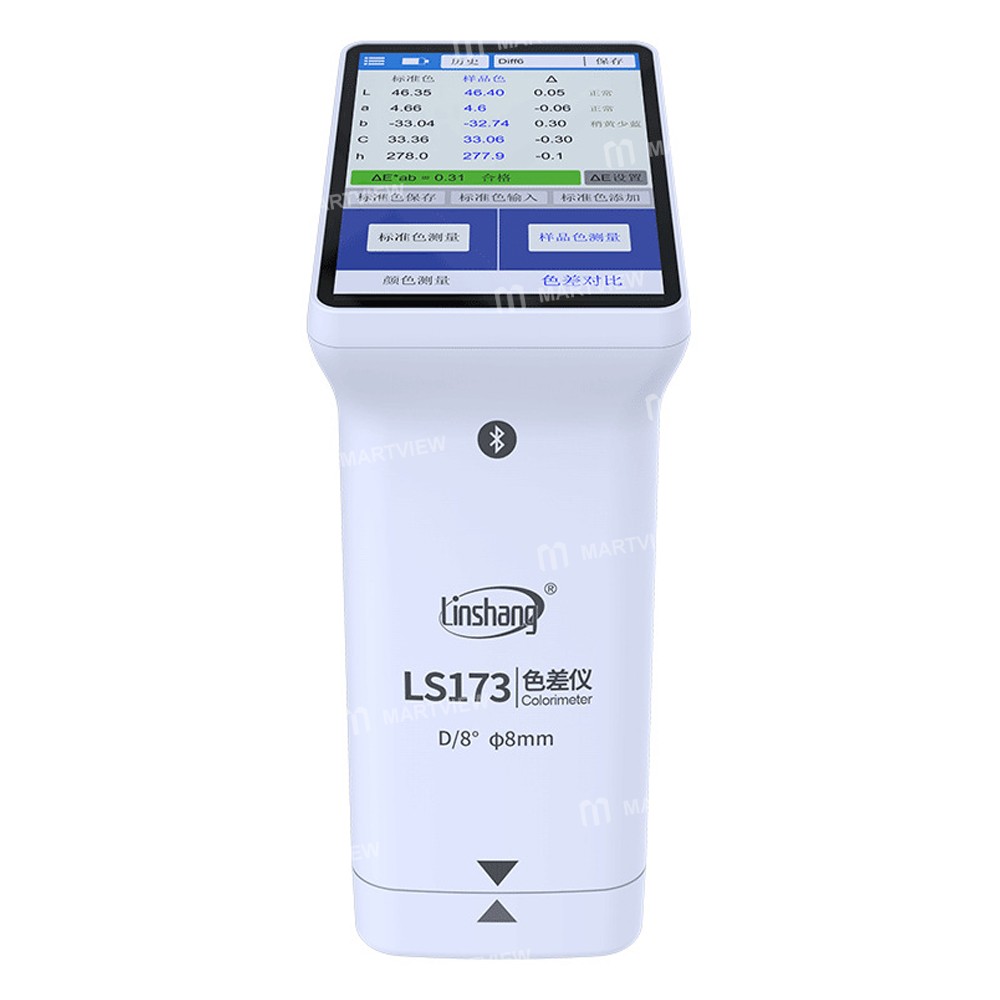

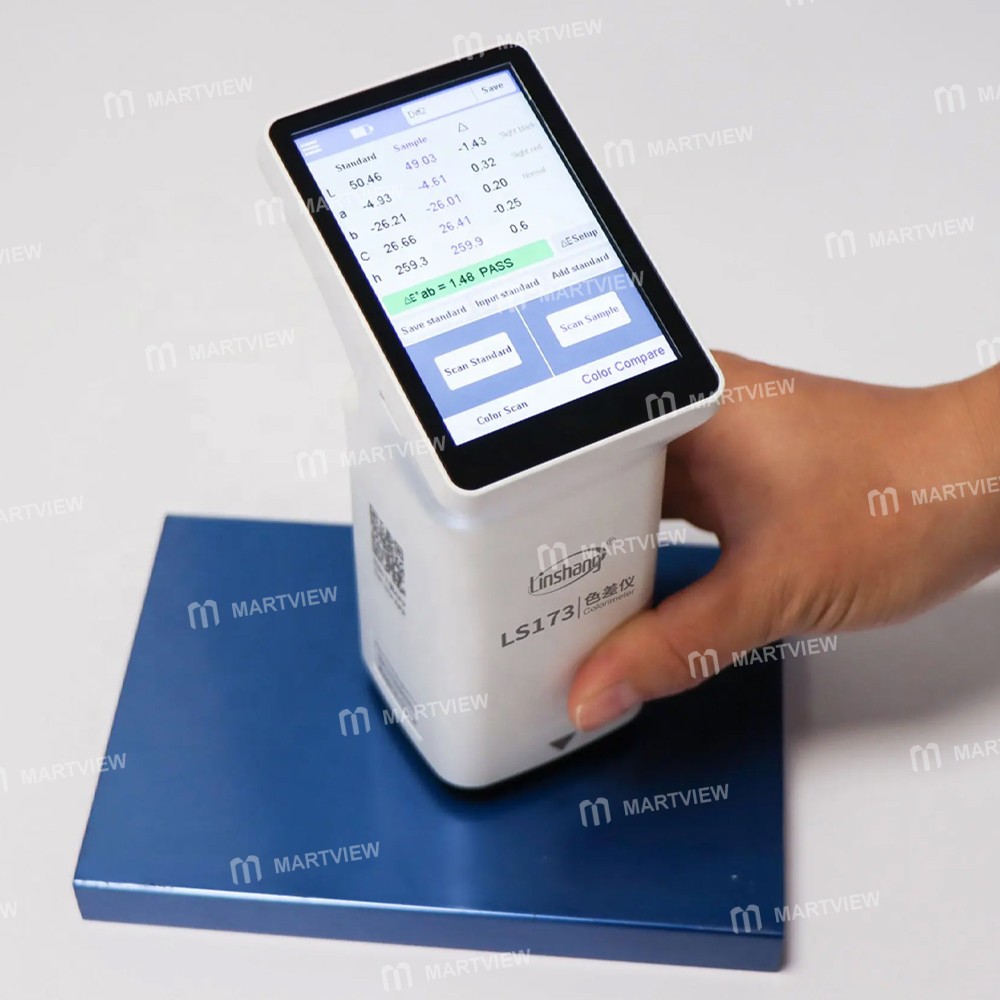

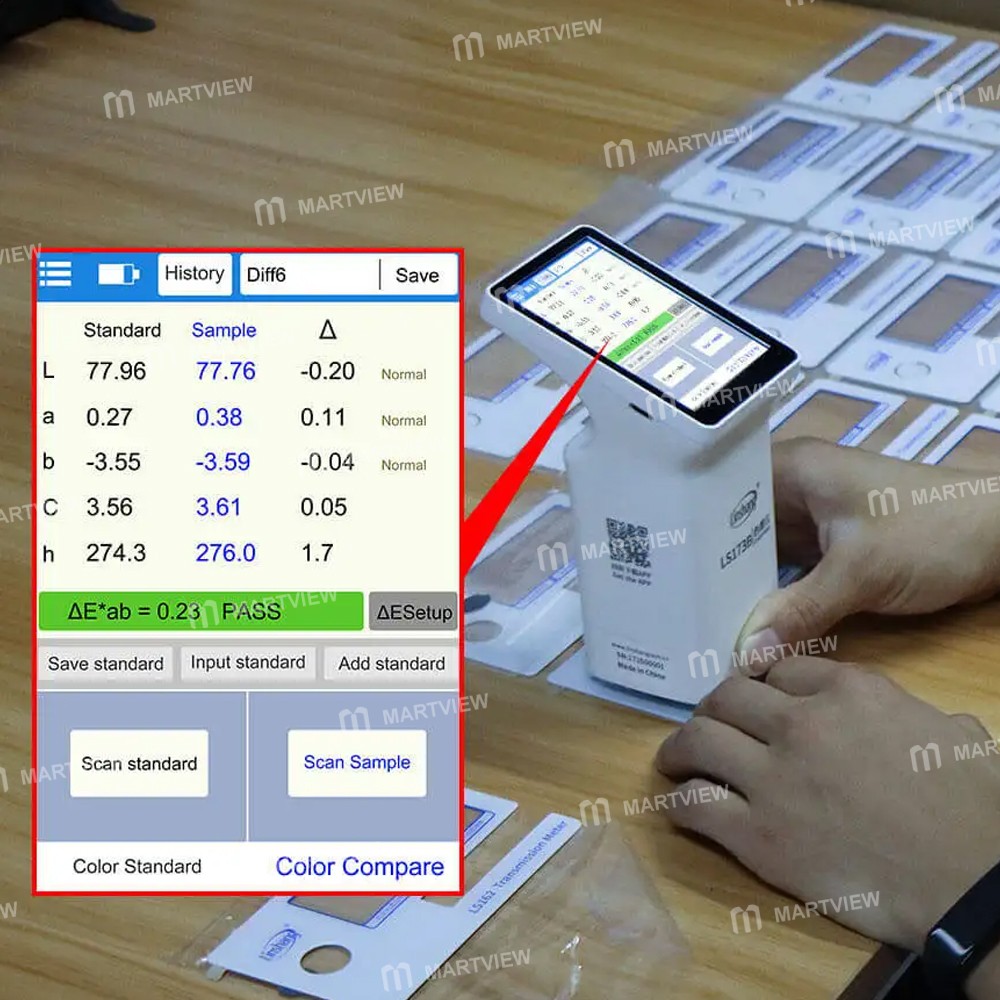

• The color difference meter also has a color difference comparison function, supports a variety of standard color addition methods, the color difference threshold can be set

• The color difference formula can be flexibly selected, which can realize rapid QC testing

• LS173 is usually used in paint, metal, stone, ceramic tiles, and plastics industries for color measurement and management, color difference quality control

• An integrating sphere illuminates the colorimeter diffused light source, which is very suitable for color measurement of high-gloss samples

Specification:

• Illumination Geometry: D/8, specular component include (SCI)

• Illumination light source: Full spectrum LED light source

• Measuring aperture: 8mm

• Measurement conditions: Light source D65, field of view 10°

• Measuring time: About 1s

• Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex

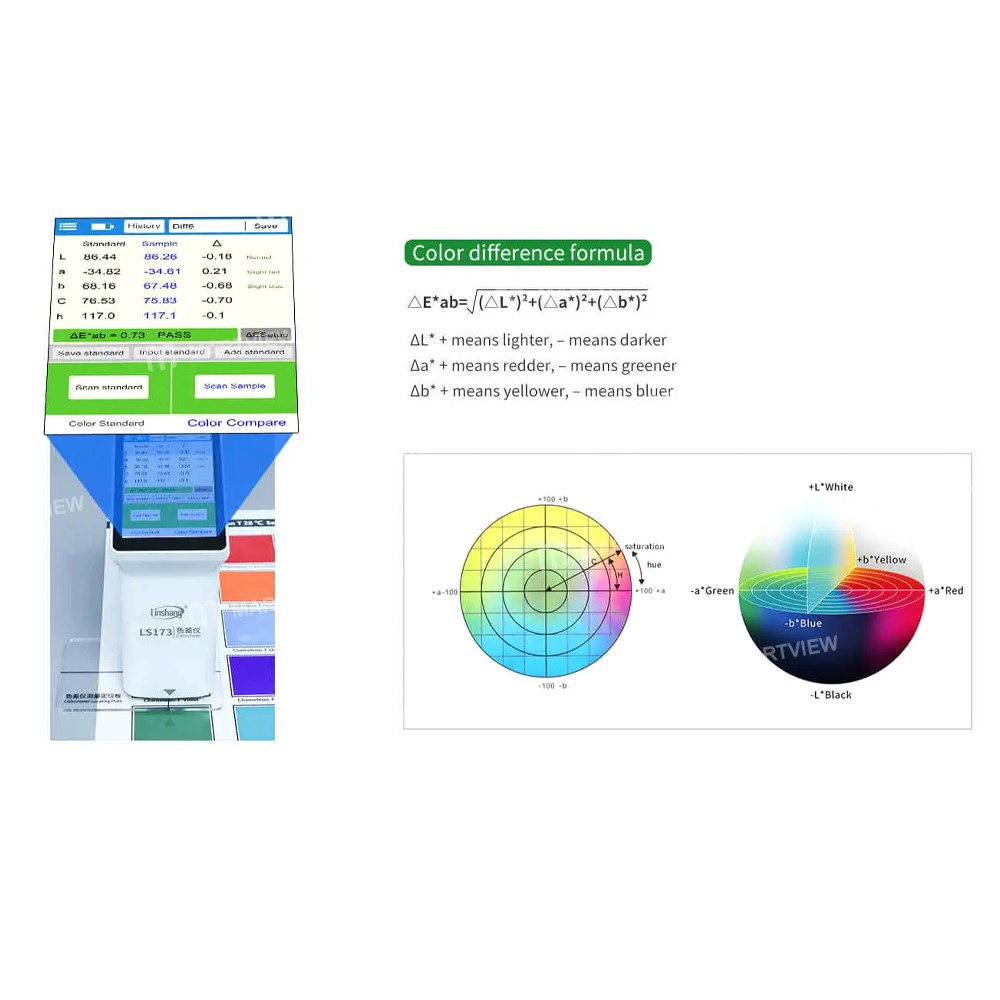

• Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

• Repeatability: Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

• Dimension: 86*62.5*158mm

• Weight: About 245g

• Power supply: Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 times continuously under full charge

• Display: 480×320 dot matrix IPS color screen

• Language: Simplified Chinese, English

• Charging port: USB (Type-C)

• Operating temperature range: 0~45℃, 0~85%RH (no condensation)

• Storage temperature range: -25~55℃, 0~85%RH (no condensation)

Package includes:

• 1 x Colorimeter
