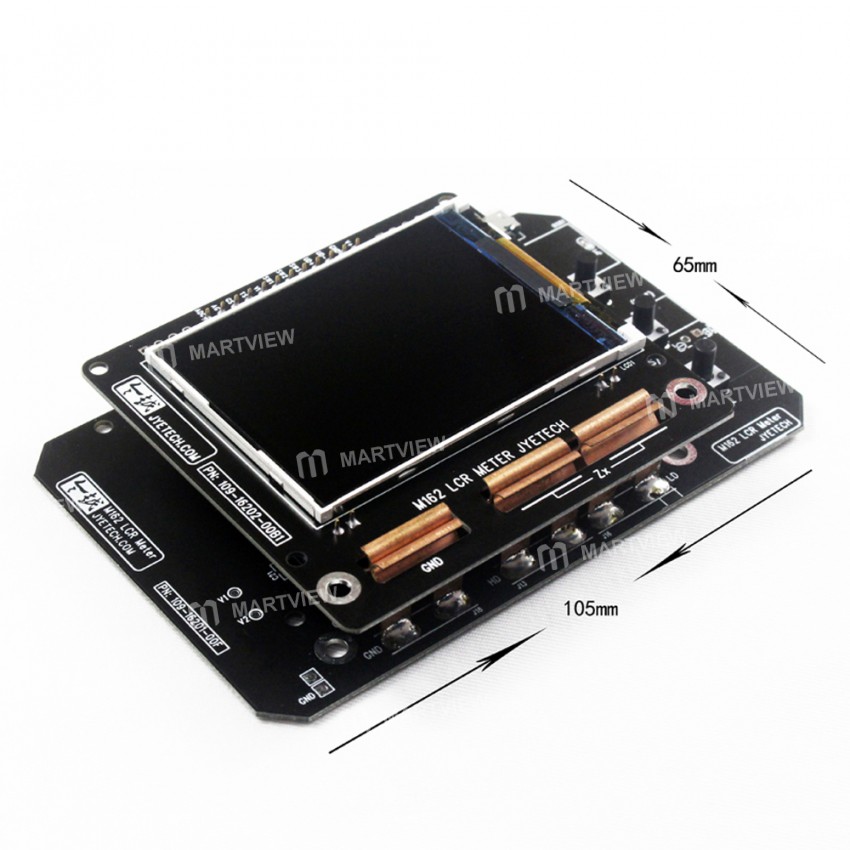

M162 High Precision LCR Meter Module DIY Kit for Resistor / Capacitor / Inductor Test

M162 High Precision LCR Meter Module DIY Kit for Resistor/Capacitor/Inductor Test

This product is not welded, only all parts are provided, and it needs to be welded by yourself. If you can't weld, please purchase with caution!!!

Features:

• The M162 LCR meter is a great complementary tool for most multi-meters

• Regular multi-meters are good in any way, but they usually have rather limited or even no ability for capacitance, inductance, and sub-ohm resistance measurement, the addition of an M162 LCR meter will overcome this deficiency

• The DIY kit version of M162 is very easy to build, no special calibration is required to achieve ~1% accuracy.

• Name: M162 LCR meter

• Resistance range: 0.1ohm~20M ohm

• Capacitance range: 1pF~20mF

• Inductance range: 1uH~20KH

• Fully automatic ranging

• Accuracy: About 1%

• Measurement Conditions

• Test Frequency: 100Hz, 1KHz

• Open Voltage: 0.5Vpp

• Measurement Connections: 4 Kelvin wires on the test terminals

• Ranging: Fully automatic

• Compensations: Open, Short

• Serial Data Output: Yes

• Power Supply: USB or battery

• Power Consumption: <100mA/5V

Package includes:

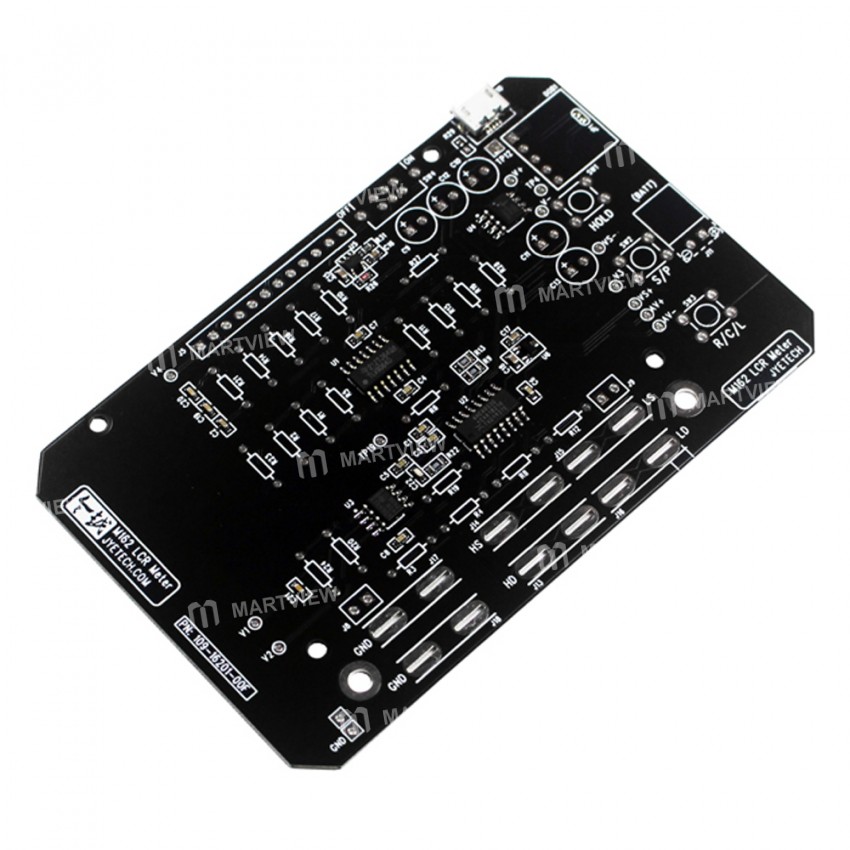

• 1 x M162 LCR meter DIY kit

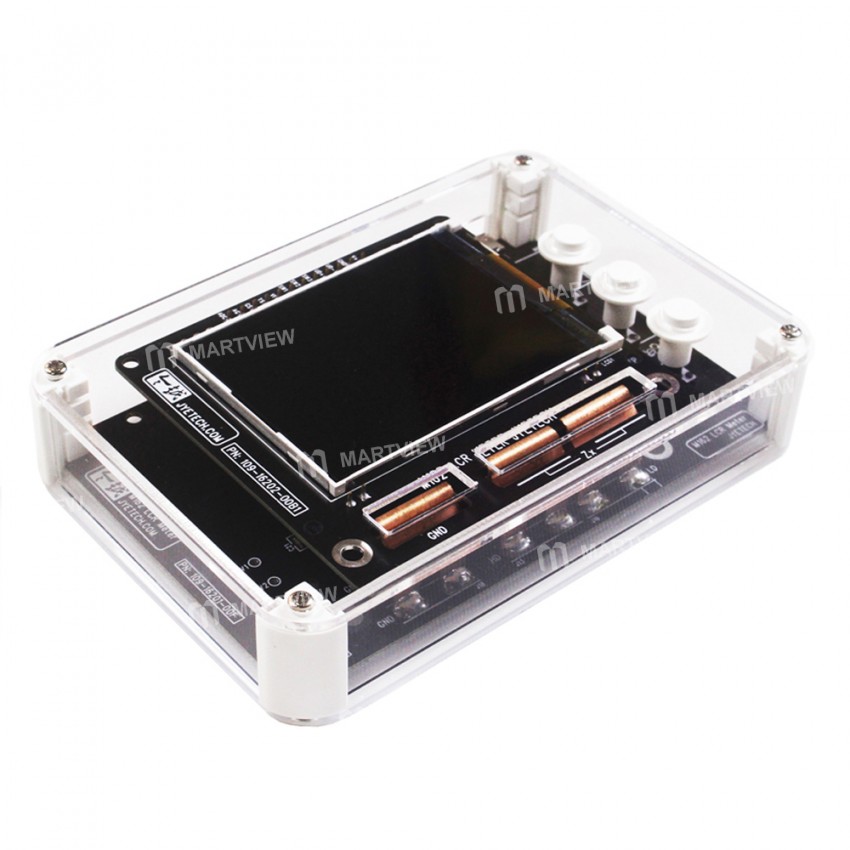

• 1 x Acrylic enclosure set(Optional)
