MaAnt R65 Sky Eye 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Base

MaAnt R65 Sky Eye 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Base

Features:

• MaAnt R65 unimaginably clear trinocular stereo microscope, can mount CCD camera, meet any job needs, work no longer worry

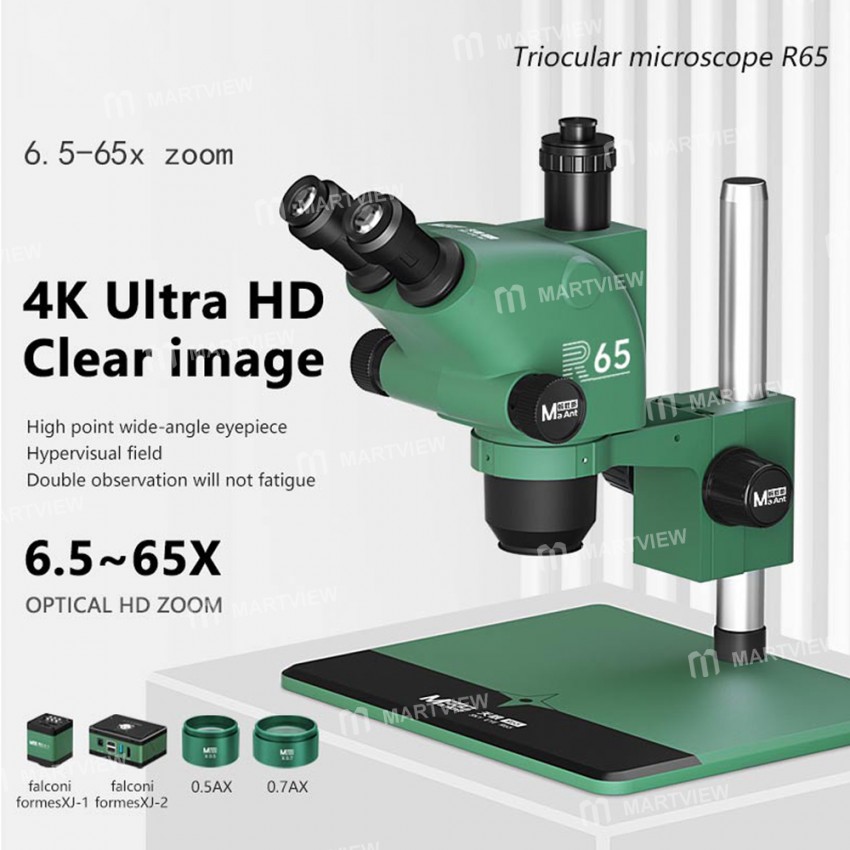

• High point wide-angle eyepiece adjustable, rotation adjustment factor 6.5~65X continuously adjustable

• Large aperture wider field of view, hypervisual field, and double observation will not fatigue

• 6.5-65 times, no power adjustment, fine-tuning knob by magnification, accurately grasp the required multiple, control the objective of 0.65-6.5 times to double

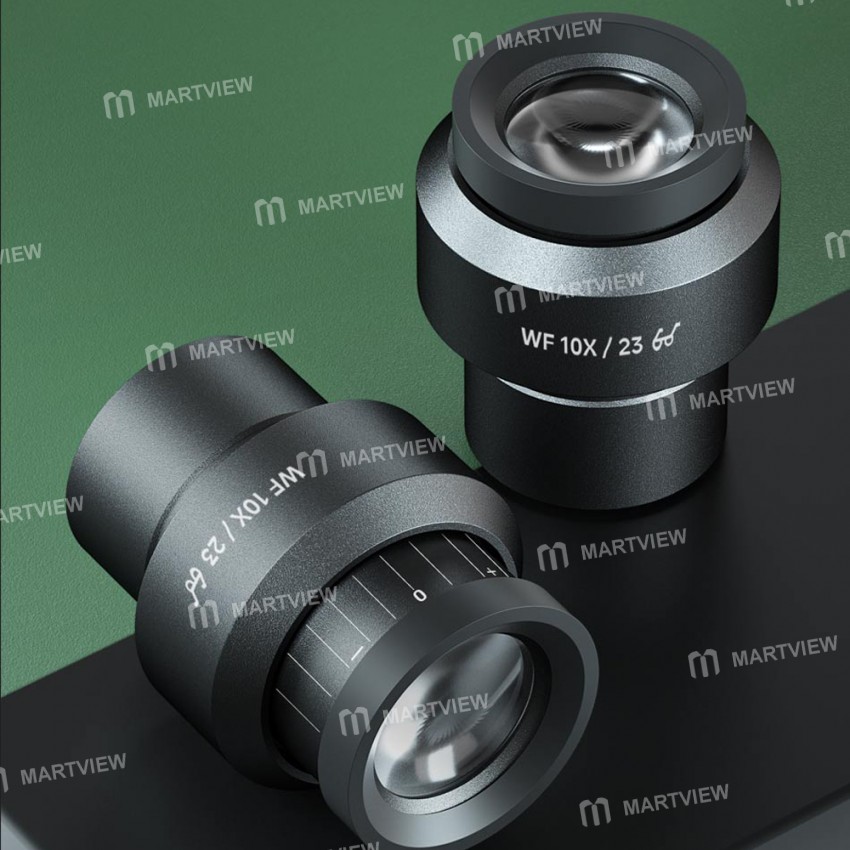

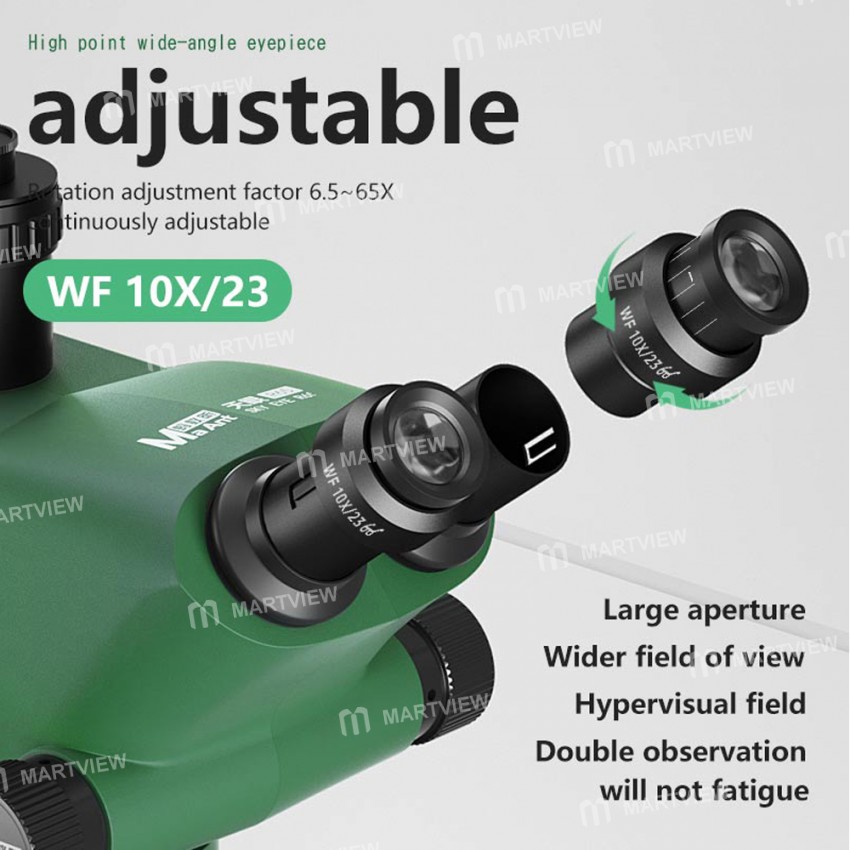

• Large aperture wide-angle eyepiece, WF10X/23 adjustable large field eyepiece, high eye point wide-angle eyepiece, large field of view, observation without fatigue

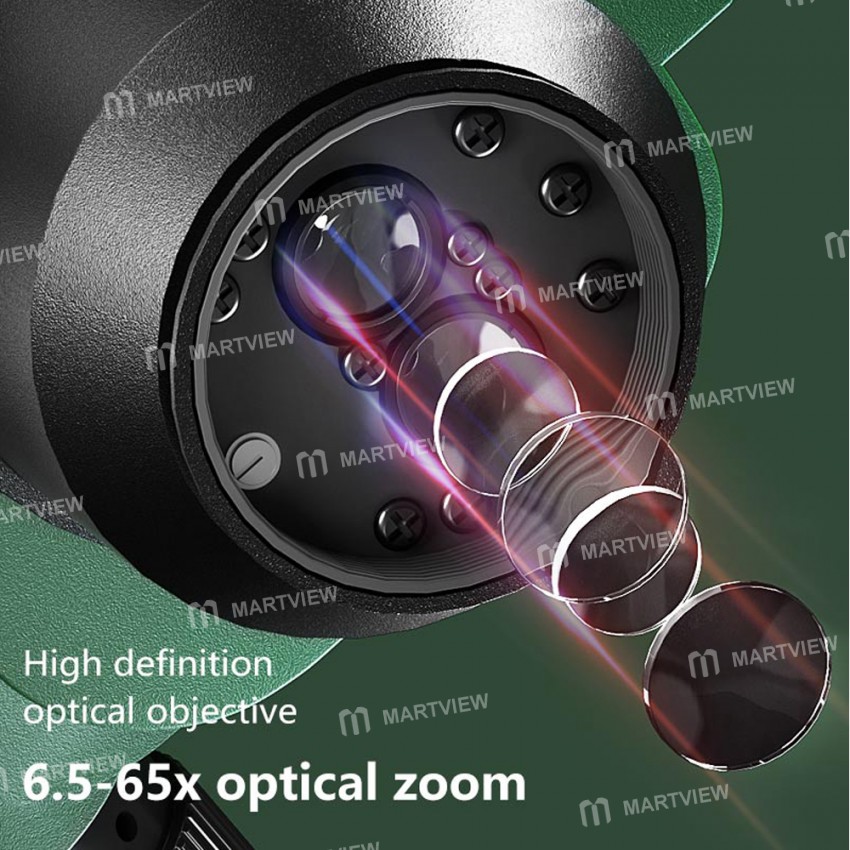

• High definition optical objective 6.5-65X optical zoom, large aperture, 18mm large lens, 4 layers of coating

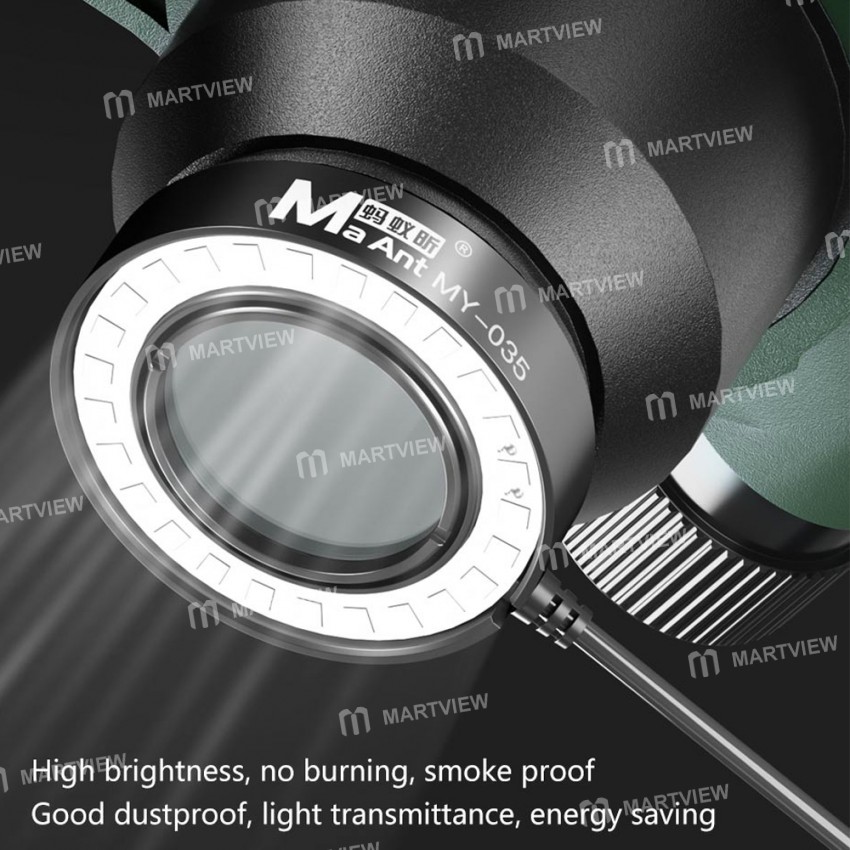

• Dustproof mirror light source 26 strong LEDs, adjustable lamp bead, with LED light, adjustable brightness, knob adjustment, easy-to-operate

• High brightness, no burning, smoke-proof, good dustproof, light transmittance, energy saving

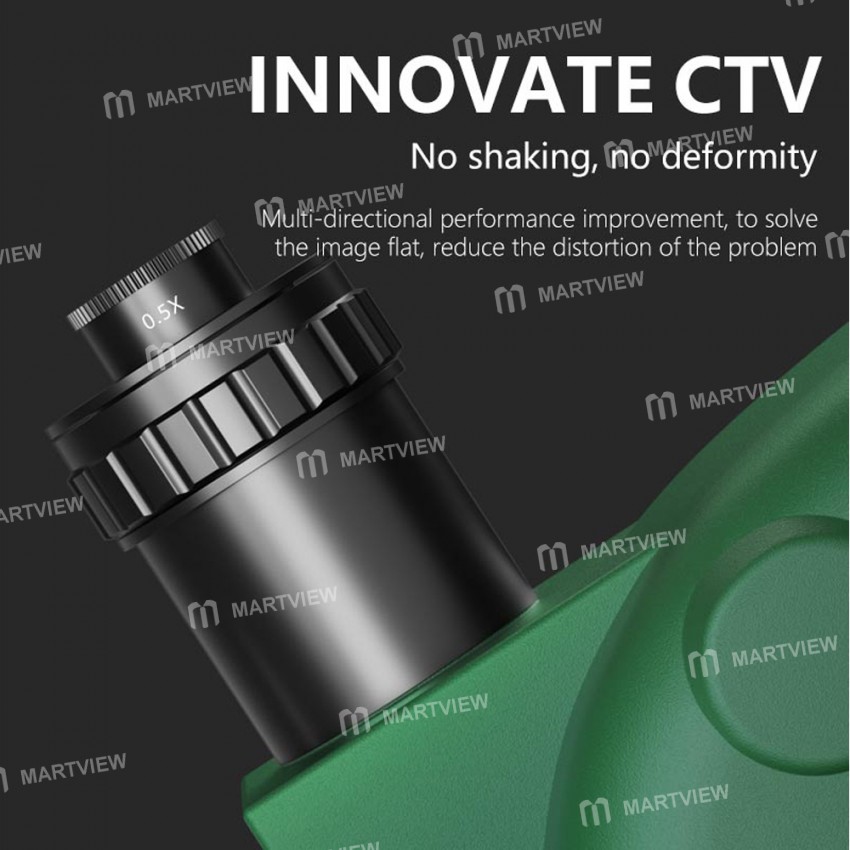

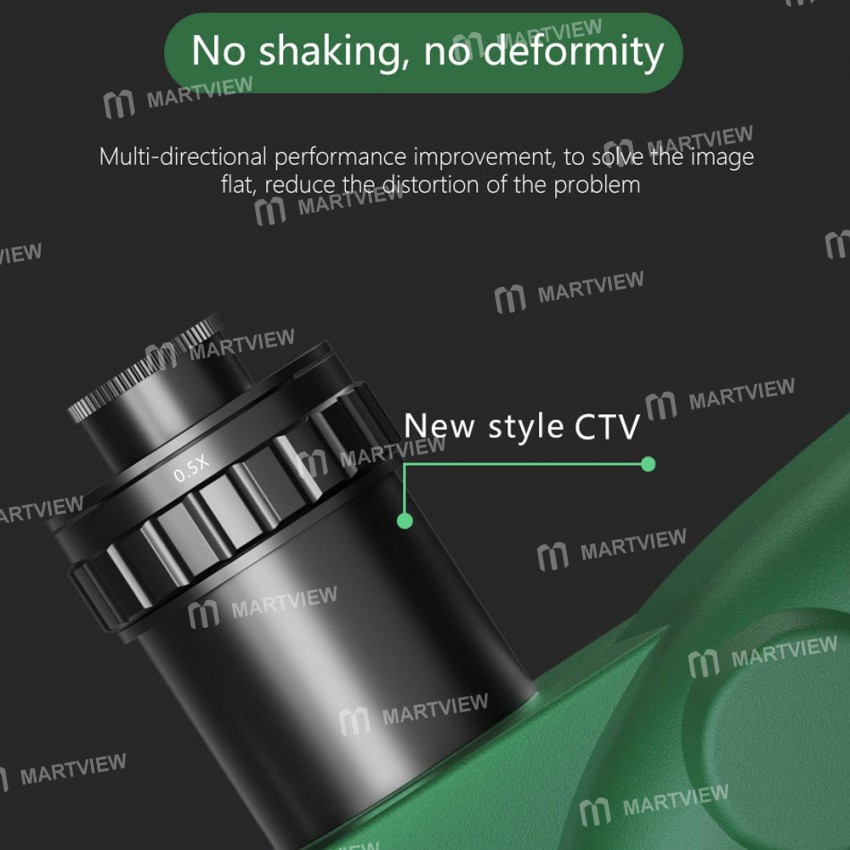

• Innovate CTV, no shaking, no deformity, multi-directional performance improvement, to solve the image flat, reduce the distortion of the problem

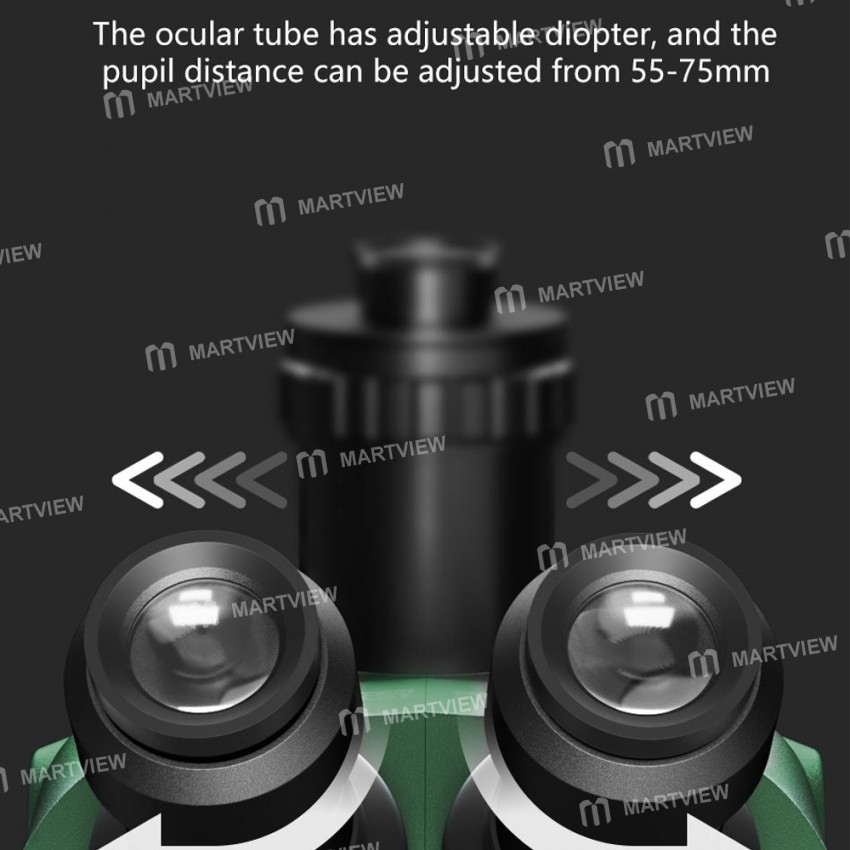

• The eyepiece diopter is adjustable, visibility is adjustable, the ocular tube has an adjustable diopter, and the pupil distance can be adjusted from 55-75mm

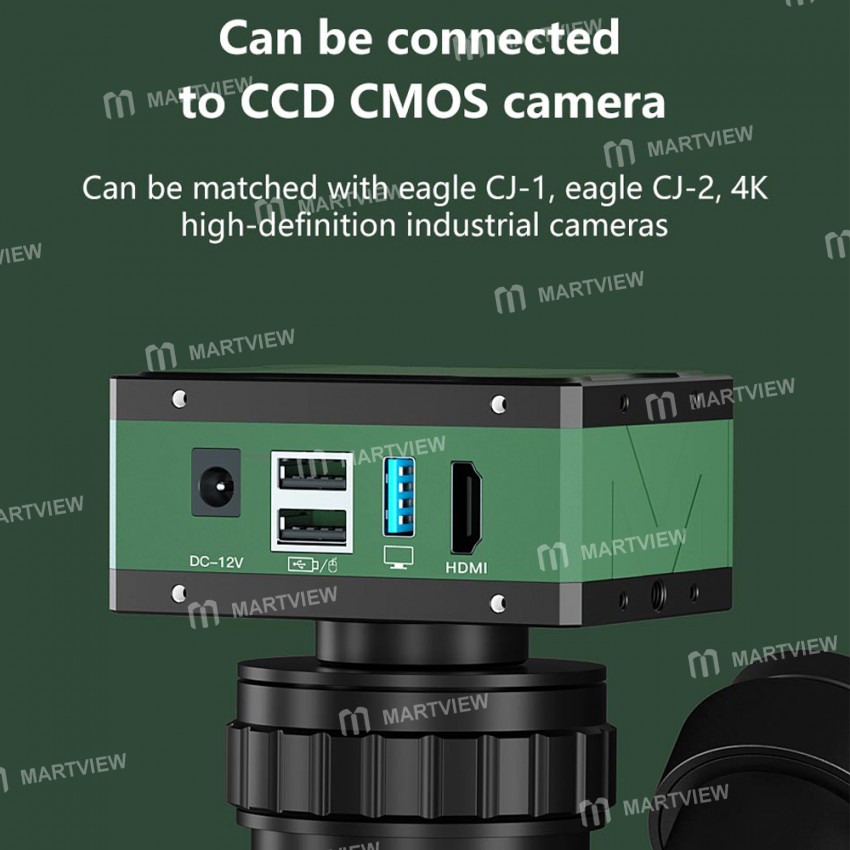

• 4K HD camera, can be connected to CCD CMOS camera, can be matched with eagle CJ-1, eagle CJ-2, 4K high-definition industrial cameras

• 4K precision measurement, three eyes synchronous HD display microcosm eye observation and screen display synchronous observation, picture clear and sharp detail

Specifications:
Lens:

• Brand: MAANT

• Model number: The Eye of Heaven R65

• Optical magnification: 6.5-65X Continuously adjustable

• Main objective magnification: 0.65X-6.5X

• Zoom ratio: 1:10

• Eyepiece magnification: WF10X/23 Adjustable large field eyepiece

• Working distance: Approx.100mm

• Port: Synchronous bayonet

Support:

• Focusing mechanism: The focusing hand wheel is elastic and adjustable, and the lifting range is 50mm

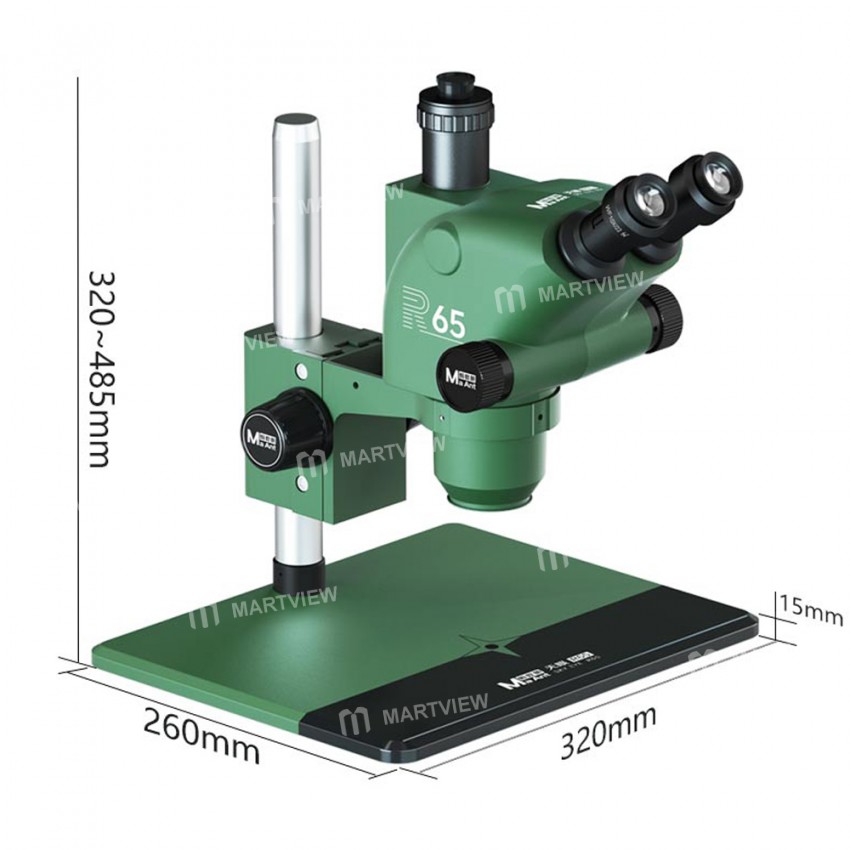

• Base column: The column height is 330mm

• Floor size: 320*260*15mm

• Viewing head: 45-degree tilt, hinged times

• Interpupillary range: 52mm-75mm

• Lighting mode: 26 Lamp bead LED adjustable light source

• Net weight: 4.4kg

• Product size: 380*320*260mm

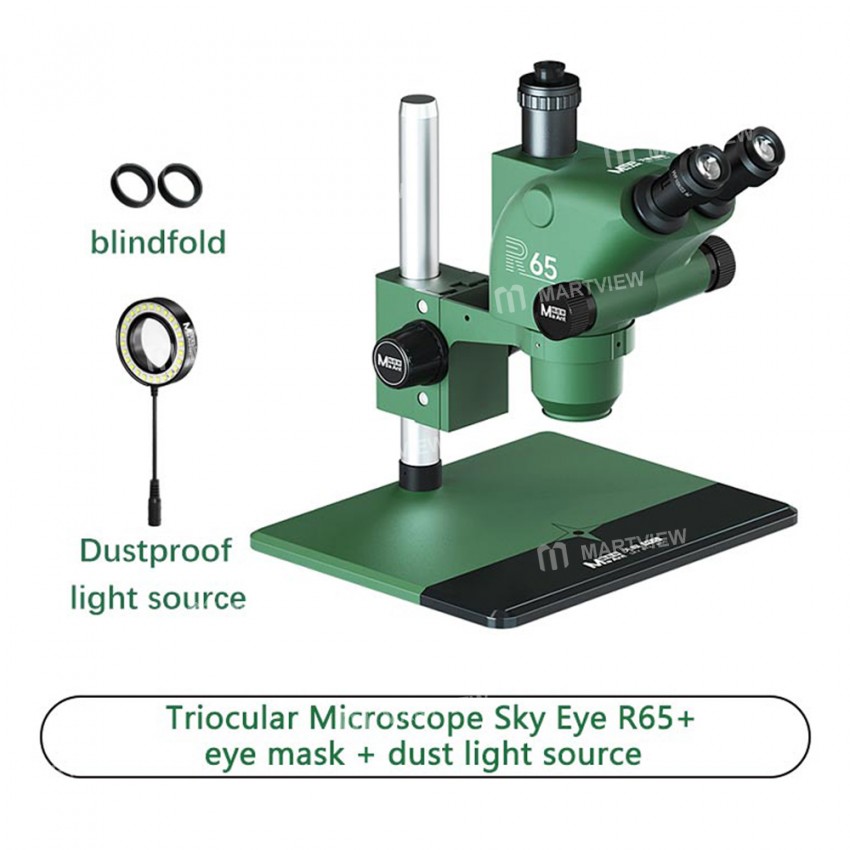

Package includes:

• 1 x Microscope

• 1 x Focus Bracket

• 1 x Pillar

• 1 x Base

• 2 x Eyepiece

• 1 x Dustproof Lens

• 1 x 0.5X CTV Lens

• 1 x Ring Light
