MaAnt RC-3 3D Infrared Thermal Imager Short Circuit Thermometer for Motherboard Repair

MaAnt RC-3 3D Infrared Thermal Imager Short Circuit Thermometer for Motherboard Repair
Features:

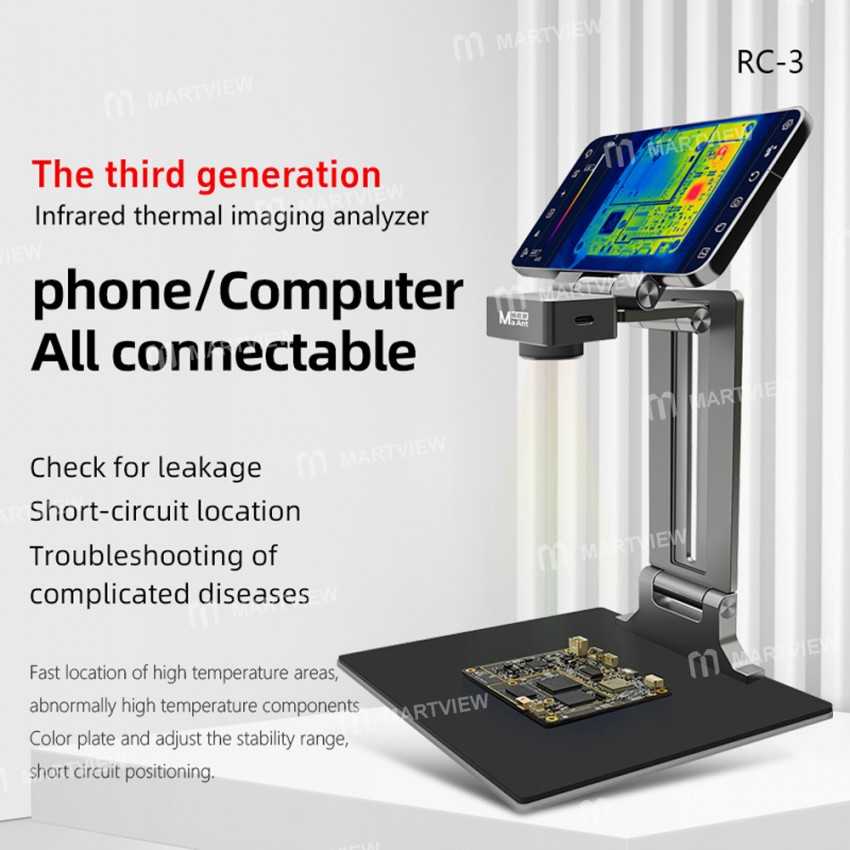

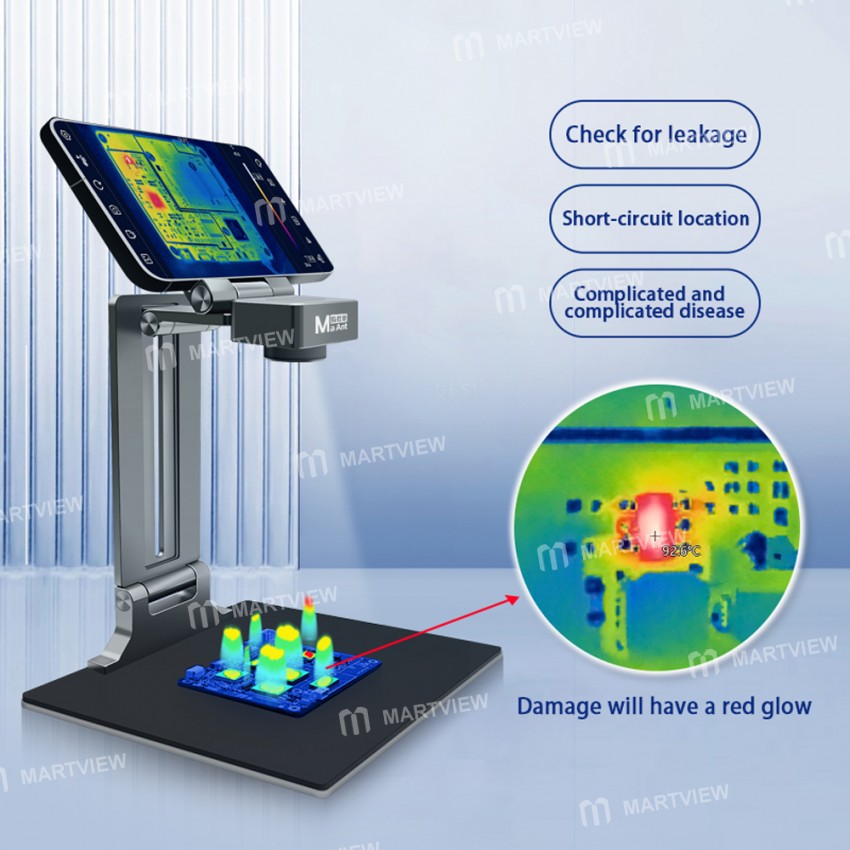

• Ultra clear detail, panoramic view, the third generation infrared thermal imaging analyzer, check for leakage, short-circuit location, complicated and complicated disease

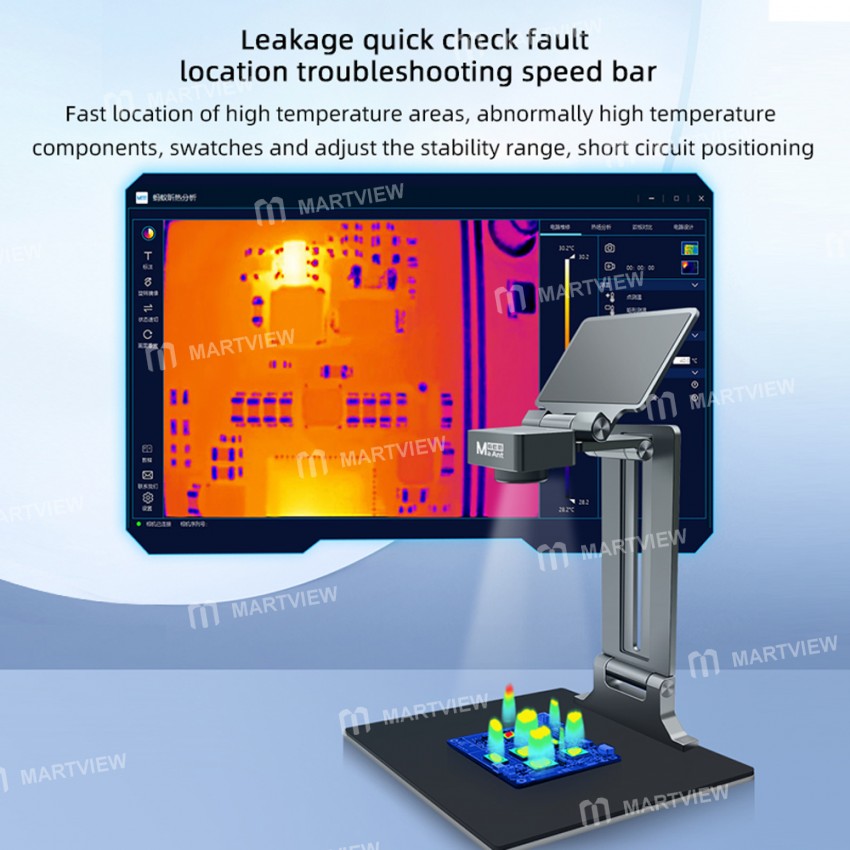

• A quick check of leakage, open circuit positioning, difficult speed rower, fast location of high-temperature areas, abnormally, high-temperature components, color plate and adjust the stability range, short circuit positioning

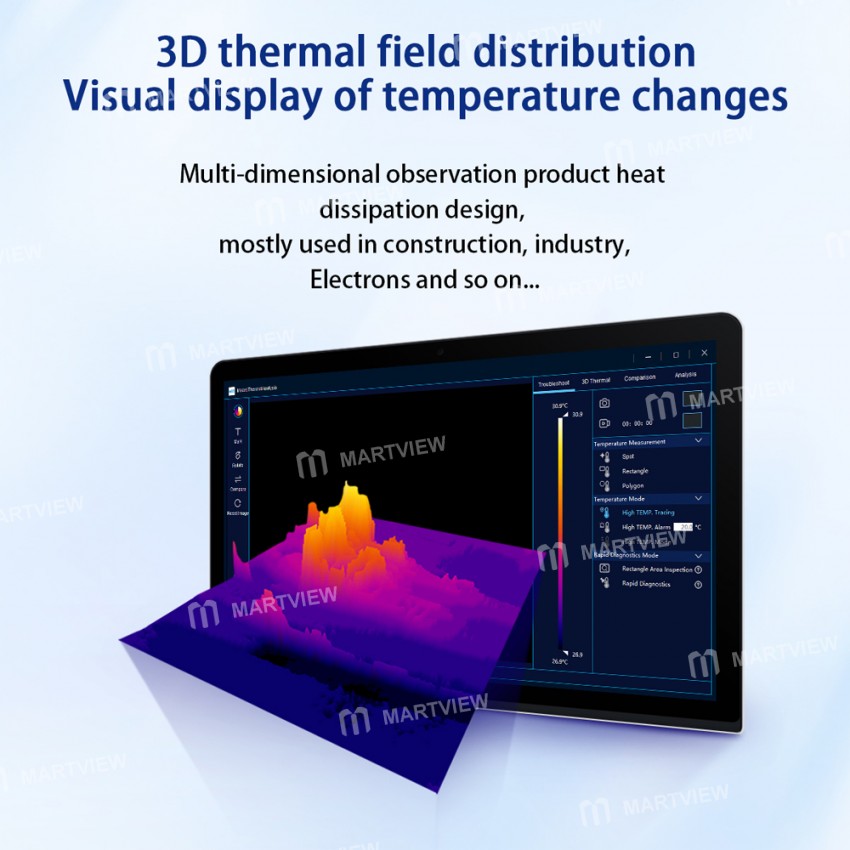

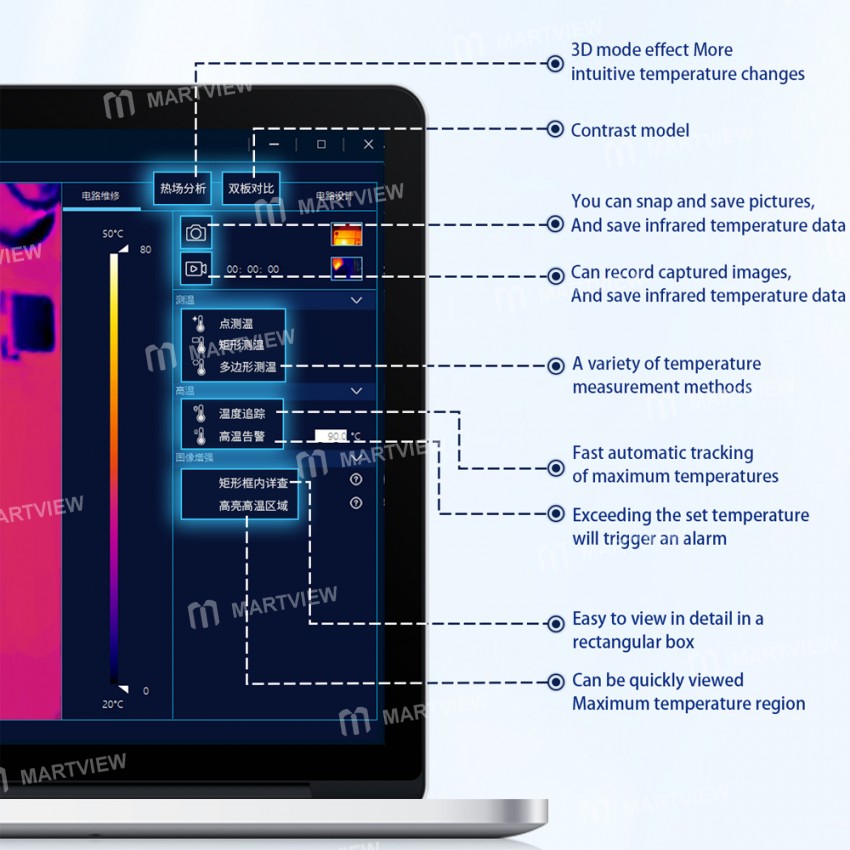

• 3D thermal field distribution, visual display of temperature changes, multi-dimensional observation product heat dissipation design, mostly used in construction, industry, electrons, and so on

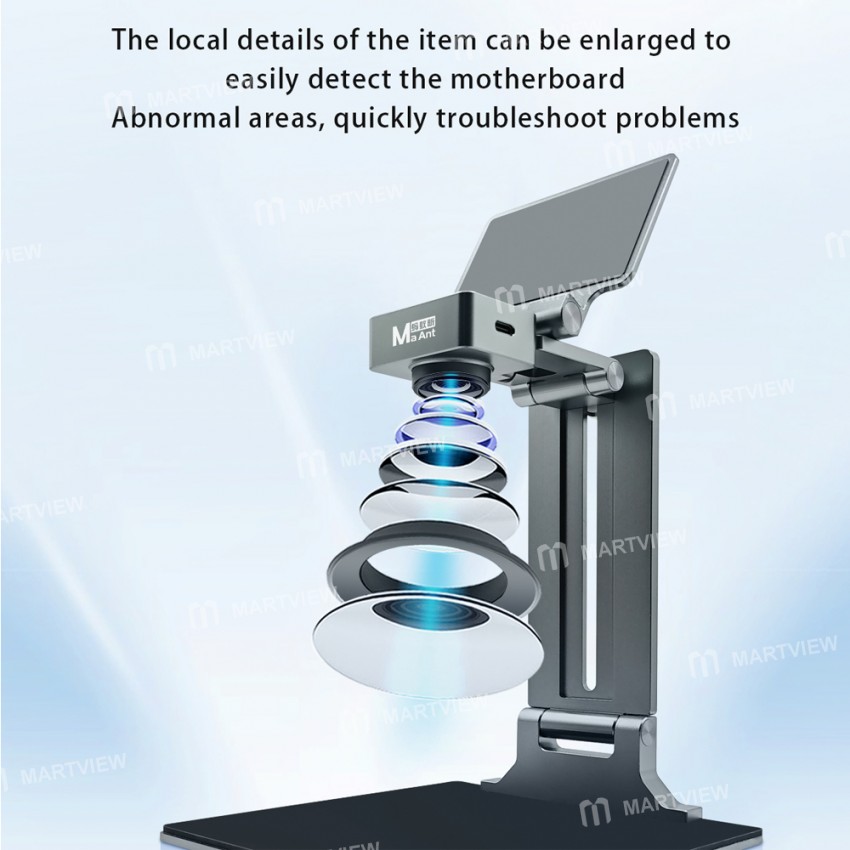

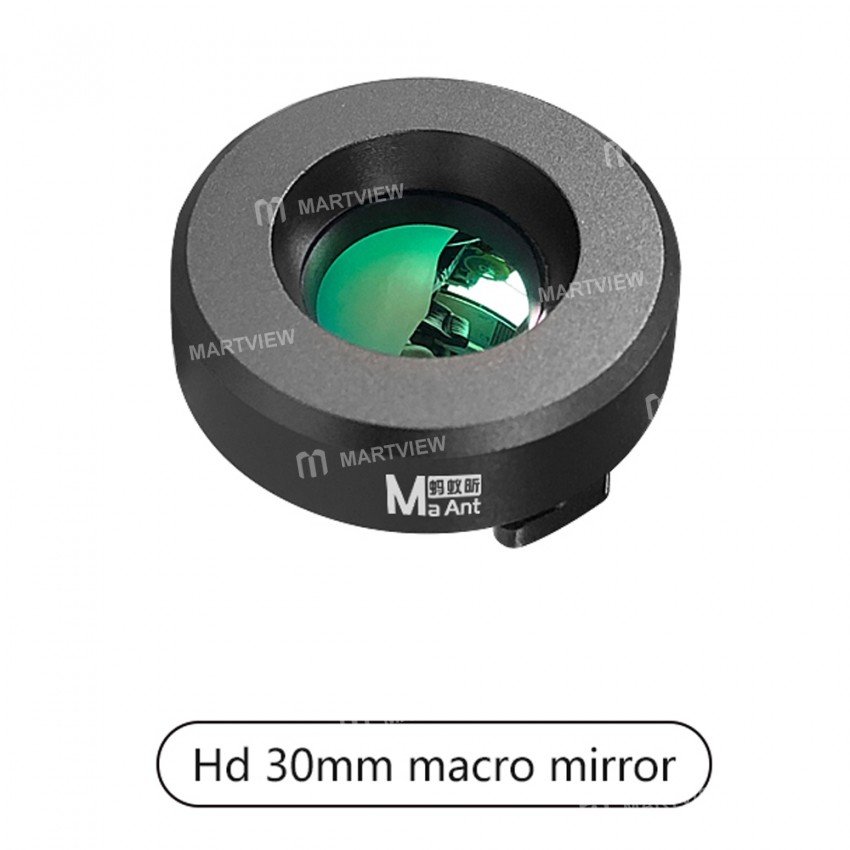

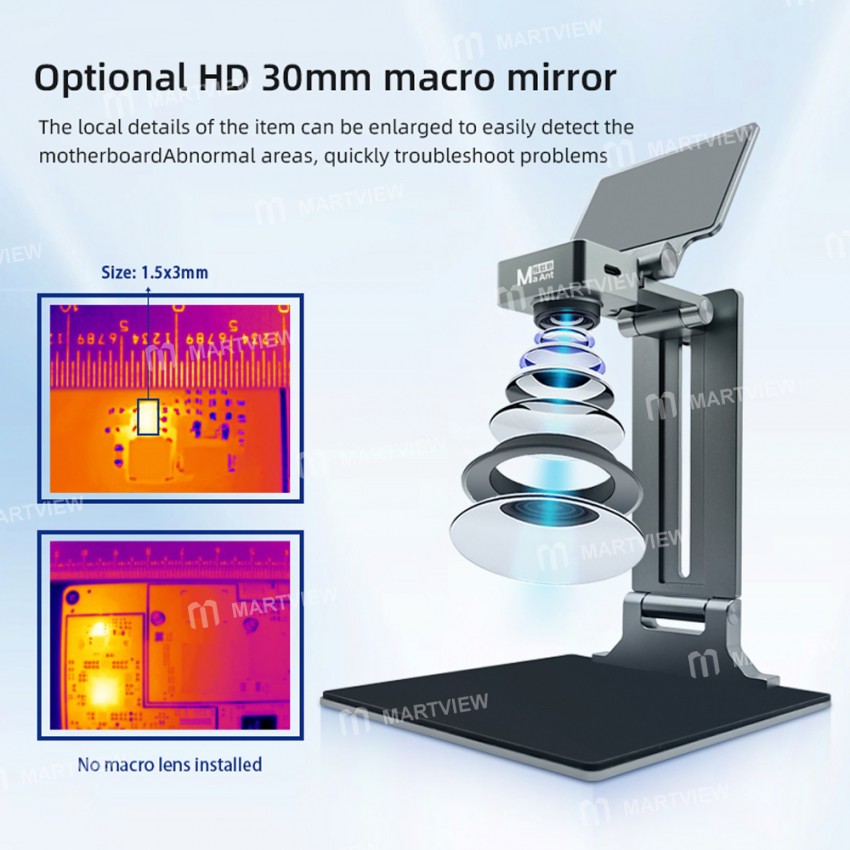

• Optional HD 30mm macro mirror, the local details of the item can be enlarged to easily detect the motherboard, abnormal areas, quickly troubleshoot problems

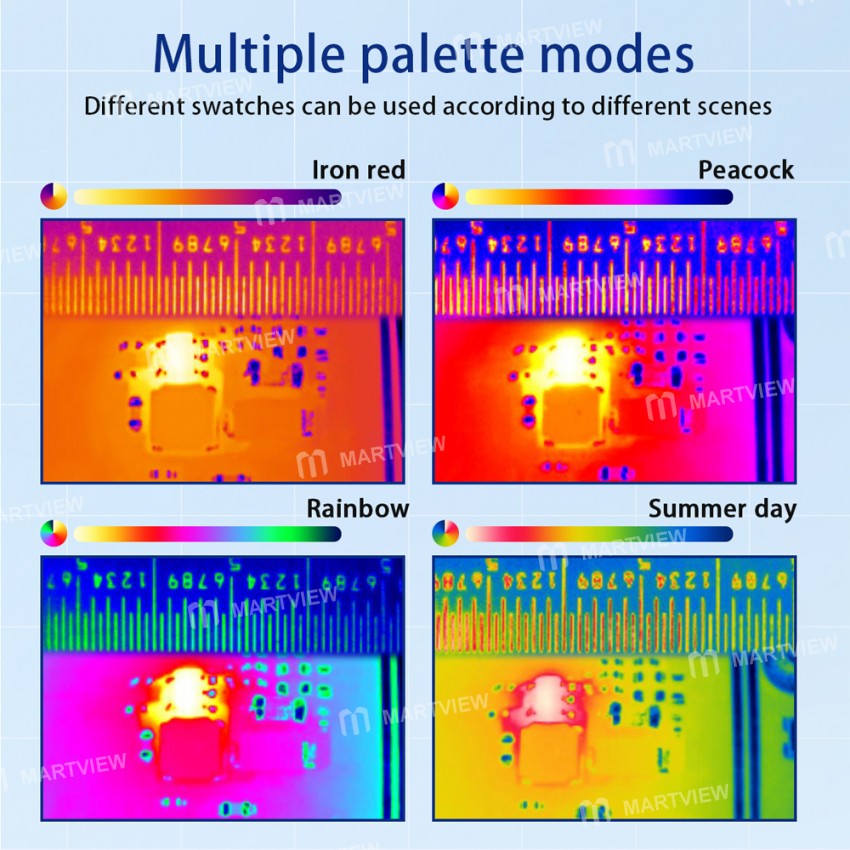

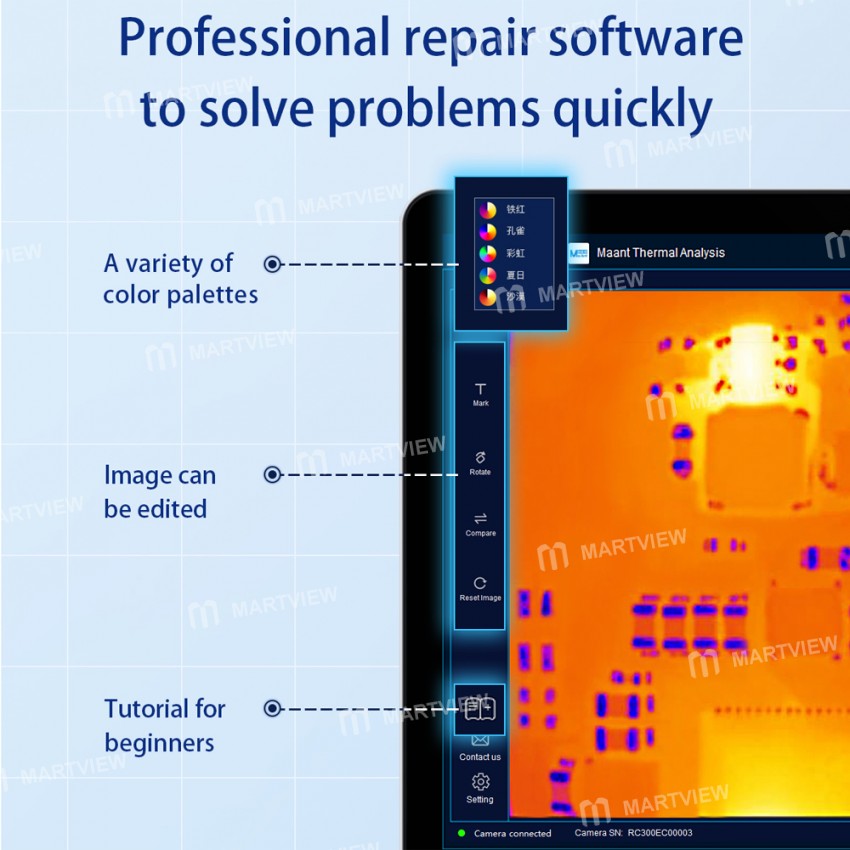

• Professional repair software to solve problems quickly, multiple palette modes, and different swatches can be used according to different scenes

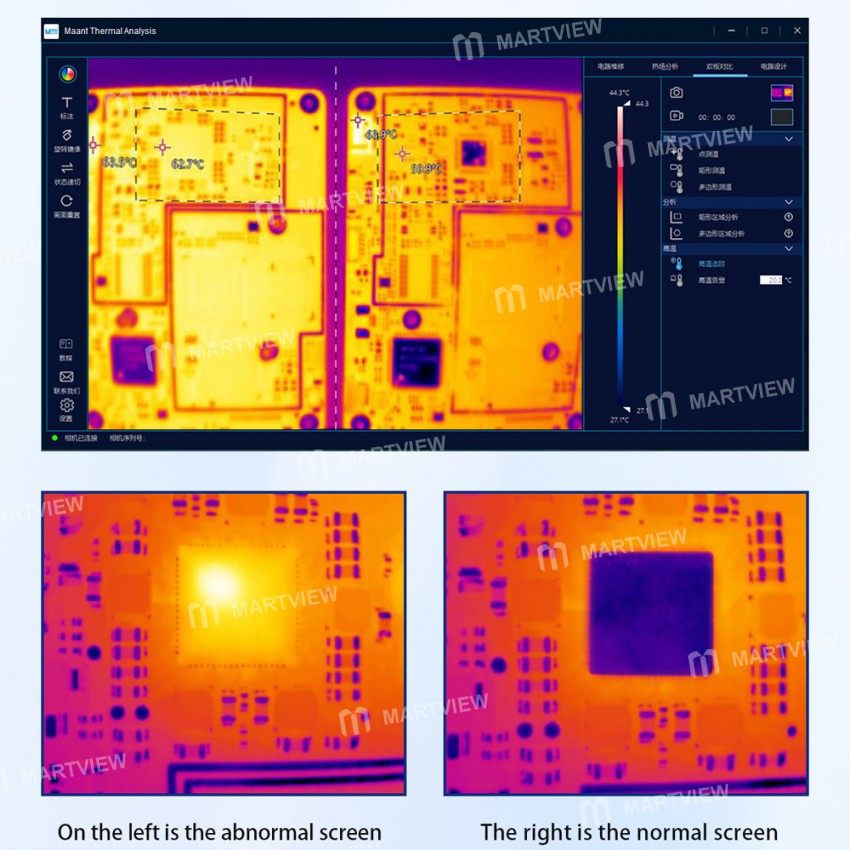

• Double board contrast mode, on both sides of the dividing line, put the items that need to be observed and compared and carry out comparative analysis under the same conditions

• In rectangular analysis mode, you can simultaneously watch the comparative analysis of regional temperatures

• Temperature range: Minimum temperature: -15℃; Maximum temperature: 600℃

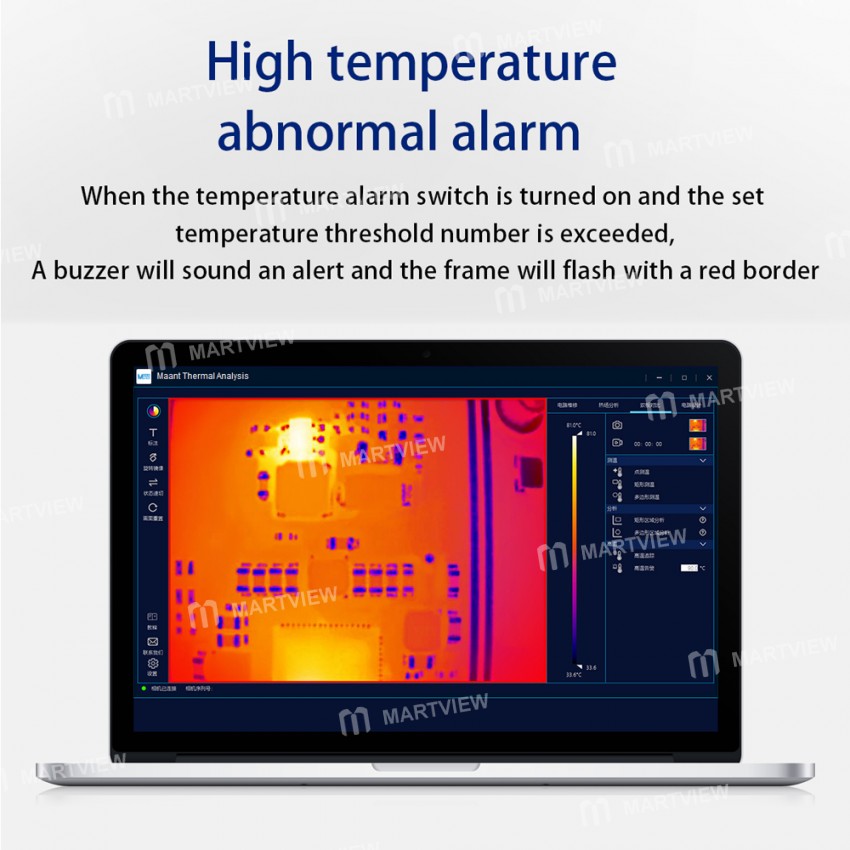

• High-temperature abnormal alarm, when the temperature alarm switch is turned on and the set the temperature threshold number is exceeded, a buzzer will sound an alert and the frame will flash with a red border

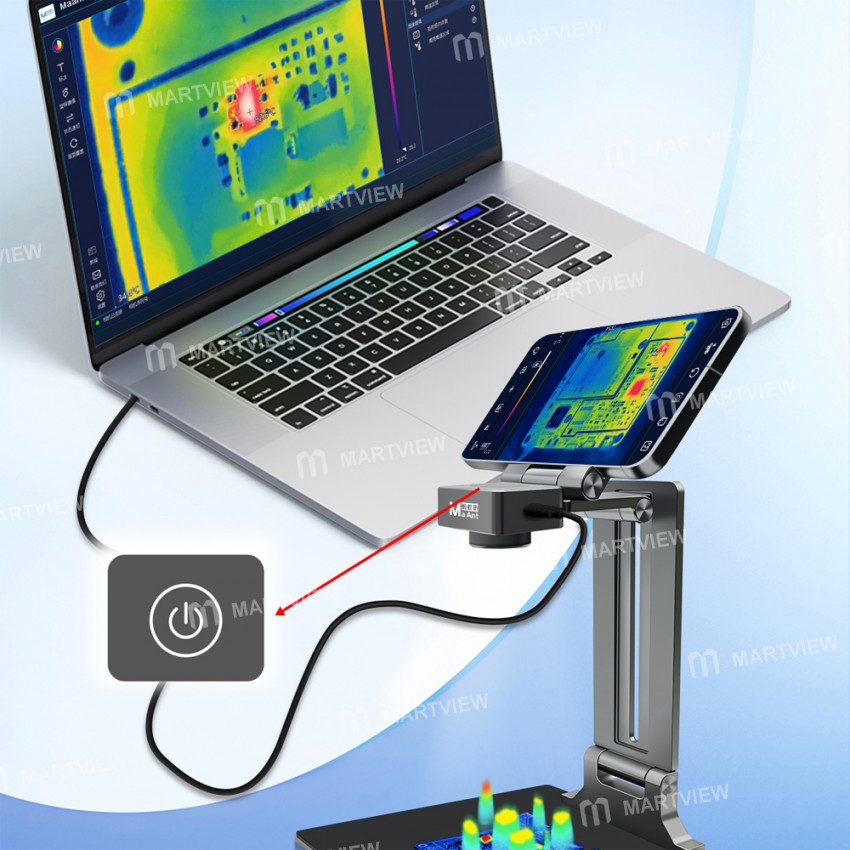

• Multi-platform applications are powered on with one key, after opening the software, connect the infrared thermal imaging to the computer via a USB cable

• Press the top power button, and the software interface will appear infrared effect, can support Win10 and above systems and mobile phone Android terminal

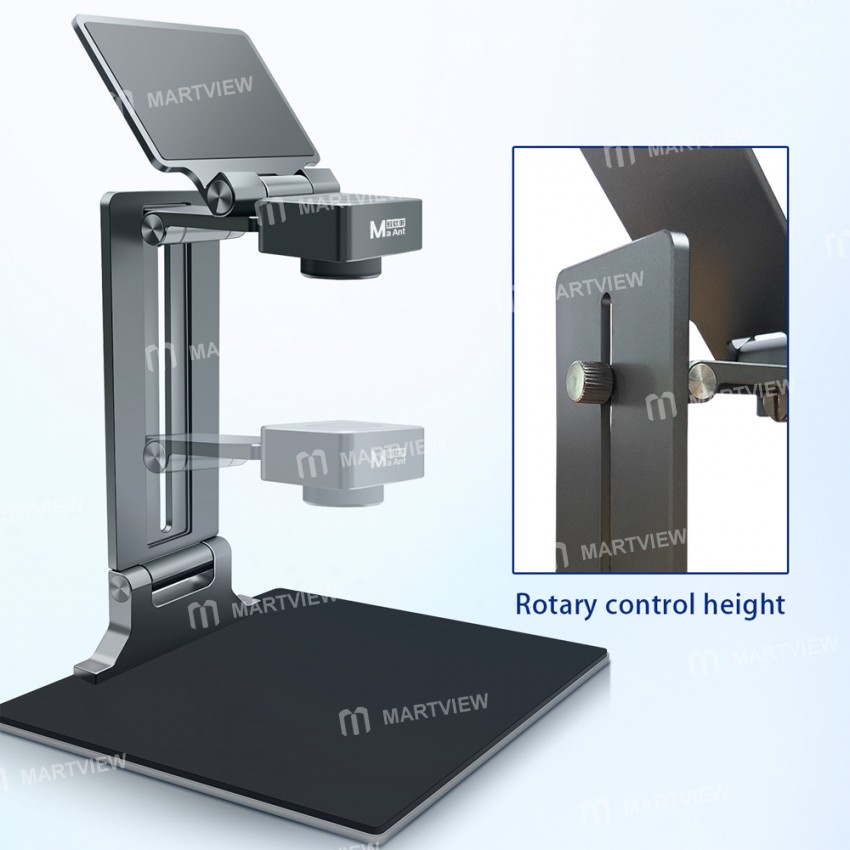

• Adjustable lens height, the position can be quickly adjusted according to the needs of the item, observe objects in detail from zero distance

• Packing details, carefully packaged, gives you a better experience, paying attention to every detail is our attitude

Specification:

• Brand: MaAnt

• Product name: Infrared thermal imaging analyzer

• Resolution: 256*192

• Frame rate: 25Hz

• Lens Angle: 56°x42

• Temperature measurement distance: 3mm-15mm

• Device port: USB Type-C

• Input voltage: DC 5V

• Temperature range: -15°C~600°C (5°F~+1112°F)

• Storage temperature: -20°C~60°C

• Operating temperature: 0°C~50°C

• Net weight: 591g

• Product size: 150*150*230mm

• Package size: 204*204* 72mm

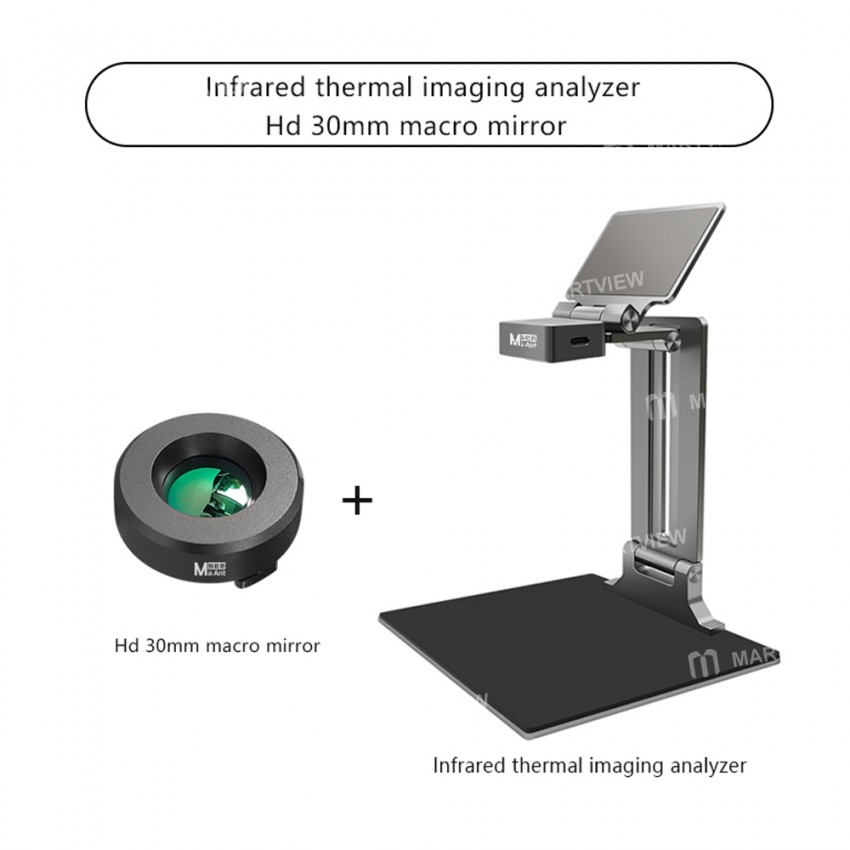

Package includes:

• 1 x Infrared Thermal Imager

• 1 x Macro Mirror (Optional)
