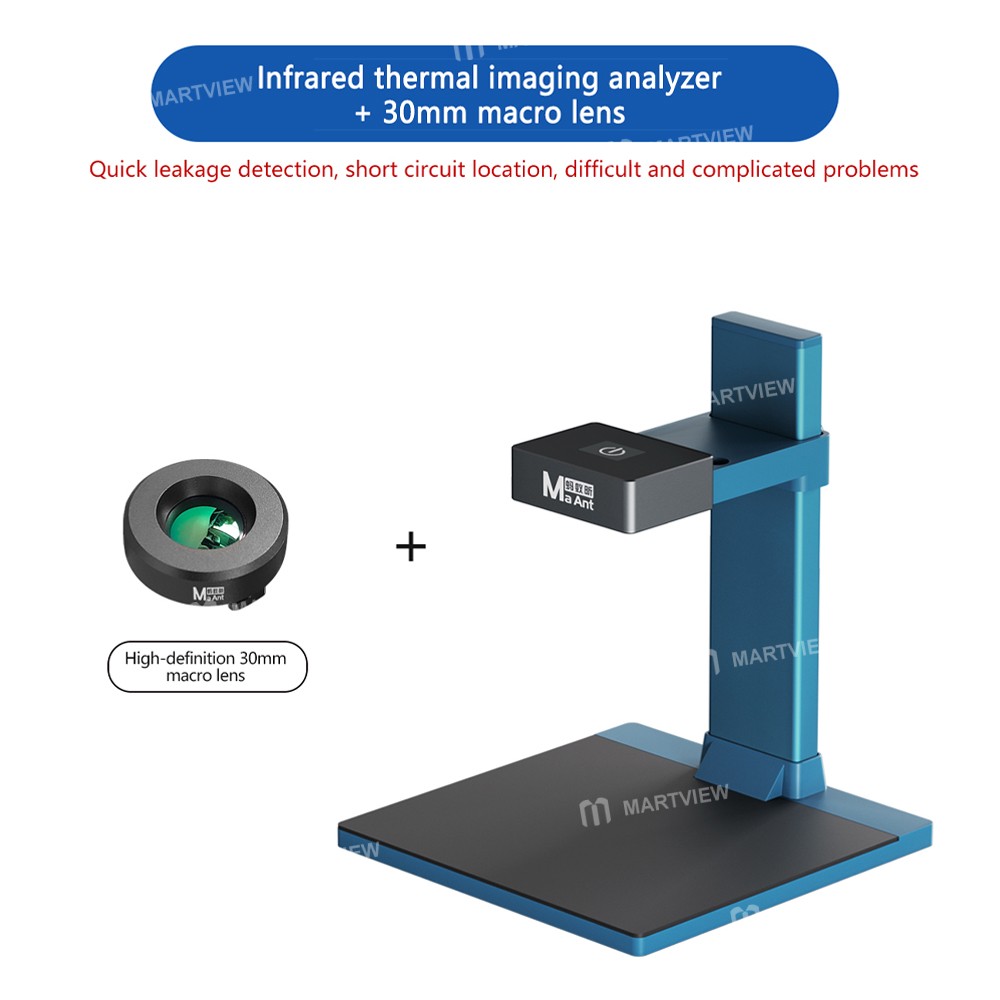

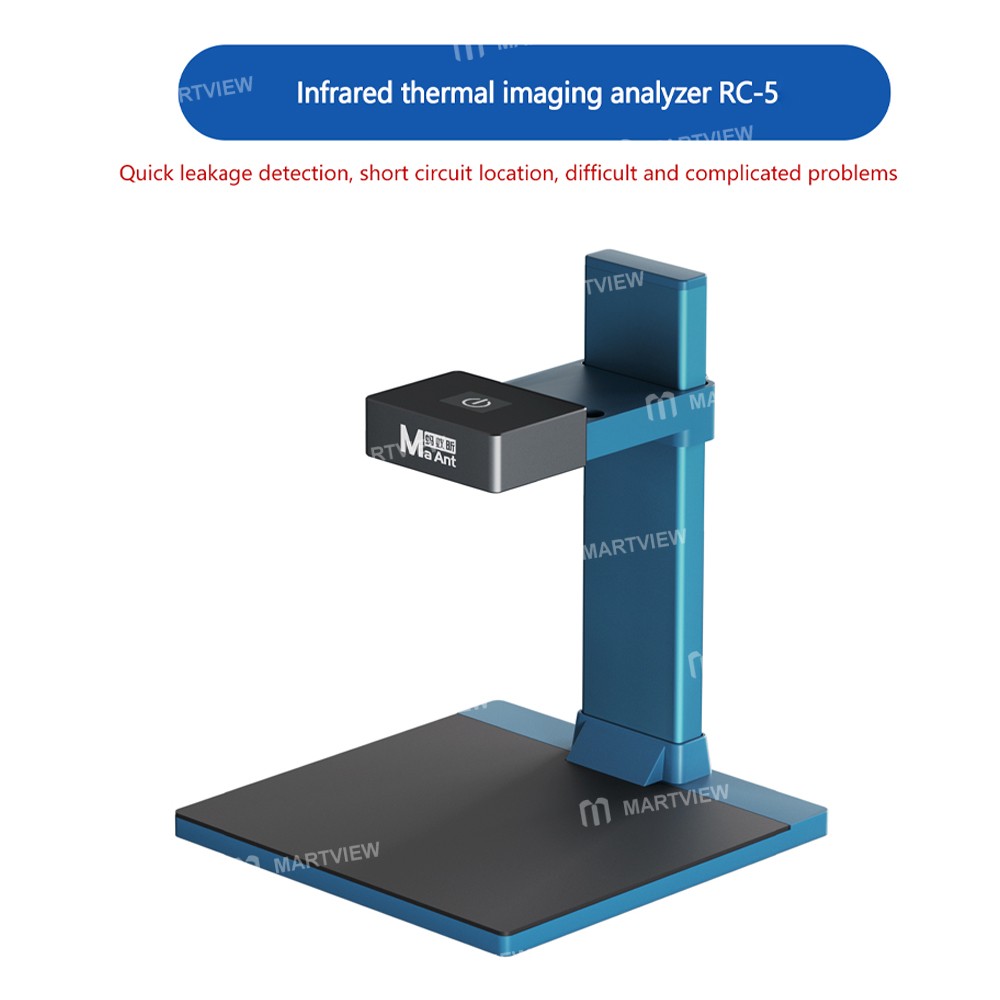

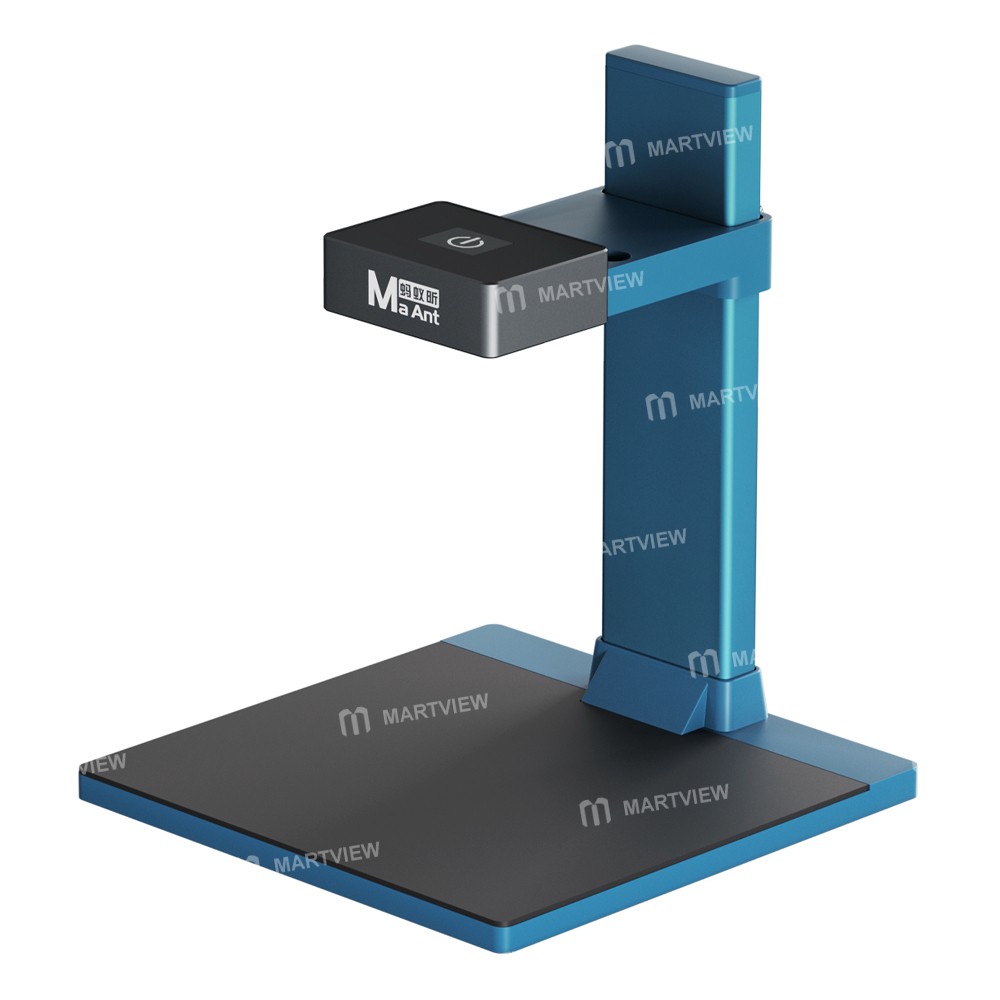

MaAnt RC-5 HD Display PCB Motherboard 3D Infrared Thermal Imaging Diagnosis Analyser

MaAnt RC-5 HD Display PCB Motherboard 3D Infrared Thermal Imaging Diagnosis Analyser

Features:

• Analysis of 3D thermal field distribution, flexible adjustment, and high-definition display

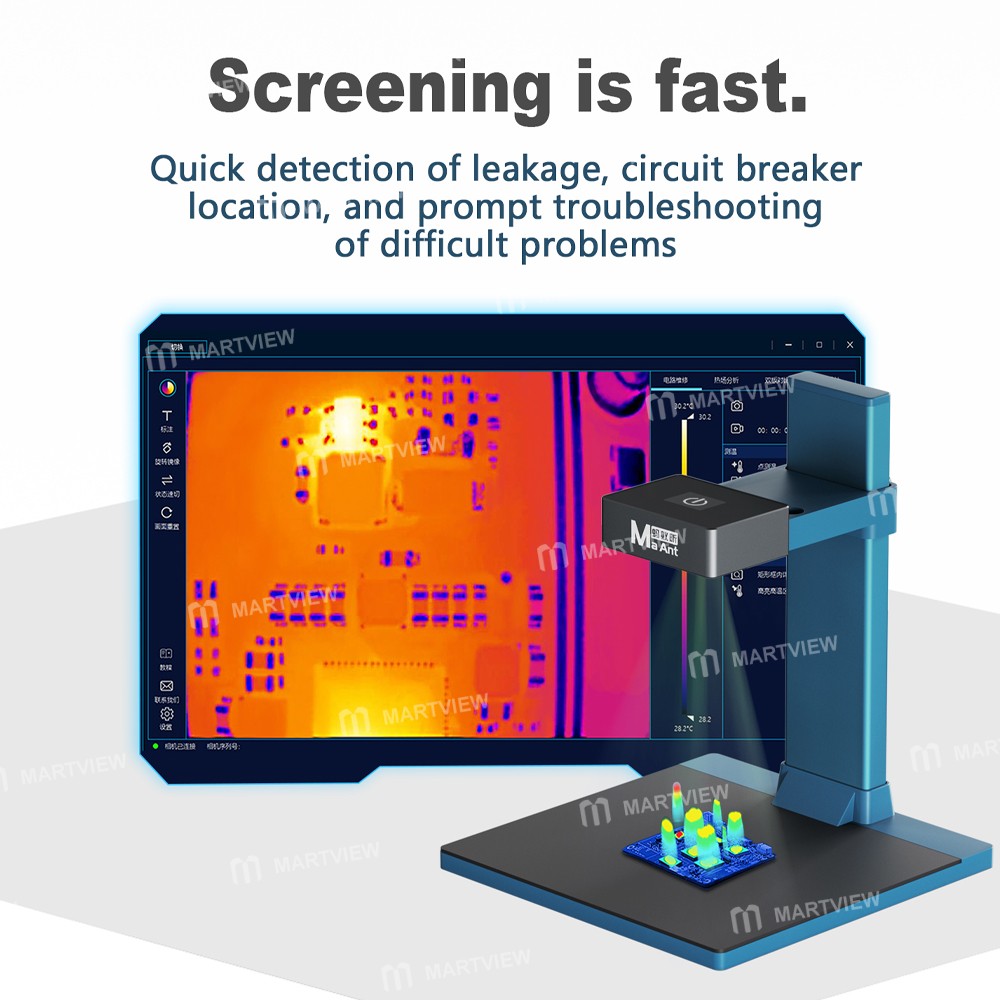

• Quick detection of leakage, circuit breaker location, and prompt troubleshooting of difficult problems

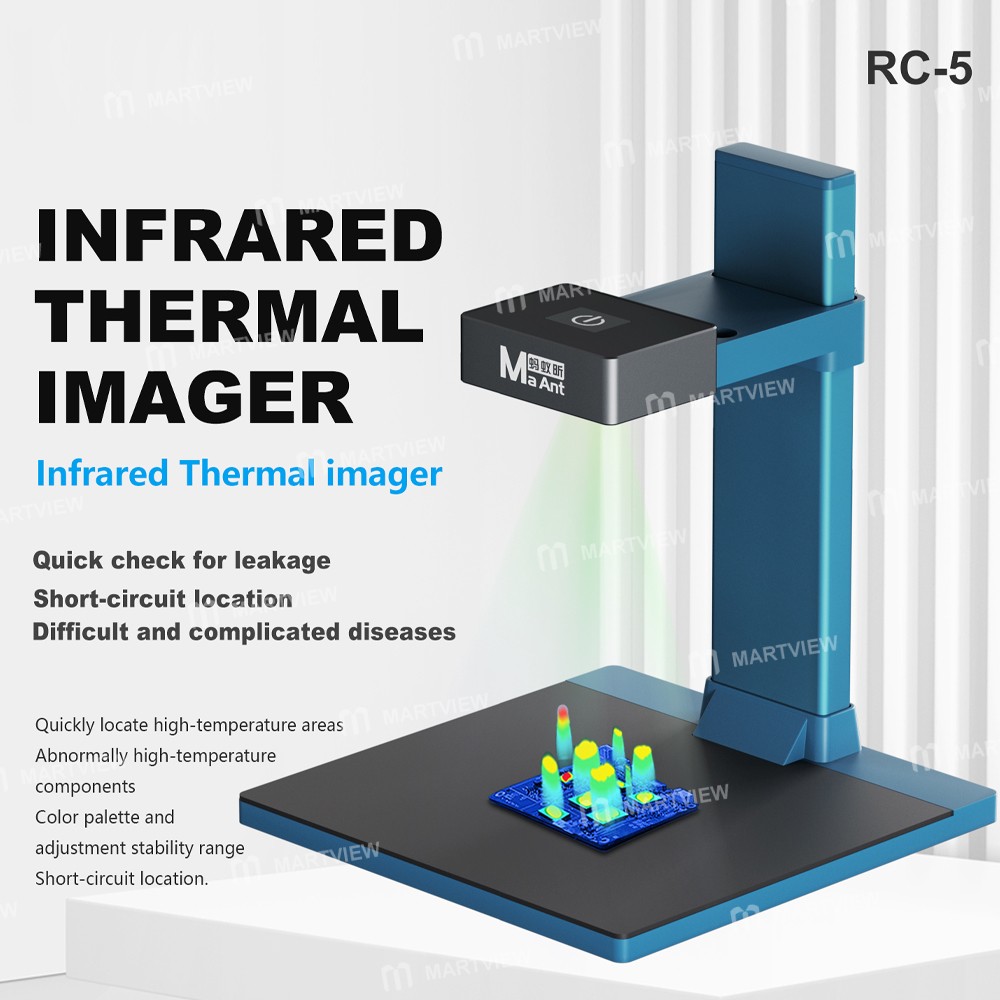

• Quickly locate high-temperature areas and abnormally high-temperature components, color palette, and adjustment stability range, and short circuit positioning

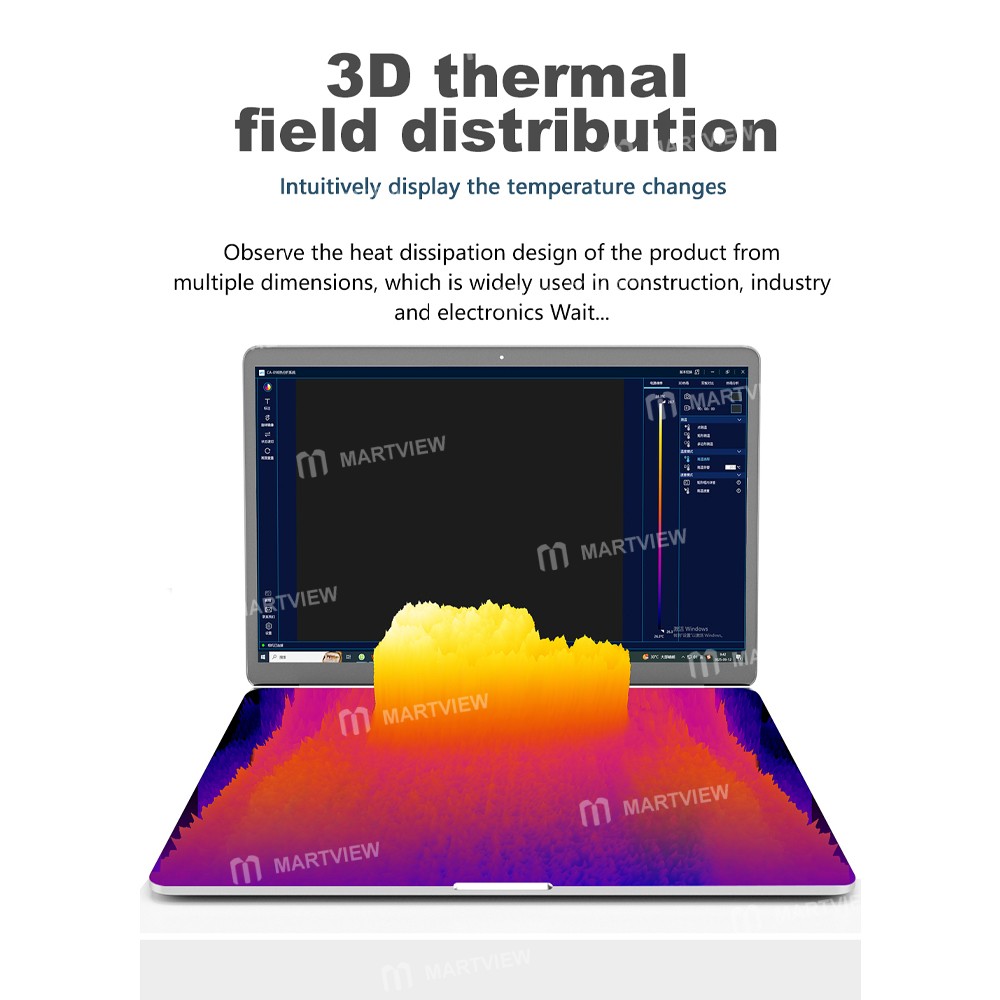

• 3D thermal field distribution intuitively displays the temperature changes, observe the heat dissipation design of the product from multiple dimensions, which is widely used in construction, industry, and electronics Wait...

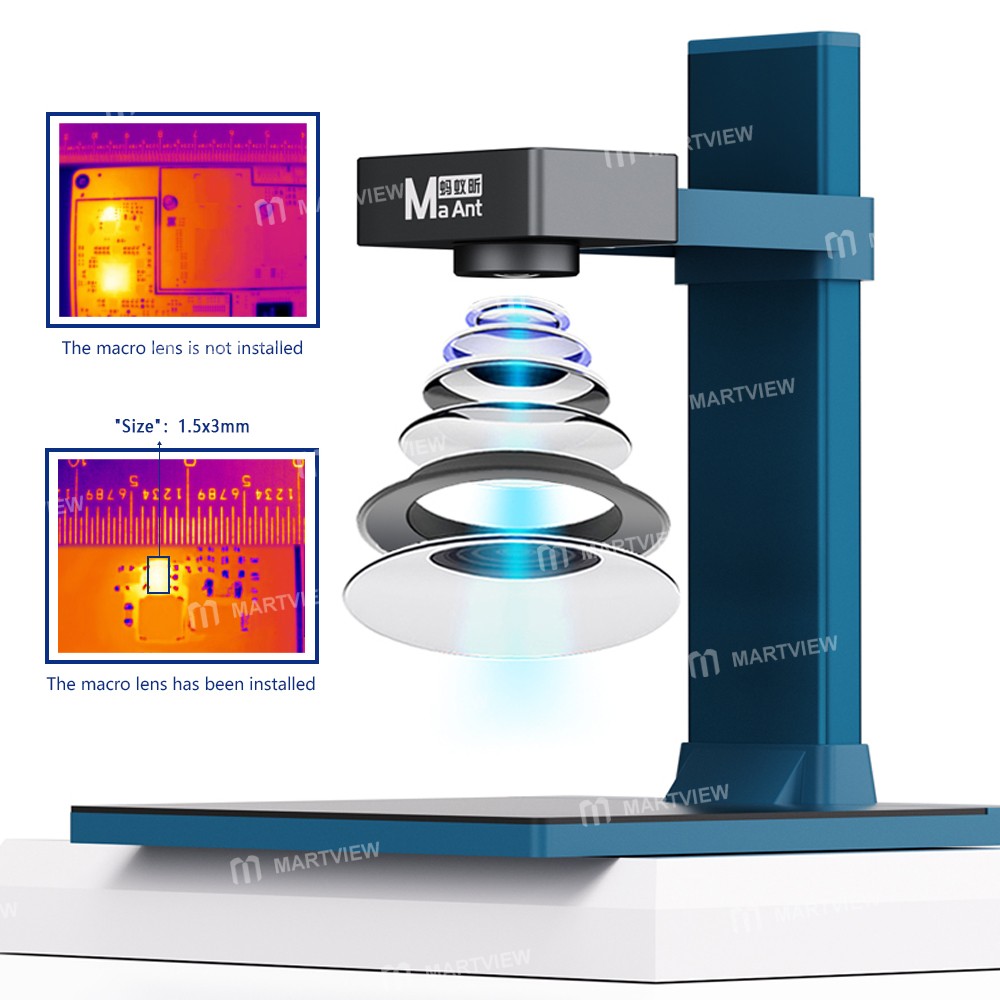

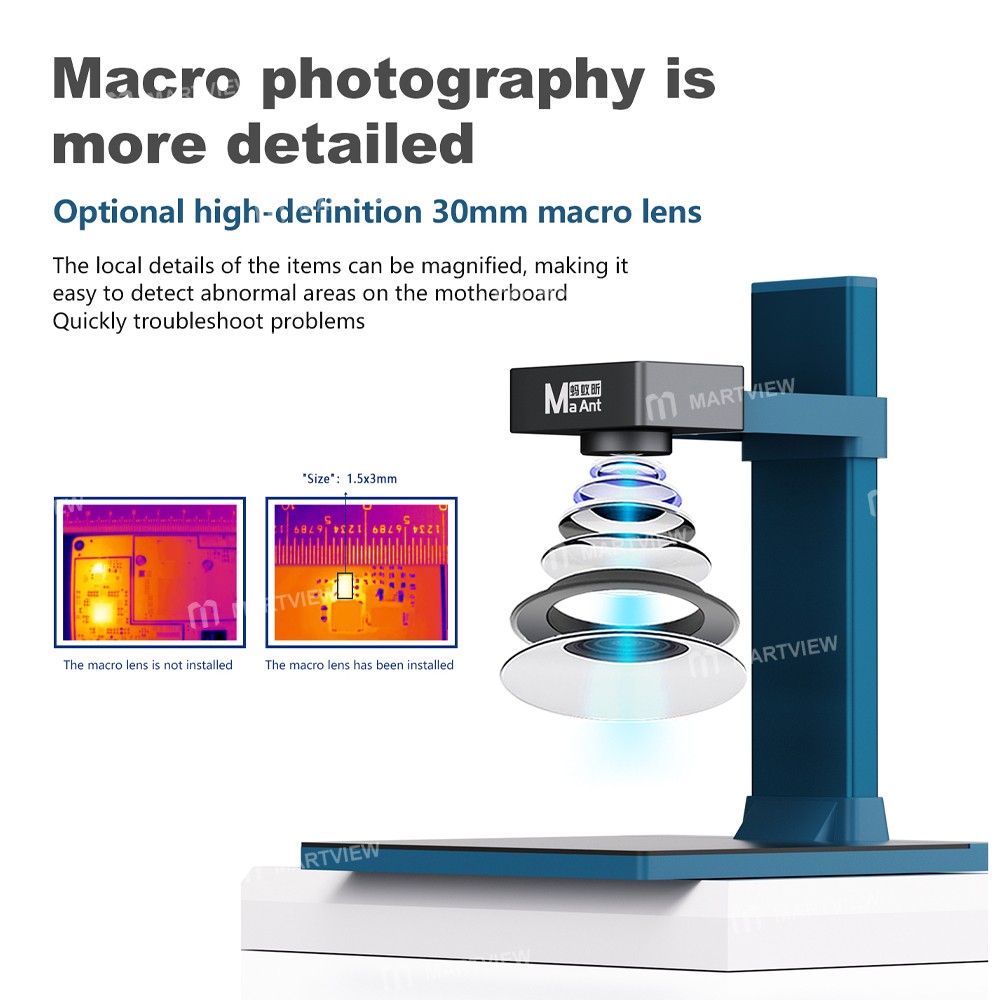

• The local details of the items can be magnified, making it easy to detect abnormal areas on the motherboard and quickly troubleshoot problems

• The comparison between the two boards is clearer. Double-board comparison mode: place the items to be observed and compared on each side of the dividing line, and conduct a comparative analysis under the same conditions

• Rectangular analysis mode: The temperature of the comparison and analysis area can be viewed simultaneously

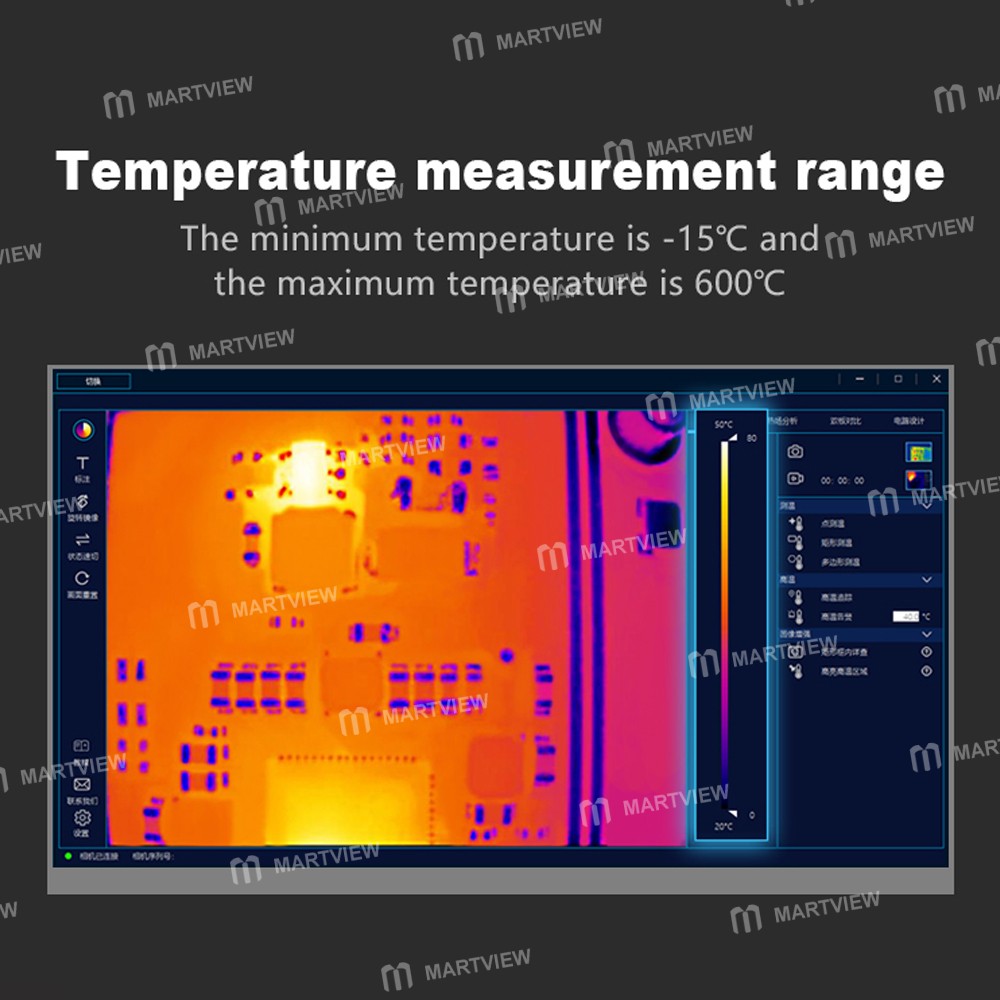

• Temperature measurement range: The minimum temperature is -15℃ and the maximum temperature is 600℃

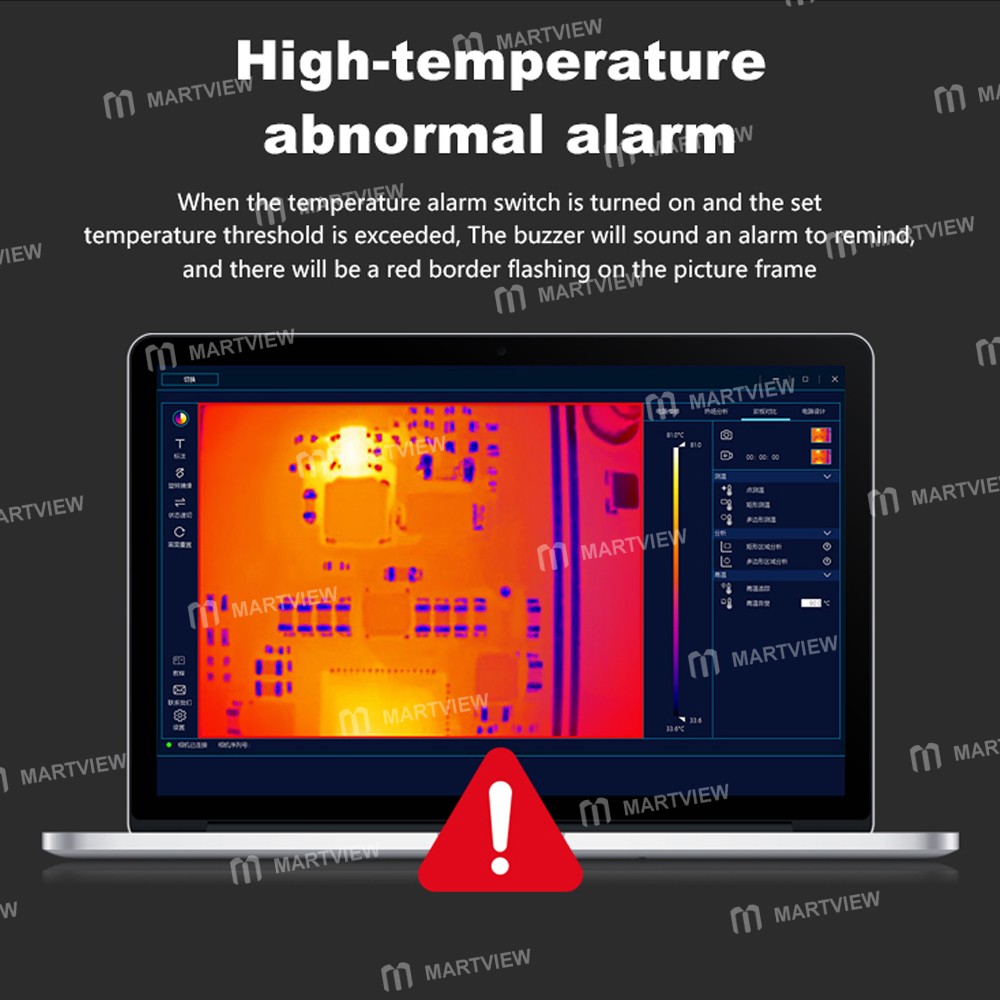

• When the temperature alarm switch is turned on and the set temperature threshold is exceeded, the buzzer will sound an alarm to remind, and there will be a red border flashing on the picture frame

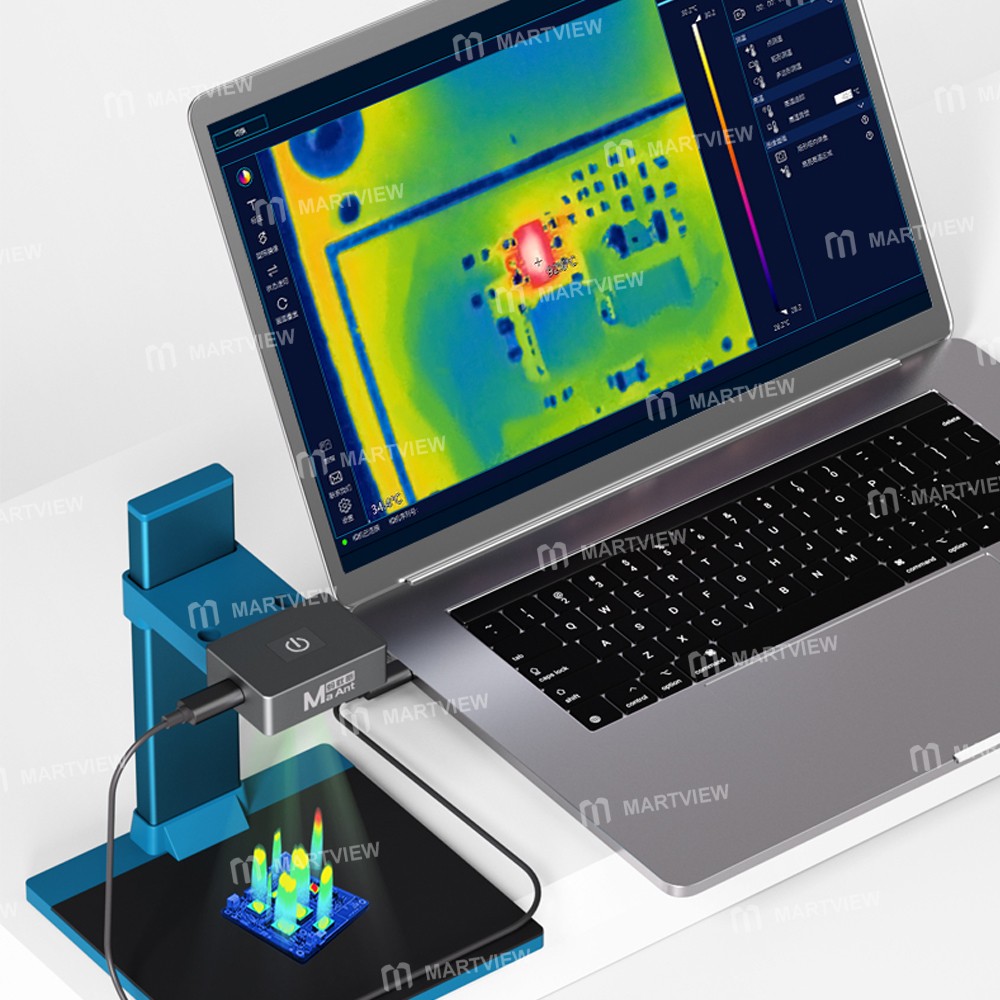

• Connect the PC end to the computer. After opening the software, connect the infrared thermal imaging to the computer via a USB cable, press the power button at the top, and an infrared effect will appear on the software interface. It supports Windows 10 and above systems

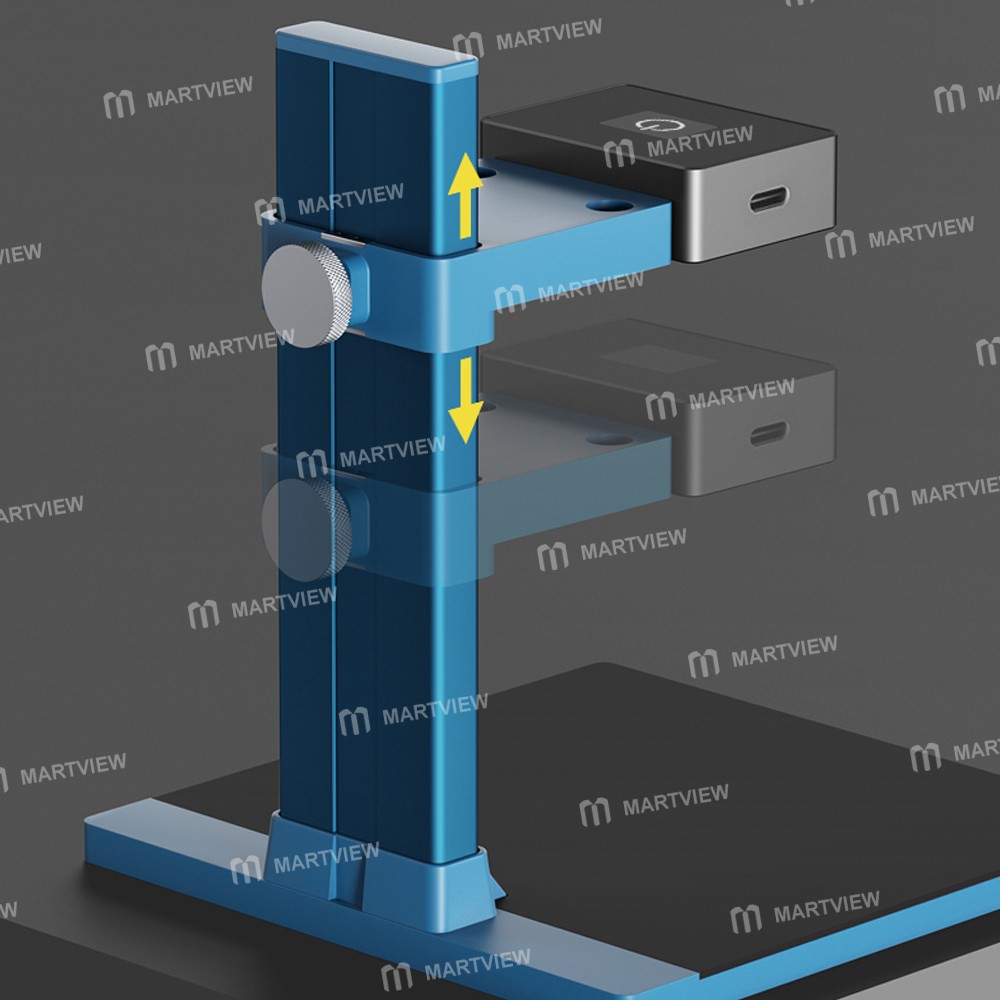

• Adjustable lens height, the position can be quickly adjusted according to the requirements of the items, and observe the details of the items at zero distance

Specifications:

• Product Name: Thermal Analyzer

• Resolution: 256*192

• Frame rate: 25Hz

• Lens Angle: 56x42

• Temperature measurement distance: 3mm-15mm

• Device interface: USB Type C

• Input voltage: DC 5V

• Temperature measurement range: -15℃~600°C; (5℉~+1112℉)

• Storage temperature: -20℃ to 60℃

• Operating temperature: 0℃ to 50℃

• Net weight of the product: 425g

• Product size:150*150*174mm

Package includes:

• 1 x Thermal Analyzer

• 1 x Type-C Cable
