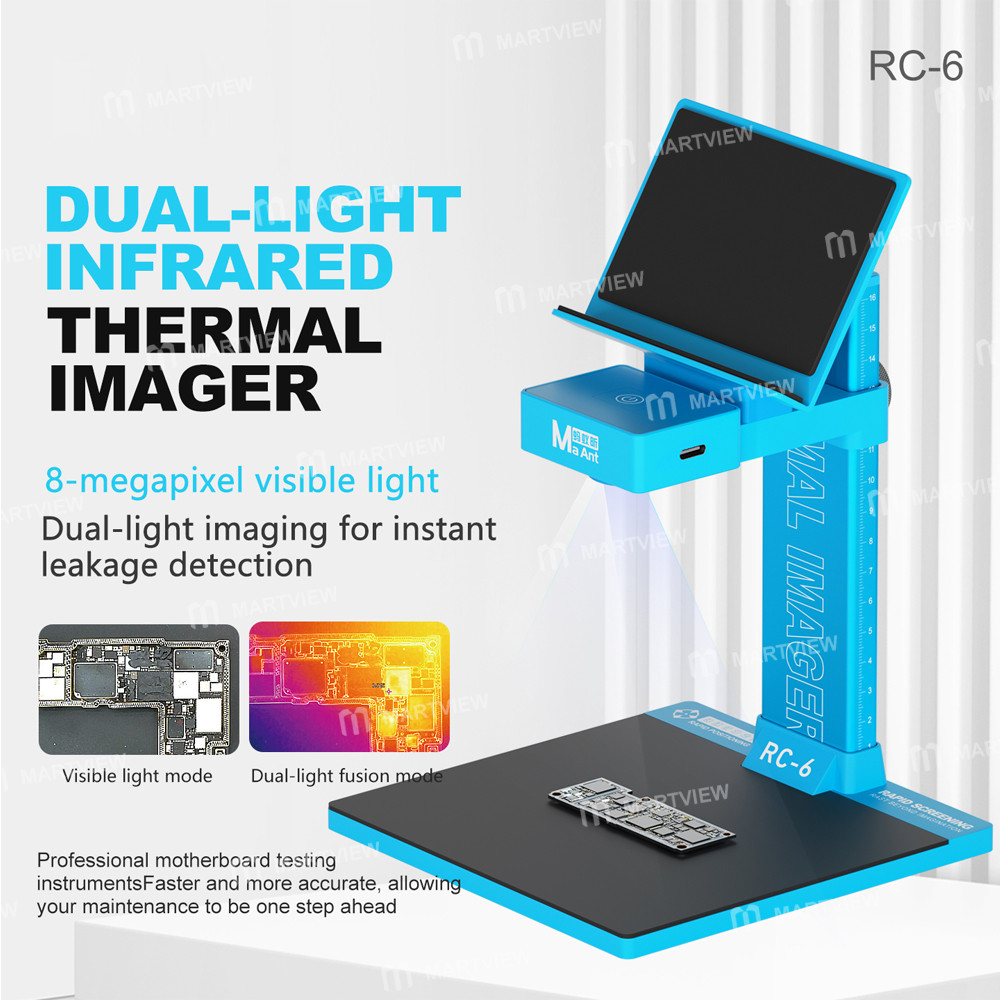

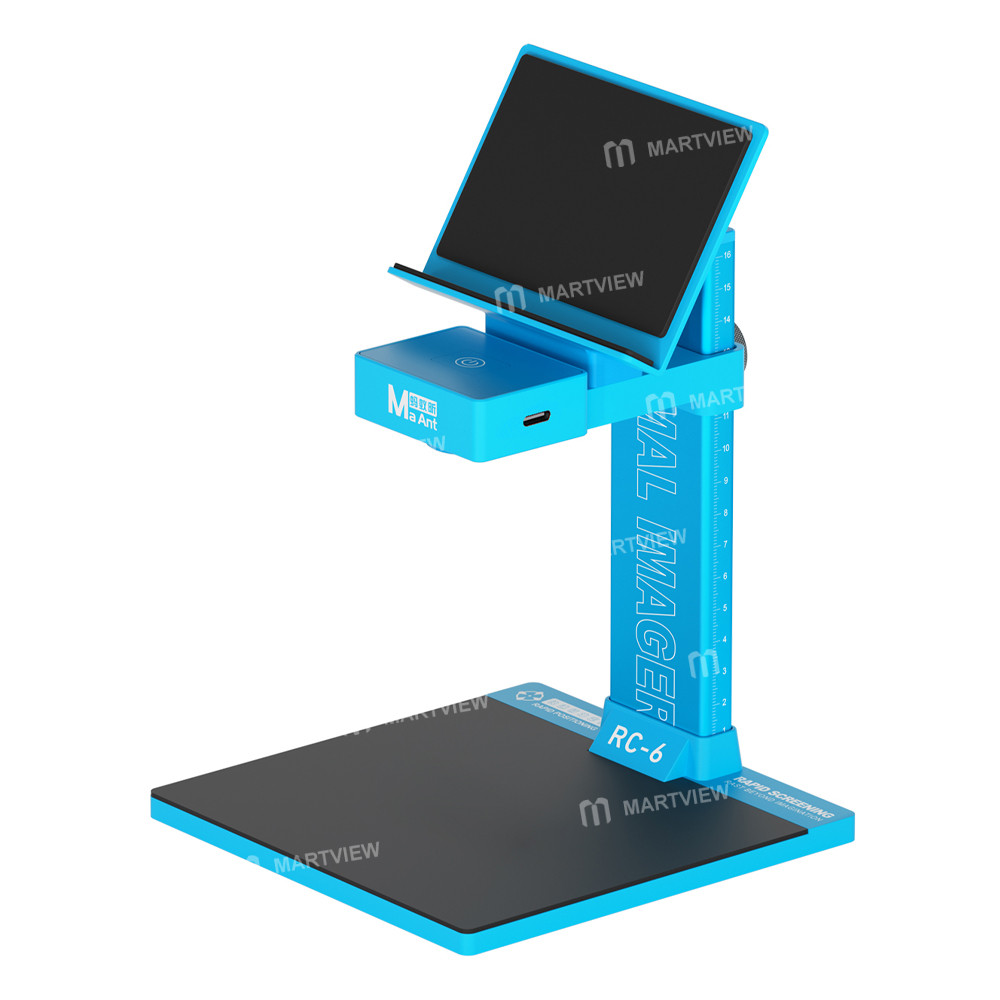

MaAnt RC-6 4K HD PCB Motherboard 3D Dual Light Infrared Thermal Imaging Diagnosis Analyser

MaAnt RC-6 4K HD PCB Motherboard 3D Dual Light Infrared Thermal Imaging Diagnosis Analyser

Features:

• Quick check for leakage / Short-circuit location / Precise positioning/ Compatible with computers and mobile phones

• Through infrared thermal imaging technology, the fault points on the mainboard circuit can be detected quickly and accurately

• Quickly locate high-temperature areas, color plates of abnormally high-temperature components, and adjust the stable range, and short-circuit location

• Professional motherboard testing instruments are faster and more accurate, allowing your maintenance to be one step ahead

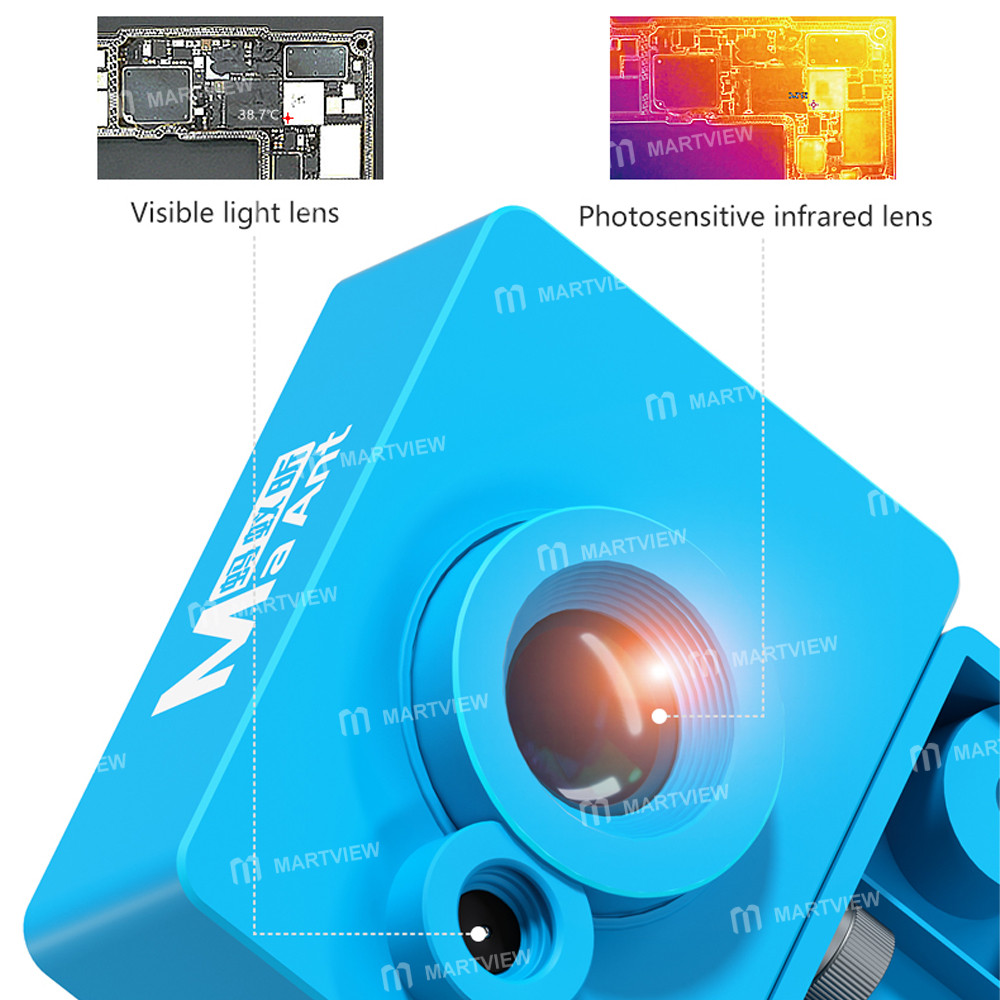

• Equipped with the Antxin RC-6 thermal imaging analyzer, it features dual-lens imaging and precise positioning of 4mA micro-particles, Leakage defect,dual-mode switching at will, infrared, visible light, edge fusion 1, and edge fusion 2. Superimposition and fusion, picture within a picture

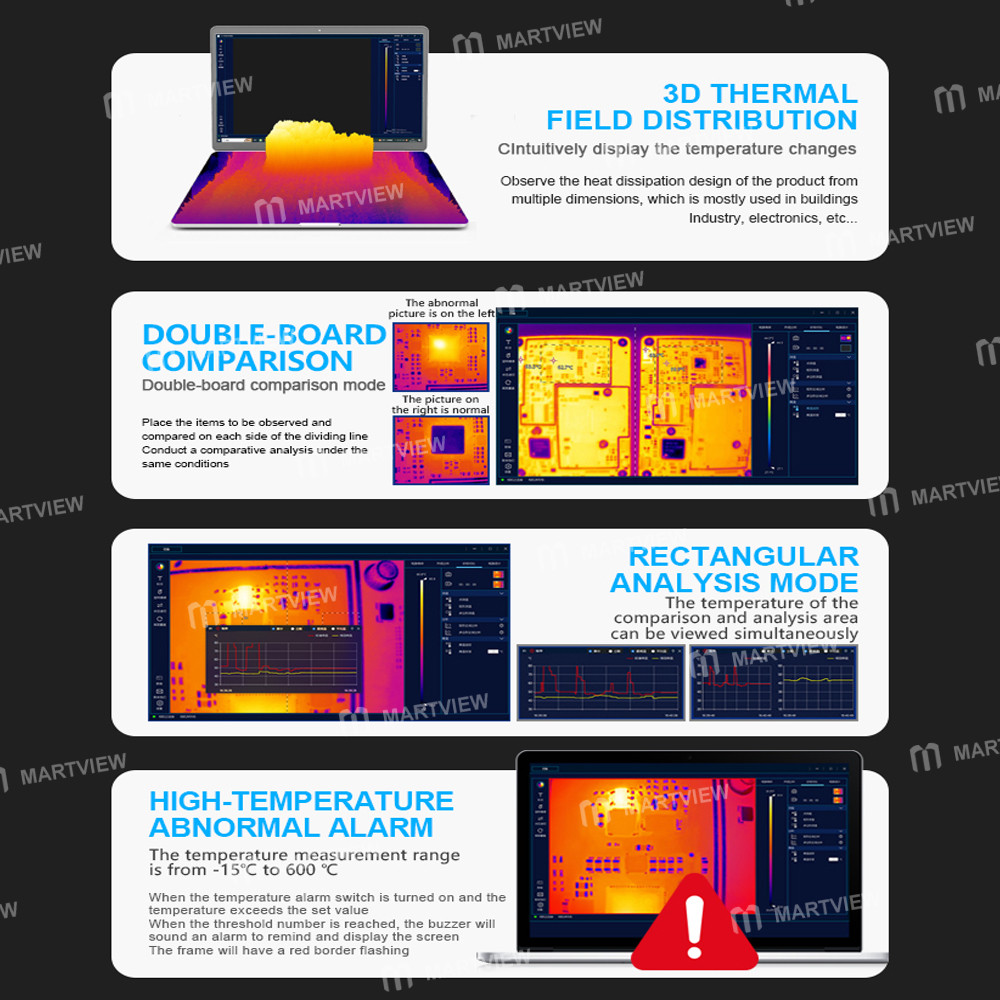

• One-click leakage detection, capable of detecting leakage currents as low as 6mA, supports detailed comparison of color changes in images from different regions, and supports dual-board comparison of good and bad images. Quickly locate the faulty circuit board

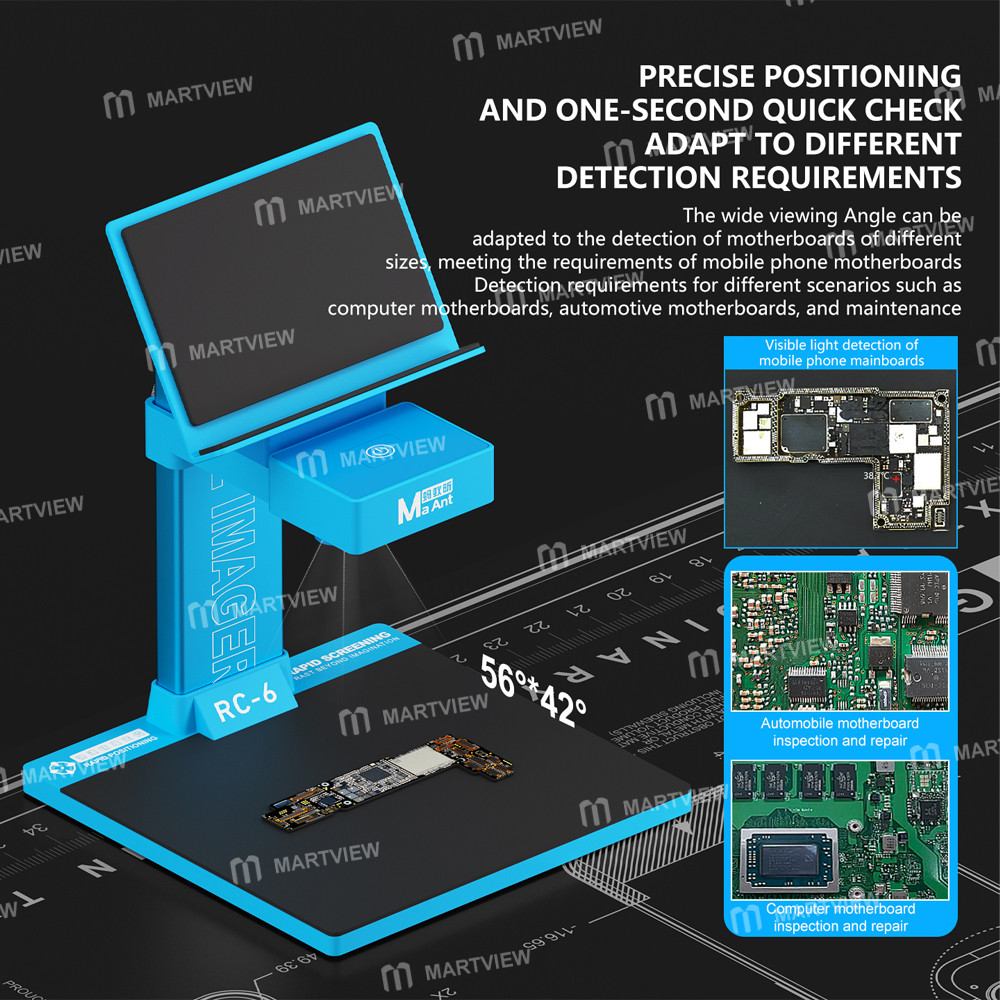

• It can be adapted to the detection of motherboards of different sizes, meeting the requirements of mobile phone motherboards, computer motherboards, and automotive motherboards. Detection requirements for different scenarios, such as maintenance

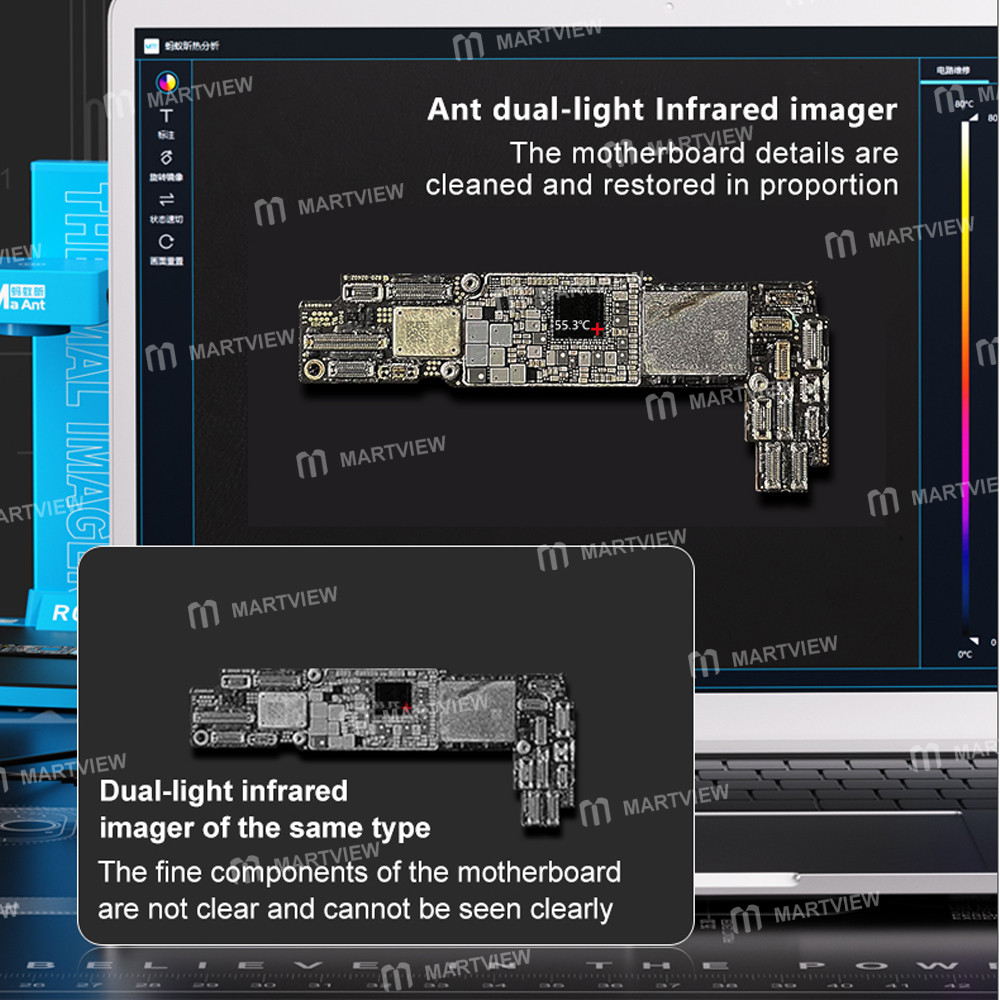

• 4K clarity, integrated super-clearing method, capable of generating high-resolution thermal imaging of 256*192. The details of the tiny leakage devices are high-definition and smooth, suitable for various precise fault diagnosis scenarios

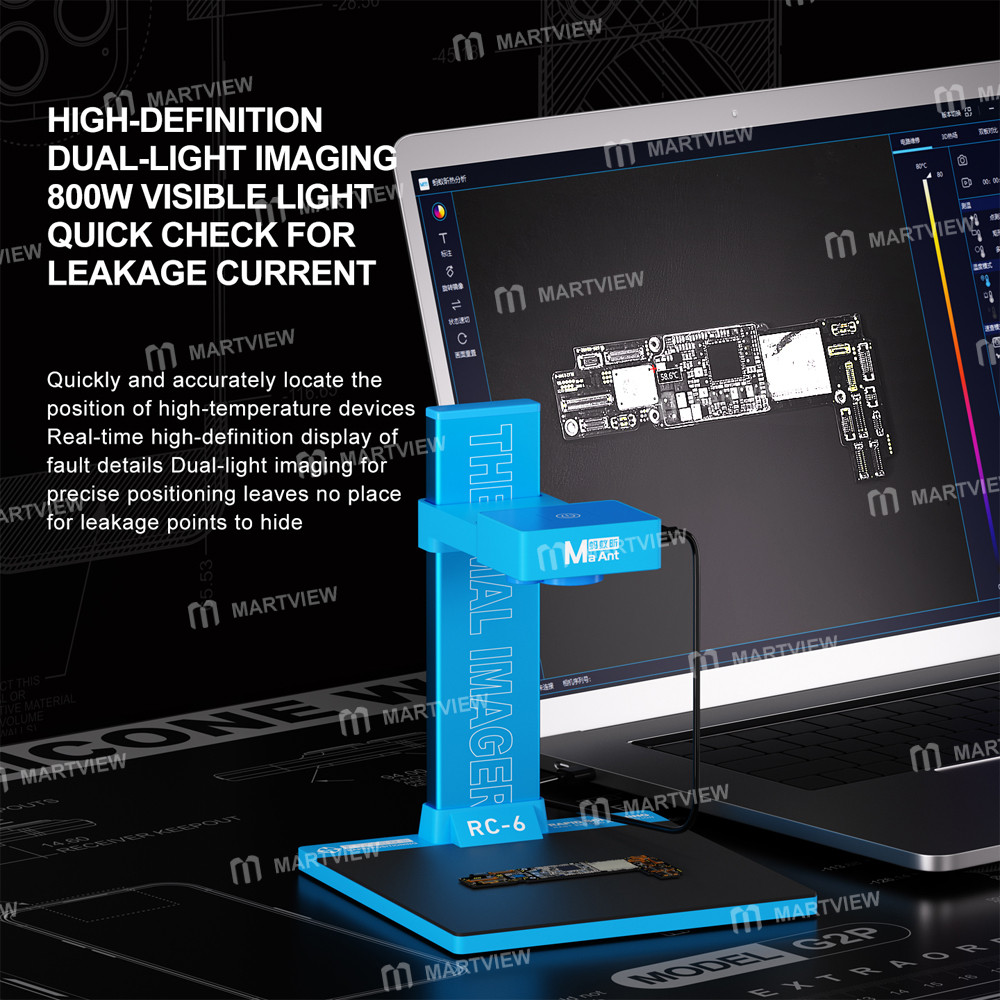

• Quickly and accurately locate the position of high-temperature devices and display the details of faults in real time and in high definition. Dual-light imaging for precise positioning leaves no place for leakage points to hide

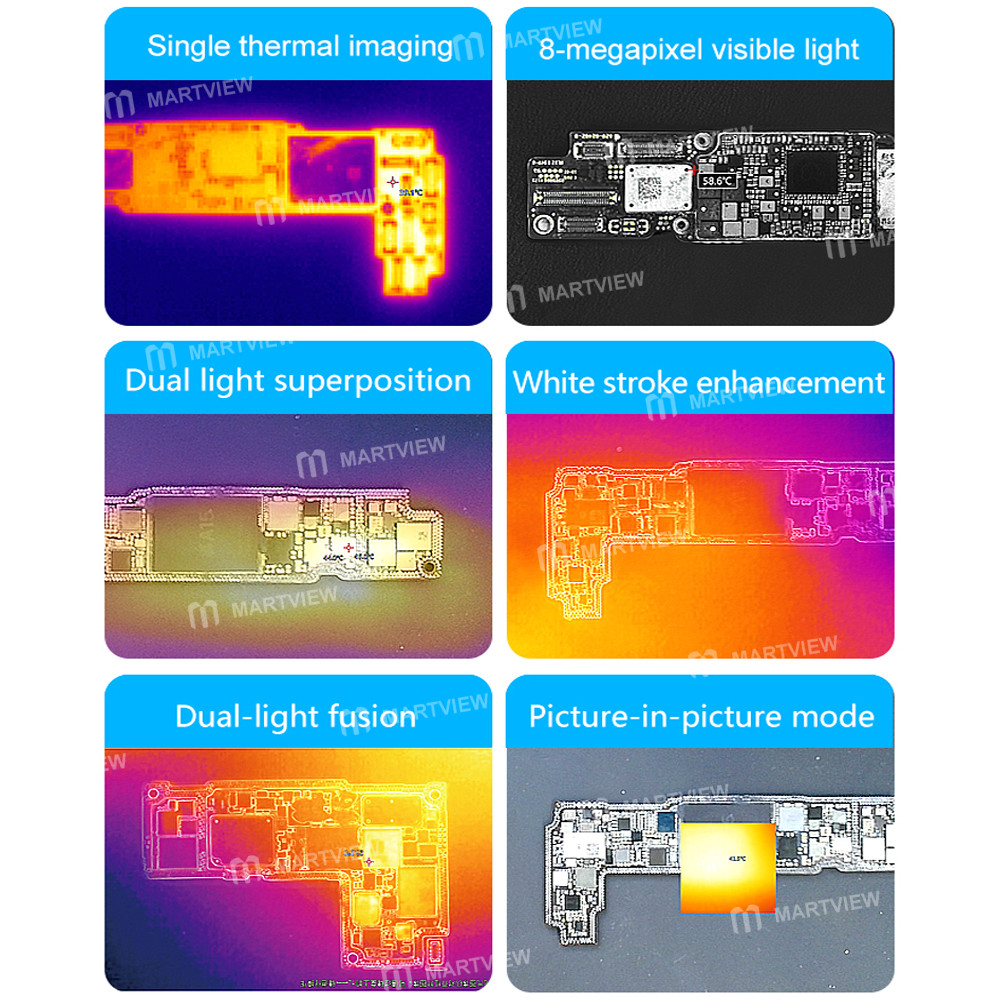

• Supports infrared thermal imaging, visible light, edge fusion 1, and edge fusion 2. Multiple image display modes, such as overlay and fusion, picture-in-picture, and one-click quick search

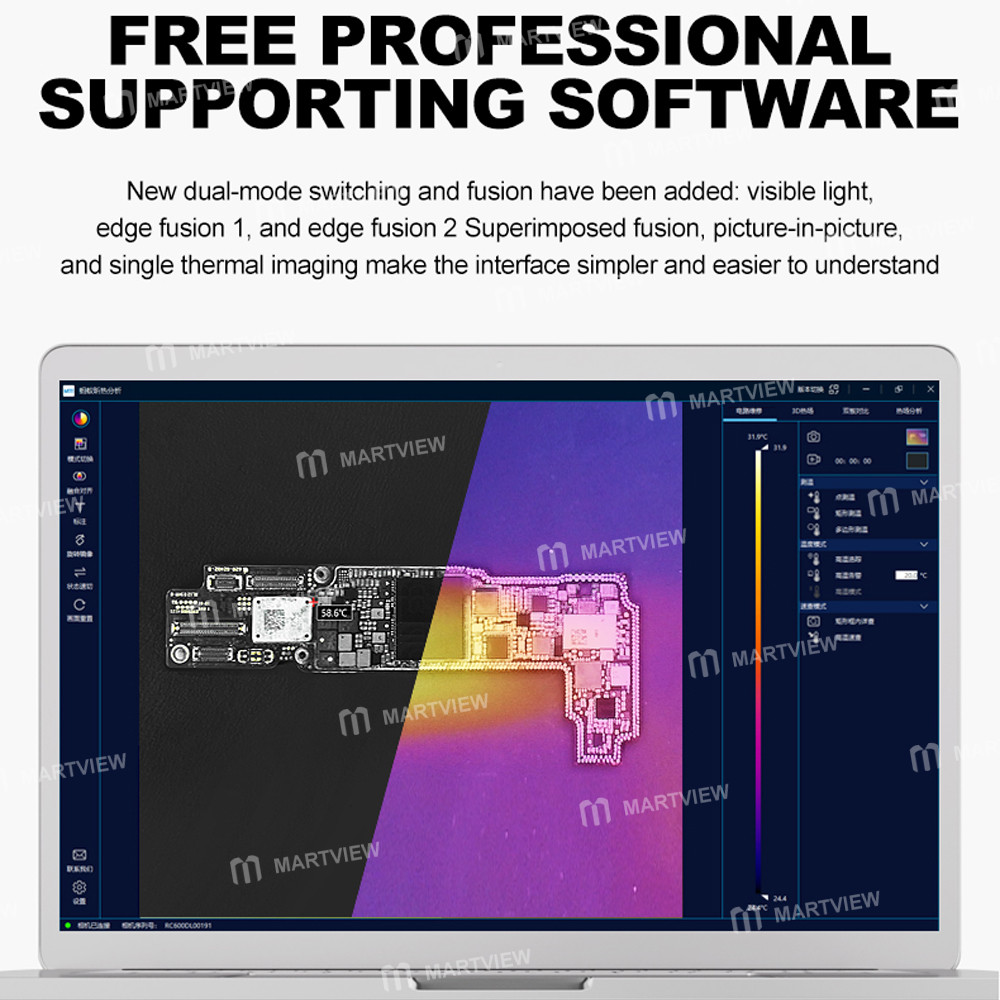

• New dual-mode switching and fusion have been added: Visible light edge fusion 1 and edge fusion 2. Superimposed fusion, picture-in-picture, and single thermal imaging make the interface simpler and easier to understand

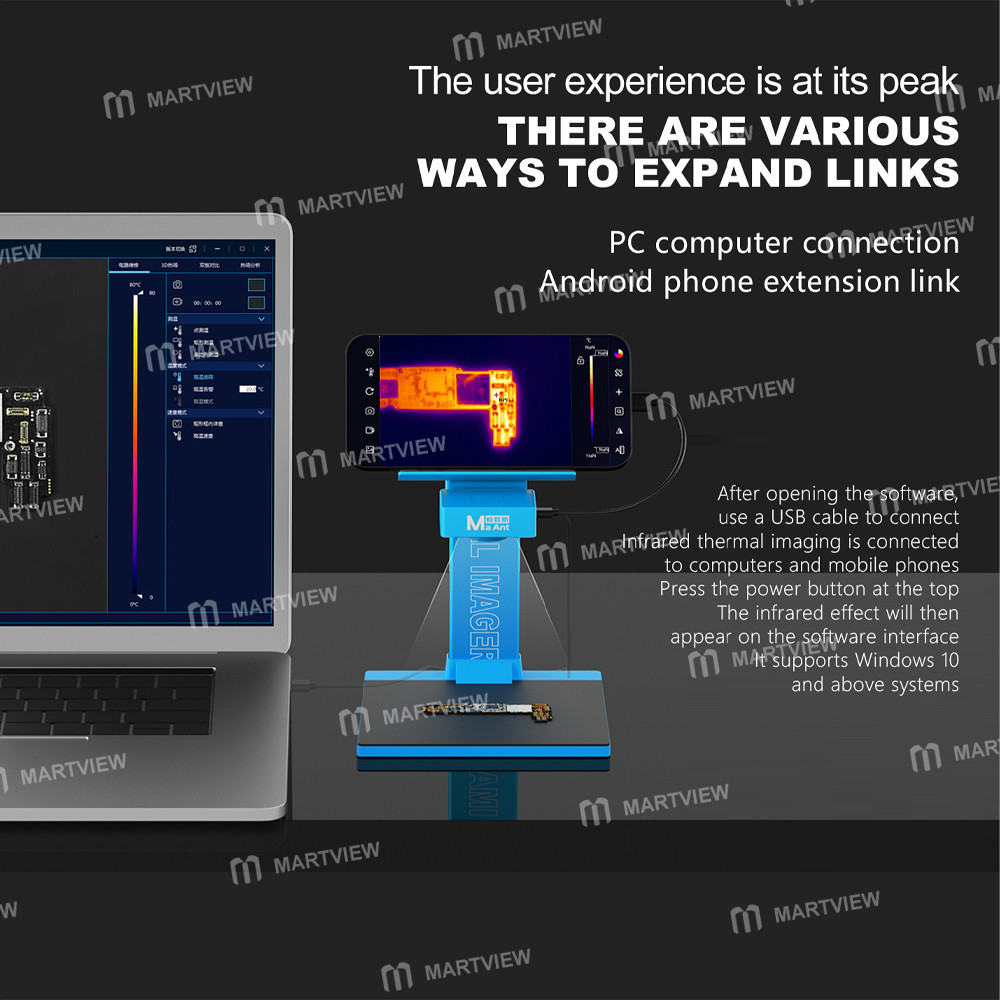

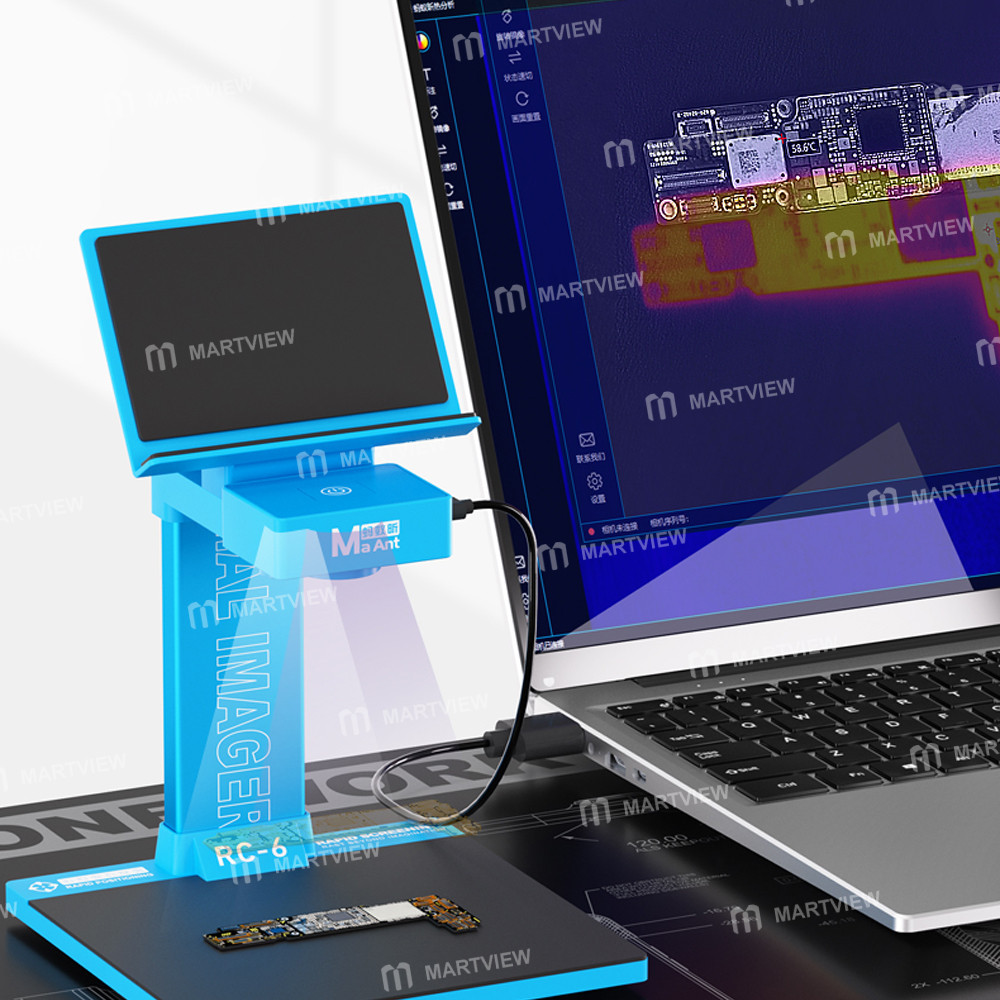

• After opening the software, connect the infrared thermal imaging to the computer and mobile phone via a USB cable. Press the power button at the top, and an infrared effect will appear on the software interface. It supports Windows 10 and above systems

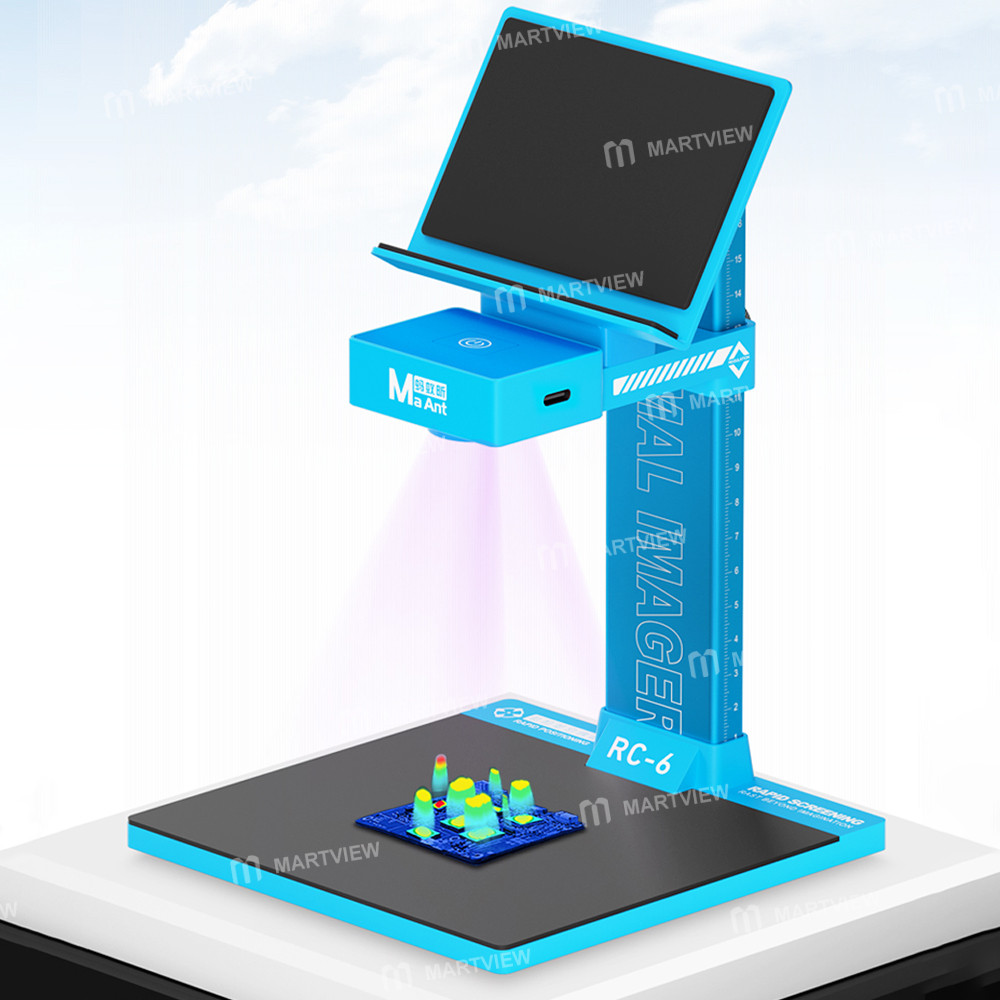

• The position can be quickly adjusted according to the requirements of the items. Observe the details of the items at zero distance

Specifications:

• Brand: MaAnt

• Product model: RC-6

• Product Name: Dual-light infrared thermal imaging

• Resolution rate: 256*192

• Frame rate: 25Hz

• Lens perspective: 56x42

• Temperature measurement distance: 100mm-150mm

• Device interface: USB Type-C

• A teleconverter lens can be used to observe at a distance of 30mm

• Temperature measurement range:  -15°C~600°C(5°F~1112°F)

• Storage temperature: -20°C ~60°C

• Working temperature: 0°C~50°C

• Product size: 150*150*238mm

• Net weight: 412g

Package includes:

• 1 x Thermal Analyzer

• 1 x Type-C Cable
