Mastech MS3302 400A True RMS AC Current Clamp Converter for Digital Multimeter

Mastech MS3302 400A True RMS AC Current Clamp Converter for Digital Multimeter

Features:

• Professional AC Current Transducer Clamp Meter

• Design for AC Current

• Safe and Easy-to-use

• Small and Compact Size

• It is Designed According to IEC1010-1 CAT III 600V Concerning Safety Requirements

Specification:

• AC Current Range: 0.1A~400A RMS

• Output Voltage Levels: 10mV/A: 1mV AC per 0.1 Amp AC.; 1mV/A: 1mV AC. per 1 Amp AC.

• Working Voltage: 600V CAT.II per IEC 1010-1

• Type of Sensing: Induction Coil Sensing for AC Current

• Max. Output Impedance: 45Ohm

• Max. Jaw Opening: 29mm

• Max. Conductor Size: 28mm

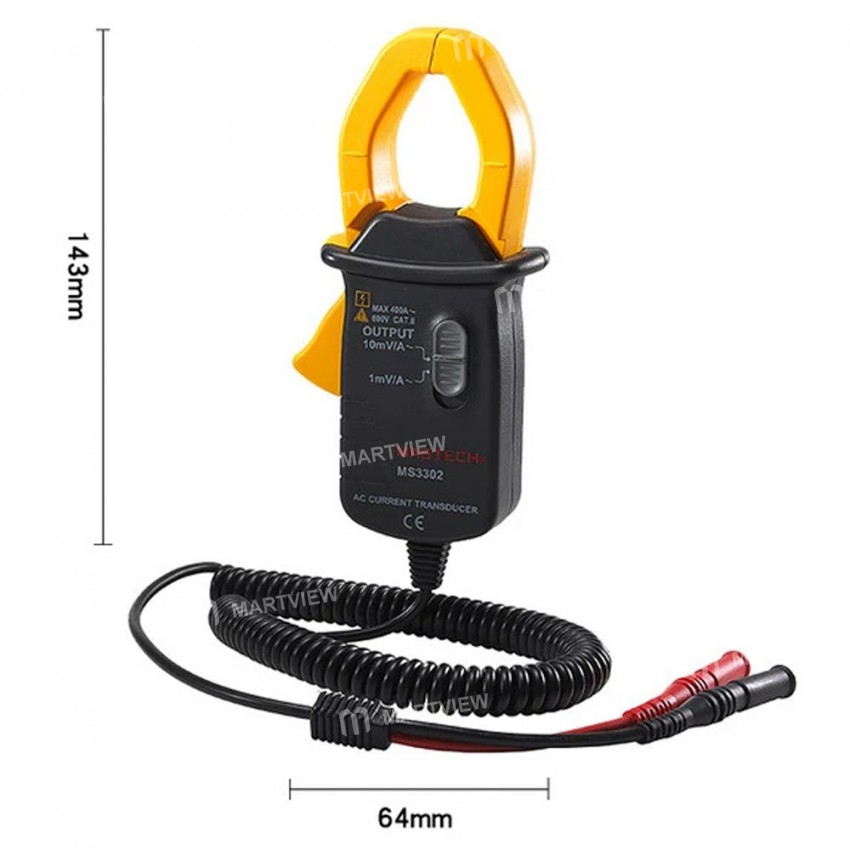

• Item Dimensions: 14.5 * 6.5 * 2.5cm

• Item Weight: 195g

Package includes:

• 1 x Clamp Converter
