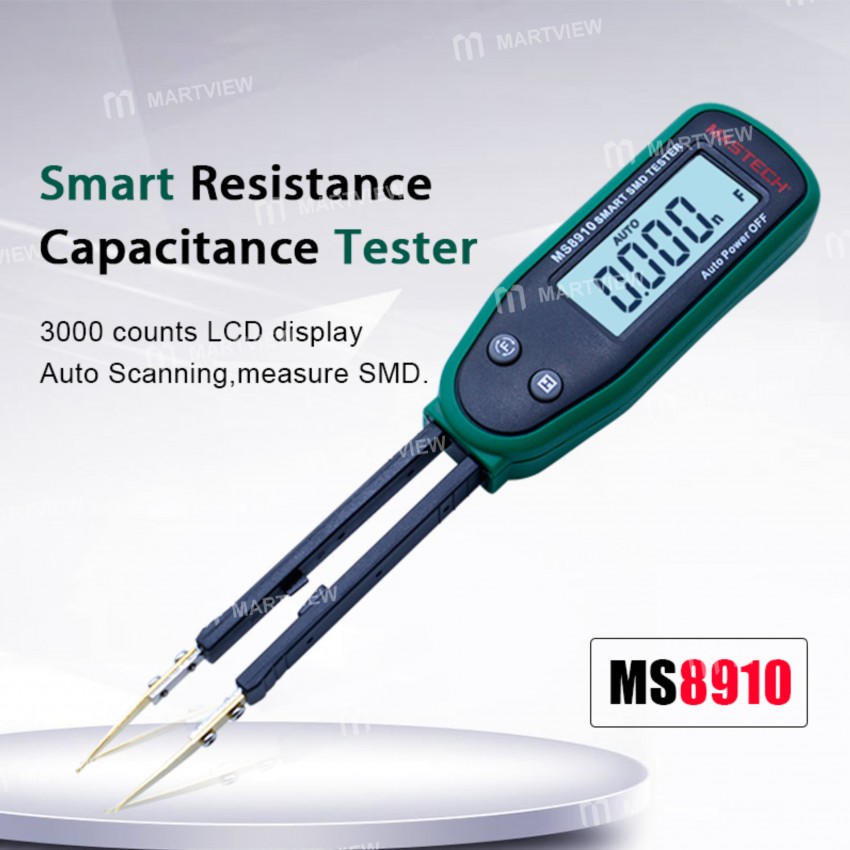

MASTECH MS8910 Smart SMD Tester Auto Scan Resistance Capacitance Diode Multi Tester

MASTECH MS8910 Smart SMD Tester Auto Scan Resistance Capacitance Diode Multi Tester

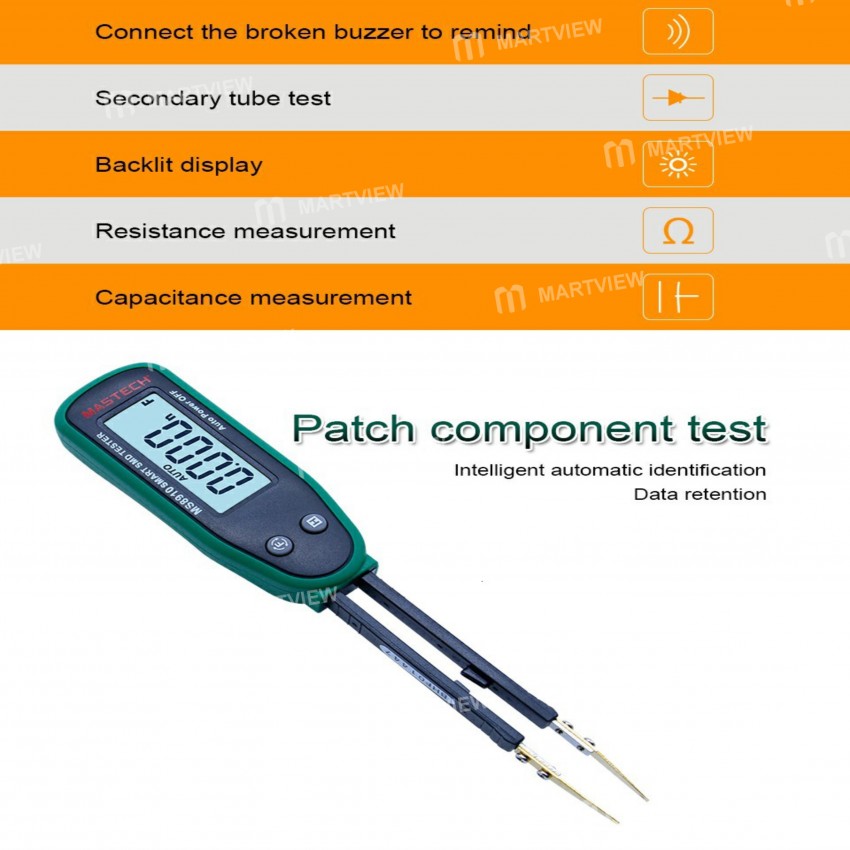

Features:

• Continuity Checking Function

• Small size and lightweight, handheld and portable test tool.

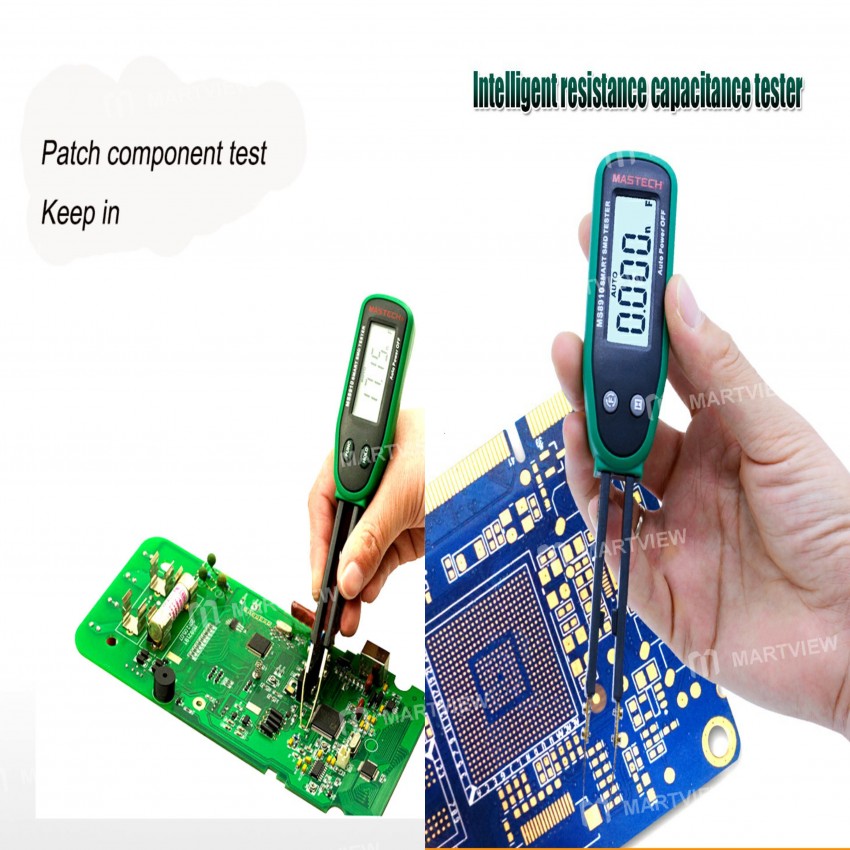

• Used to measure SMD, such as Chip resistor, Chip capacitor, and Chip diode devices.

• Auto scanning identifies resistor, capacitor, and diode automatically.

• Continuity testing. When the resistance is less than 30Ω, it will sound.

• It also can be operated manually. You can press the button “FUNC” to select one certain measuring mode.

• Has the function of data hold.

• Long press the “FUNC” key to turn on/ off this tester.

• Automatic power off after it is idle for about 10 minutes. And on this occasion, it can be recovered to use by pressing any key.

• Overload indication.

• Low battery indication.

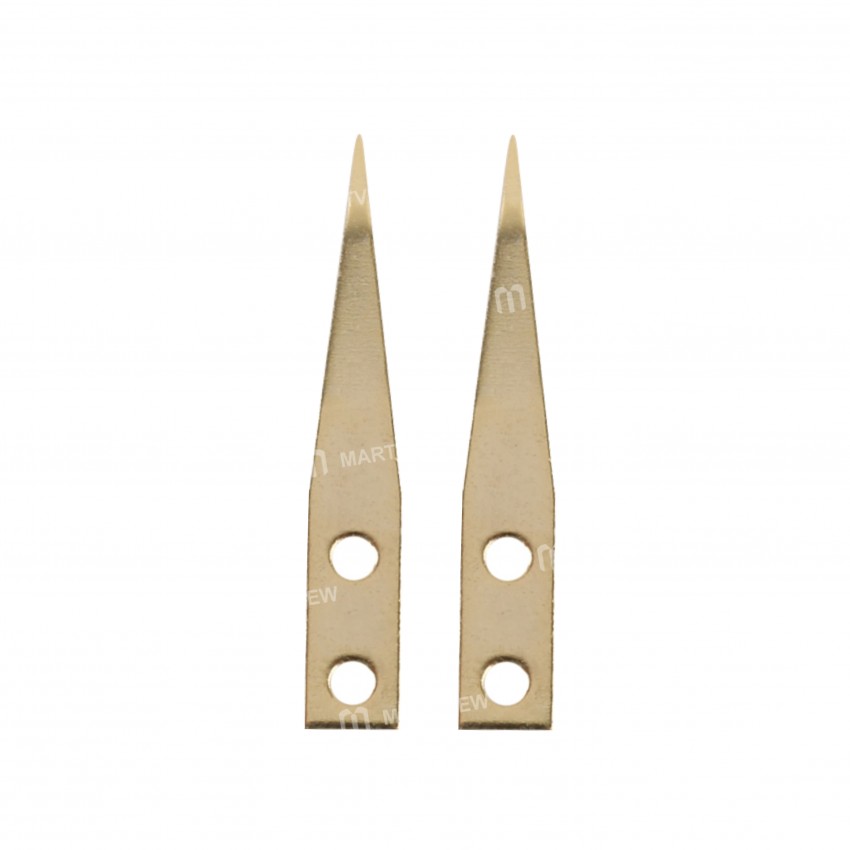

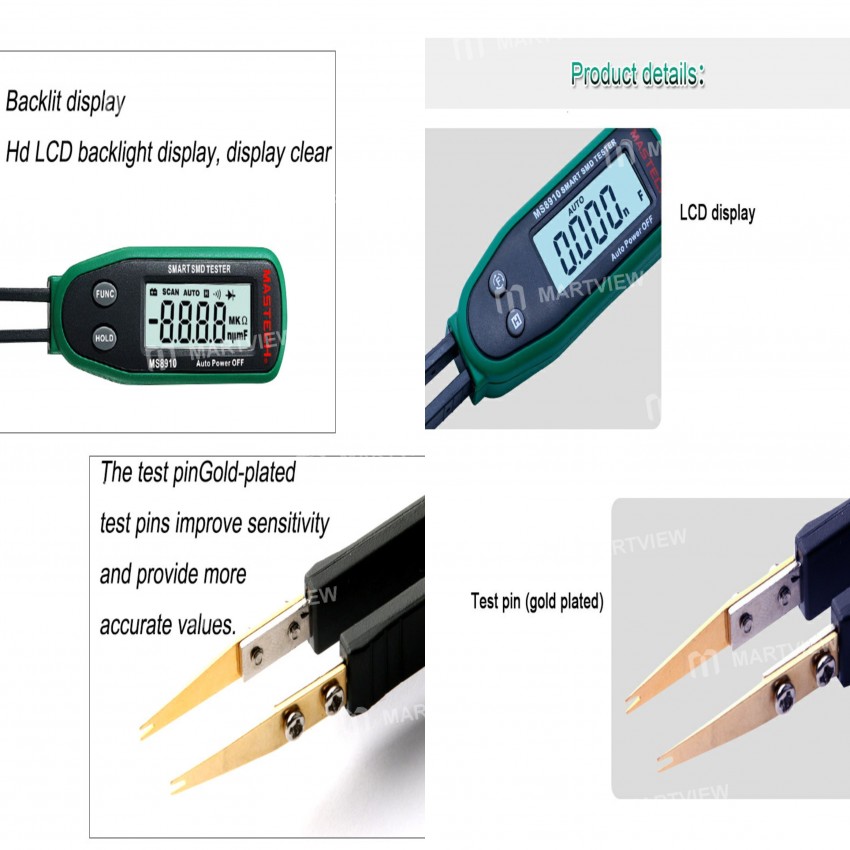

• Gold-plated test pins, which can induce its contact resistance and prevent it from rusting.

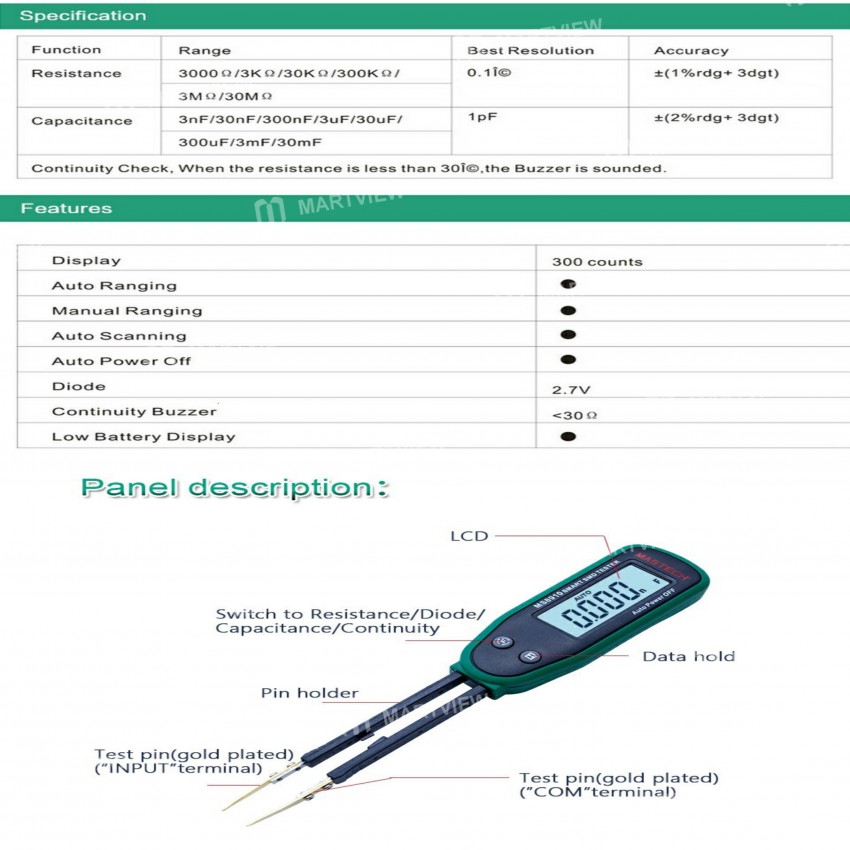

Specification:

• Display: 3000 count LCD display

• Power supplied by: 1 * 3V CR2032 battery

• Operating temperature: 0 to 40 Celsius degree

• Operating humidity: <80%RH

• Storage temperature: -10 to 50 Celsius degree

• Storage humidty: <70%RH

• Resistance measurement:

• Auto scanning range: 300.0Ω to 3.000MΩ

• Manual measuring range: 300.0Ω to 30.00MΩ

• Capacitance measurement:

• Auto scanning range: 3.000nF to 300.0μF

• Manual measuring range: 3.000nF to 30.00mF

• Item size: 17.5 * 3.1 * 1.7cm/ 6.8 * 1.2 * 0.6in

• Item weight: 46g/ 1.6oz

• Package size: 20.4 * 5.8 * 2.8cm/ 8 * 2.2 * 1.1in

Package includes:

• 1 x Digital multimeter MS8910 (battery not included)
• 1 x Test pin
