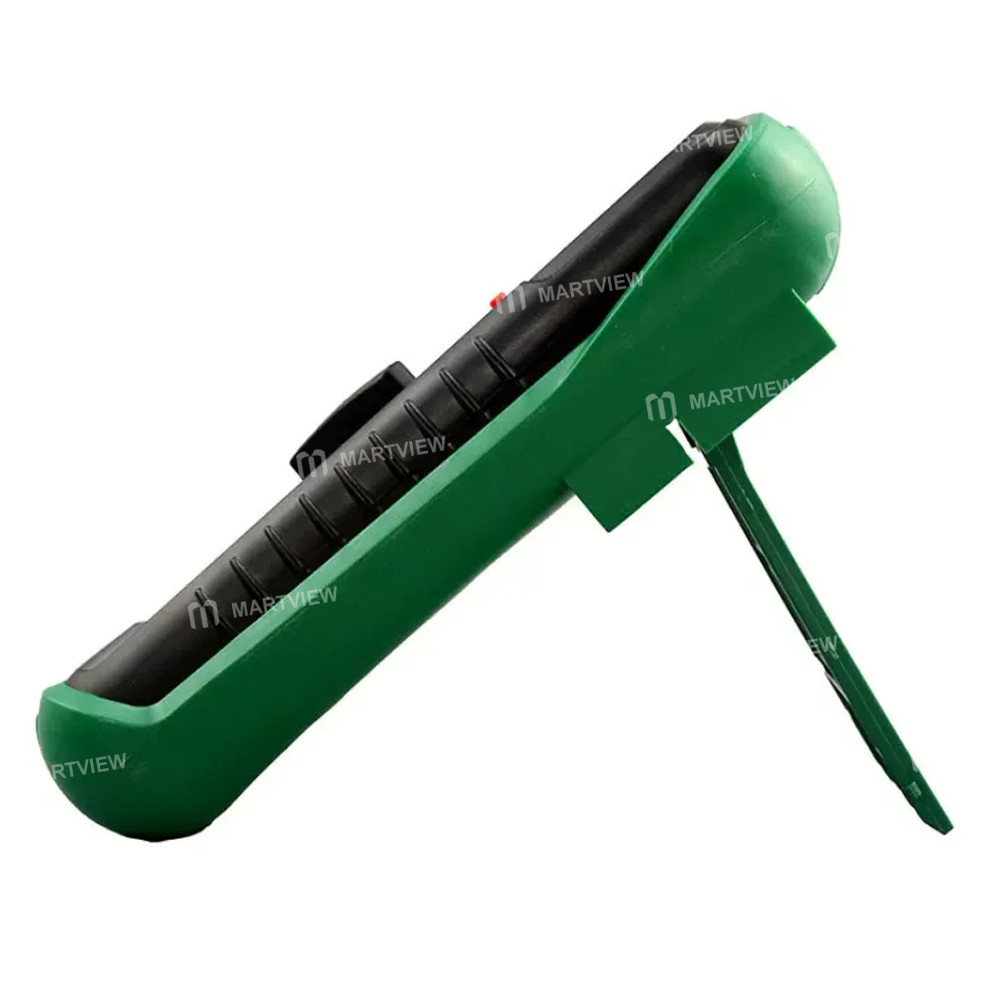

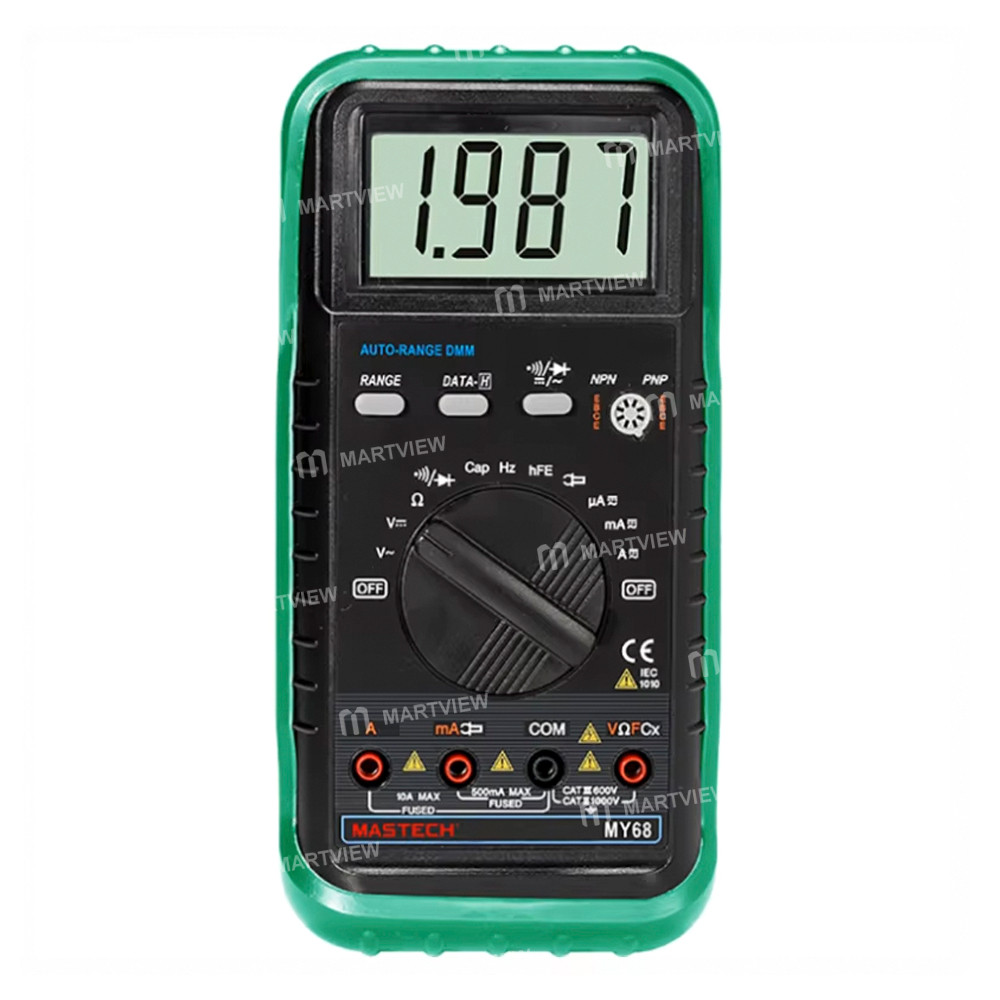

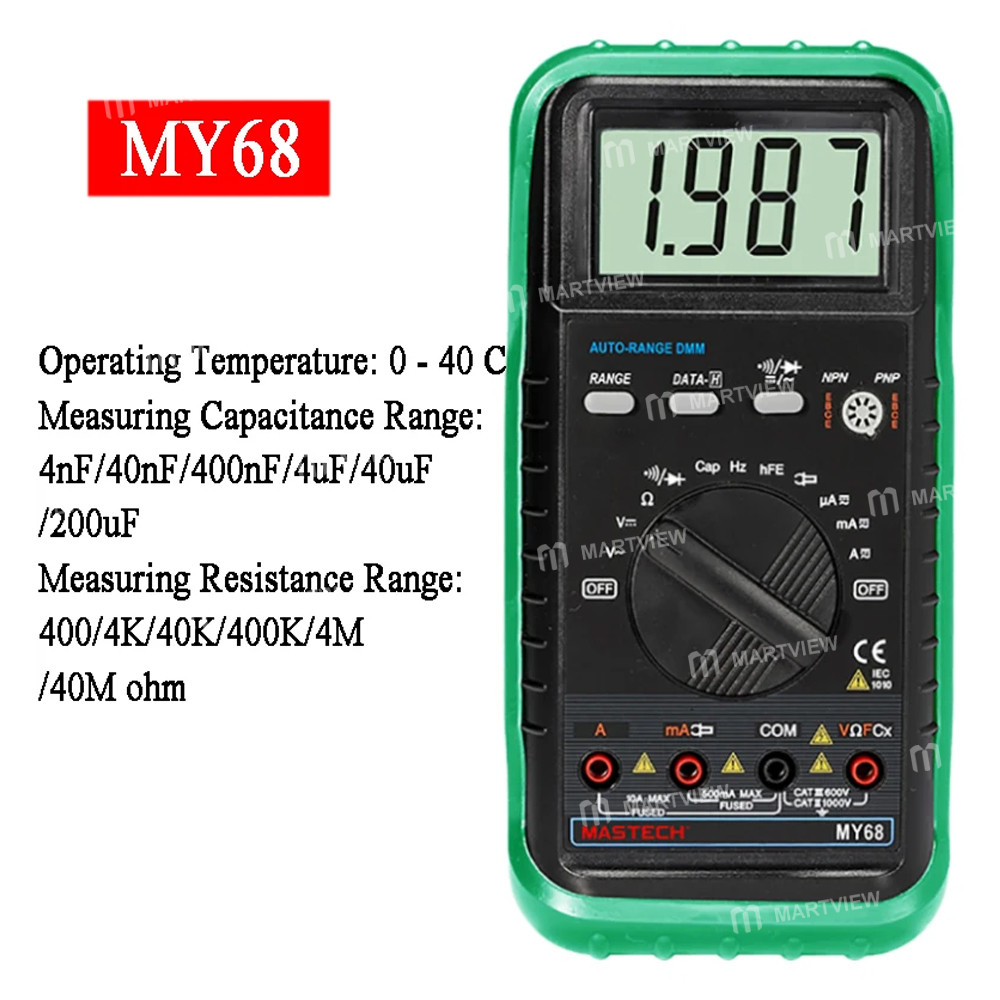

Mastech MY68 Digital Display Multimeter Supports hFE Testing & Diode Testing & Data Hold

Mastech MY68 Digital Display Multimeter Supports hFE Testing & Diode Testing & Data Hold

Features:

• 3 3/4 digits LCD display.Automatic indication of functions and symbols.

• Autorange and Manual ranging

• Over range indication: LCD will display "OL"

• Low battery indication

• Test AC DC voltage, AC DC current, resistance, capacitance and frequency

• Transistor (hFE) test

• Diode Test and continuity check

• Data Hold

Specifications:

• DC Voltage: 400mV/4V/40V/400V ±0.7%, 1000V ±0.8%

• AC Voltage: 400mV ±3%, 4V/40V/400V ±0.8%, 750V ±1.0%

• Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ±1.2%, 40MΩ ±2.0%

• Capacitance: 4nF ±5.0%, 40nF/400nF/4uF/40uF/200uF ±3.0%

• Frequency: 10Hz/100Hz/1000Hz/10kHz/100kHz/200kHz ±2.0%

• DC Current: 400uA/4000uA/40mA/400mA ±1.2%, 10A ±2.0%

• AC Current: 400uA/4000uA/40mA/400mA ±1.5%, 10A ±3.0%

• Transistor (hFE) Test: 1~1000

• Diode Test and continuity check: 1.5V

Package includes:

• 1 x Multimeter (without Battery)

• 1 x Test Probes
