Mechanic 6 10.5-inch Curved Screen OCA Vacuum Lamination Defoaming Integrated Machine for Tablet / Phones

Mechanic 6 10.5-inch Curved Screen OCA Vacuum Lamination Defoaming Integrated Machine for Tablet/Phones

Features:

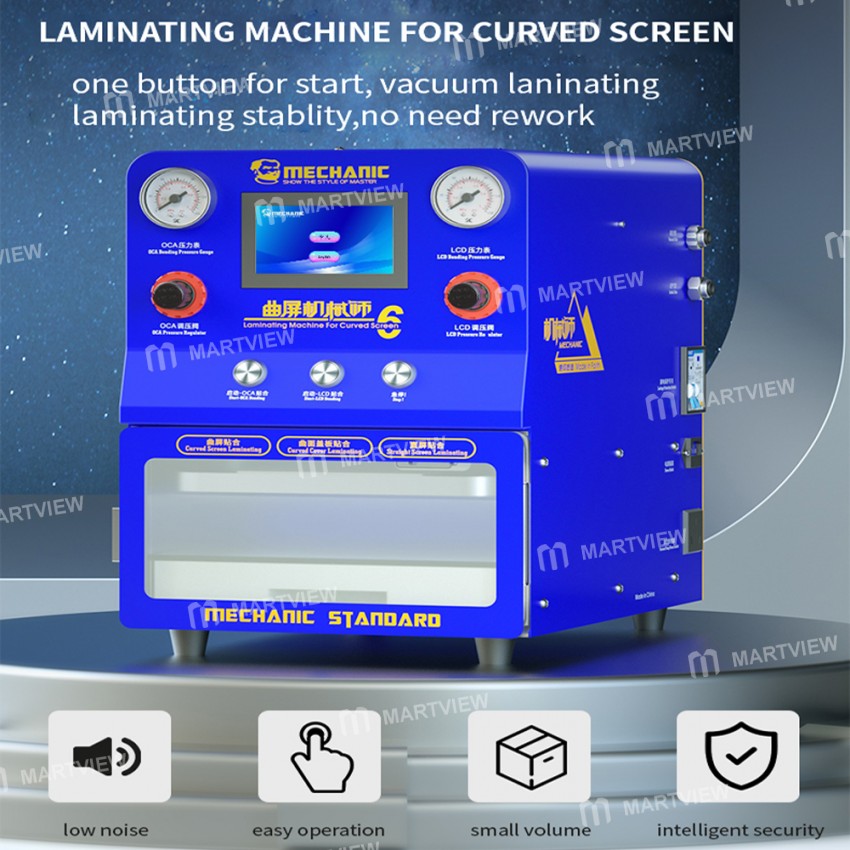

• One button for start, vacuum laminating, laminating stability, no need for rework

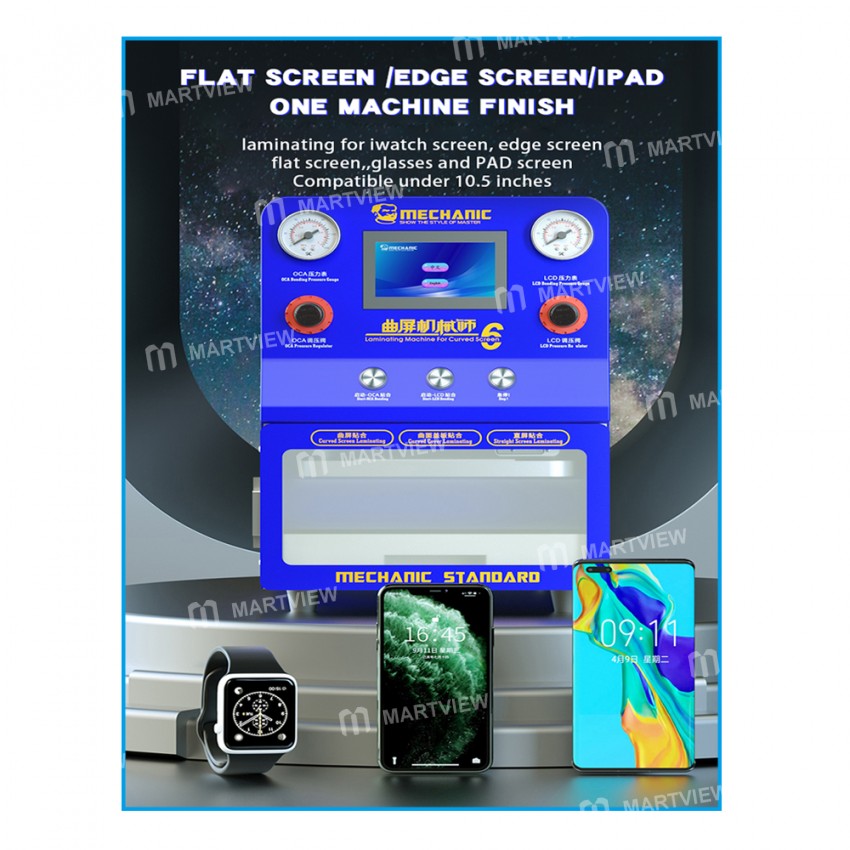

• Laminating for iWatch screen, edge screen, flat screen, glasses, and PAD screen, Compatible under 10.5 inches

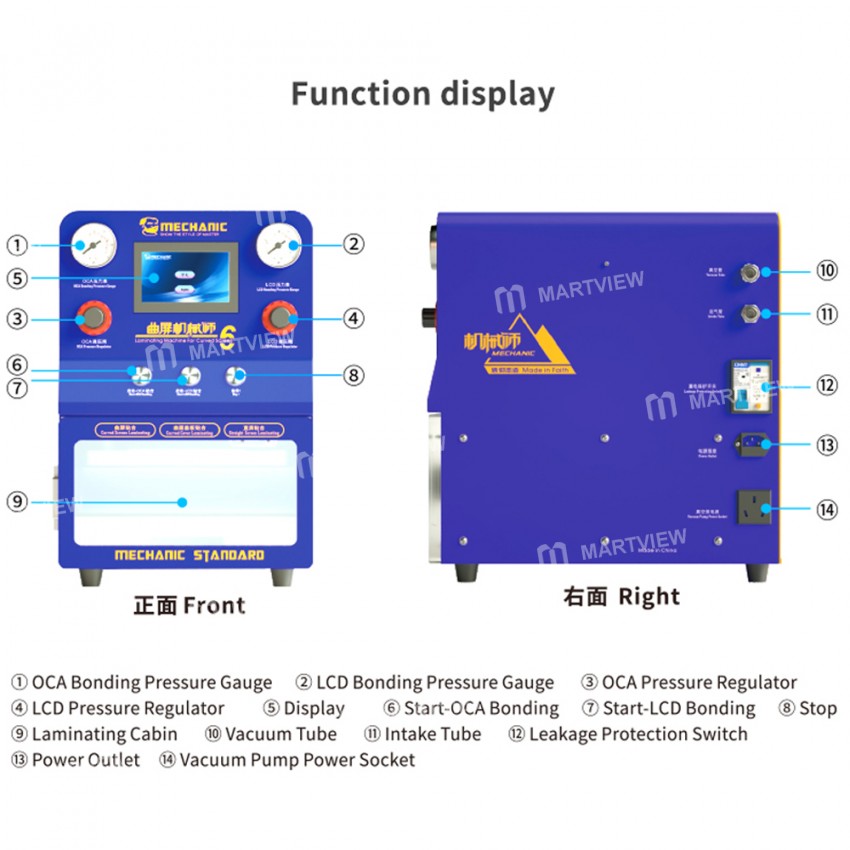

• Set OCA pressure on the left, and set screen pressure on the right the laminating parameters are different in OCA and screen

• One button to get started, independent control convenient operation

• Sealed tight for lamination tank, good laminating, no bubble

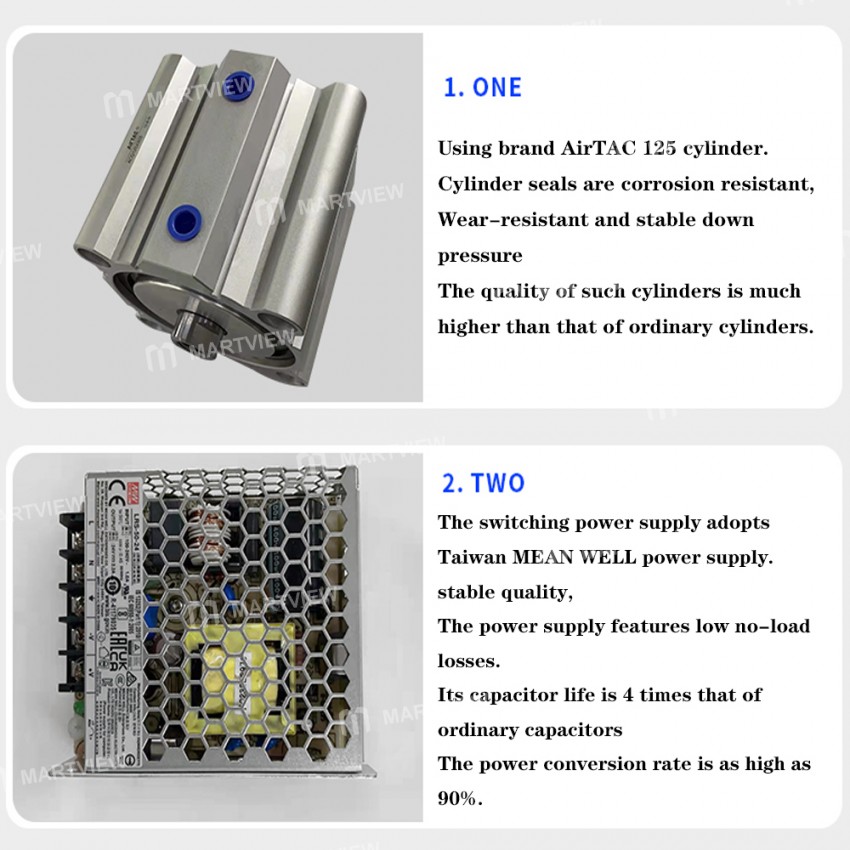

• choose 125 cylinders of AirTAC brand, it is corrosion-resistant by cylinder liner seal ring, stable pressure performance underwear resistant conditions, cylinder quality is better than others

• Switching power supply choose to Mean Well power, good quality, this power supply reduce the no-load voltage and low-loss power the life of capacitance is 4 times higher than ordinary conversion efficiency is up to 90%

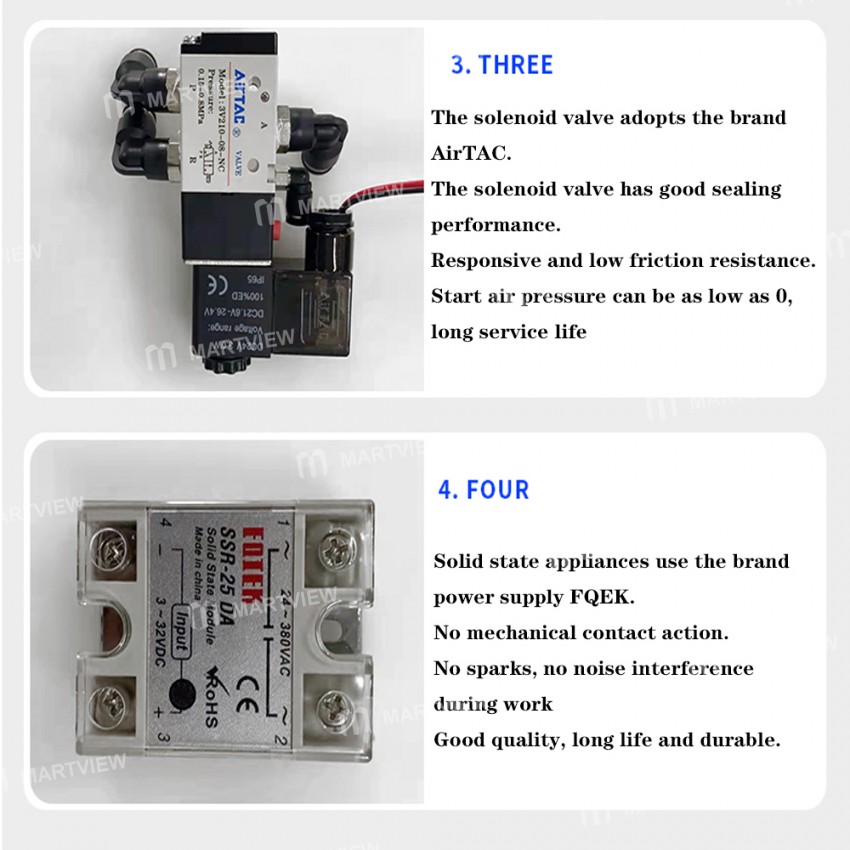

• Solenoid valve adopts AirTAC brand good solenoid valve sealing responsiveness, low friction resistance

• The pressure of starting air is too low as zero, extending the service life

• Solid state electronics chooses the Fqiek brand, touch controller without mechanical contact action spark-proof, work without noise interference, good quality, long life, and durability

Specification:

• Name: Laminating Machine For Curved Screen

• Model: Mechanic 6

• Voltage: 110V/220V

• Power: 400W

• Size:355*260*360mm

• Box gauge: 460*380*360mm

• Net weight: 27.5KG

• Gross weight: 32.5KG

• laminating size:10.5 inches and below

• Material: Aluminum alloy/Stainless steel

• Range of application: iWatch screen, edge screen, flat screen, glasses, and PAD screen

Steps:

• A tray is required to fit the straight screen and the cover plate

• When fitting the curved screen, please use the curved screen mold and take out the tray.

• When placing the curved screen mold, push it in place along the groove

• When using the rubber pad to stick the curved screen, put the tray into the bin and close the bin door

Tips:

• Directly face the bonding pressure of 1.0-1.5Mpa and the vacuum for about 25 seconds, and the lamination time is 5 seconds to 15 seconds

• The plate lamination pressure is 1.5-2.0Mpa, the vacuum is 25-30 seconds, and the lamination time is 15-20 seconds

• The bonding pressure of the curved surface (small curved surface)is 2.0-2.5Mpa, the vacuum is evacuated for 30-35 seconds, and the lamination time is 20-25 seconds

• The curved surface is bonded with a mold (large curved surface, four-sided curved)with a bonding pressure of 3.0-3.5mpa and vacuumed for 30-35 seconds, and the lamination time is 25-30 seconds

• The curved surface is pasted with rubber pads (large curved surface, four-sided curved), the bonding pressure is 2.5-3.0Mpa, the vacuum is 30-35 seconds, and the lamination time is 20-25 seconds

• Before using the device, wait for 5 minutes after powering on (heating) before using it

• Factory parameters: The lamination time is 20 seconds, the vacuum delay time is 30 seconds, and the temperature is 50 °C

Package includes:

• 1 x Host

• 2 x Trachea

• 1 x Tee Connector

• 1 x Power Cord
